Home Site Map - Techniques - Code and Drawings -

Blueprints - My Structural Drawings

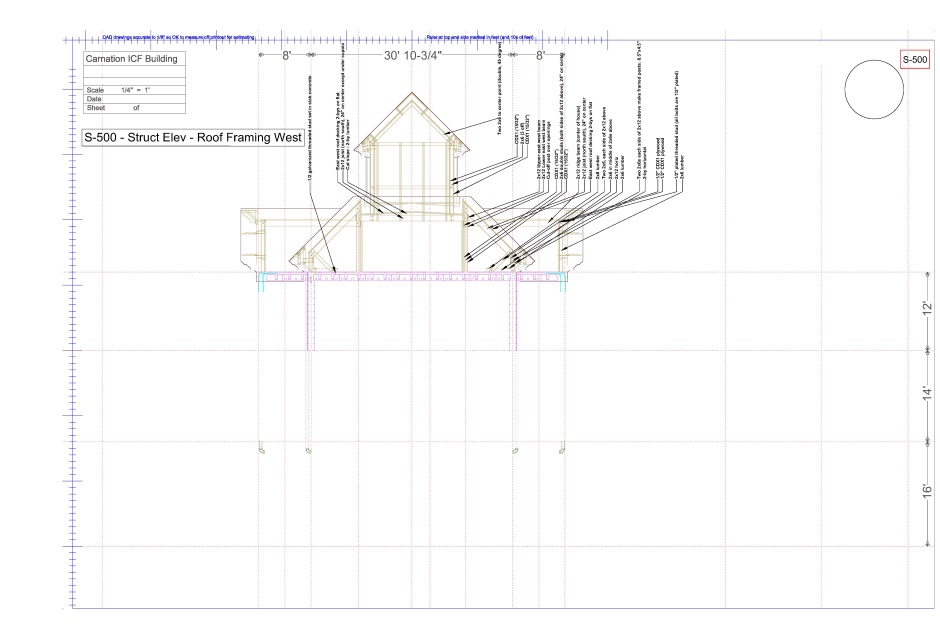

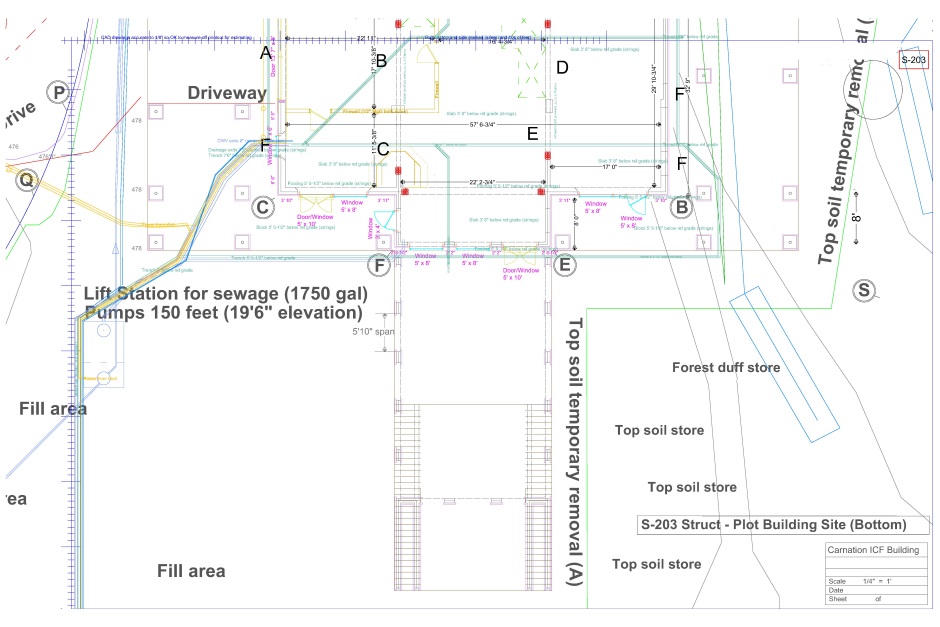

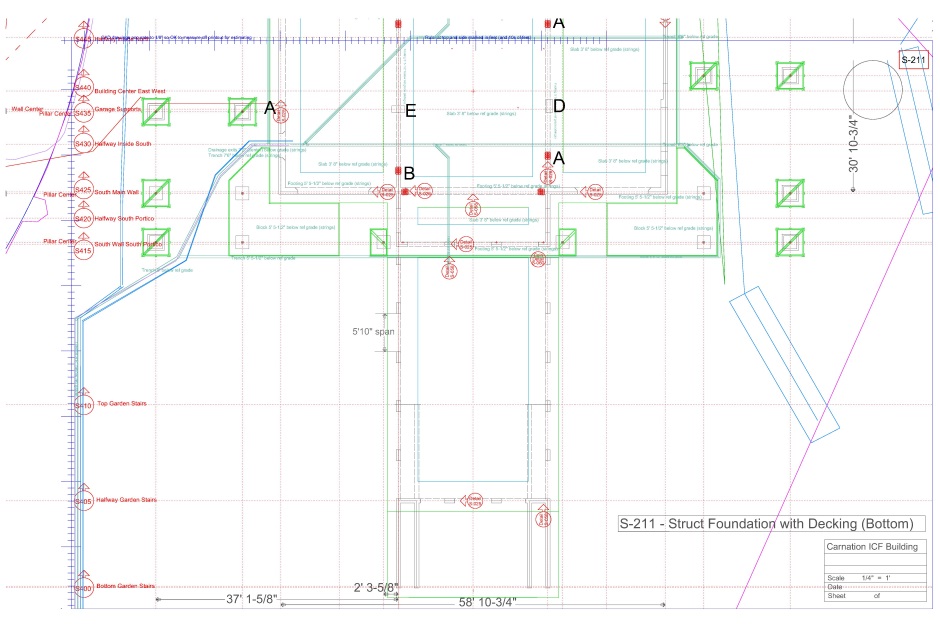

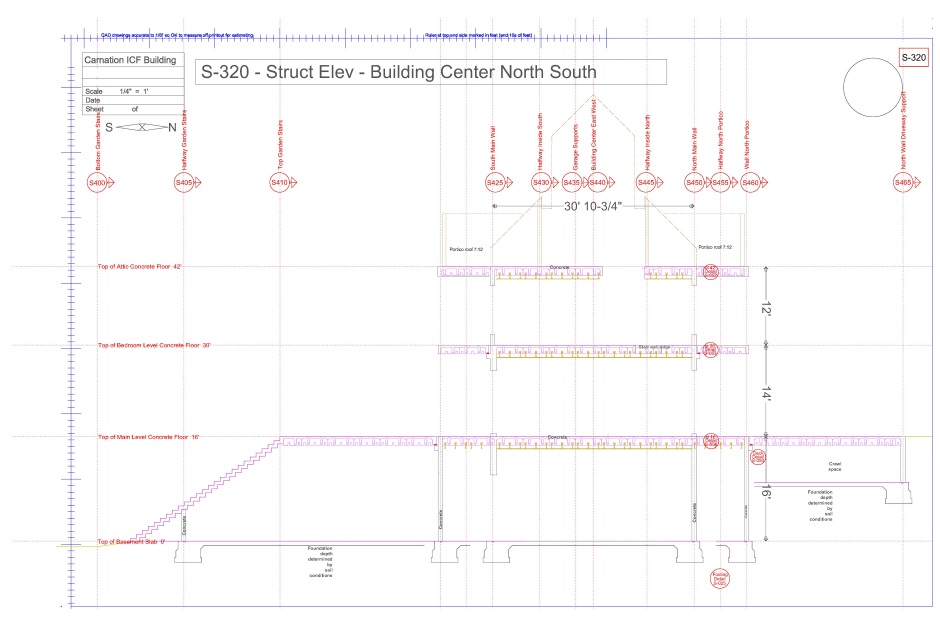

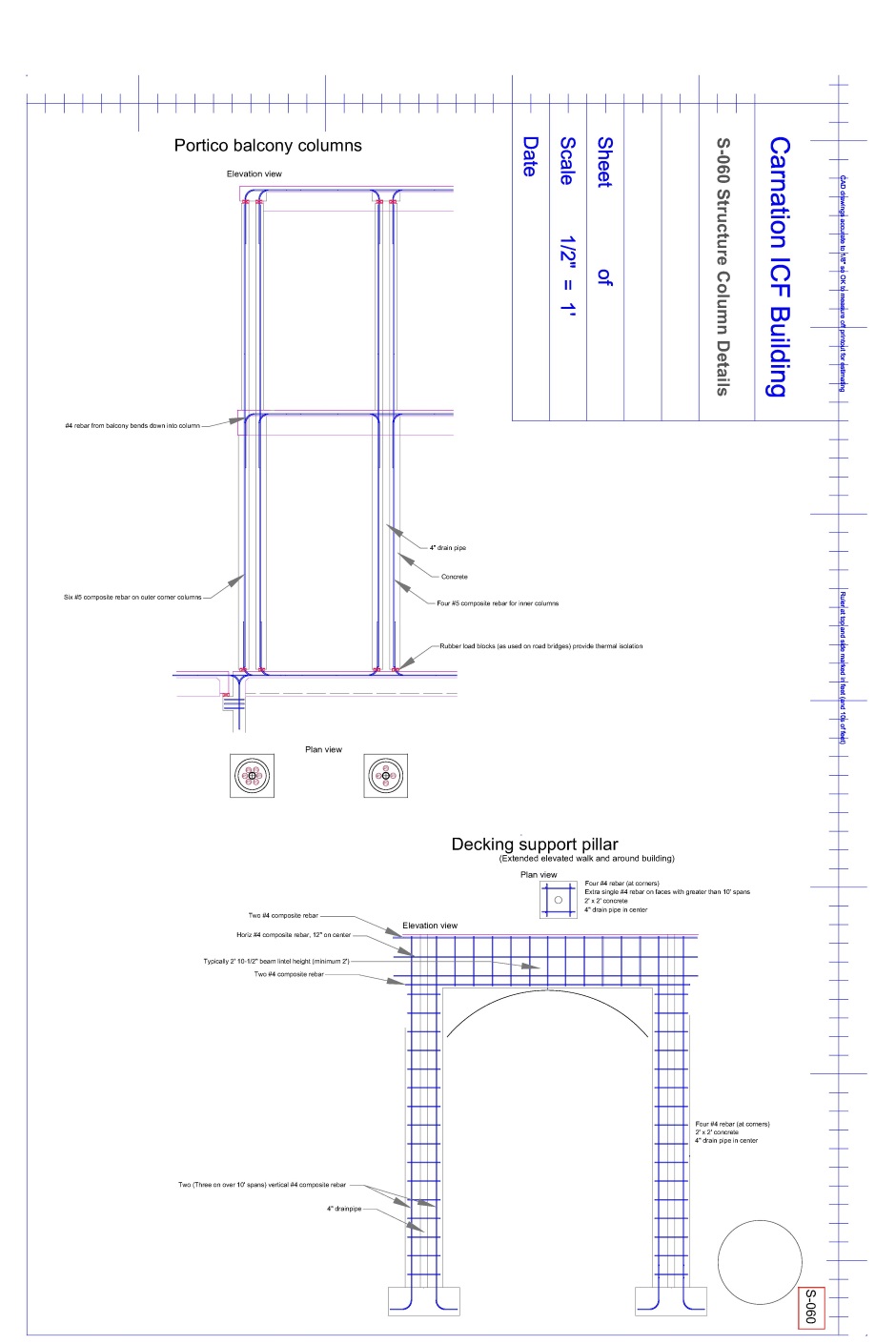

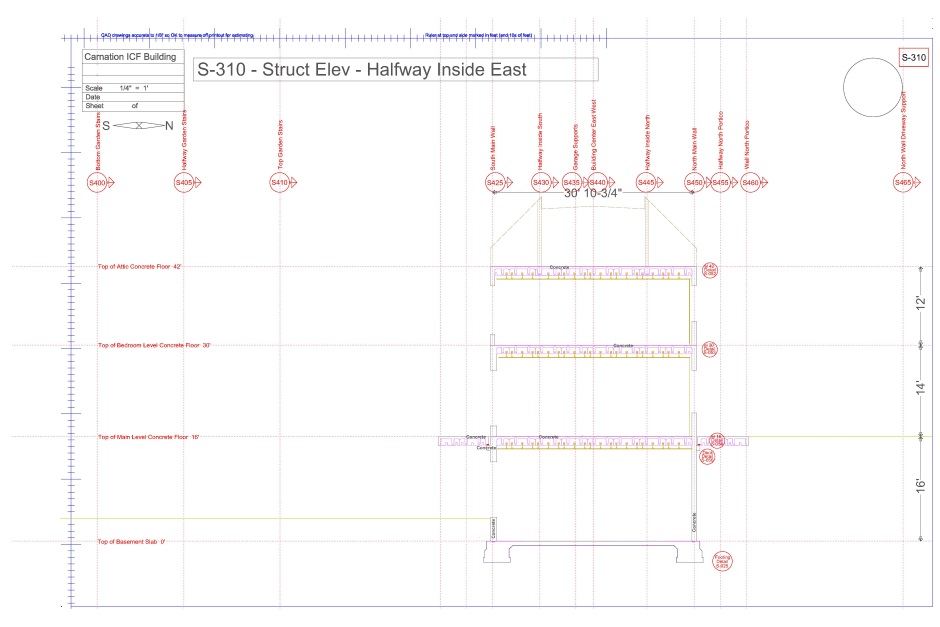

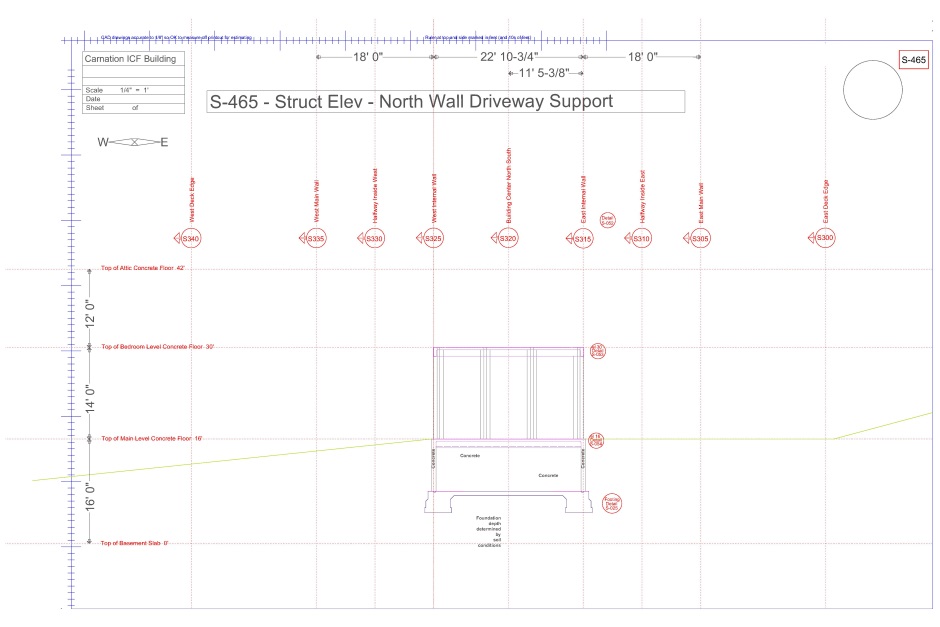

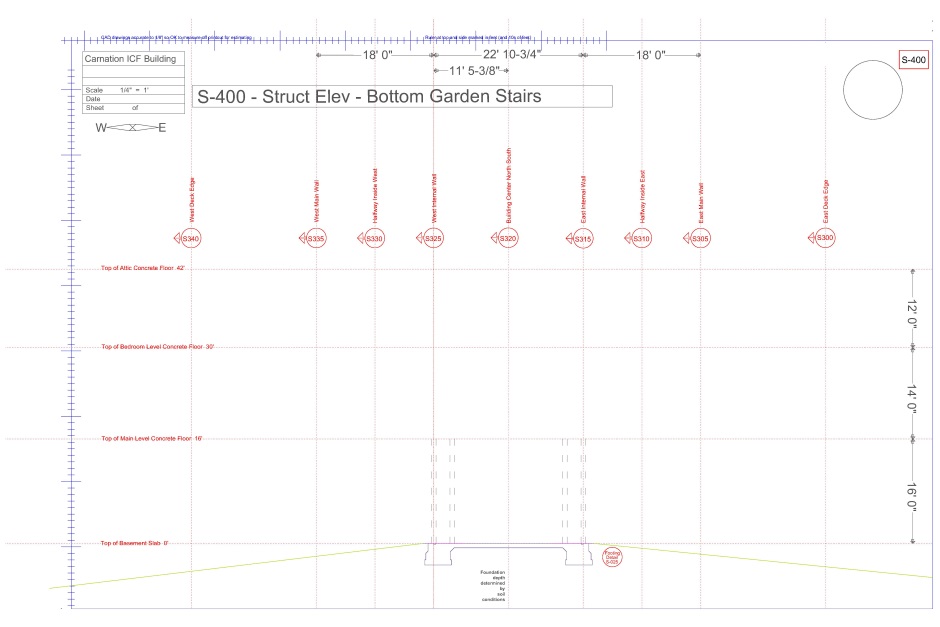

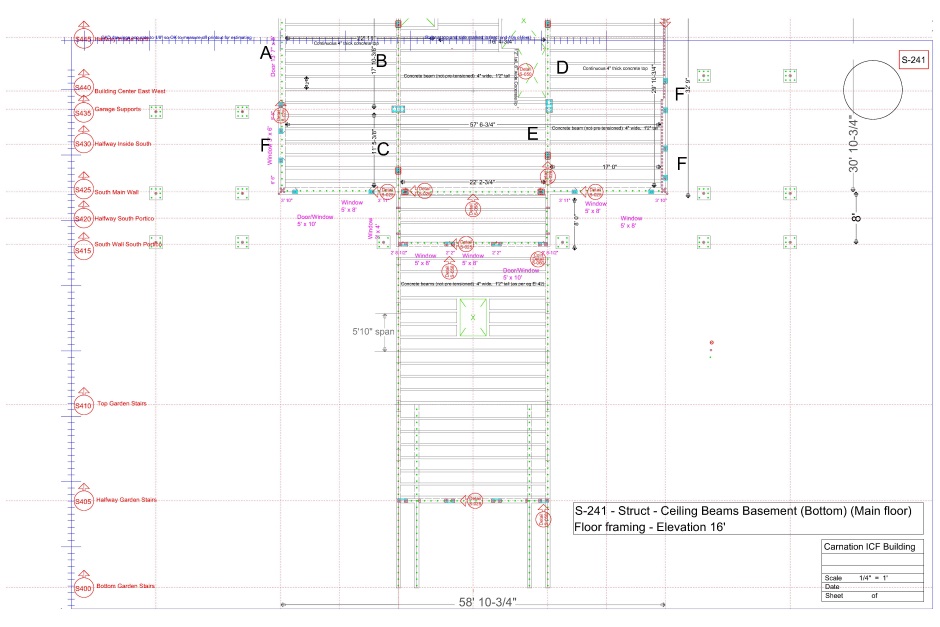

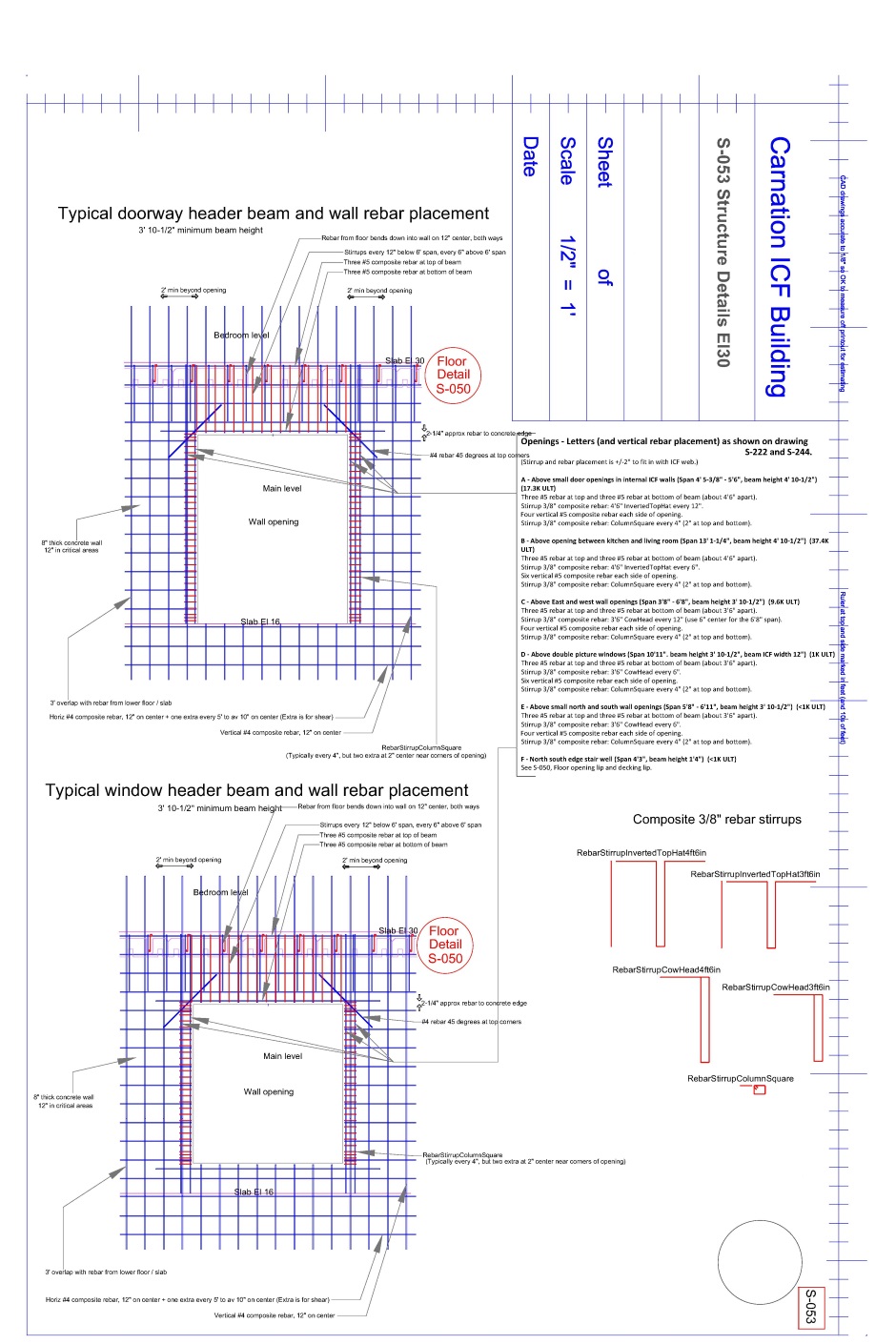

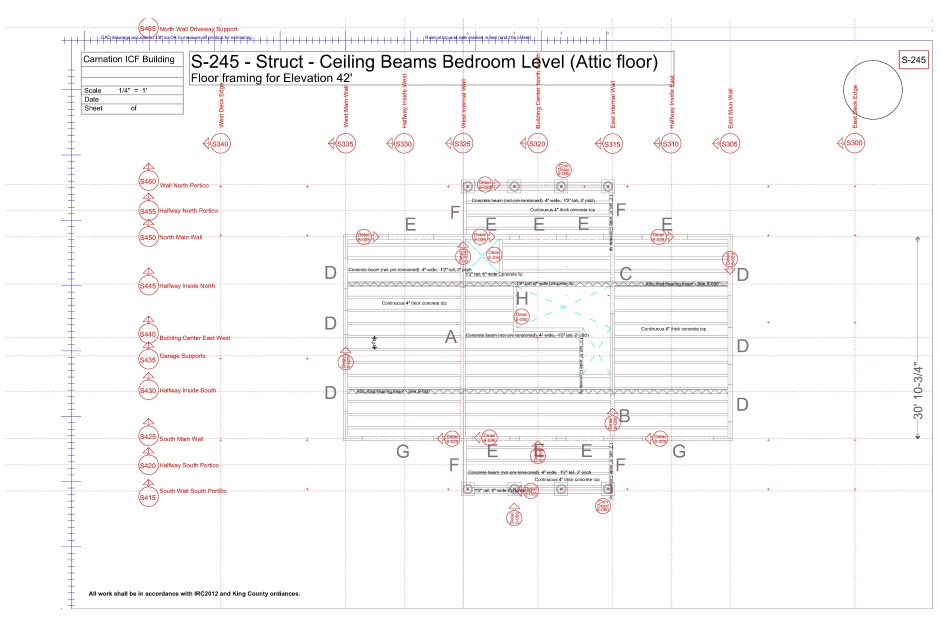

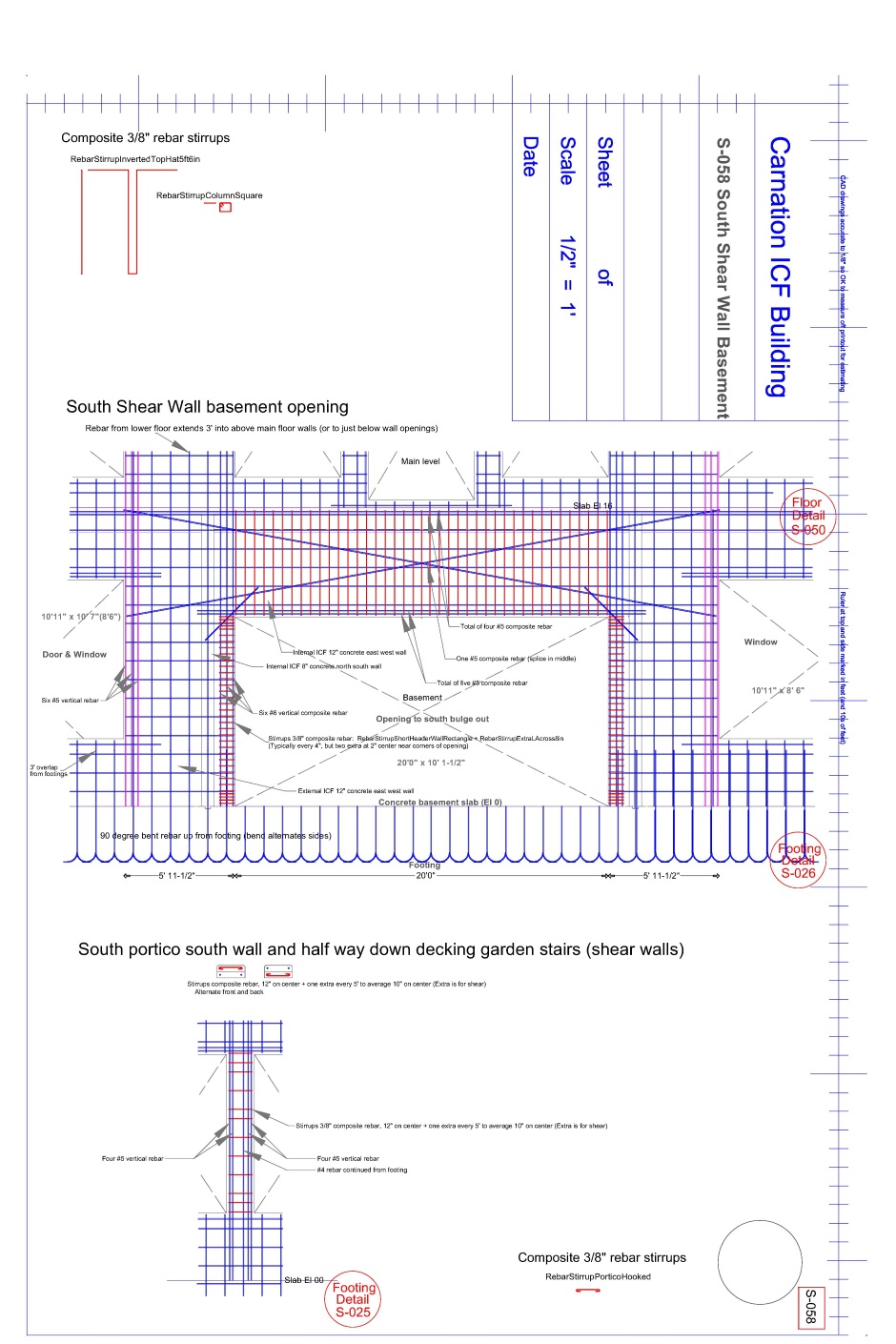

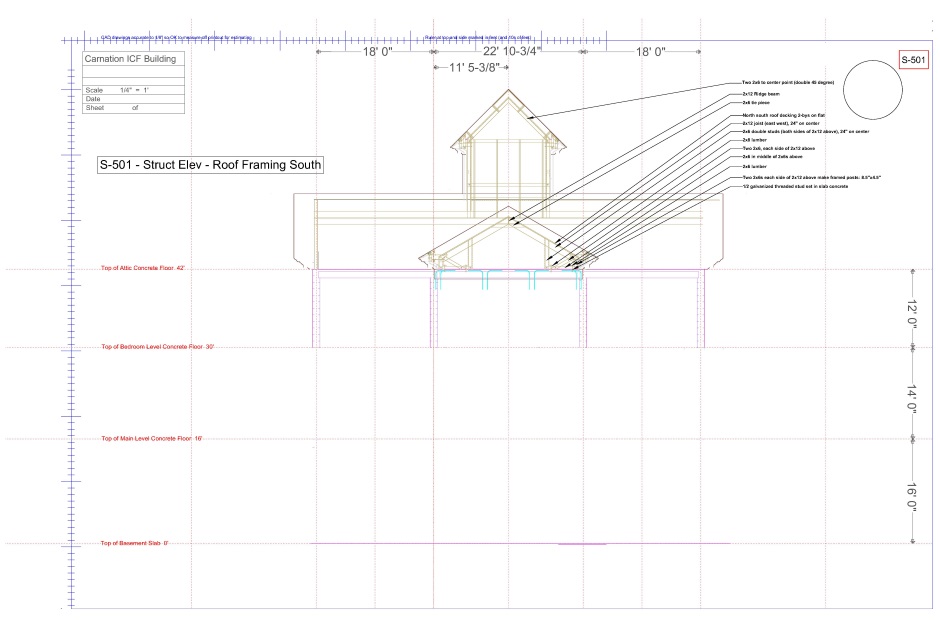

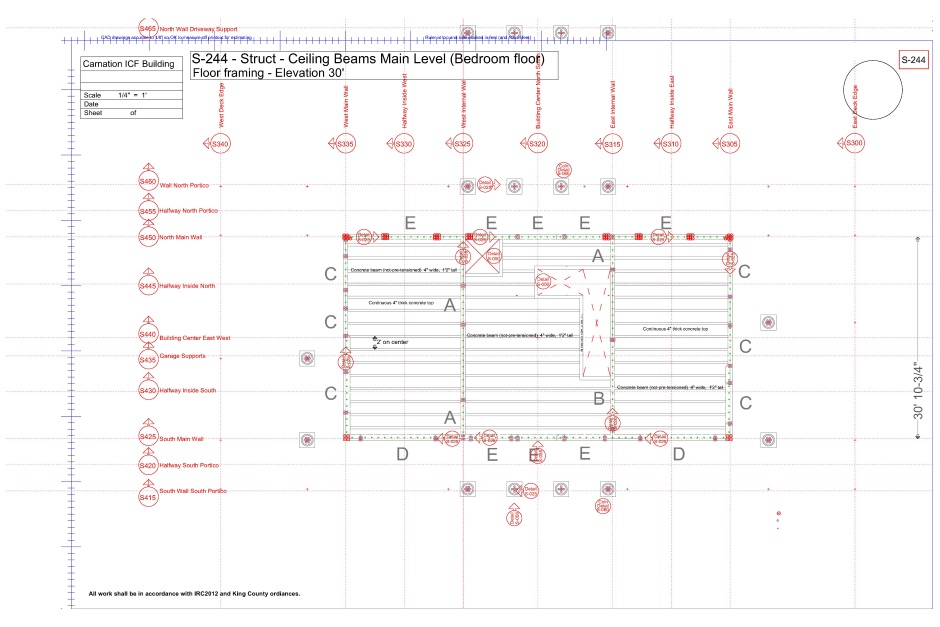

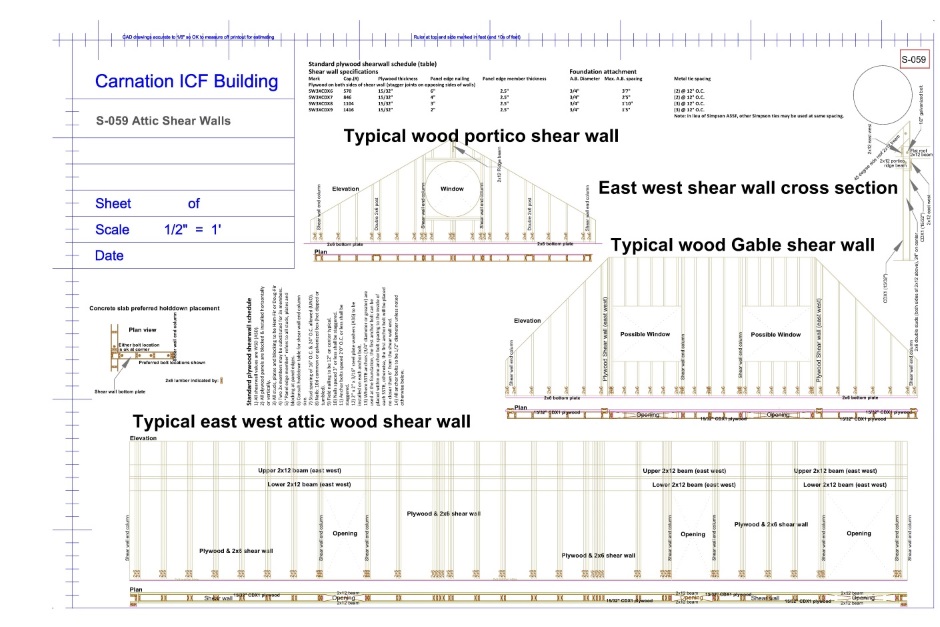

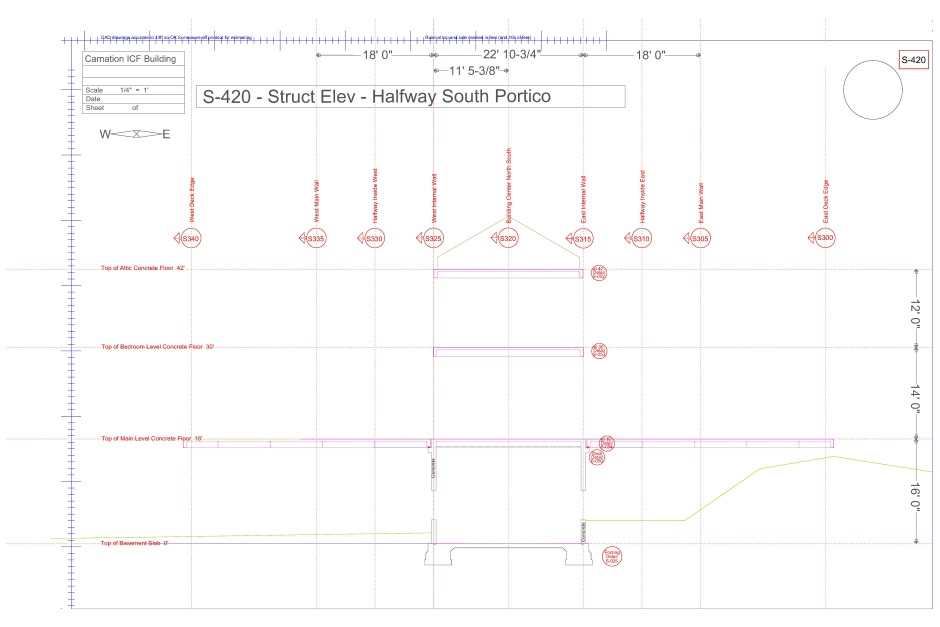

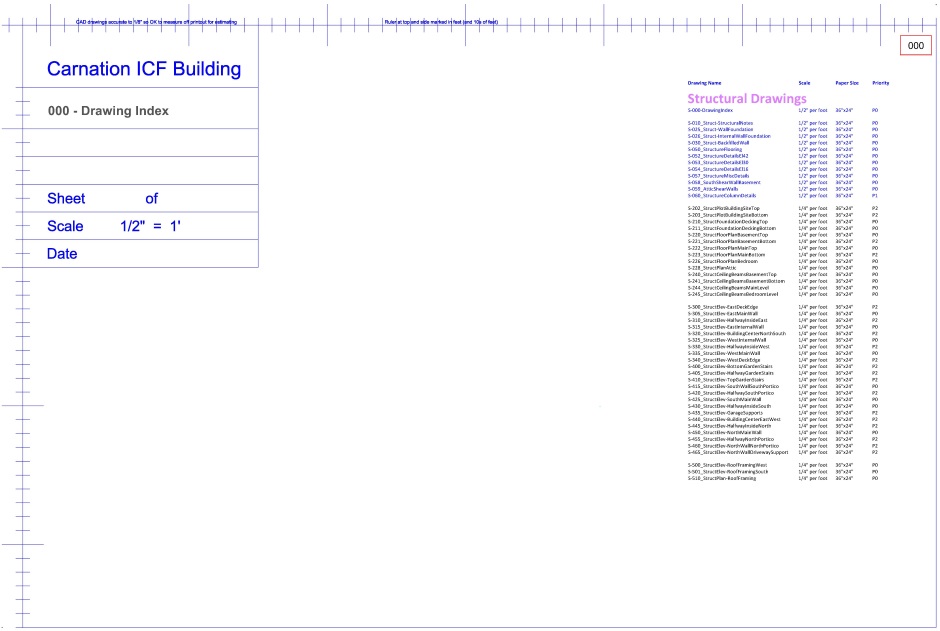

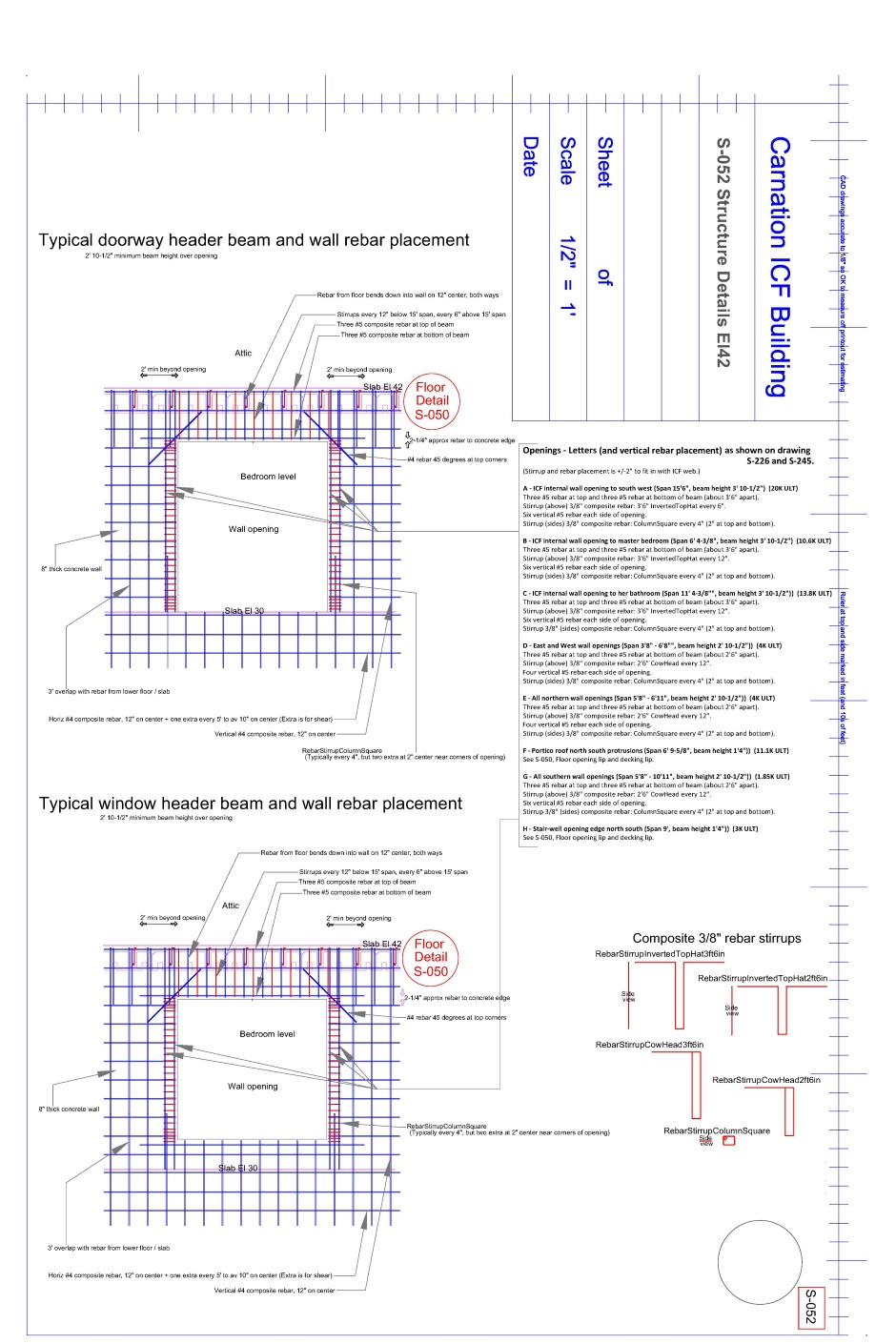

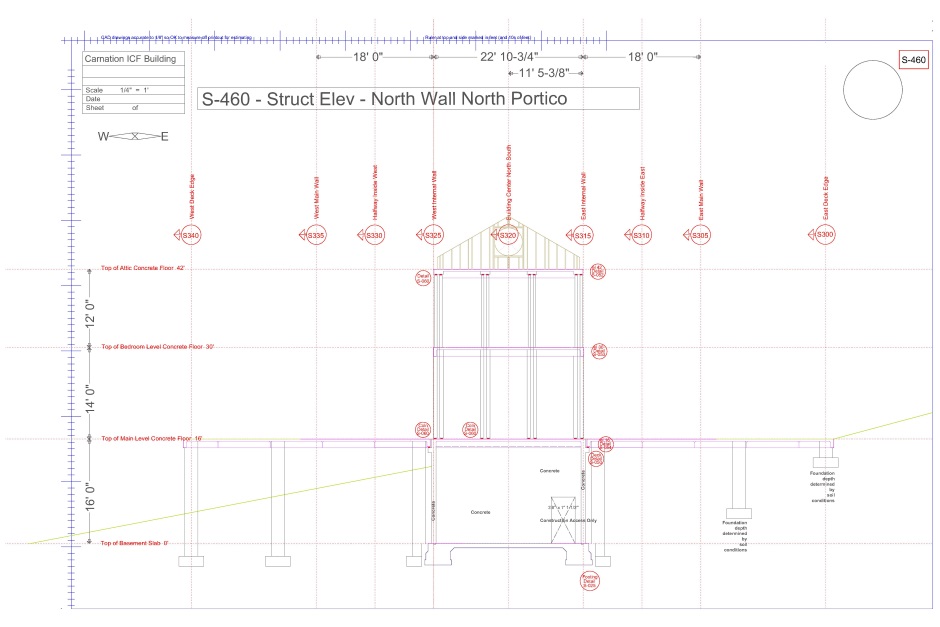

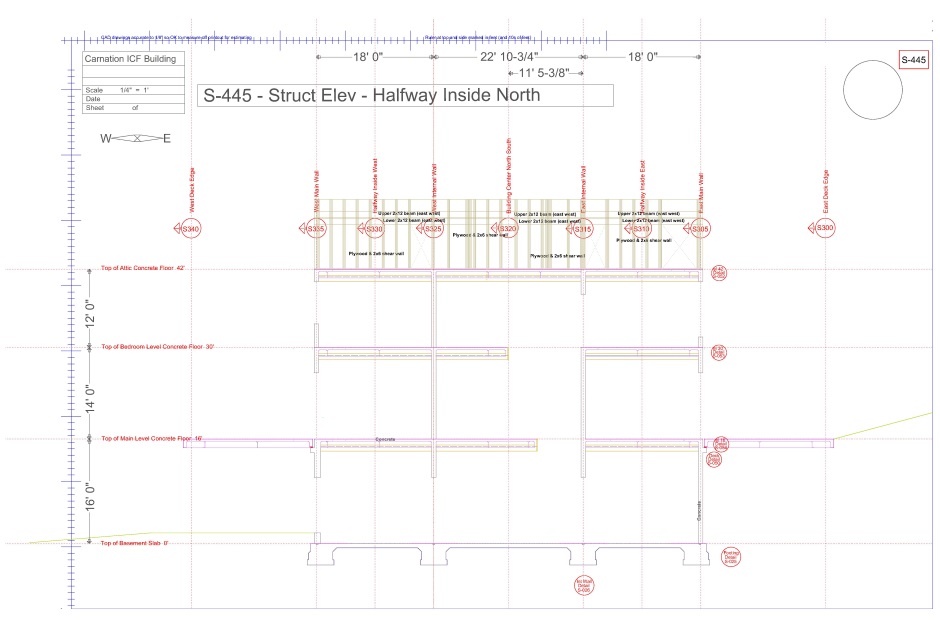

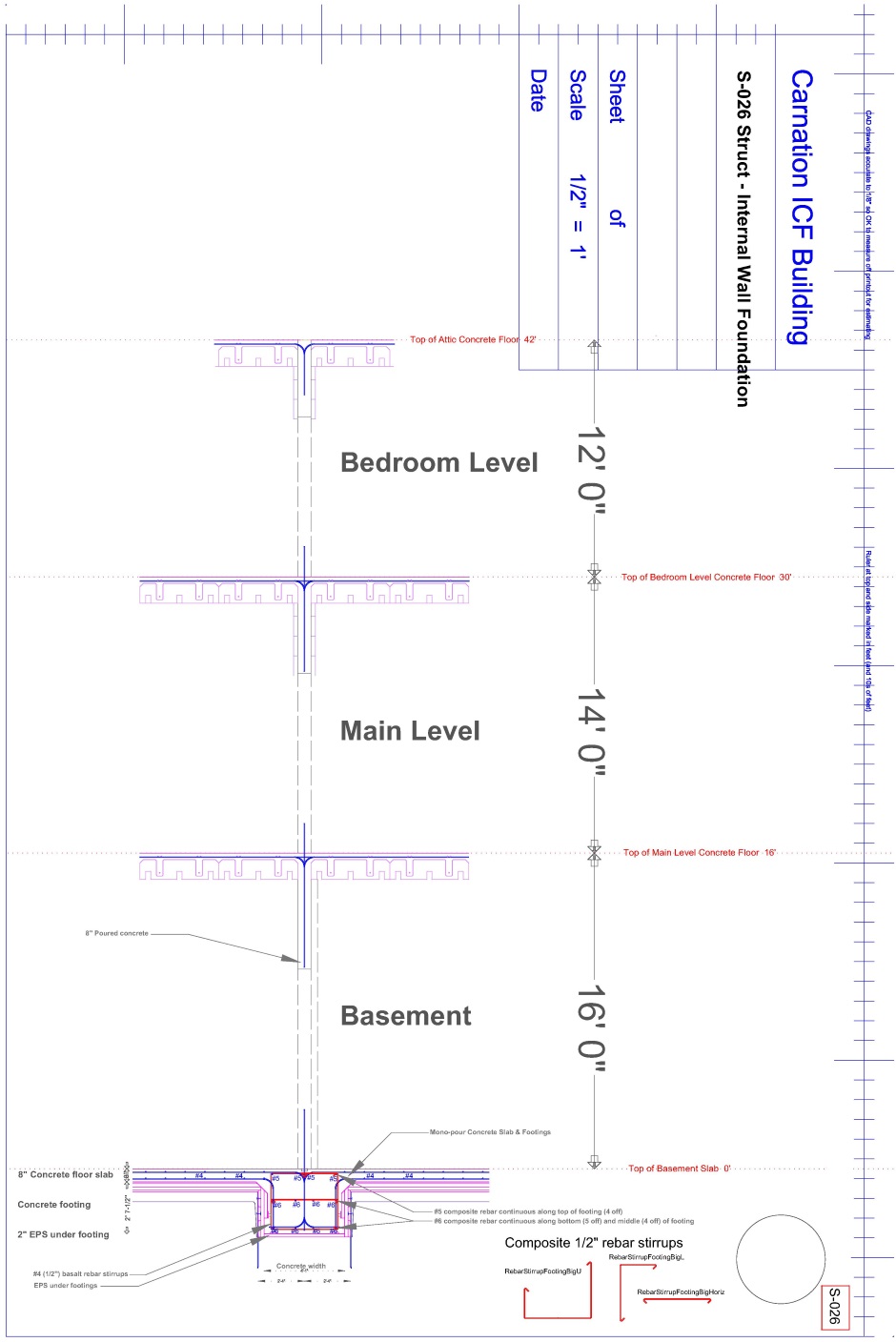

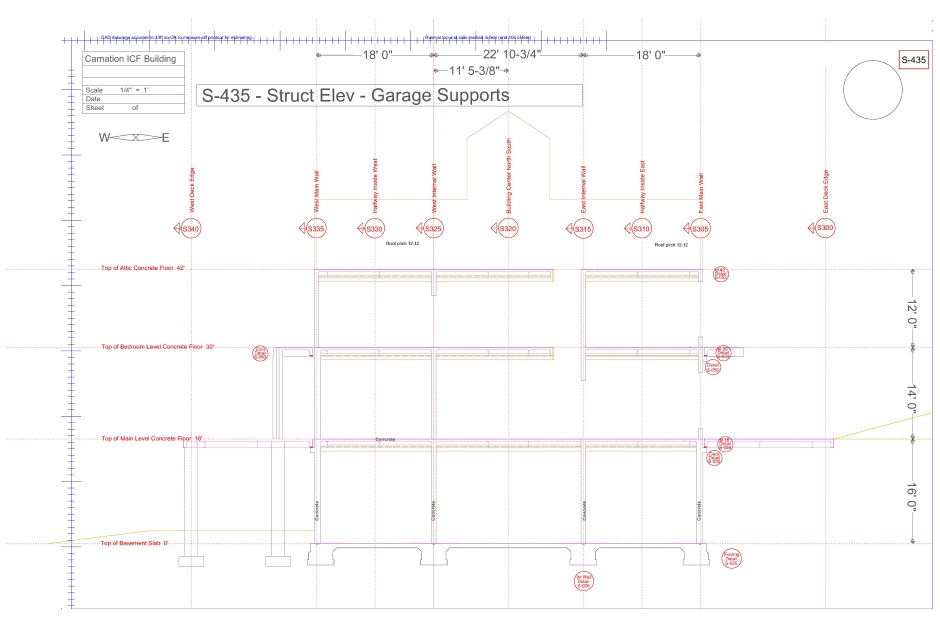

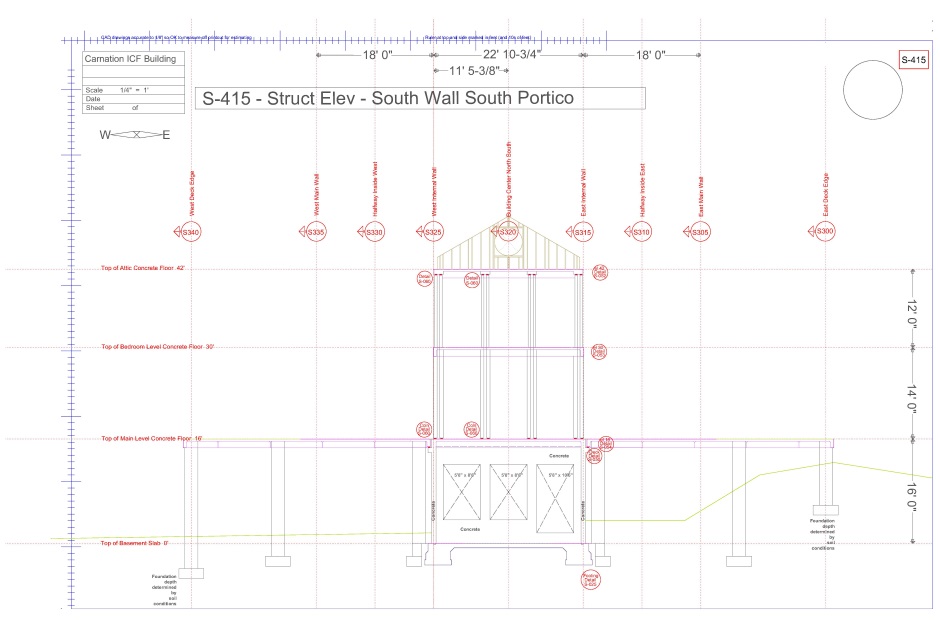

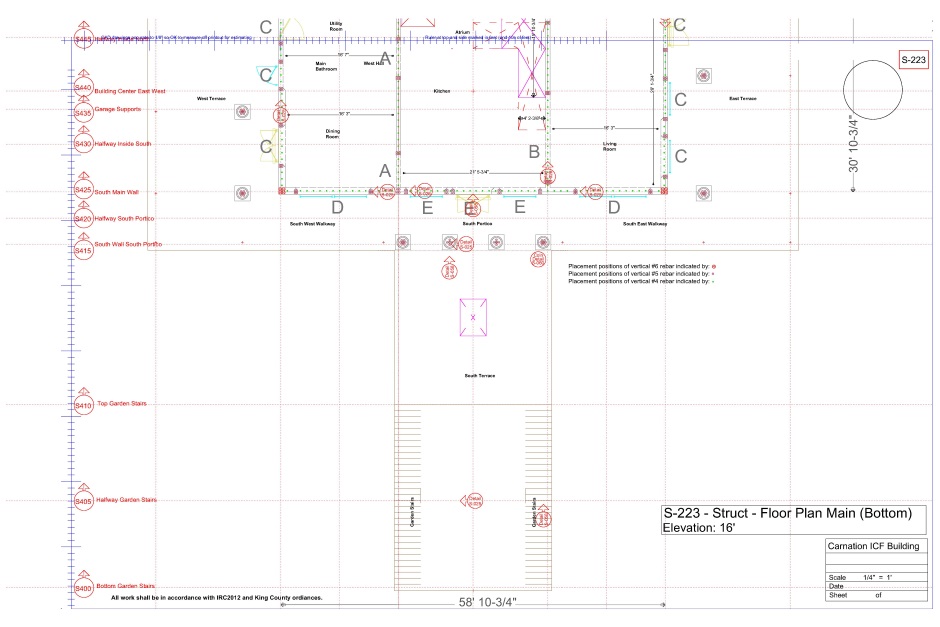

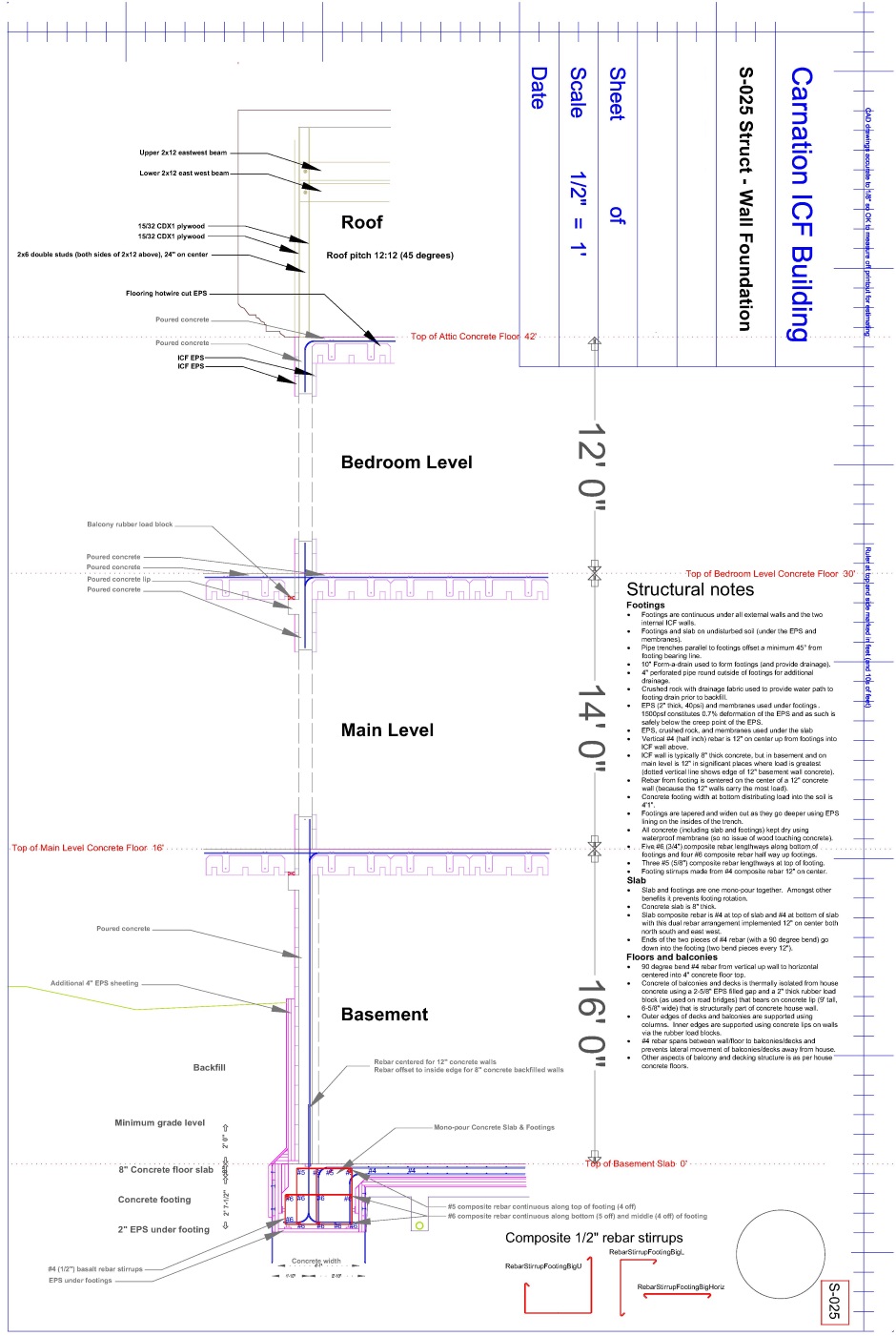

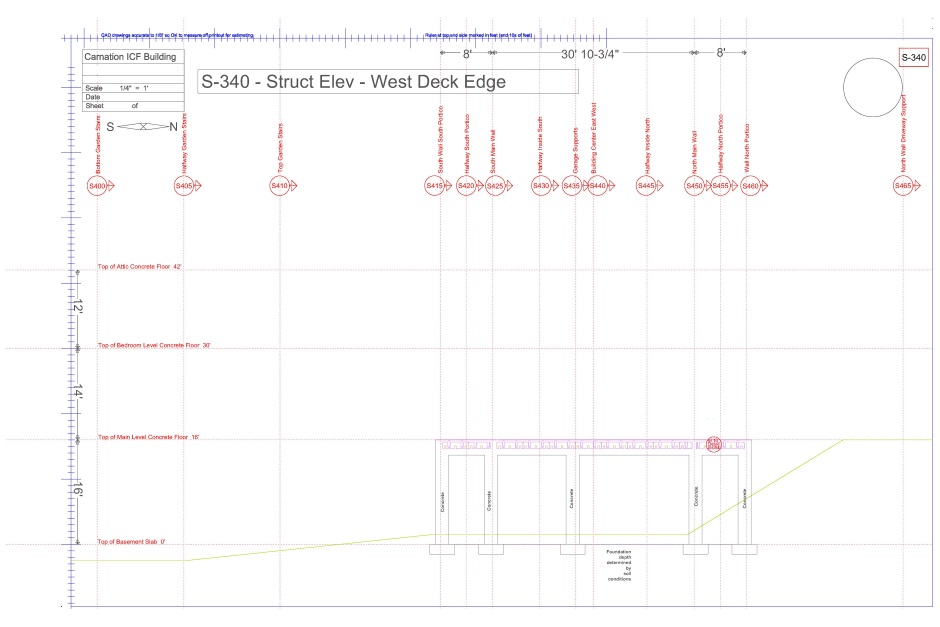

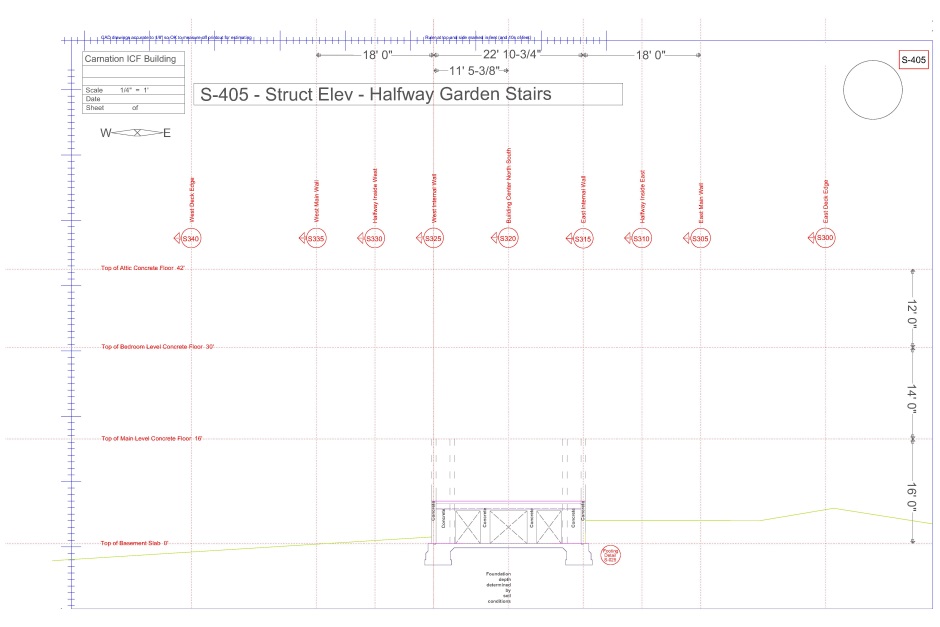

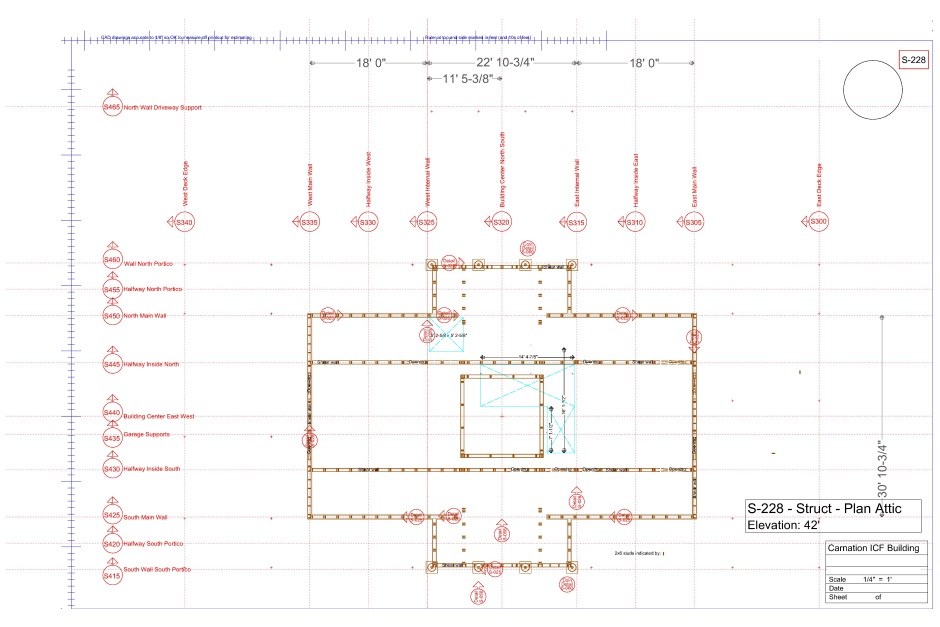

My structural engineering set of drawings

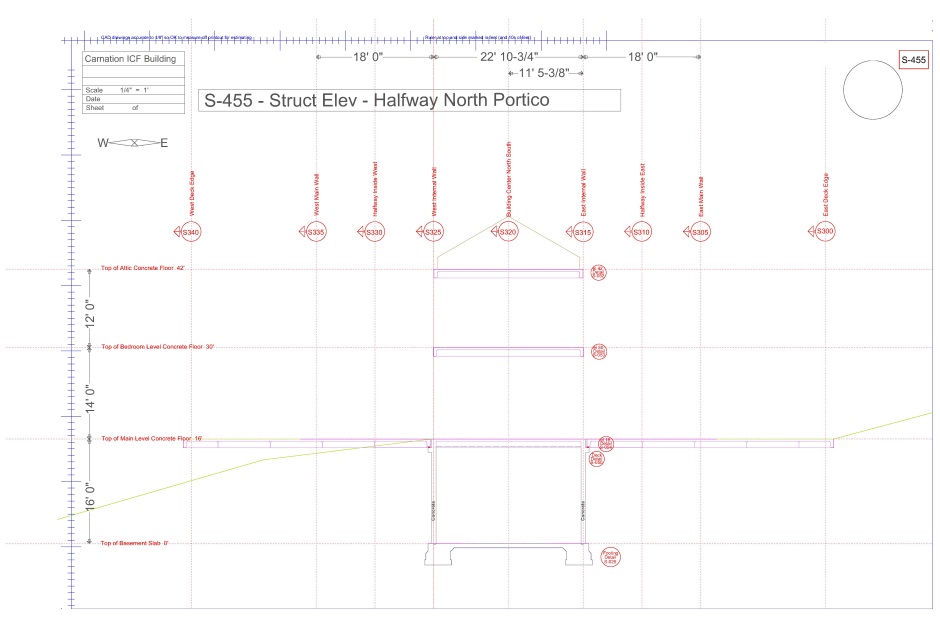

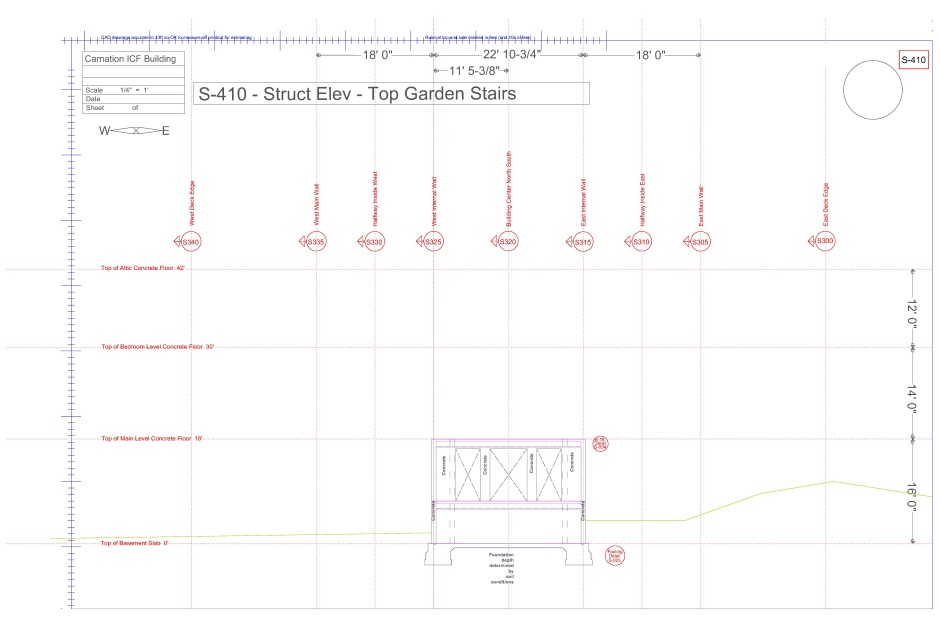

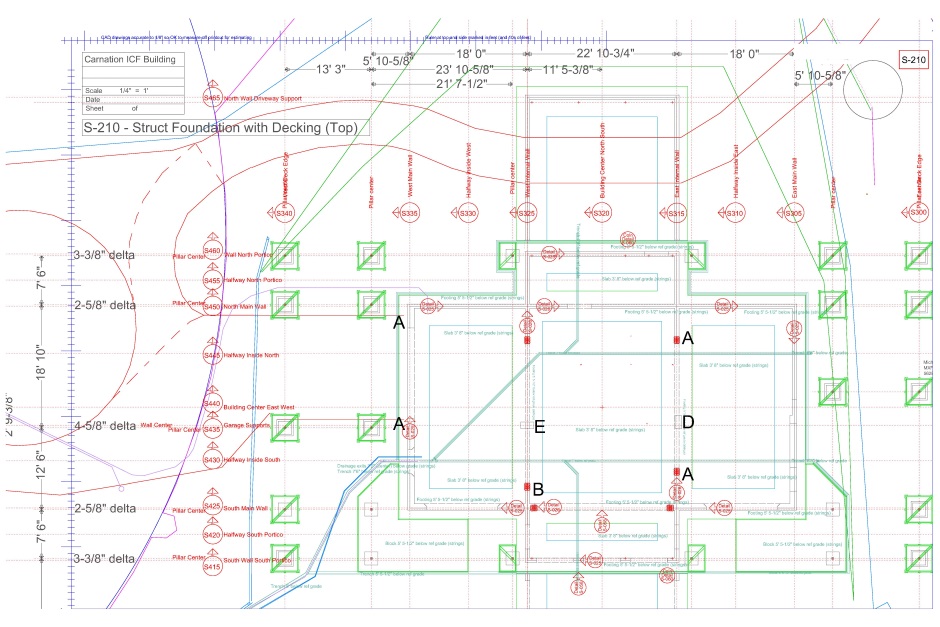

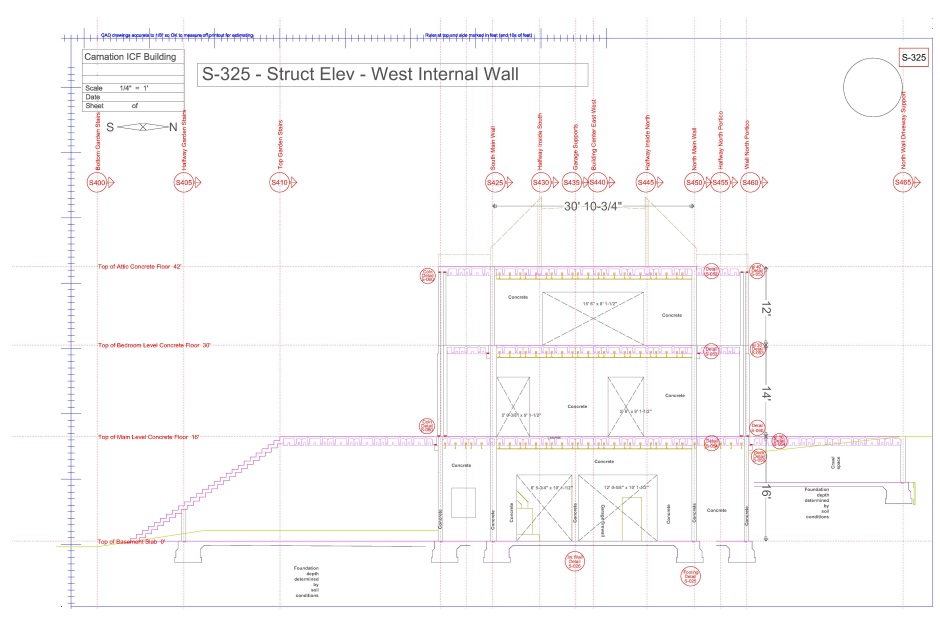

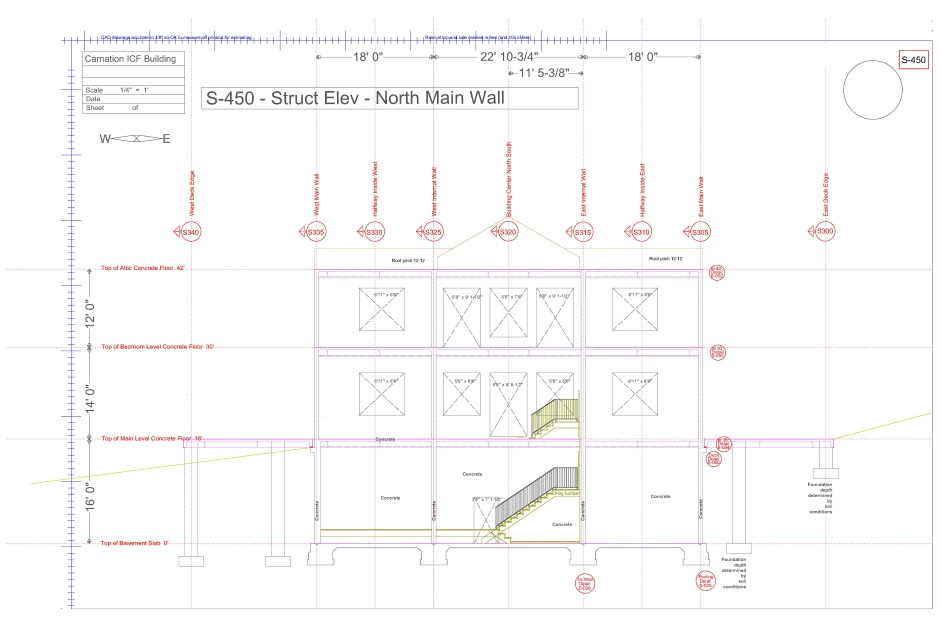

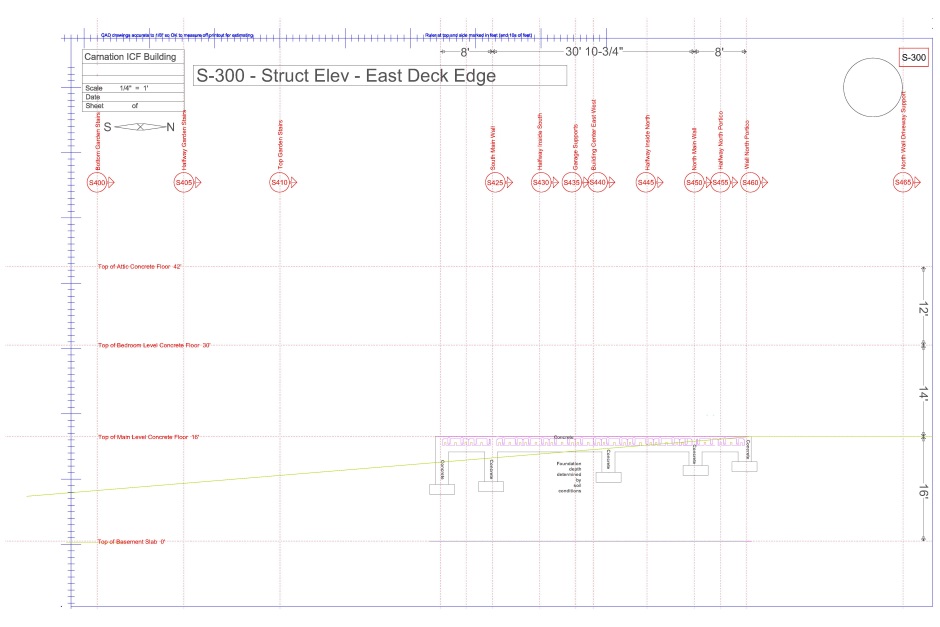

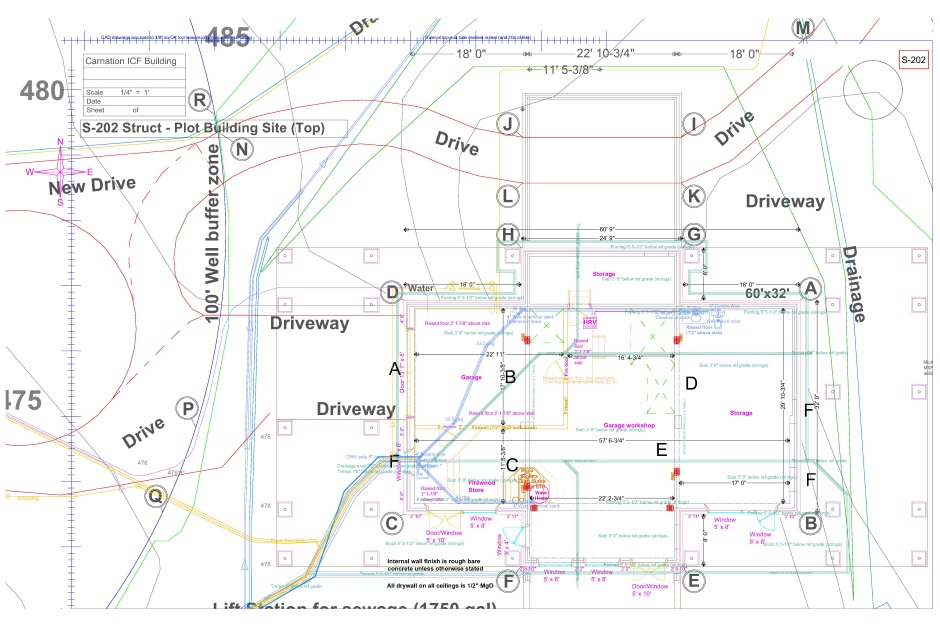

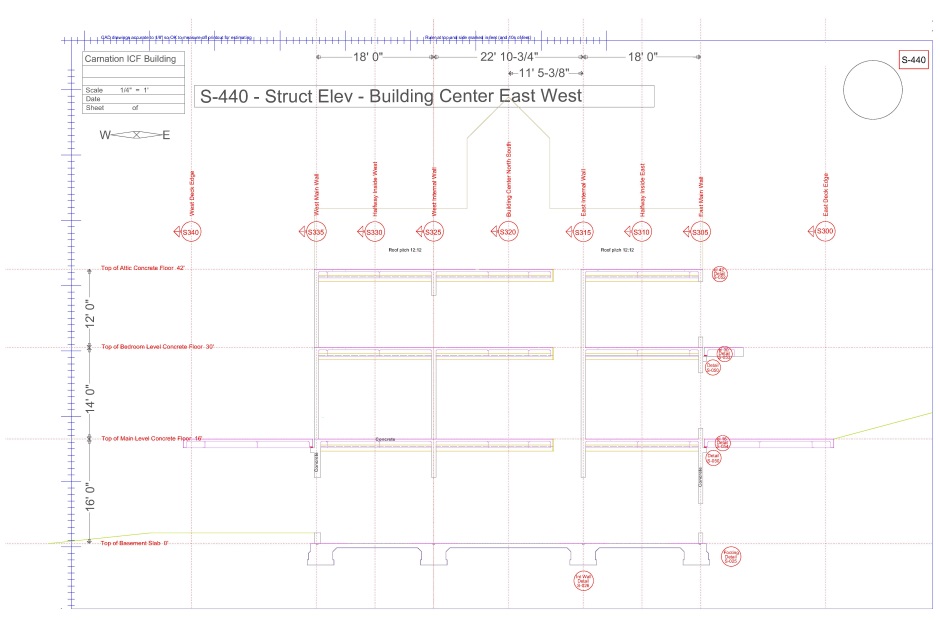

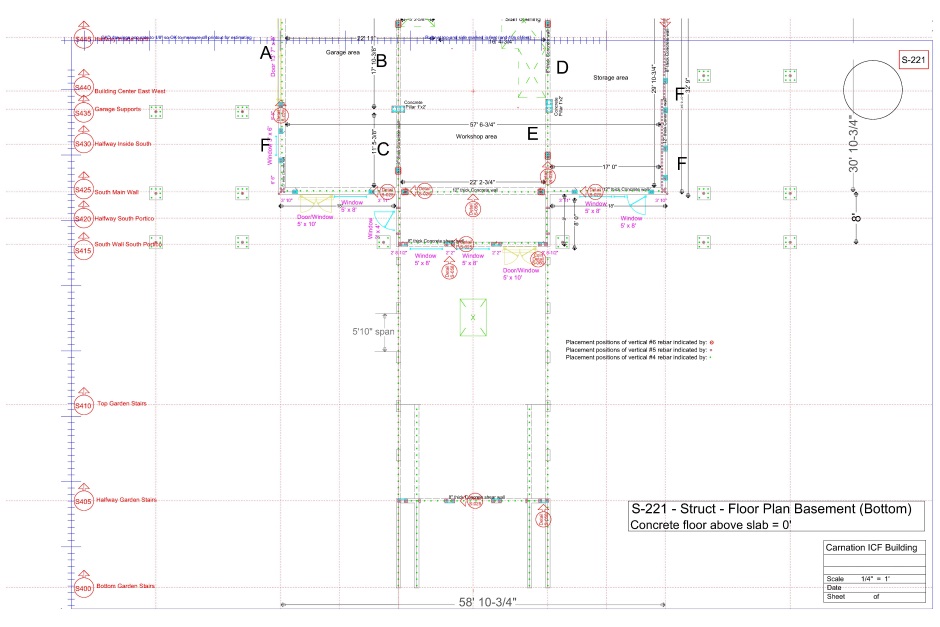

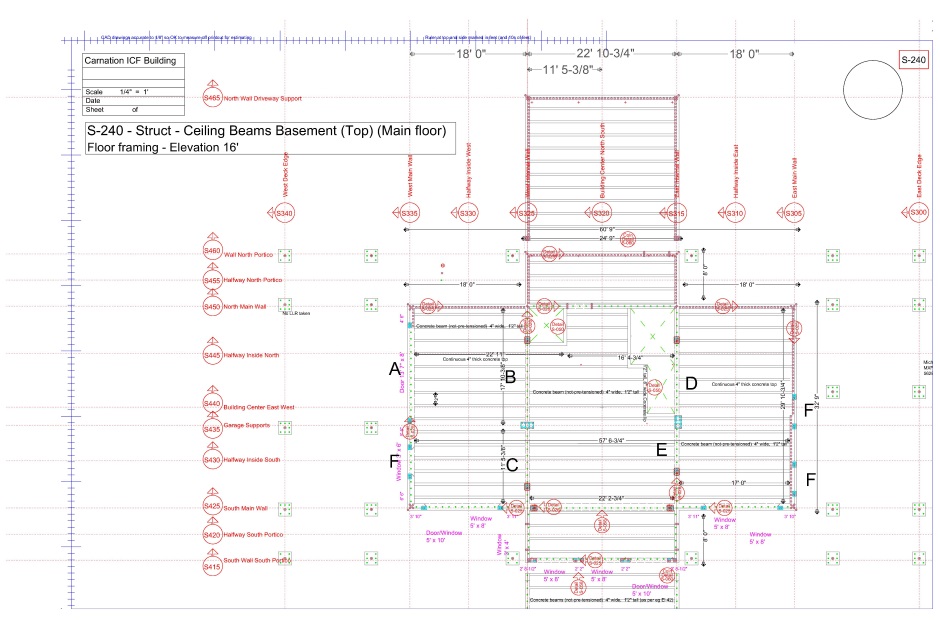

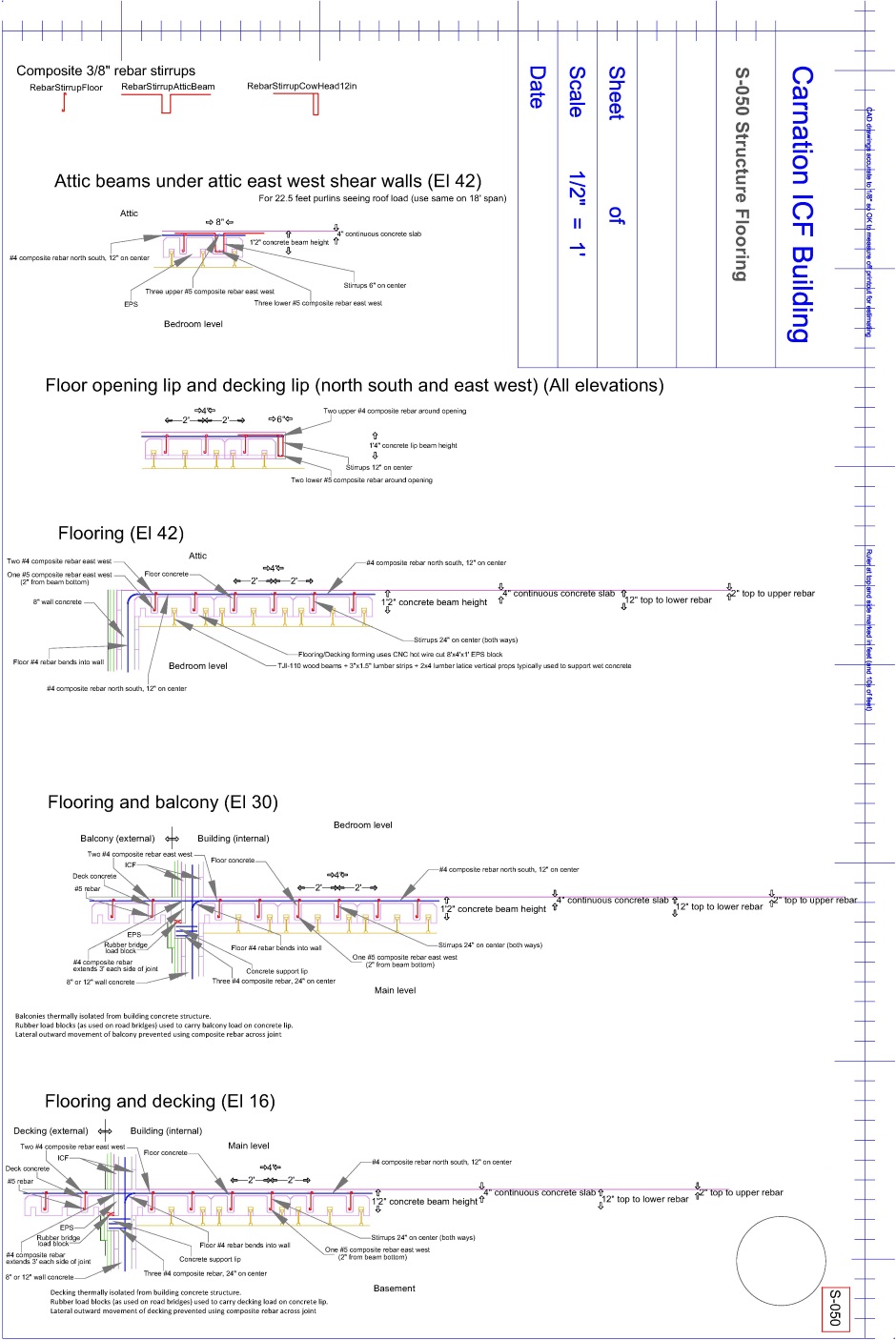

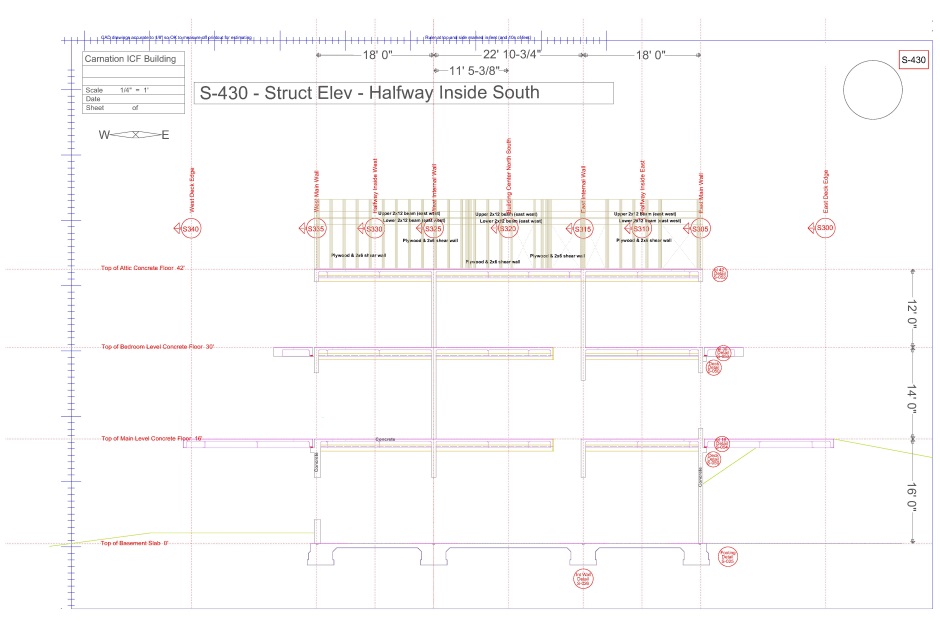

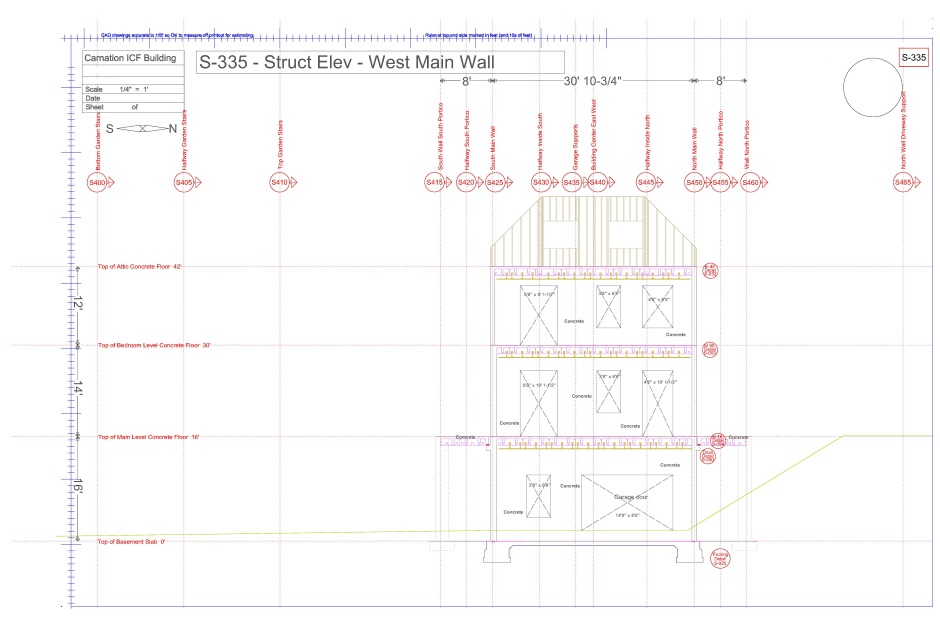

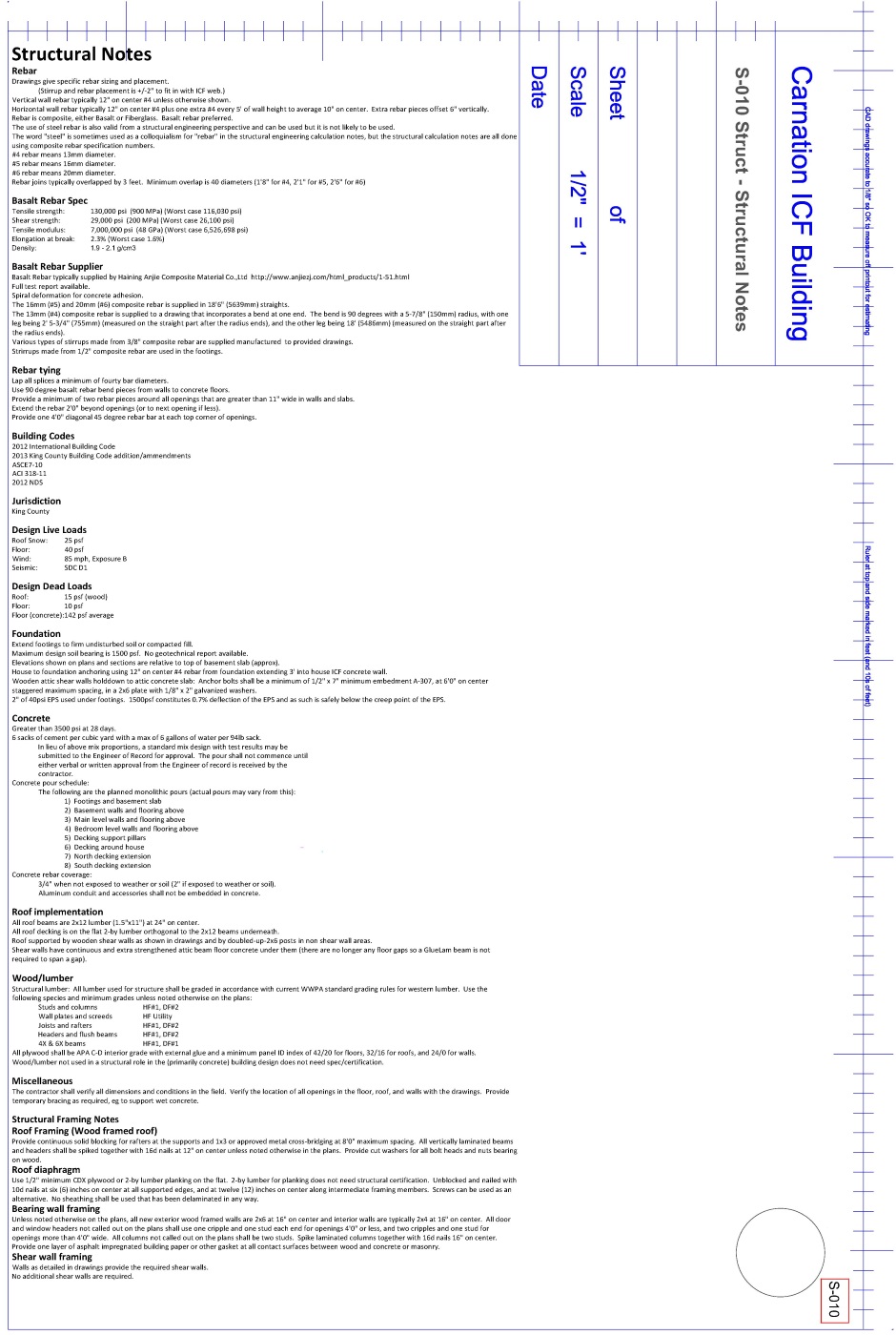

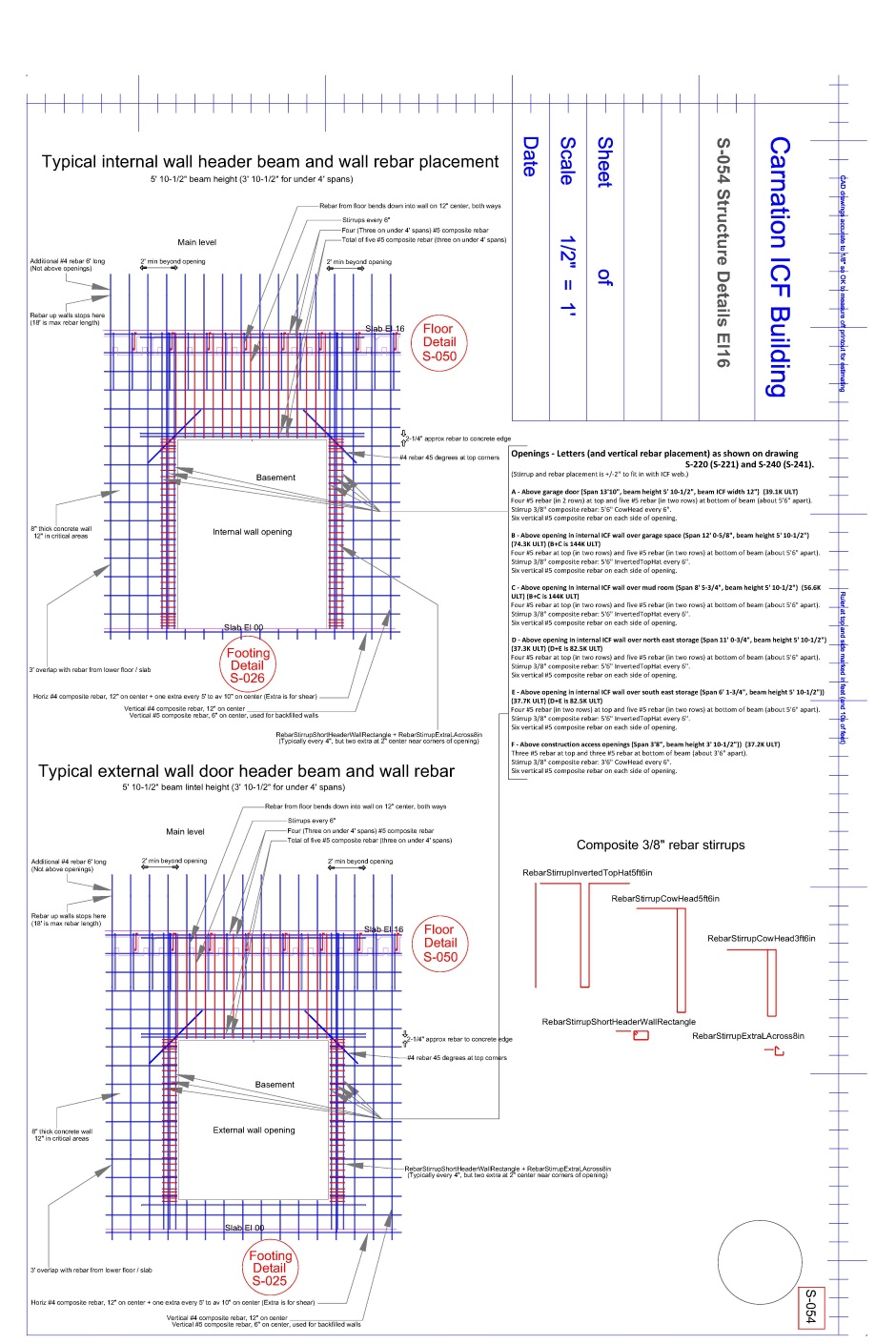

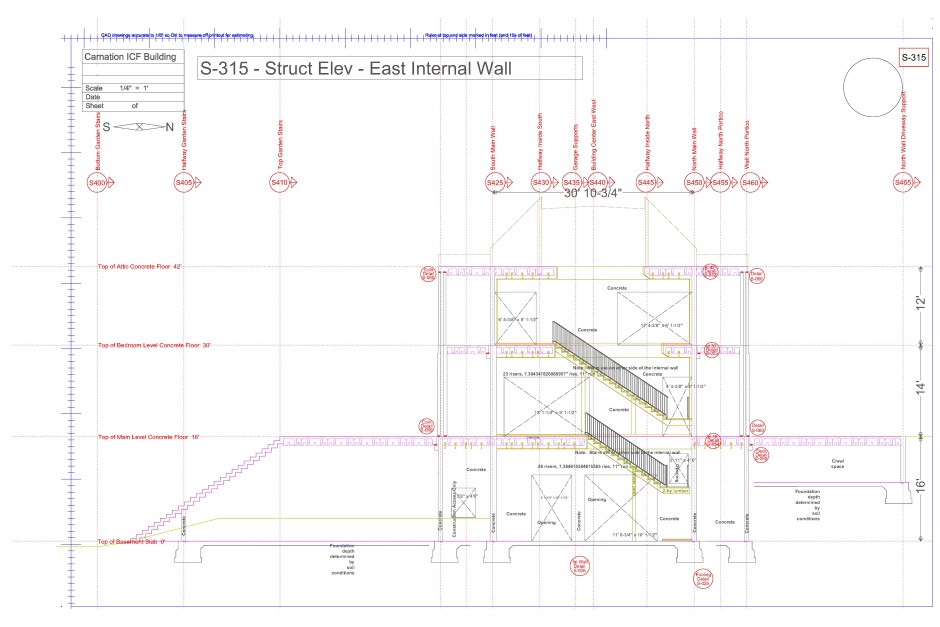

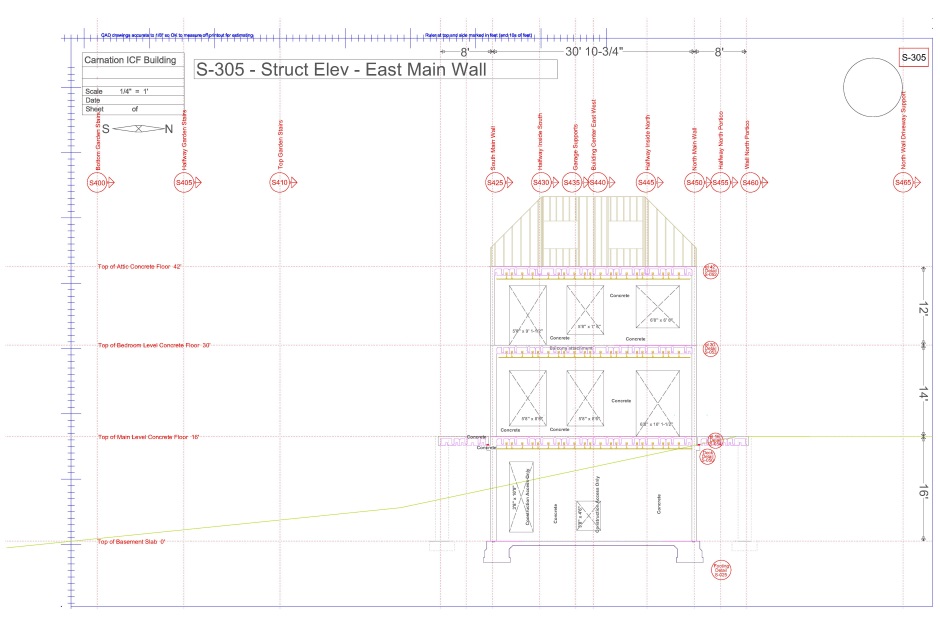

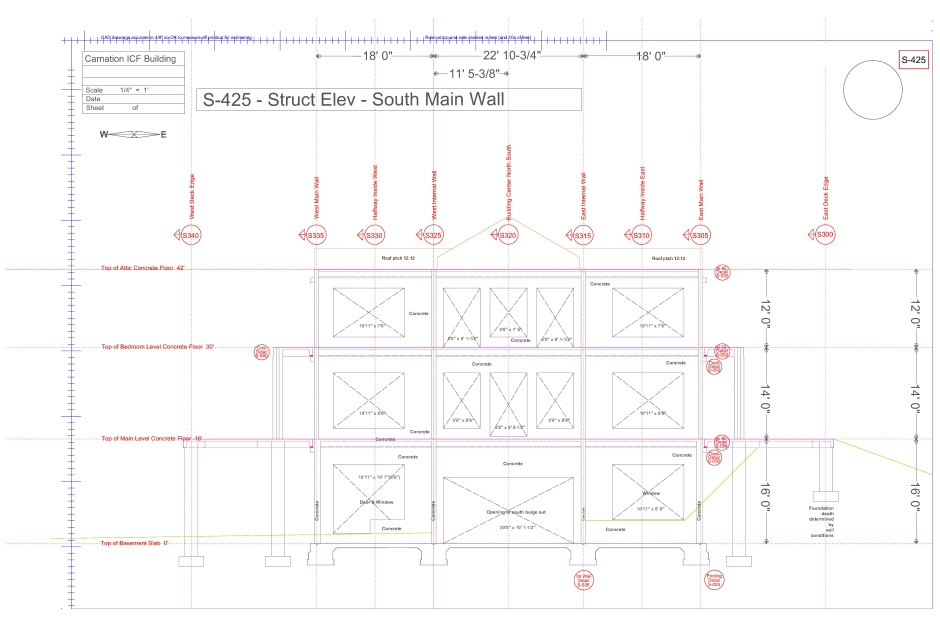

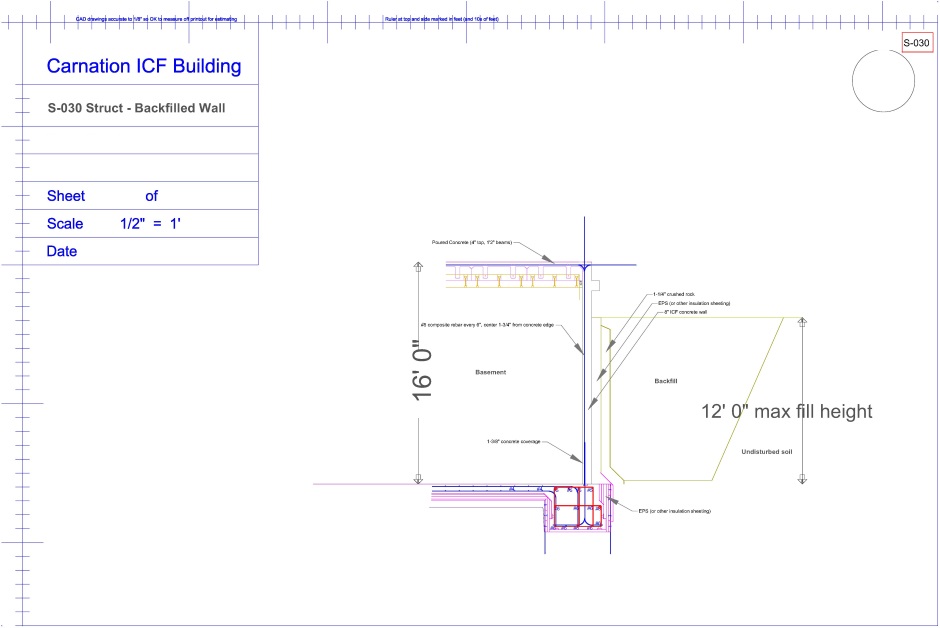

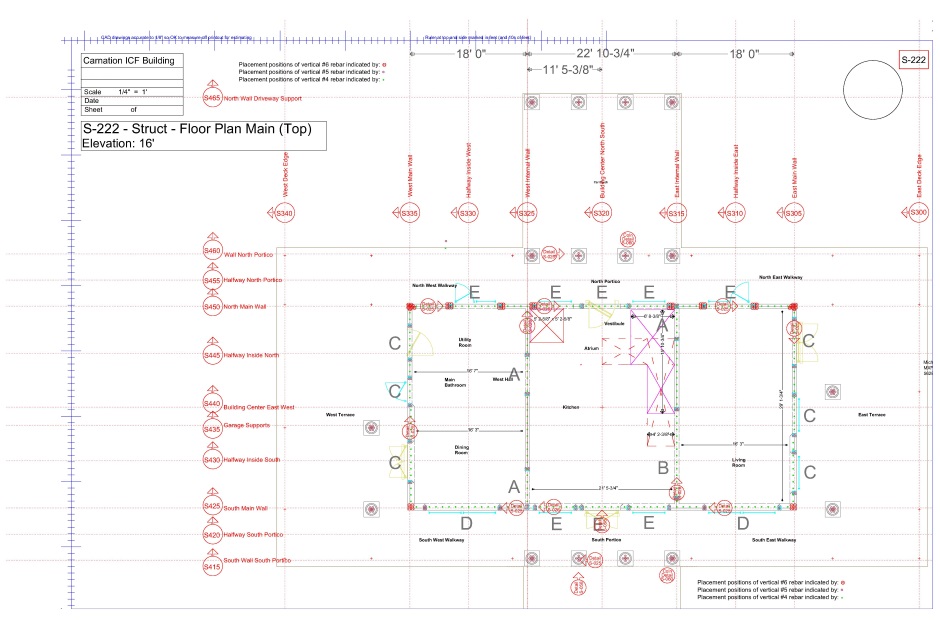

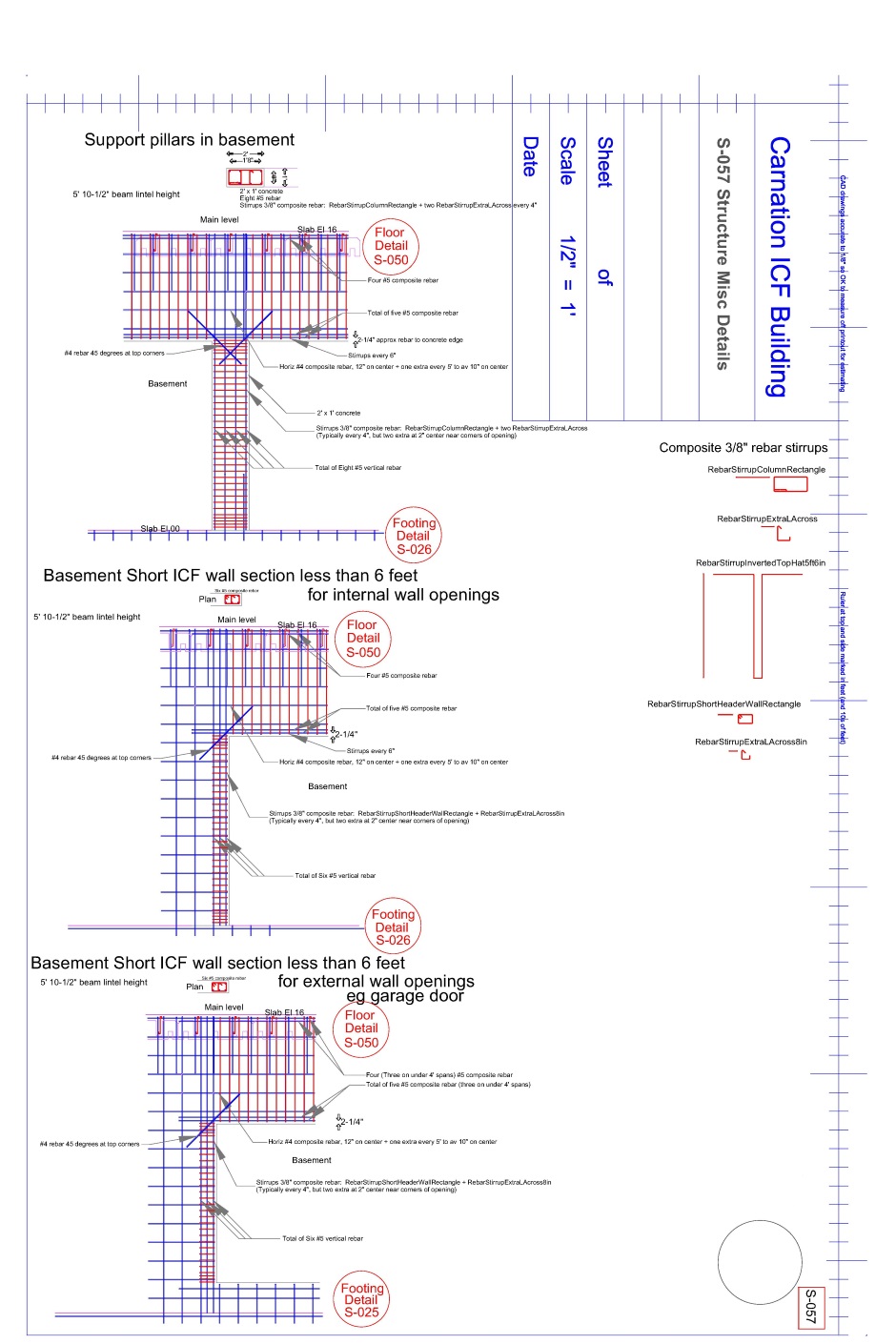

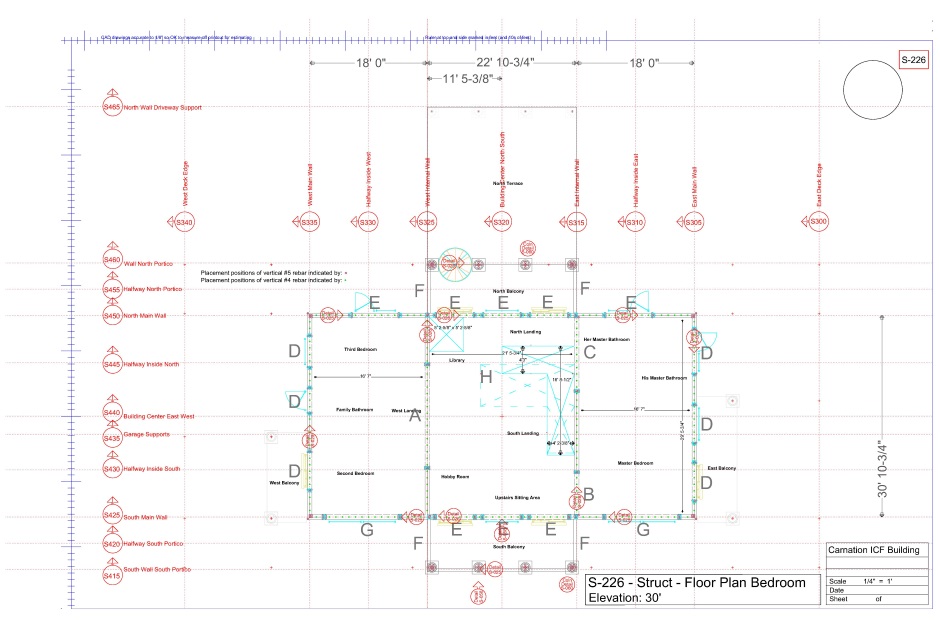

Here is the complete set of structural engineering drawings submitted for my house...























































*
