Star The following set of symbols came from trawling the web.



Structure Blueprint Symbols

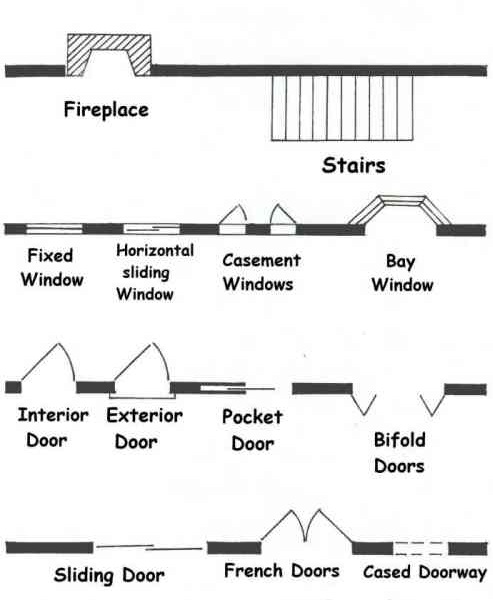

Doors and windows etc

Structure doors and windows etc blueprint symbols



Plumbing Blueprint Symbols

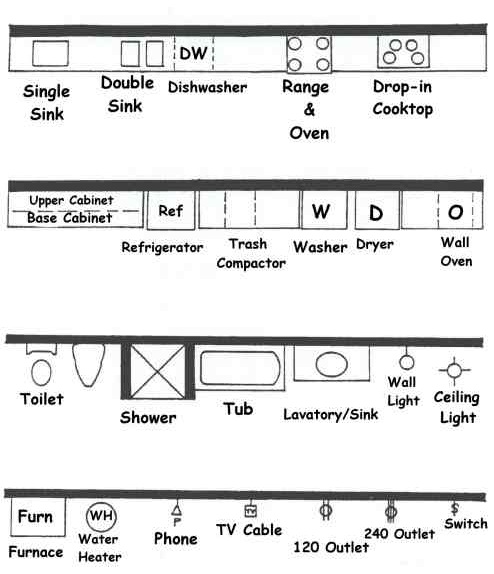

Kitchen bath etc

Plumbing kitchen bath etc blueprint symbols

Bathroom etc

Plumbing bathroom etc blueprint symbols

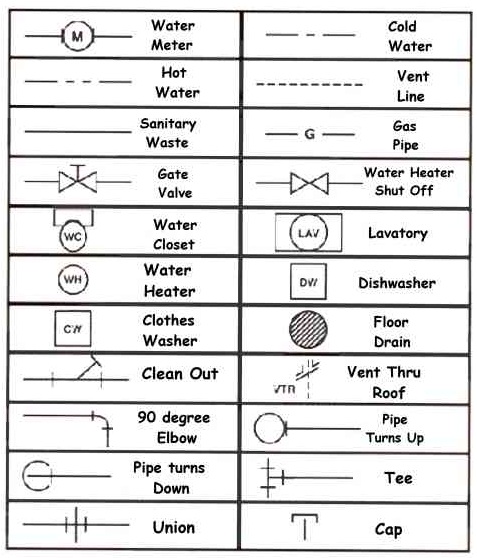

Misc 1

Plumbing misc blueprint symbols

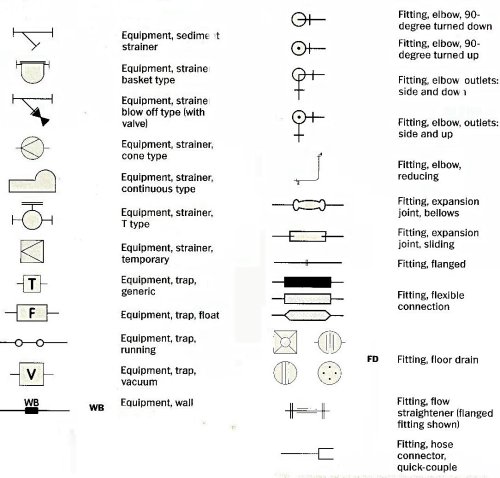

Misc 2

Plumbing misc blueprint symbols

Pipes 1

Plumbing pipes 2 blueprint symbols

Pipes 2

Plumbing pipes 2 blueprint symbols

Fittings

Plumbing fittings blueprint symbols

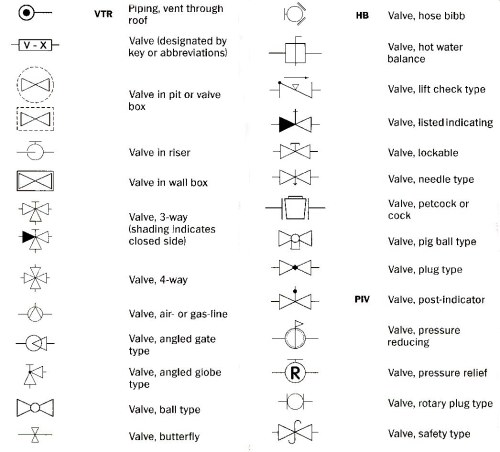

Valves 1

Plumbing valves 1 blueprint symbols

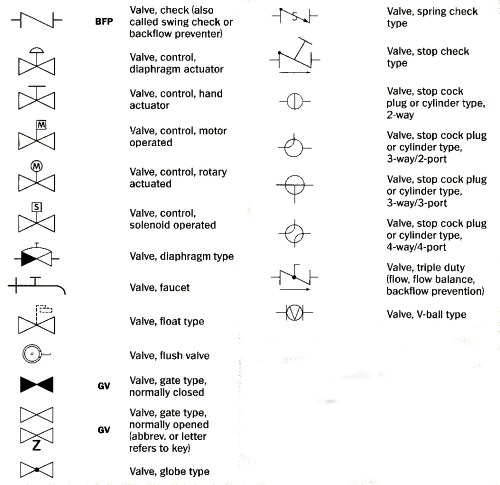

Valves 2

Plumbing valves 2 blueprint symbols



Electrical Blueprint Symbols

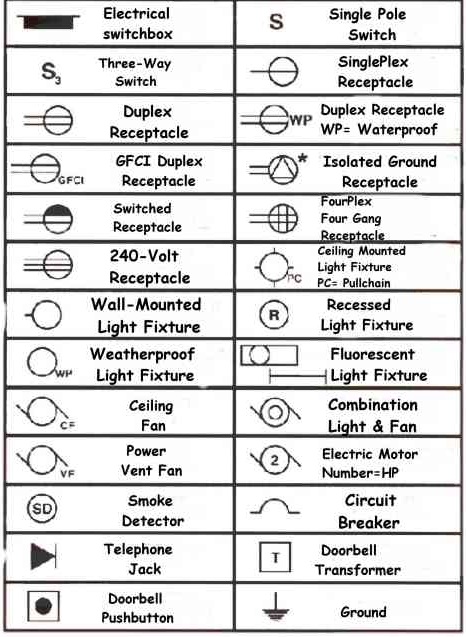

Basics

Electrical basics blueprint symbols

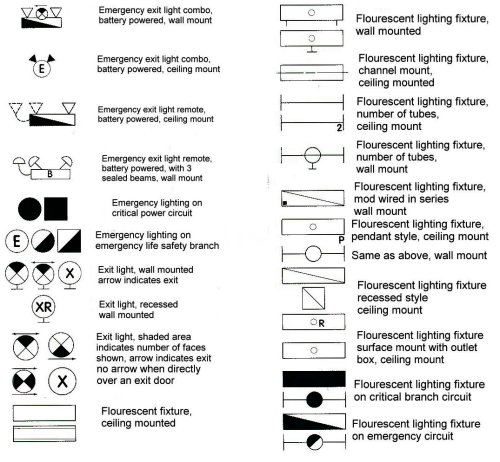

Fixtures 1

Electrical fixtures 1 blueprint symbols

Fixtures 2

Electrical fixtures 2 blueprint symbols

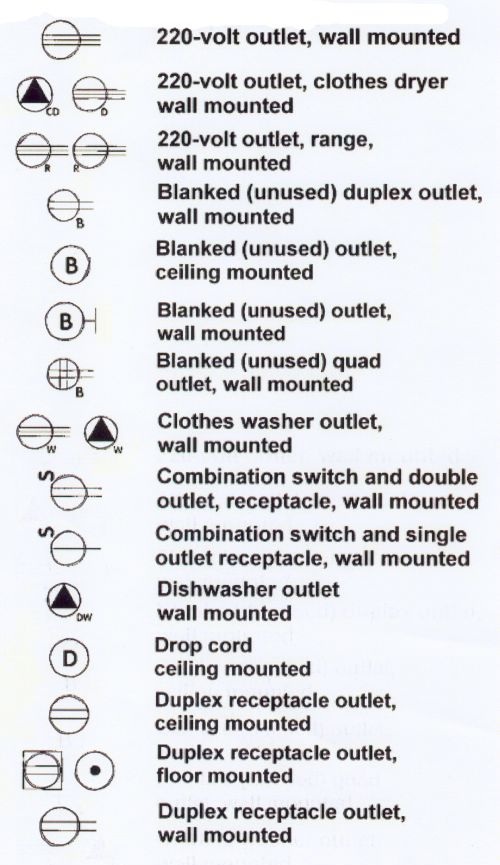

Outlets 1

Electrical outlets 1 blueprint symbols

Outlets 2

Electrical outlets 2 blueprint symbols

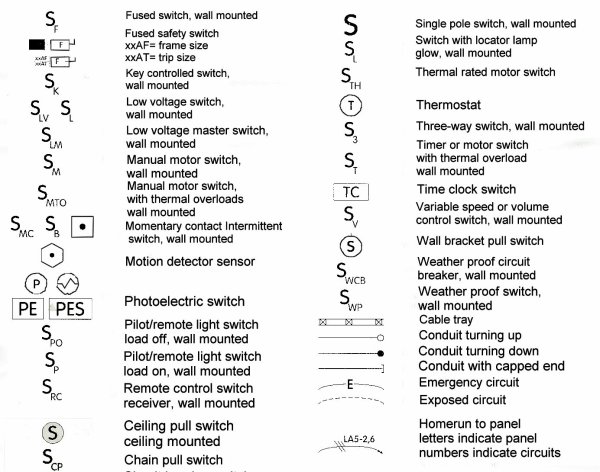

Switches 1

Electrical switches 1 bluepring symbols

Switches 2

Electrical switches 2 blueprint symbols

Low voltage

Electrical low voltage blueprint symbols







*
