Wellhouse - Pressure Pump

The pump I use in my wellhouse is a Gould J15S

Pump Gould-J15S

http://www.discountplumbingoutlet.com/j15s-goulds-pumps-shallow-well-jet-pump/?gclid=CjwKEAjwo5OpBRDU64qO07OXq00SJADn5hYnm00SU2z0JGTK5zxzD1td9N65FDXfsxoJ9nV-el3L6BoCETnw_wcB            $506.18

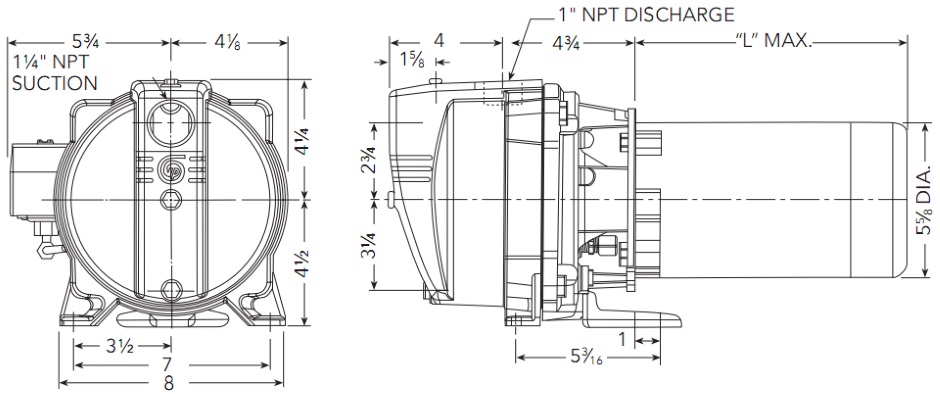

Pump Drawing Gould-J15S

http://www.countrywatersystems.com/pdfs/gouldsshallowwelljetpump.pdf

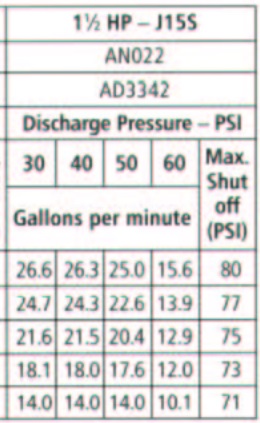

Pump Spec Gould-J15S

The fire sprinkler system requires 26.34 GPM @ 46.203 PSI in the basement at the base of the riser.  The base of the riser is about 20 feet above the pump in the wellhouse.  Extrapolating from the spec table it looks like the official spec of the Gould J15S pump in my wellhouse is about 25.6 GPM @ 46.203 PSI, which is hopefully within allowable tolerance on the sprinkler test.

http://documentlibrary.xylemappliedwater.com/wp-content/blogs.dir/22/files/2012/07/BJS+-R1.pdf

http://www.grainger.com/product/GOULDS-WATER-TECHNOLOGY-Pump-1N439

http://www.lockewell.com/pdf/goulds/j-series.pdf

http://www.gpeltd.com/giconpumps/gpe/catalogs/products/technical/69.file1_content.gouldsjetpumps.pdf

http://documentlibrary.xylemappliedwater.com/wp-content/blogs.dir/22/files/2012/07/rjetparts.pdf

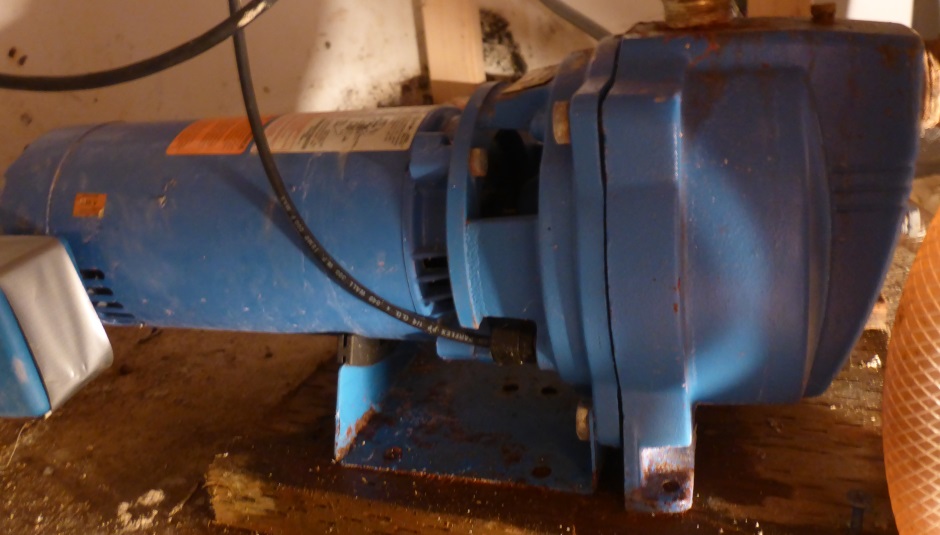

Gould J15S Pump In Wellhouse

Gould J15S Pump In Wellhouse

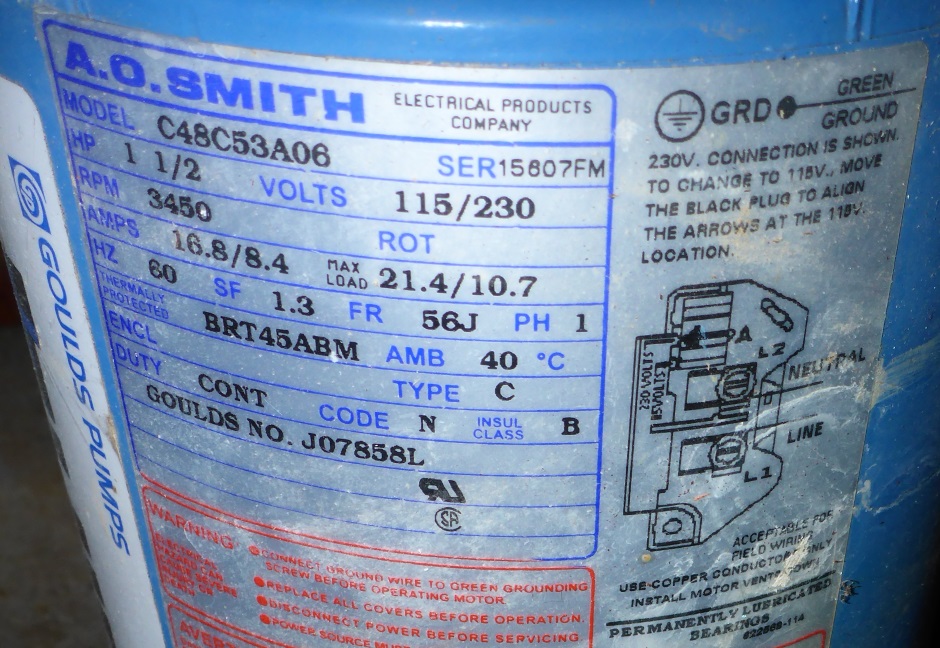

Potable Well Pump Label



If you need a 2HP pump then here are some possibilities...

http://www.shoppumps.com/Goulds-1BF22012-End-Suction-Pump-1-phase-p/1bf22012.htm

http://www.shoppumps.com/Goulds-2BF22012-End-Suction-Pump-1-phase-p/2bf22012.htm



Here's a cheaper pump that is ok for a rain water system...

Wellhouse pressure pump

http://www.walmart.com/ip/21698713?wmlspartner=wlpa&selectedSellerId=0&adid=22222222227016800109&wl0=&wl1=g&wl2=c&wl3=40873594472&wl4=&wl5=pla&wl6=78765695912&veh=sem   $237

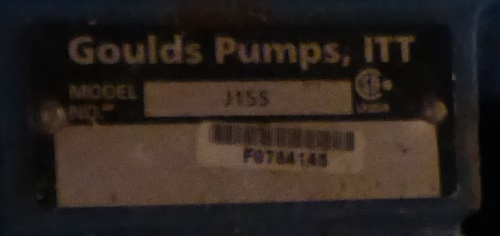

Pump label







*
