Home Site Map - Techniques - Tools -

General Tools

Star Tools and tips to help you build your house.



Wood working

Measuring tape

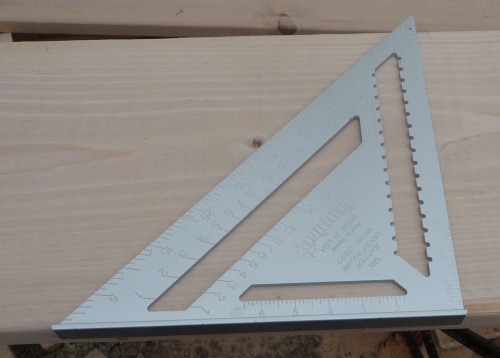

Drawing square

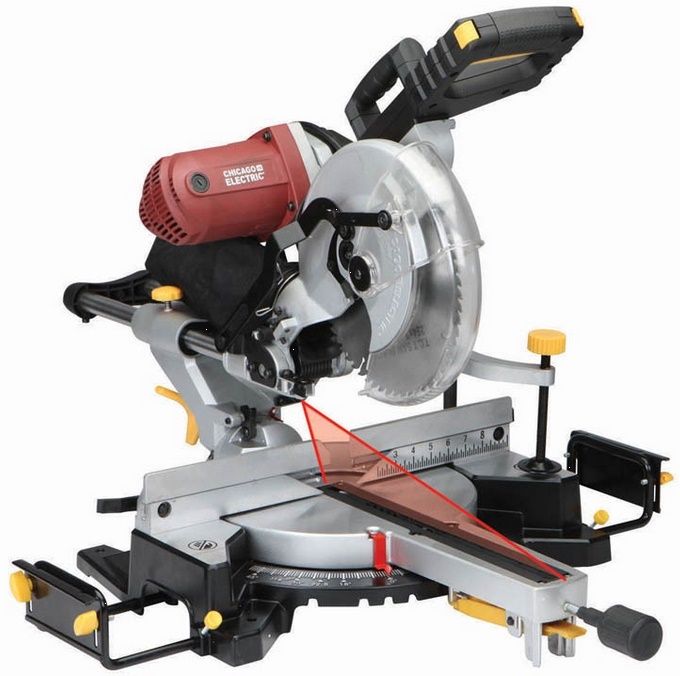

Chop saw / mitre saw

Miter Chop Saw    Chop saw

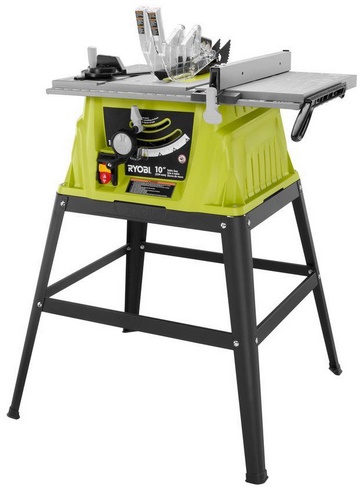

Tablesaw

TableSaw Ryobi    Tablesaw

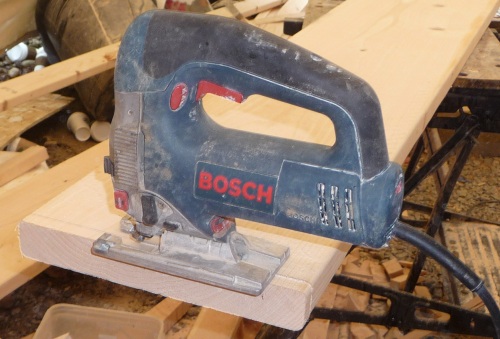

Jigsaw

This is my cutting instrument of choice even for intricate cuts.

Jigsaw

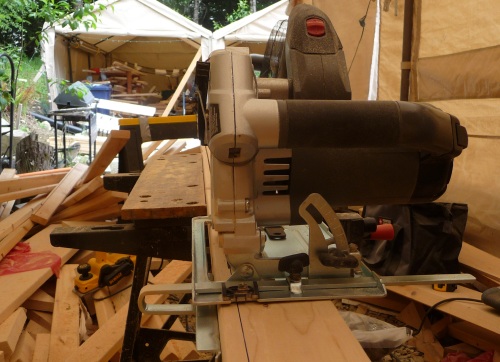

Circular saw

Unlike most builders, I don't use a hand held circular saw for cutting.  What I use it for is cutting grooves to a particular depth.  Ideal for routing PEX piping in the surface of 2x4s.  I make a series of cuts about 1/4" apart and then break off the bits between with a chisel.

Circular saw

A circular saw is also useful for demolition type applications, eg cutting away bracing timber and window bracing.

Diamond Saw 7in Blade    Diamond blade

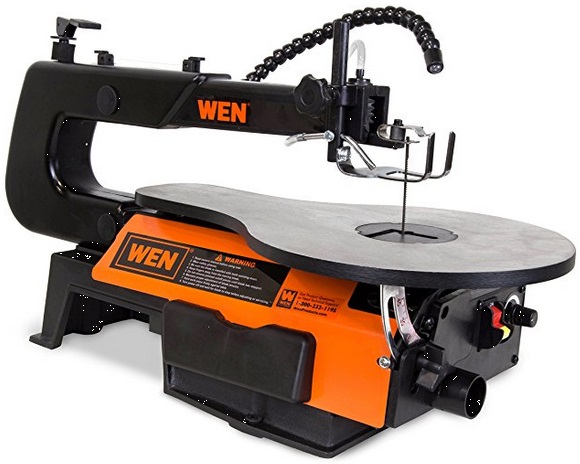

Scroll saw

Scroll Saw Wen    Scroll saw

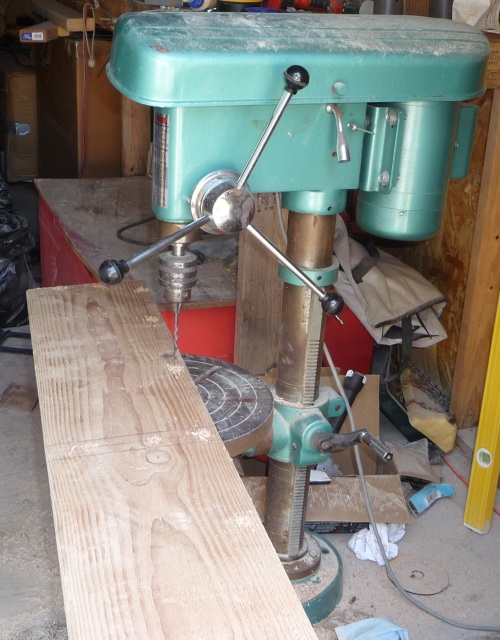

Pillar drill

Wherever possible (ie the lumber is not too long or wide) it is best to use a pillar drill rather than a hand held drill because it makes holes that are exactly 90 degrees to the timber face.  This means the hole is in the same location on the back side as the front side.

Pillar drill

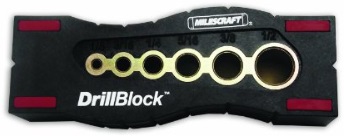

Drill block

Drill block    Drill block



Pocket hole jig

Kreg mini jig    Pocket hole jig



Buscuit joiner

Buscuit joiner Chicago    Buscuit joiner



Glue gun (28oz)

Glue Gun 28oz Yellow    Glue gun

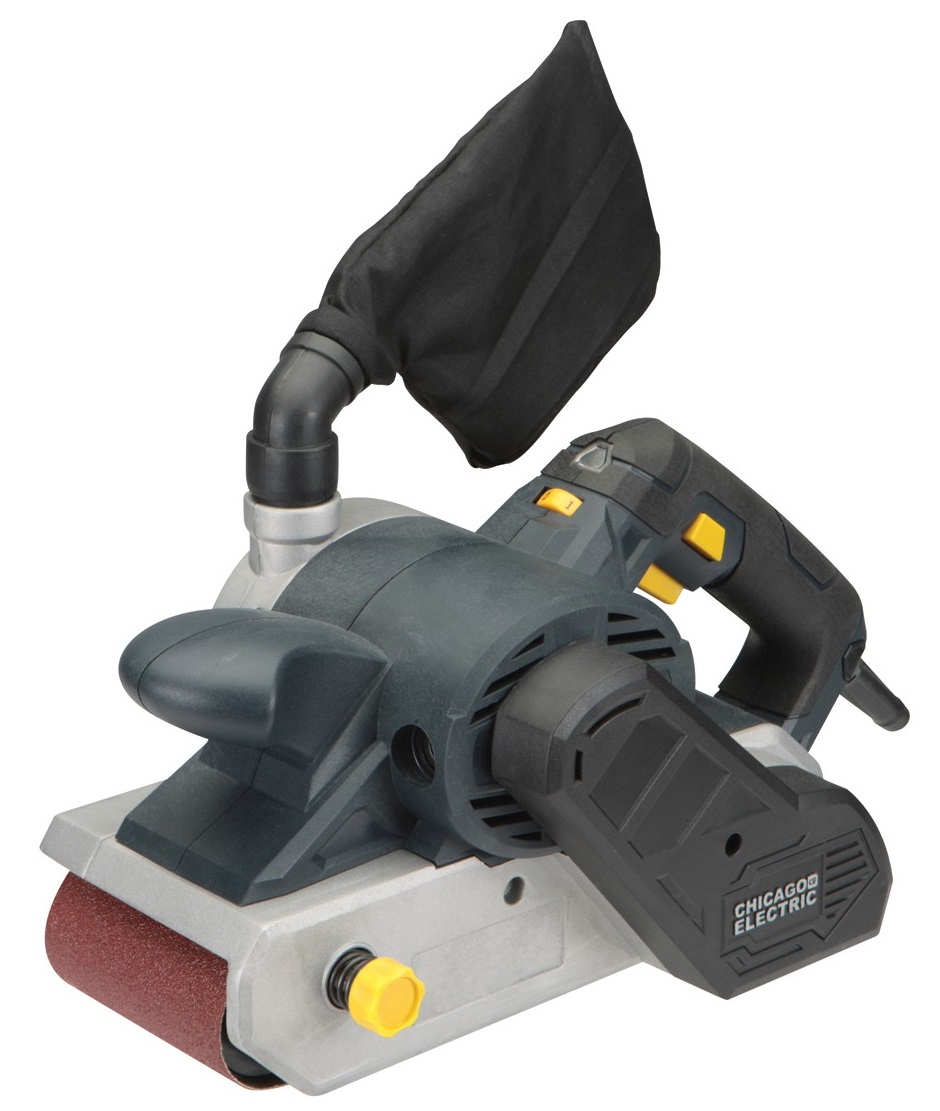

Belt sander

Belt sander 4"x24"Belt sander

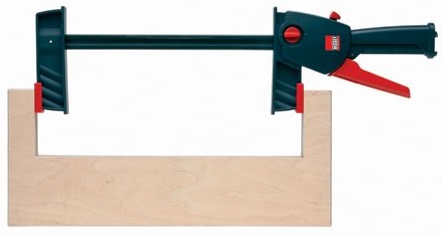

Spreader Clamp

Spreader Clamp    Spreader clamp



Measuring

Self leveling laser

Self leveling laser    Self leveling laser

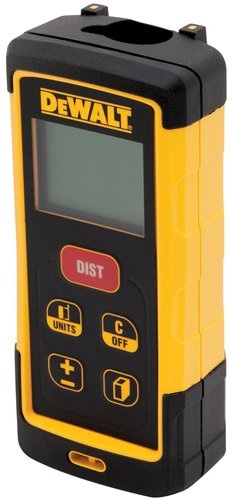

Laser distance measurer

Laser Measurer    Laser distance measurer



Plumb bob

Plumb Bob    Plumb bob

Long spirit level

Long Spirit Level 6 Feet    Long spirit level

Short spirit level

Spirit level 16in    Short spirit level

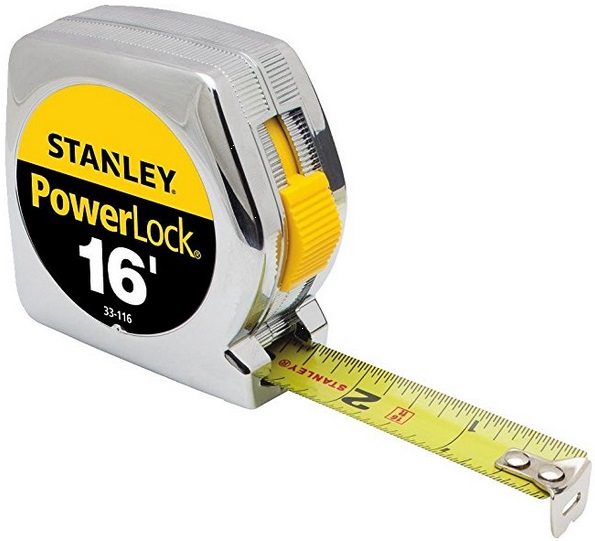

Tape measure

Tape Measure    Tape measure

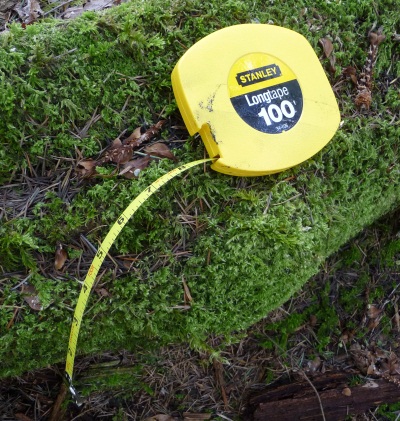

100' tape measure

Tape measure 100 feet    100' tape measure

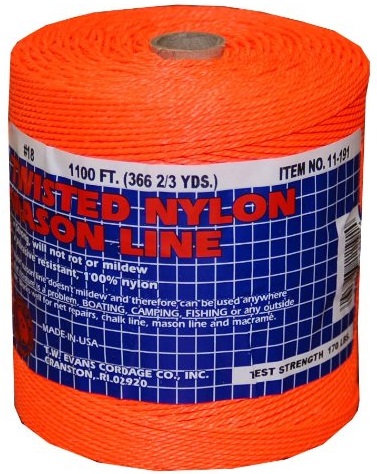

String

String Orange    String

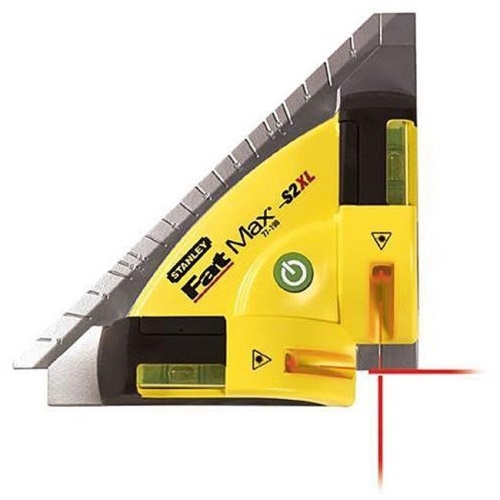

Right angle laser square

Laser 90 Degrees     Right angle laser square

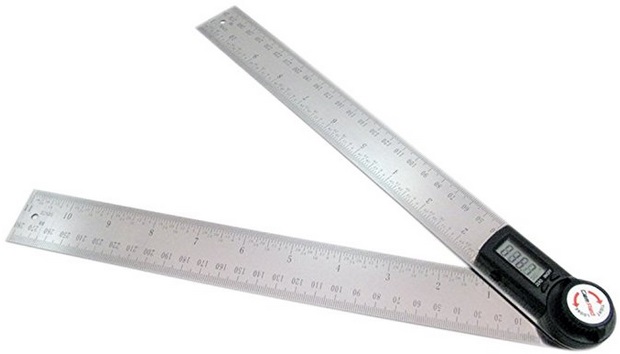

Angle finder

Angle Finder    Angle finder



Polystyrene

Craft knife

Craft Knife 9mm    Craft knife

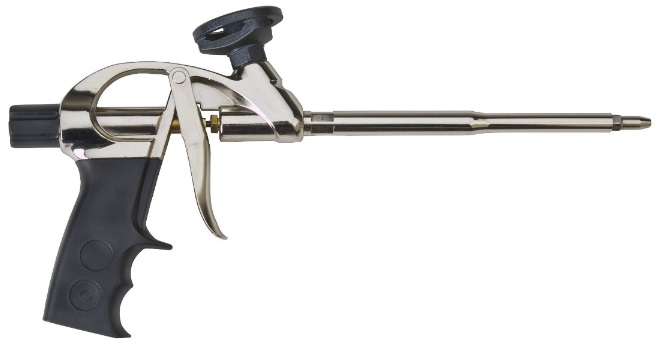

Foam gun

Foam Gun Great Stuff   Foam gun



Flat sanding rasp

Sheet Sanding Rasp    Flat sanding rasp

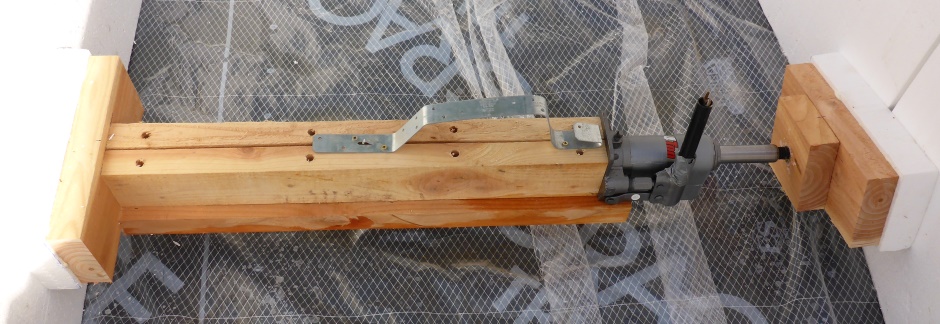

Footing spreader

Tool Footing SpreaderThis home made tool that I call a Footing spreader is used when fitting and gluing the EPS to the sides of the foundation footings.



Hotwire cutter bench

Hotwire Cutter Outside Bench side    Hotwire cutter bench



Digging

Jackhammer

JackHammer    Jackhammer



Digging bar

Digging bar    Digging bar



Large hoe

Field Hoe 8in    Large hoe

Soil filter trommel

Trommel Drawing End    Soil filter trommel



Adjustment

Club hammer

Club hammer    Club hammer





Elevation

It is worth having a range of ladders of different lengths.  It is best to use a ladder that is not overly big for the application because moving a big heavy ladder is a real pain.

Long ladder

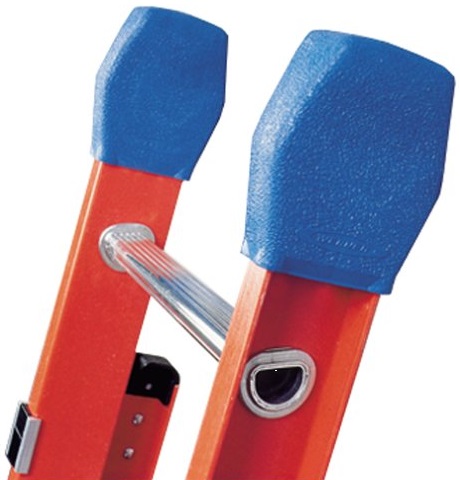

Ladder End Protectors

Ladder End Protectors    Ladder End Protectors

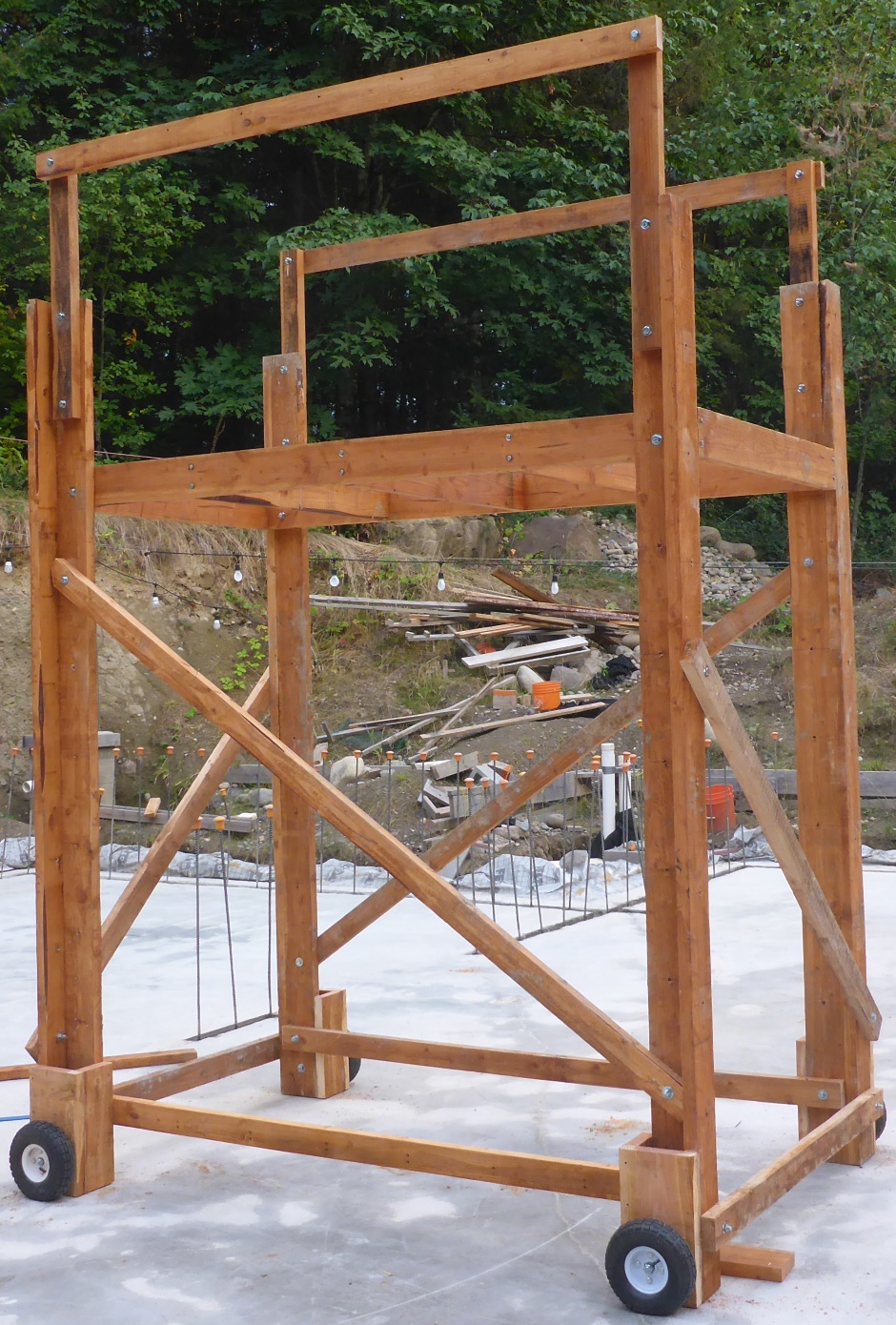

Work platform

Work Platform On Slab    Work platform

Concrete

Concrete placer

Concrete Placer With Wood Handle   Concrete placer



Concrete vibrator

Concrete vibrator    Concrete vibrator



Magnesium float

Magnesium hand float for concrete    Magnesium float



Slump cone

Concrete Slump Cone    Slump cone



Concrete nailer

Concrete nailer    Concrete nailer



Rebar

Cable tie cutters

End Wire Cutters    Cable tie cutters

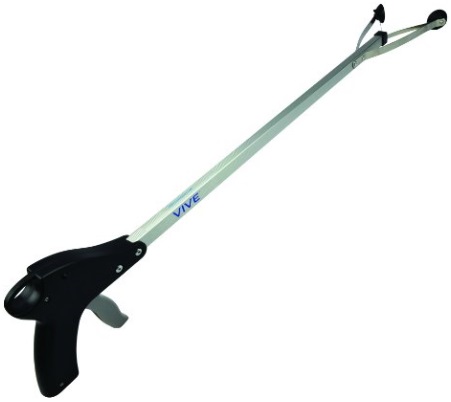

Remote grabber

Remote grabber tool    Remote grabber



Stucco

Concrete mixer

Concrete Mixer Harbor Freight     Concrete mixer



Flat trowel

Flat Stucco Trowel    Flat trowel



Plastic float

Plastic Stucco Float    Plastic float



Electrical

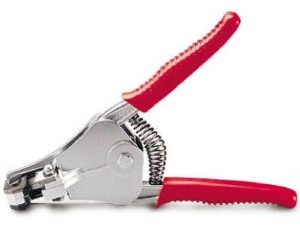

Wire strippers

Wire strippers    Wire strippers



Screwdriver extension

Screw Driver Extension    Screwdriver extension



Data electrical

Punchdown Cat6

Punchdown tool    Punchdown Cat6



Cable jacket stripper

Cable jacket stripper   Cable jacket stripper

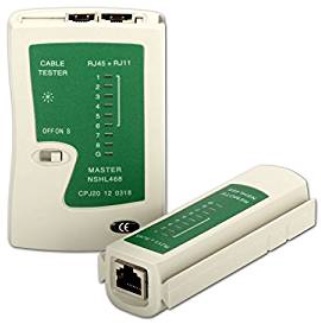

Cat 5/6 tester

Cat 5/6 Tester    Cat 5/6 tester



Plumbing

PEX crimp

PEX Crimp Tool    PEX crimp



Tiling

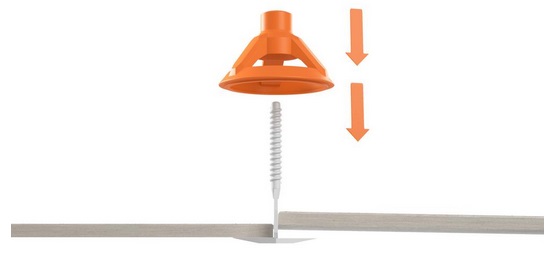

Ridgid LevelMax Lippage Reduction System

Ridgid Tile Leveler





Safety

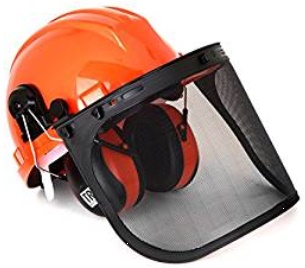

Hard hat

Head Protection Helmet    Hard hat

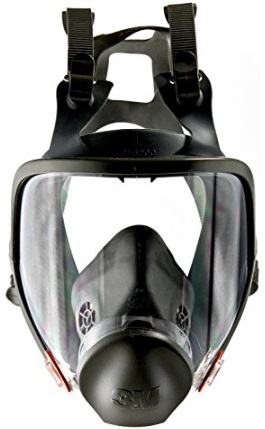

Dust mask

Dust Mask 3M Full    Dust mask

Face and breathing protection

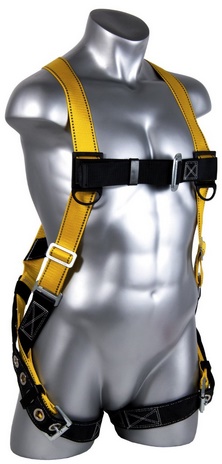

Fall harness

Guardian Fall Harness    Fall harness



Gloves

Gloves Construction Blue    Gloves

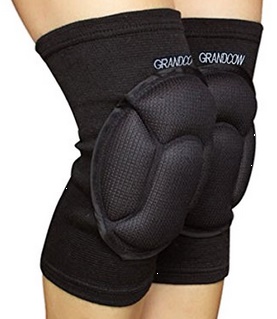

Knee protectors

Knee Pads    Knee protectors



Soft shoes

Slipon Soft Shoes    Soft shoes

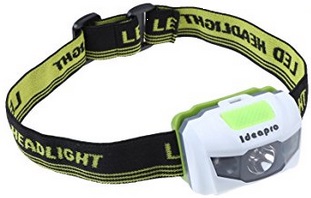

Headlight

Head light    Headlight

Sun hat

Sun Hat    Sun hat

Waterproof socks

Waterproof Socks    Waterproof socks

Forest

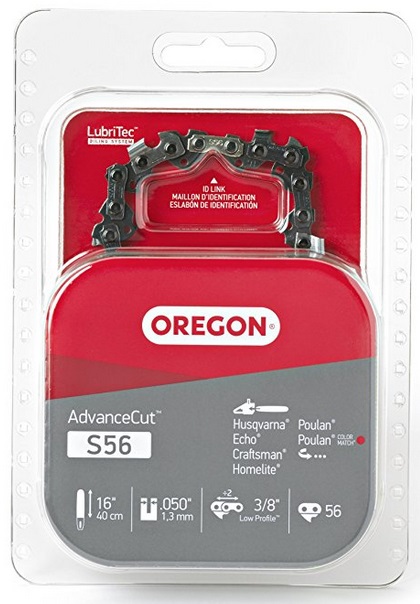

ChainSaw Chain

ChainSaw Blade S56    ChainSaw chain

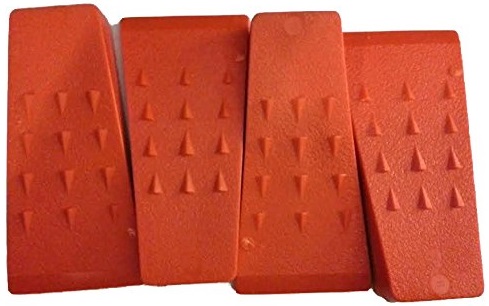

Tree wedges

Tree Wedges    Tree wedges

Other

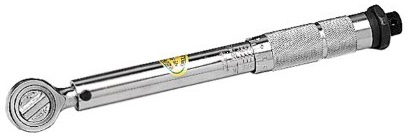

Torque wrench

Torque wrench    Torque wrench

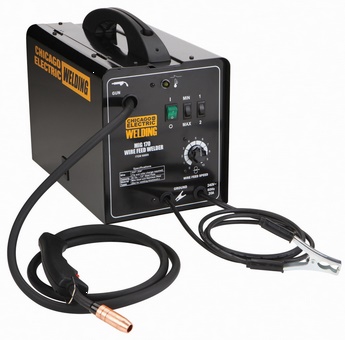

Welder

Mig Welder 170 Harbor Freight    Welder

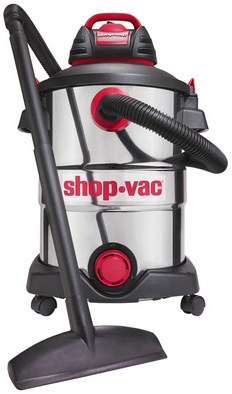

Wet and dry vac

Wet Dry Vacuum Cleaner Lowes    Wet and dry vac



Tips

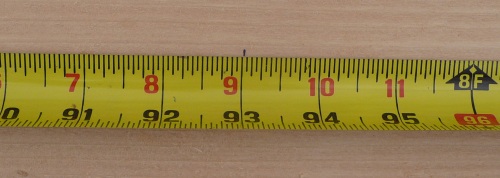

Measure allowing for jigsaw cut width

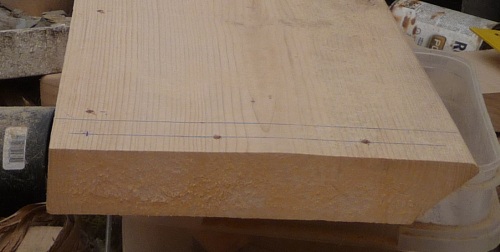

Markings on reverse side



Organization

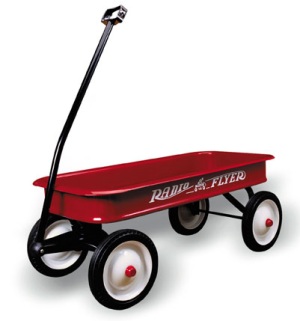

Tool cart

Radio Flyer tool cart   Tool cart



Vehicle

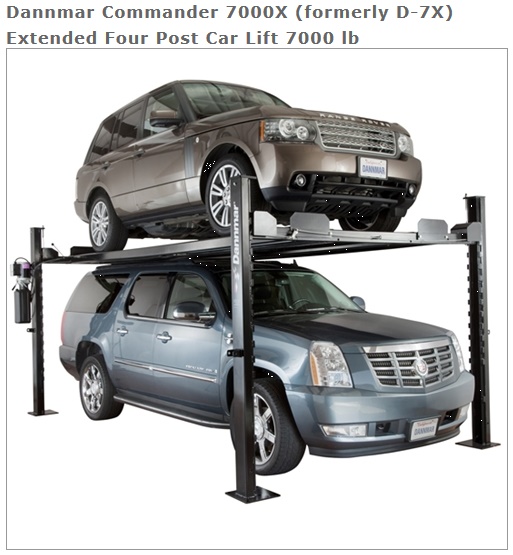

Car lift

Car Lift Dannmar 7000X   Car lift



My Building Creed

Do a CAD drawing for everything



Cut to CAD, not to measure



Design from Building Science



Stick to commodity products

By that I mean try to avoid using proprietary building products.  Proprietary products are much more expensive because they are single sourced, typically have a design royalty, have the cost of middle men and or a sales network, and have a high shipping cost from their single manufacturing location.







*
