Elevator

Star Allowing for and adding an elevator to your home.



Typically an pit that is 8" below floor level is required.

I use a raised floor that is 2' 1-7/8" above slab height.  With an 8" pit that means there is 17-7/8" to spare.



Companies

List

http://sweets.construction.com/SearchResults/Internal/residential+elevators



REI (Residential Elevators Inc)

Elevator Diagram Rei Cable

http://www.residentialelevators.com/index.htm

Cable and hydraulic types.

8" pit

They do the install.



Daytona Elevator

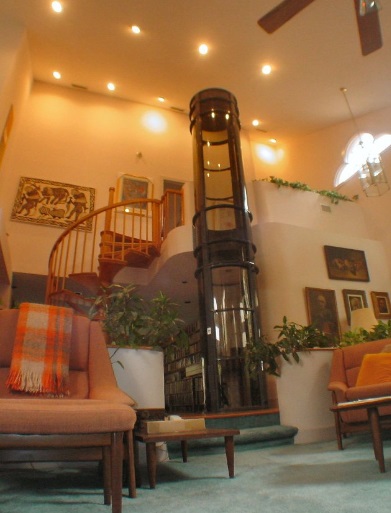

Elevator Daytona Vacuum

http://www.daytonaelevator.com/

http://www.daytonaelevator.com/Pneumatic%20Vacuum%20Elevator%20Main%20Page2.htm

Uses a vacuum.

Does not need a pit.

Supposedly low cost and easy to install.



Nationwide Lifts

http://www.home-elevator.net/

Freedom Green WD

Up to 50 feet and 5 stops.

"Factory‐direct model makes this elevator very competitively priced".

8" pit but can be configured to work without a pit.



Garaventa Lift

Elevator Diagram Garaventa Lift

http://www.garaventalift.com/en/products/home-elevators/elvoron-home-elevator.html

Elvoron CPL

8" pit



Symmetry

Elevator Diagram Symmetry

http://www.symmetryelevators.com/products/?id=res



Schindler

http://www.schindler.com/us/internet/en/mobility-solutions/facilities/residential.html

Mid Rise Elevators - Schindler 5500 Machine Room-Less Modular Elevator

20 Whippany Road Morristown, NJ 07962

Tel: (973) 397-6500

Fax: (973) 397-3619



Hoyt Elevator

http://hoytelevators.com/

Does not need a pit.

Not enough lift travel for my house.



Otis

Not really for residential so probably too expensive.



Installer

Destiny Residential Elevators sold by Primarius Elevator in Kirkland
Actually made by National Wheel-O-Vator, a division of ThyssenKrupp Access
509 W. Front St, Roanoke, IL 61561
Destiny Hydraulic elevator $23900, (level of noise 5 to 10 db) requires 8 feet overhead clearance 220 V 30 A and 110 V 15 A.
Use the hydraulic type as they are very quiet.
Can do up to 6 floors, travel of 50 feet.
Car inside size 36" x 48"
Outside dimension of 55" x 53"
Need to allow 6" all the way round for framed walls so a 6' x 6' holes in the concrete floor sounds good.
Need a small pit - 8", but that just means close to the height of the suspended floor in the basement.
Marius Pop" <info@primariuselevator.com>
Marius Pop
Primarius elevator
12803 82nd AVE NE Kirkland WA 98034
Phone: 425-821-3160
Fax: 425-823-1863
Email: info@primariuselevator.com
Web: www.primariuselevator.com
Price is about $24K
Car size (that will fit best): 40"x54"
On the side against the Internal ICF wall is 61" (other dimension is 56-3/4").
On the plans assume 5'x5' inside shaft dimension.





*
