Stairs

Star Everything you need to know about stair design.

Building code

Stairs

Stair width must be more than a clean 36" measured from the drywall and any skirting boards.

Stairs must be uniform so there are no discontinuities in the stride for the user.

Minimum tread width is 10".  My choice is to use an 11" tread width for additional safety.  (On turns it is possible for the inside edge to have down to a 6" tread provided a 10" tread width is achieved within 12" of the narrow side.)

Maximum rise is 7-3/4".  The actual height is determined by the distance between finished floors divided by the chosen number of stairs (as long as the answer is less than 7-3/4).  For nice stairs, choose the number of stairs such that the rise comes out just less than 7.5".  Note that the number of stair risers is one more than the number of drawn steps on the plan.

The stair nose must be between 3/4" and 1-1/4".  It is best to make it 1-1/4" so that it can be refinished in later years to repair any wear.  When the house is under construction you can even make the nose 1-1/2" and then trim it to 1-1/4" after you're done with the heavy construction traffic (but prior to the final building inspection).

Minimum headroom above the stair nose is 6'8" (but try to make it at least 6'10").

Spiral staircases have their own set of rules that allow them to have a tighter turn and a higher rise.

A landing is required at both the top and bottom of stairs.  The landing width must not be less than the stairs and must have a length in the direction of travel of more than 36".

Doors can be at the top of an interior stairway (eg to a basement) as long as it does not open over the stairs, ie must open outwards.

Hand rails on stairs must be between 34" and 38" above the tread nosing.  My choice is to make it 37" (3' 1").  (This transitions to a horizontal railing of height 3'6" around stairway openings.)

My Stair Dimension Drawing

The hand rail must be up to or beyond the first and last stair nose.

The diameter of the hand rail must be between 1-1/4" and 2" if round and other equivalent dimensions for other shaped cross-sections.

Railings on the landing around the stair floor opening must be 42" (3'6") above finished floor height.

Need 1/2" drywall (or equivalent) on the underside of stairs as a fire precaution.

A flight of stairs must not have a vertical rise of more than 12 feet.  This is an important consideration when doing even your initial floor plans as it may require the stairs to be L shaped with a landing part way up.  I made my stairs L shaped from the basement and to the bedroom level in order to meet this requirement.

Basement calculations

The heights given are to the top of the stair wood.  It assumes there is no further covering of the stair treads.  There is no allowance for carpet on the stairs.  If carpet were to be added then it would need to start on the basement floor 3' before the stairs and continue 3' on along the main level floor.

Heights given are above the finished floor height of the basement where this is 3" above the reference concrete slab level.  The stairs go up to the main level finished floor level where this is 3" above the main level reference concrete slab height.  My implementation of the stair treads uses a 2x12 (ie 1.5" thick).

In the basement the '3rd step' is actually a basement raised floor.  The '13th step' is a platform landing to make the 90 degree turn.

Step       Decimal inch    From basement finished    From basement slab

1             7.38461538                     0' 7-3/8"                        0' 10-3/8"
2             14.76923076                   1' 2-3/4"
3 ---        22.15384615                   1' 10-1/8"                      2' 1-1/8"
4             29.53846153                   2' 5-9/16"
5             36.92307692                   3' 0-15/16"
6             44.30769230                   3' 8-5/16"
7             51.69230769                   4' 3-11/16"
8             59.07692307                   4' 11-1/16"
9             66.46153846                   5' 6-7/16"
10           73.84615384                   6' 1-7/8"
11           81.23076923                   6' 9-1/4"
12           88.61538461                   7' 4-5/8"
13 ---      96                                    8'                                    8' 3"
14           103.38461538                 8' 7-3/8"
15           110.76923076                 9' 2-3/4"
16           118.15384615                 9' 10-1/8"
17           125.53846153                10' 5-9/16"
18           132.92307692                11' 0-15/16"
19           140.30769230                11' 8-5/16"
20           147.69230769                12' 3-11/16"
21           155.07692307                12' 11-1/16"
22           162.46153846                13' 6-7/16"
23           169.84615384                14' 1-7/8"
24           177.23076923                14' 9-1/4"
25           184.61538461                15' 4-5/8"
26           192                                 16'                                  16' 3"



Stair Drawing East Internal Wall

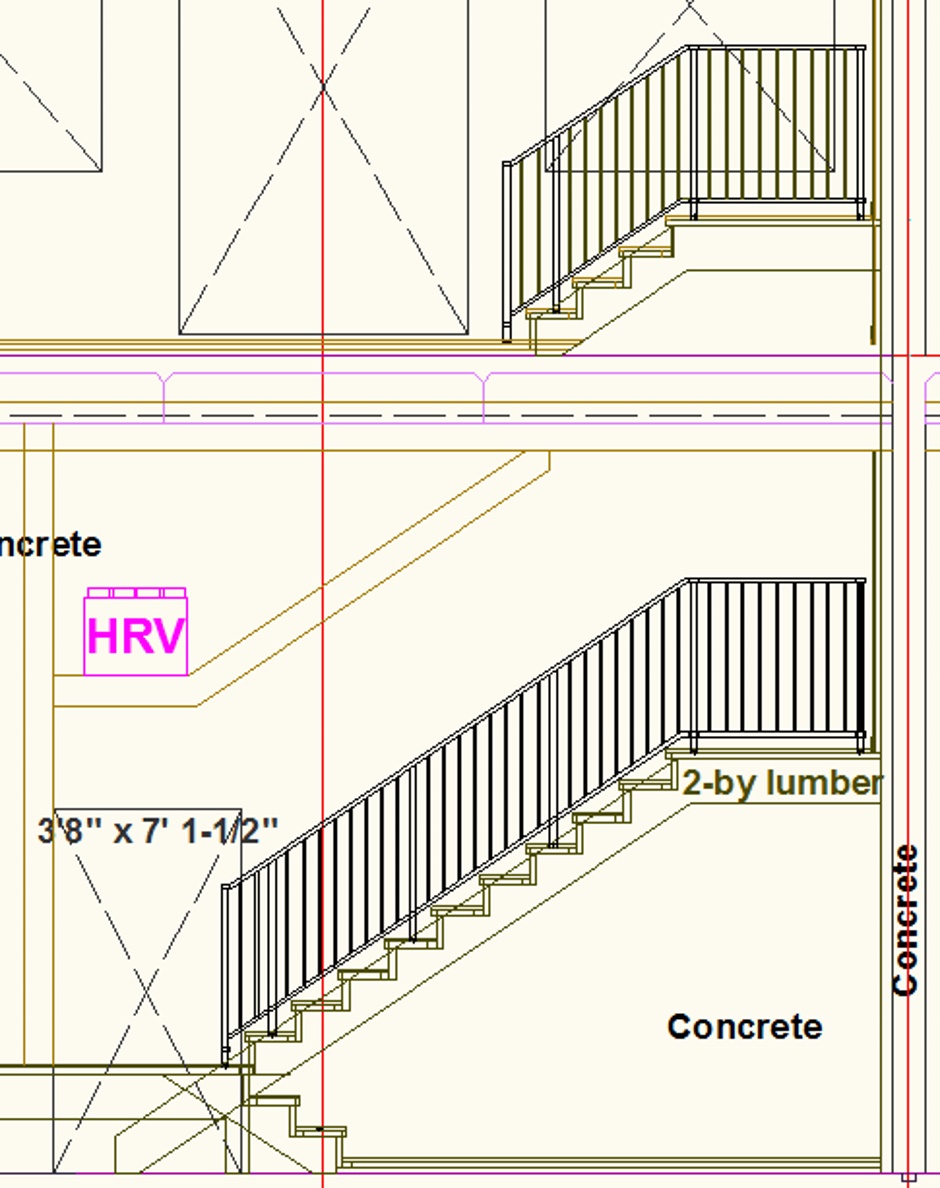

Stair Drawing North Wall



Stair railings

Detail for the railing are here .

My Stair Dimension Drawing

In the case of stairs, the railings are of course angled to follow the angle of the stairs.

A post is on every third step.  Because of the stair cadence used, it works out that the pitch of the vertical rails needs to be 4-1/8" (rather than 4" for horizontal railings).  This means the opening between vertical rails is 3-5/8" (rather than 3-1/2" for horizontal railings).

There will typically be a discontinuity in the railing pitch.  It is best to put the discontinuity at the top of the stairs (as it is less visible than having it at the bottom).

An angle jig is necessary to drill the holes in the top and bottom horizontal bars.

Welding is required to make the top and bottom horizontal bars at the top and bottom of the stairs to make the transition from the stair angle to the horizontal.



Structure notes

Do an AutoCAD drawing of the stringer carriages that are made from 2x12 lumber.

The tread of the stairs is saw mill cut 1.5" thick.  The design is for 12" wide, but initially make them 12.25 or 12.5 to give extra nose.

The tread structure is 12" deep and can be made from a 10" wide plank and a 2" wide plank.

The riser is a plank that is 7-3/8" and sometimes 7-7/16" (only 1/16" difference which is within tolerance).

Use two cut stringer carriages.  Outer ones are PL-Premium glued directly to the uncut outer stringers.

Uncut 2x12 (ie 1.5"x10.5") stringer planks on both sides.



Header Assembly For Stairs

Stairs Bottom Locator Plate



Temporary Planking On Stair Landing

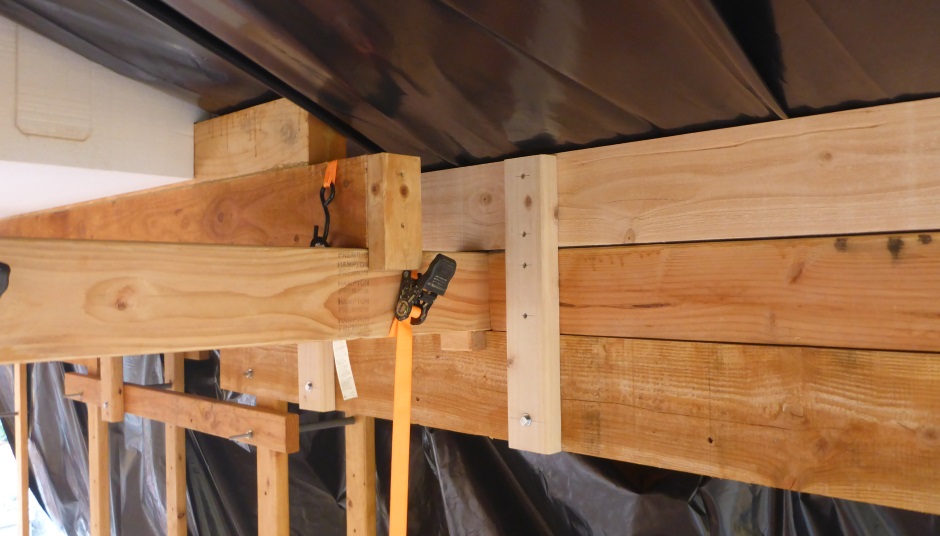

Beam Stair Opening Thee Woods



Other notes

Incorporate highlight LED lighting.  Put a stick-on LED strip along the bottom of each tread lip.  Using yellow LED color or soft white is good.





*
