Drainage - Formal Plan

Star It is likely that the building department will want a drainage plan done by a licensed engineer.

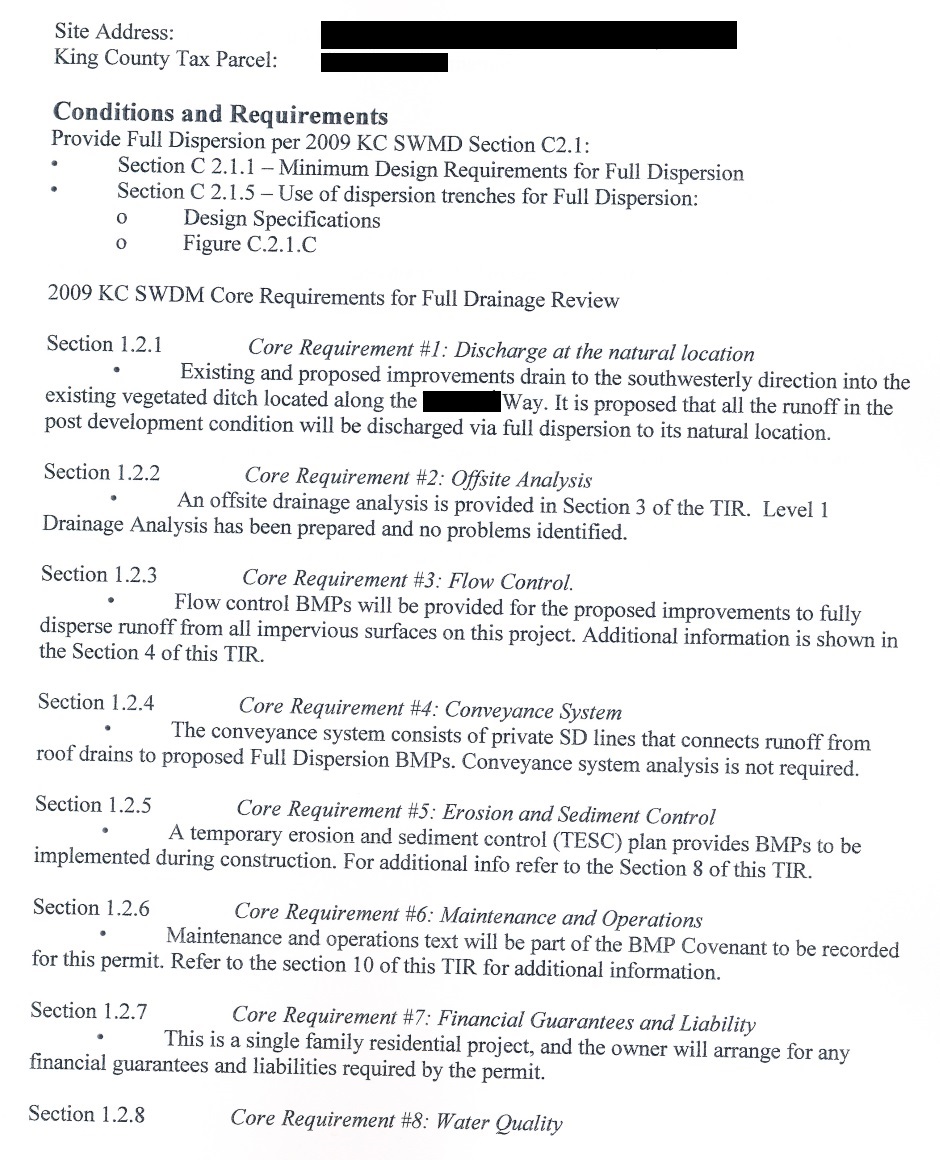

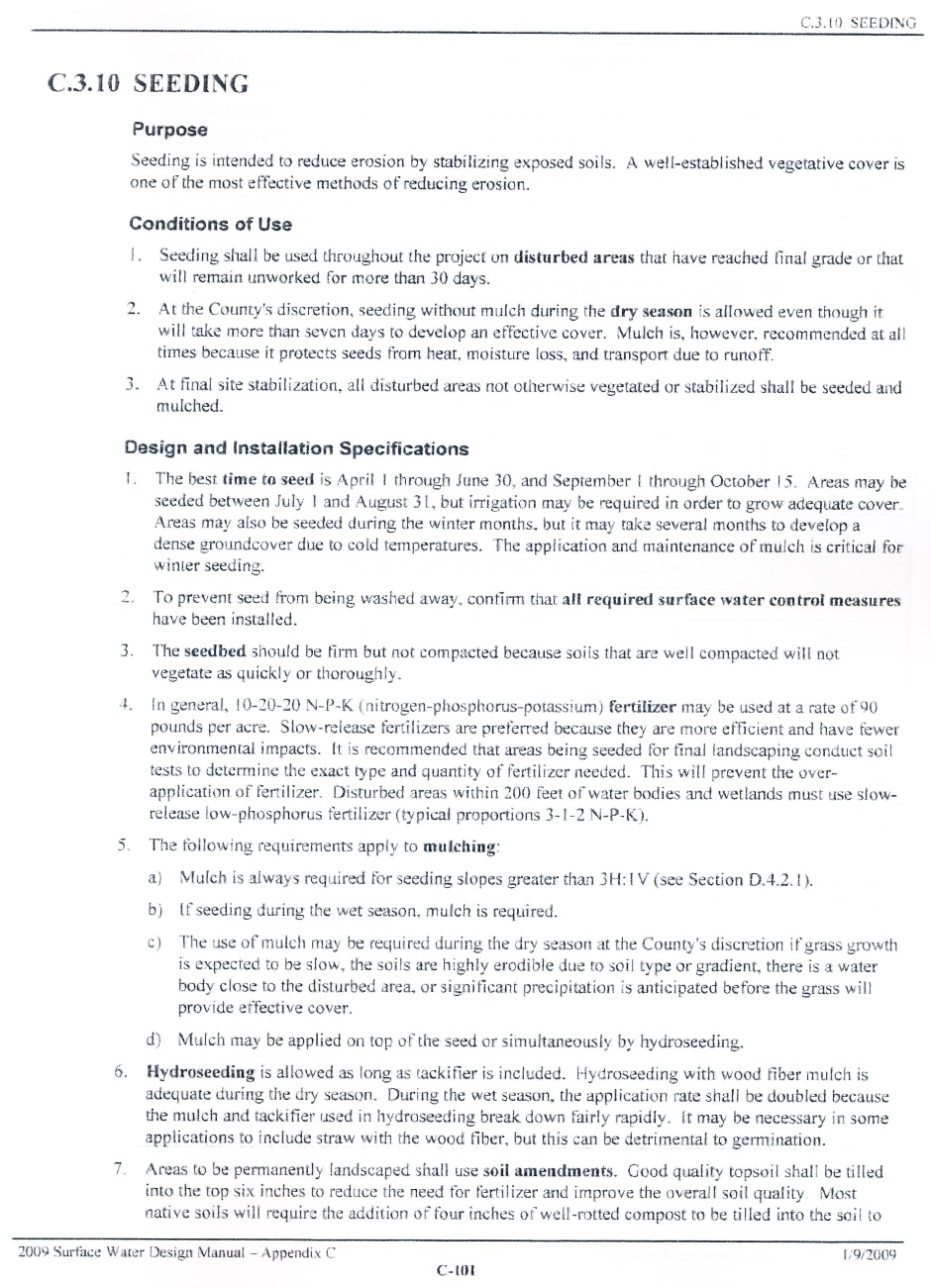

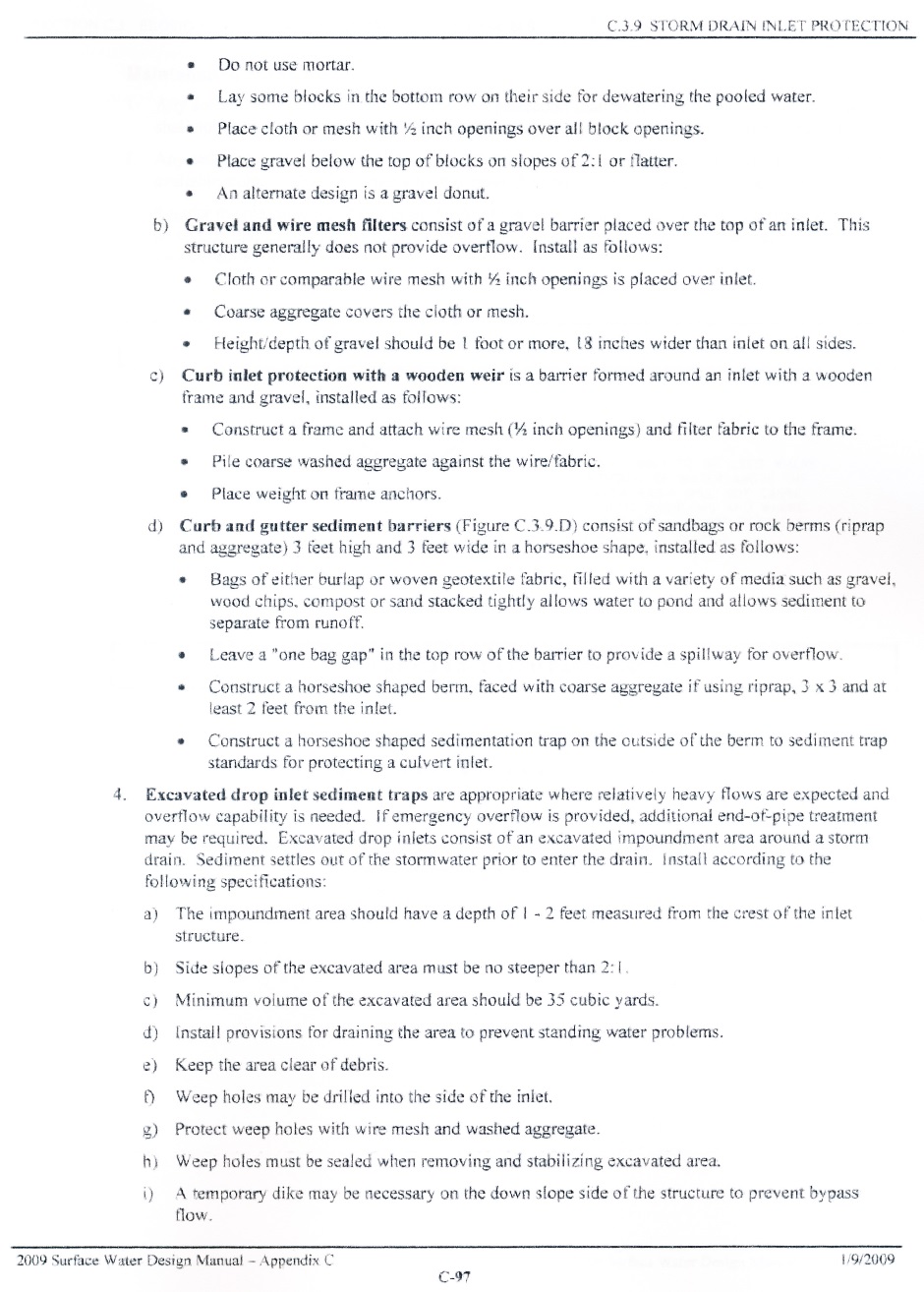

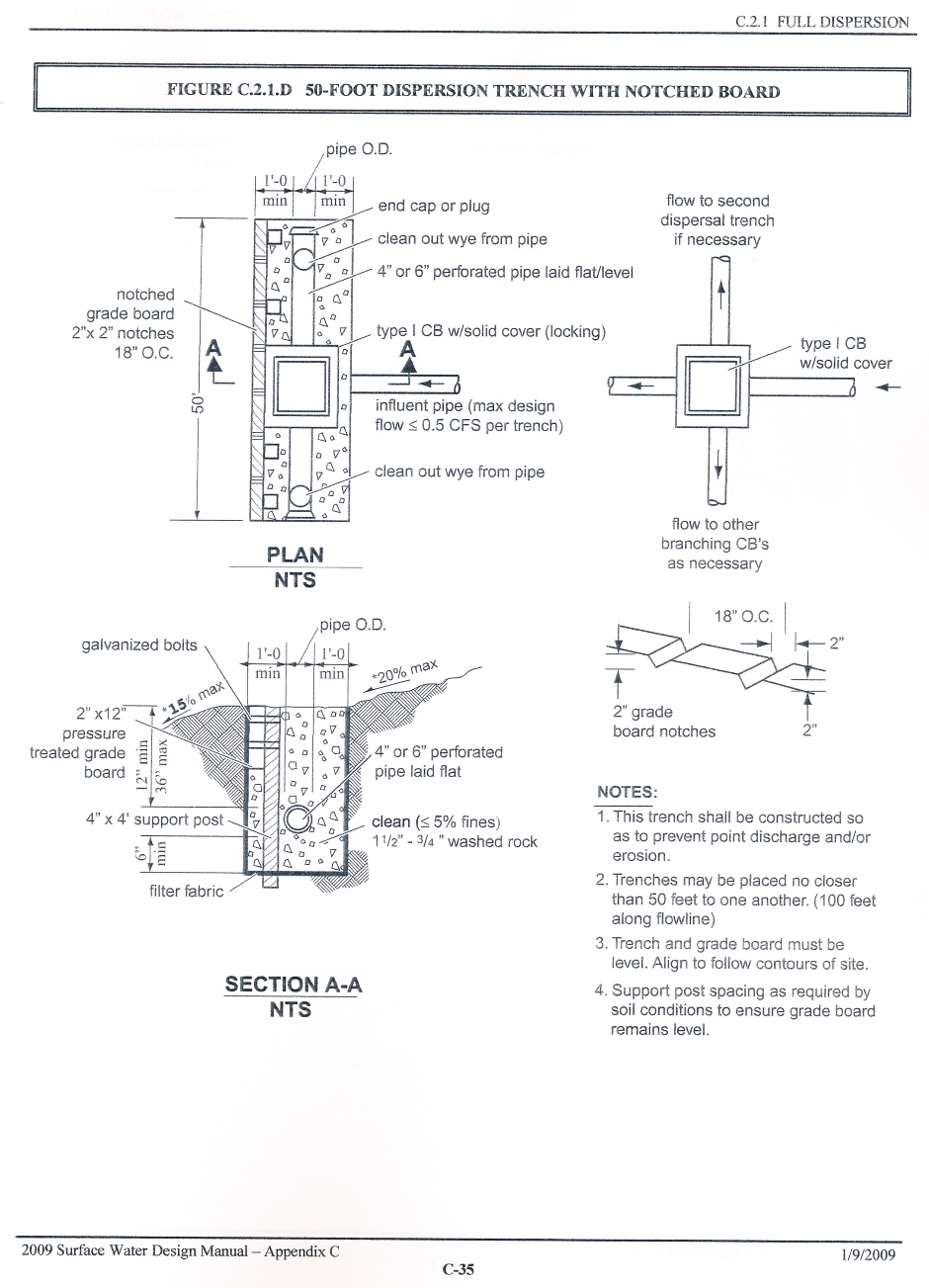

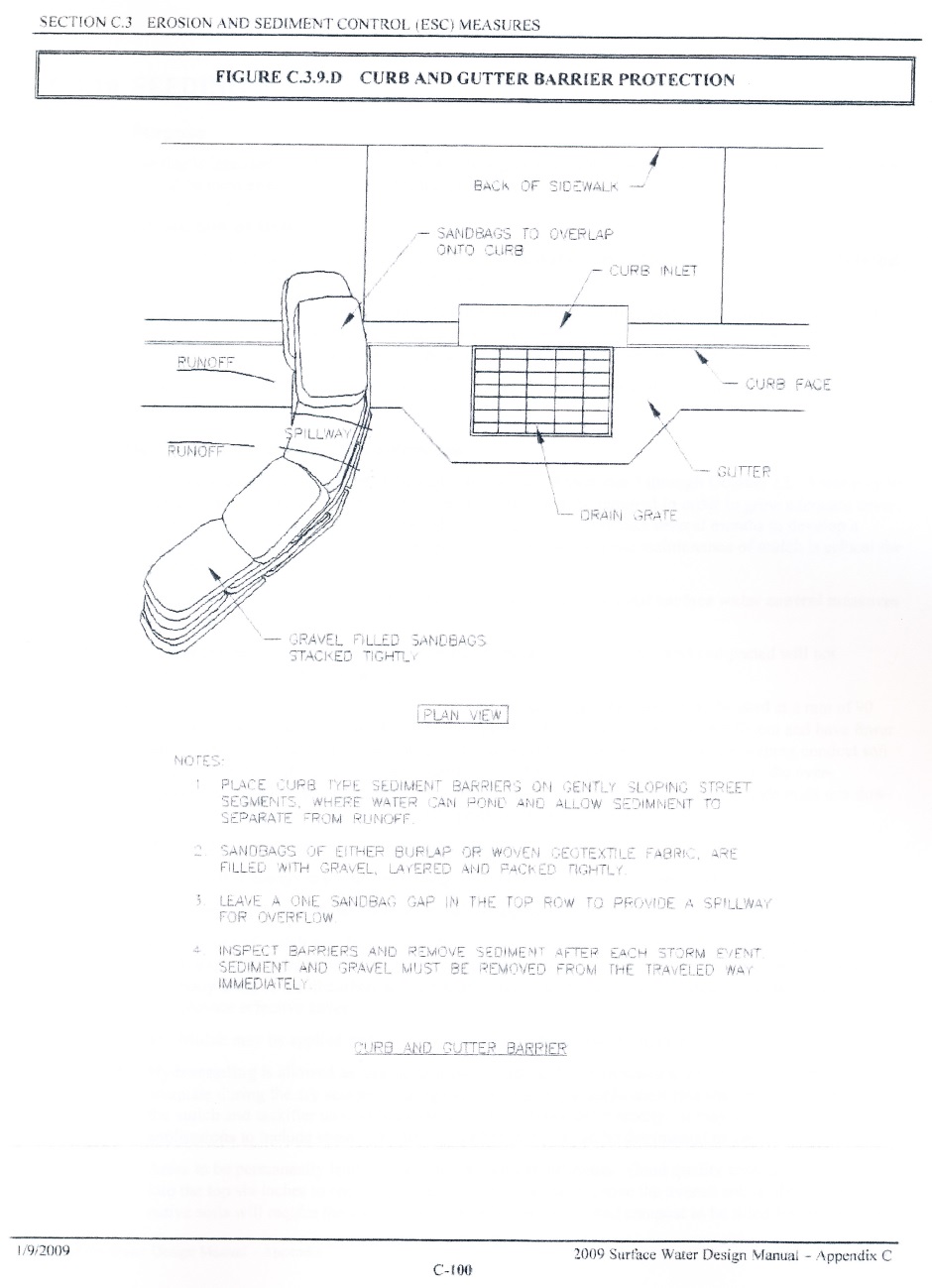

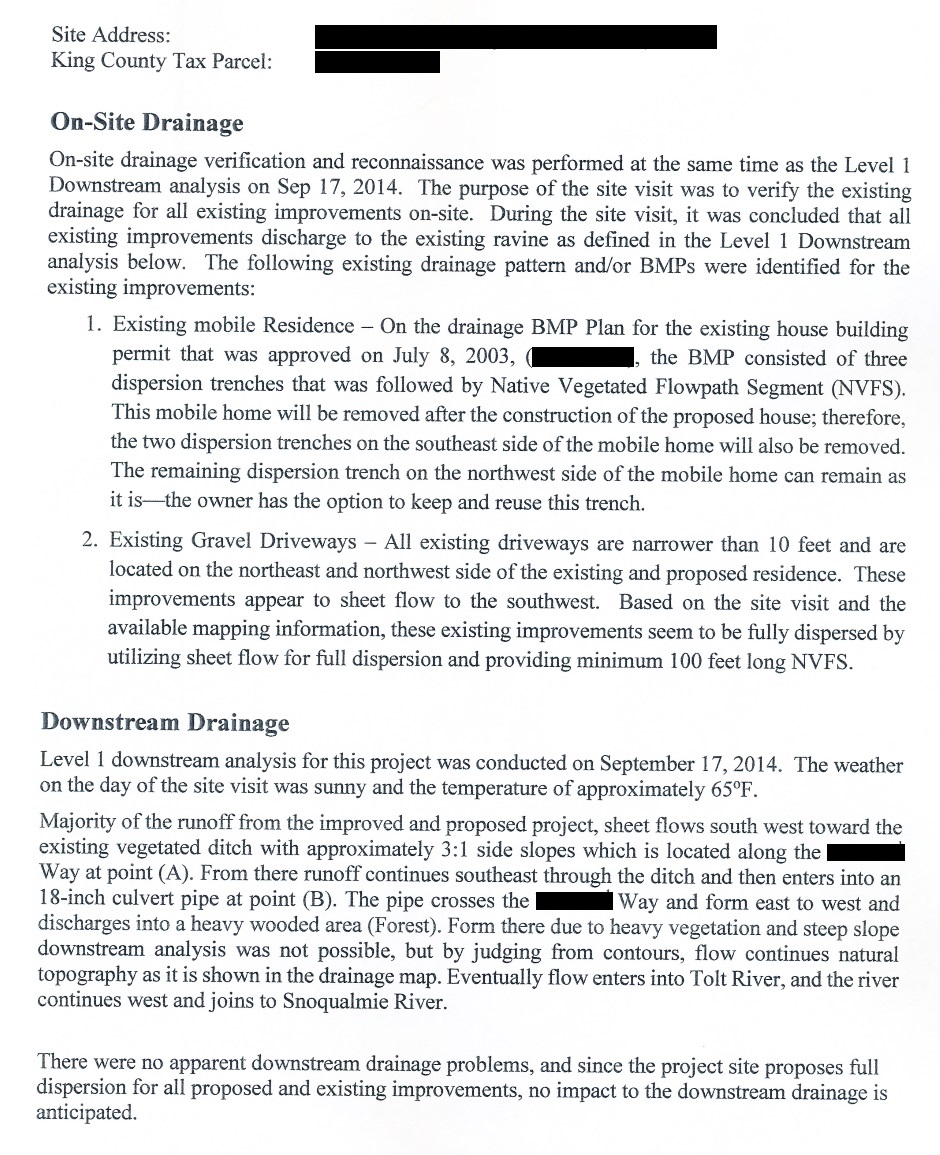

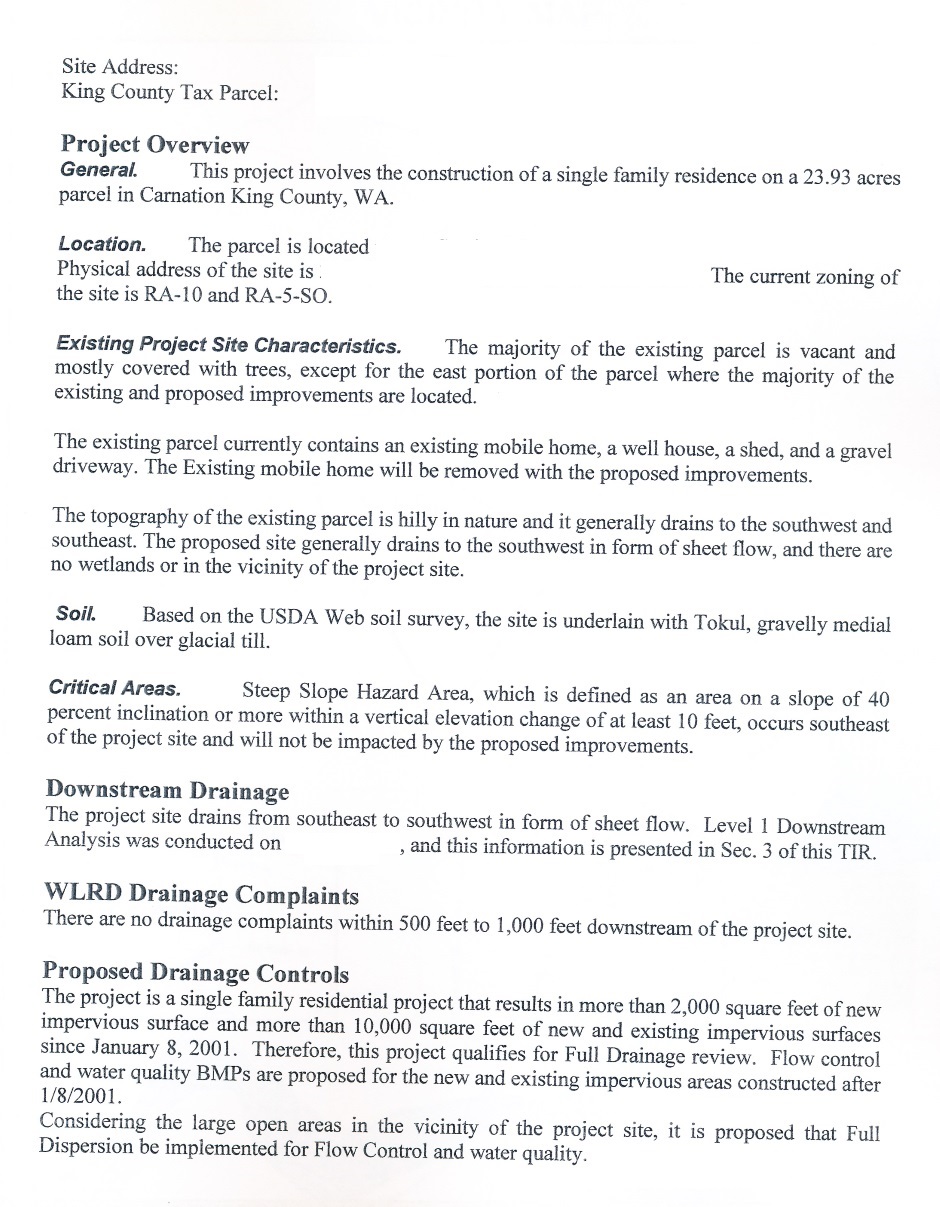

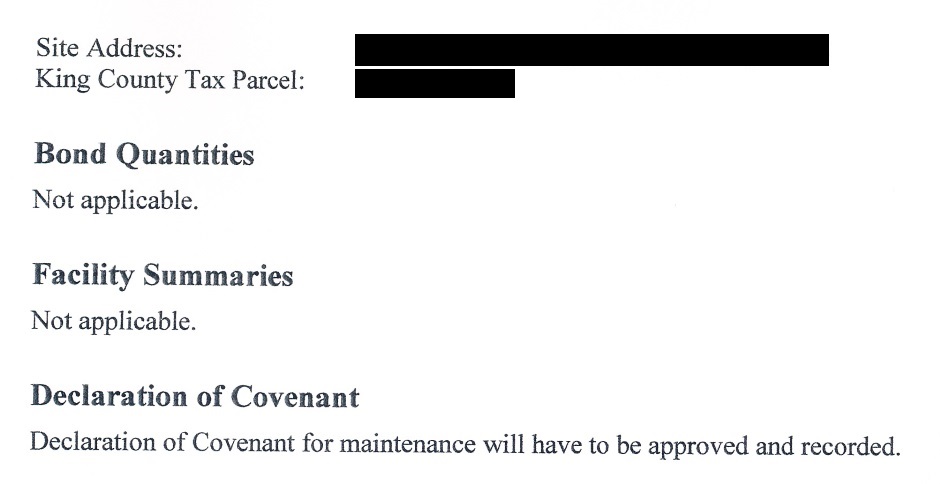

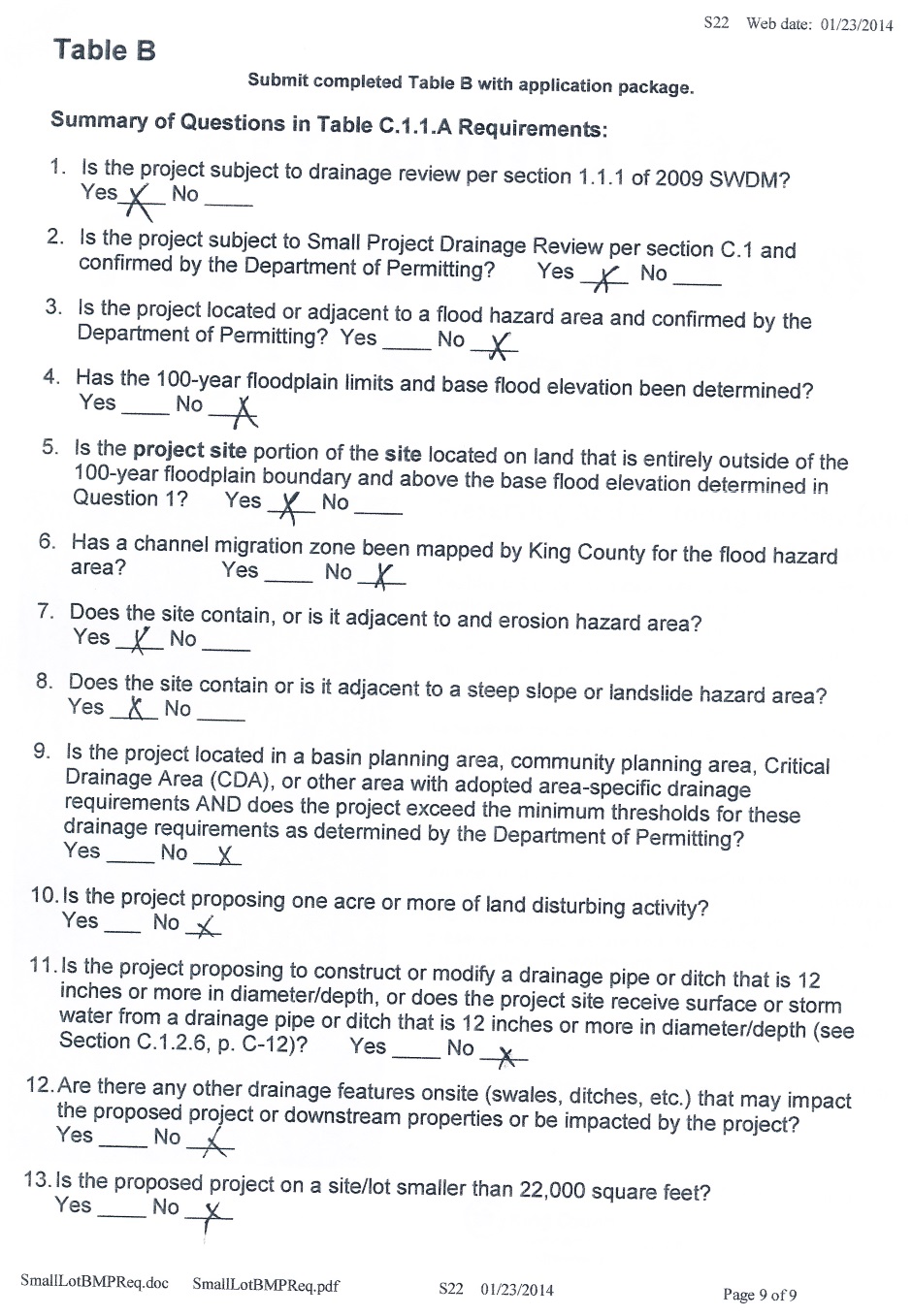

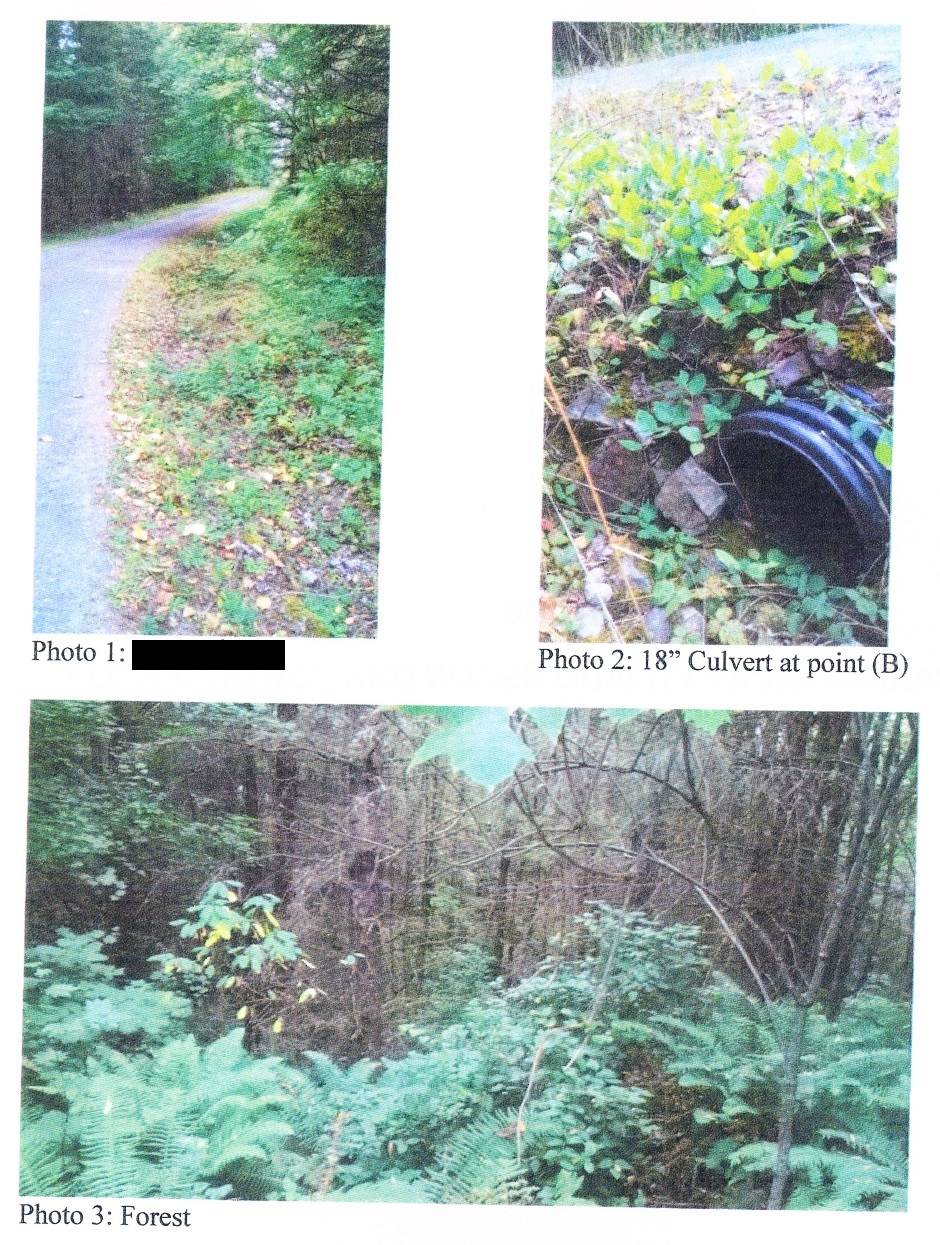

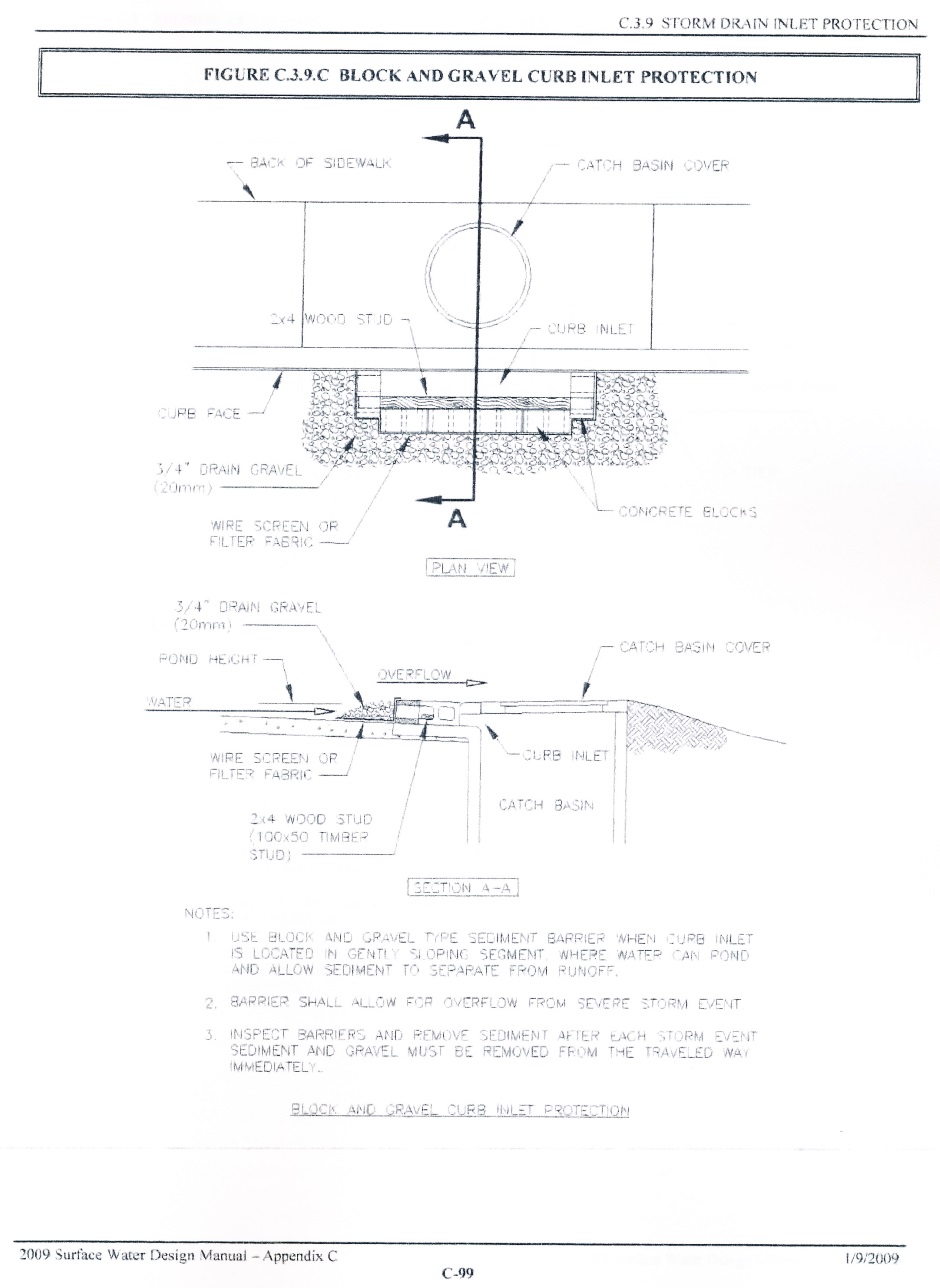

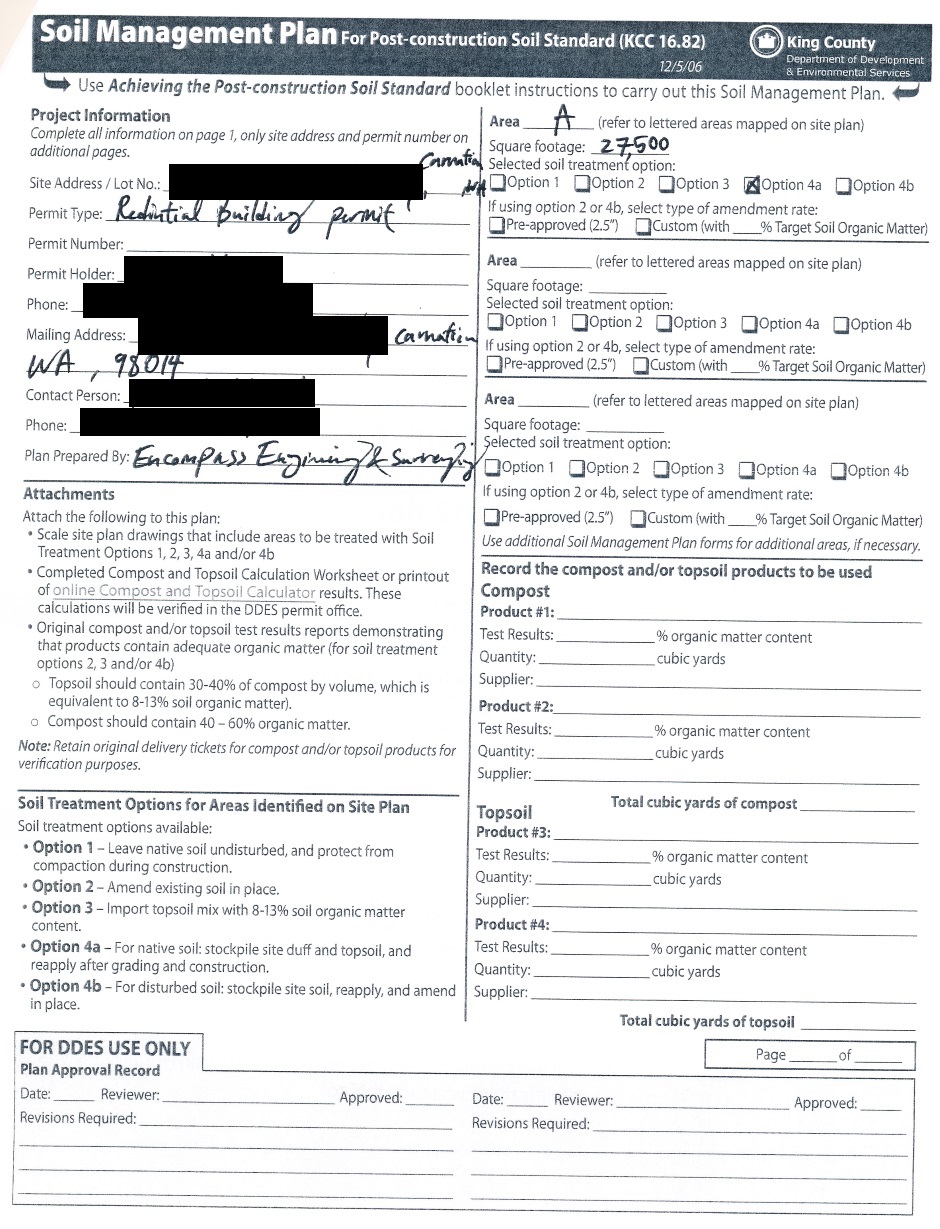

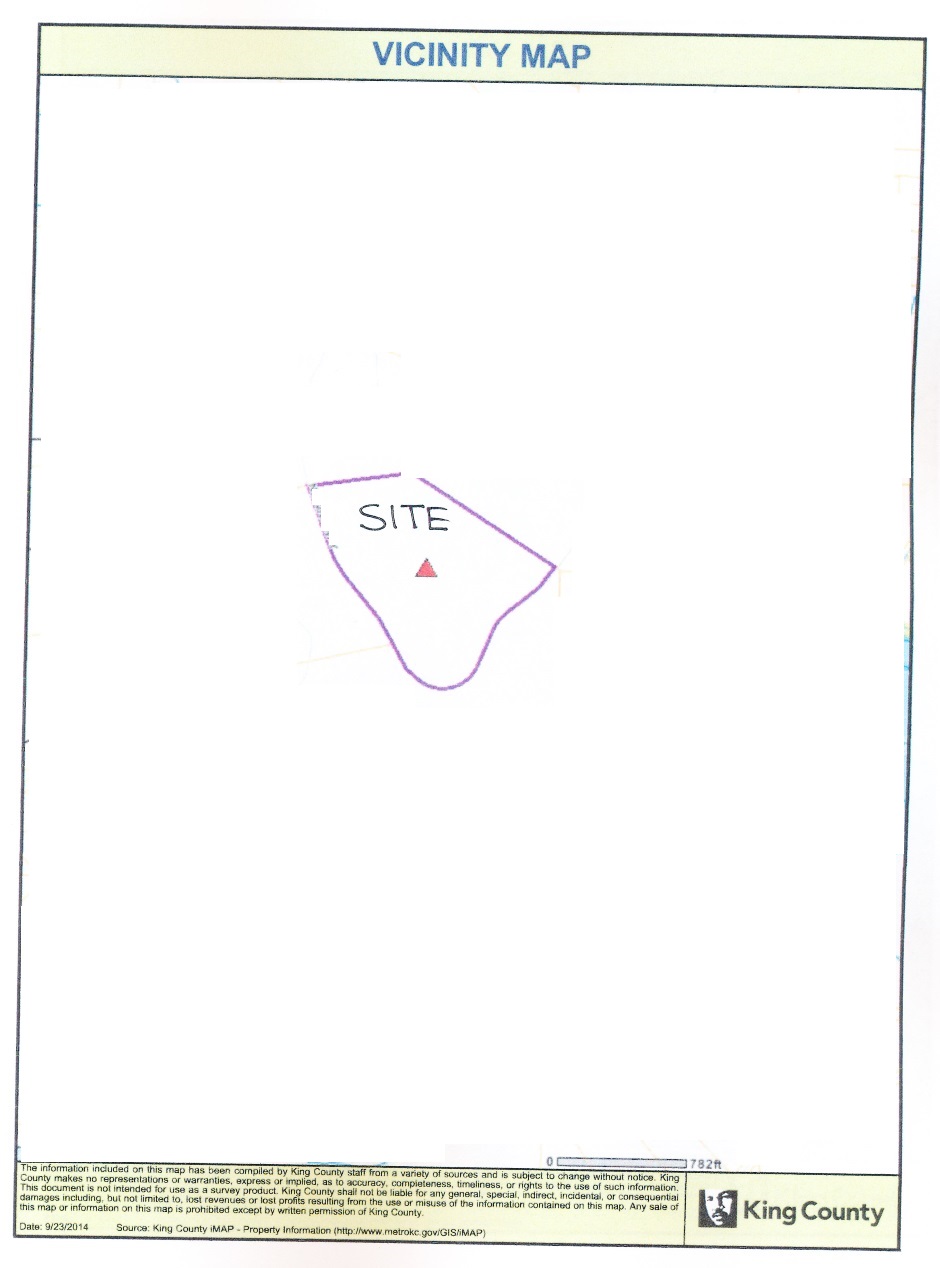

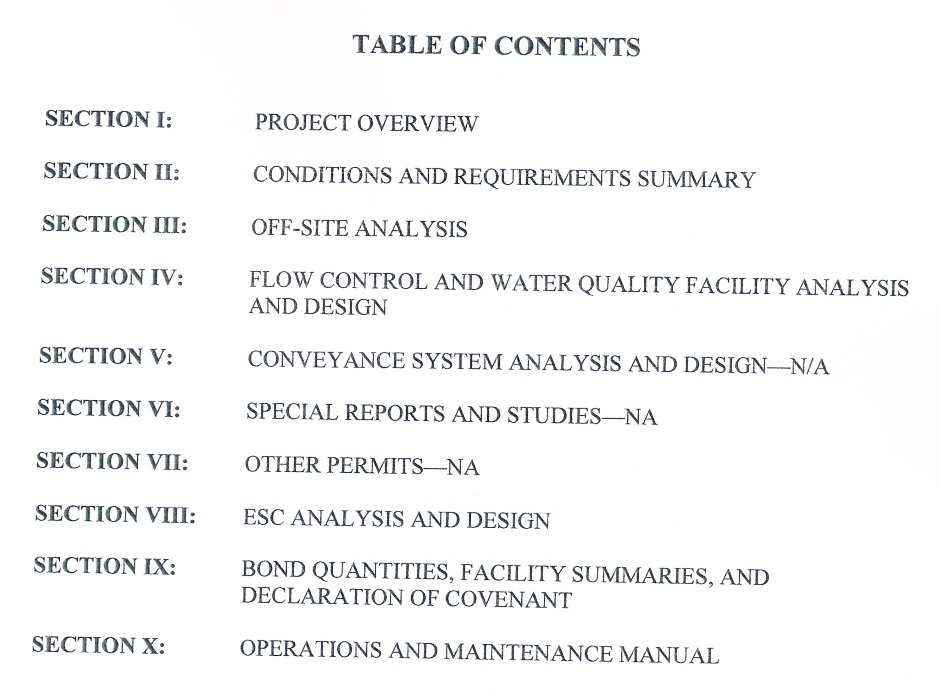

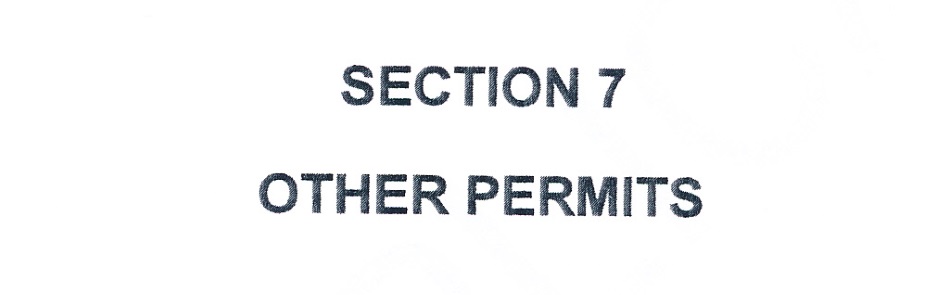

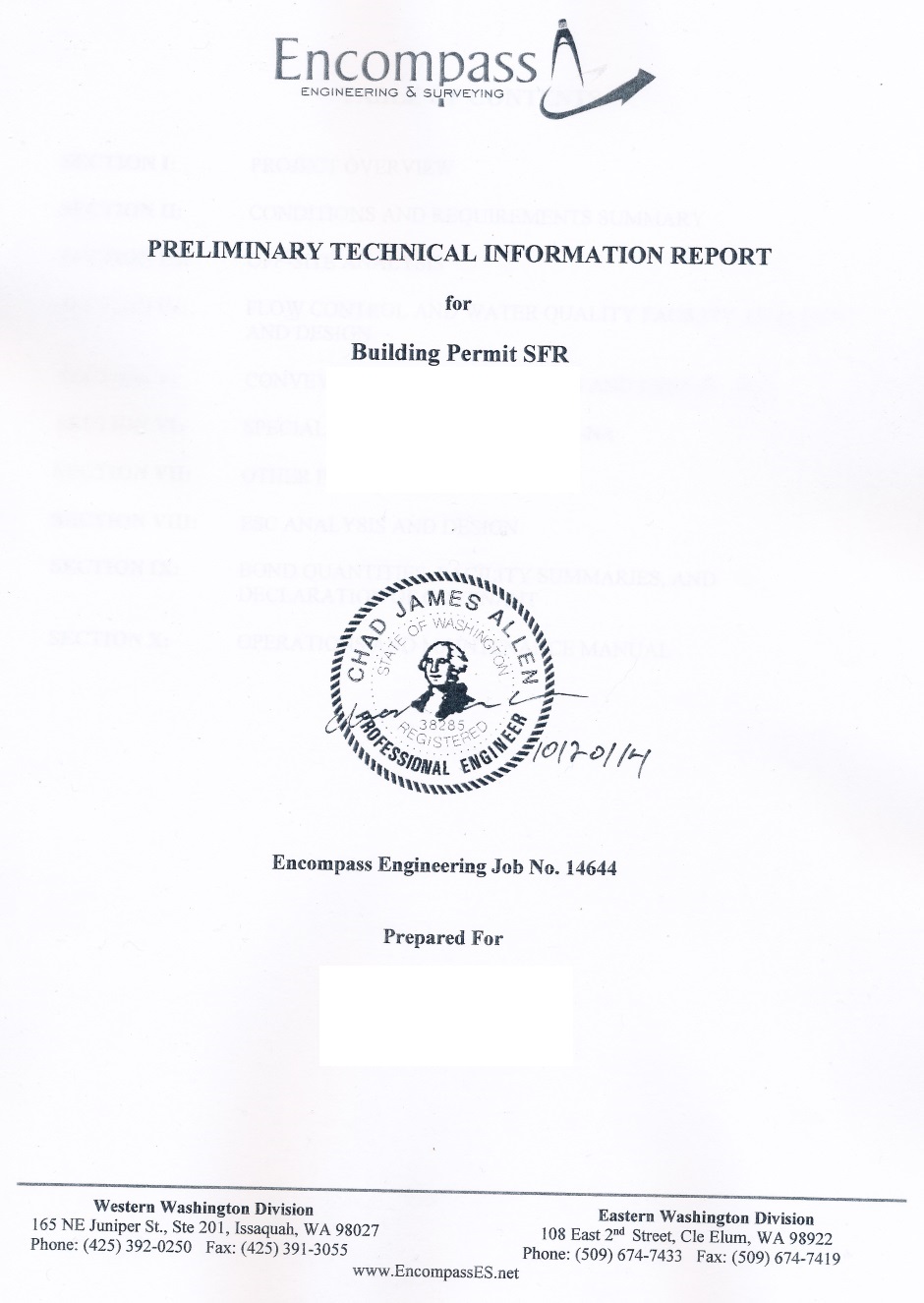

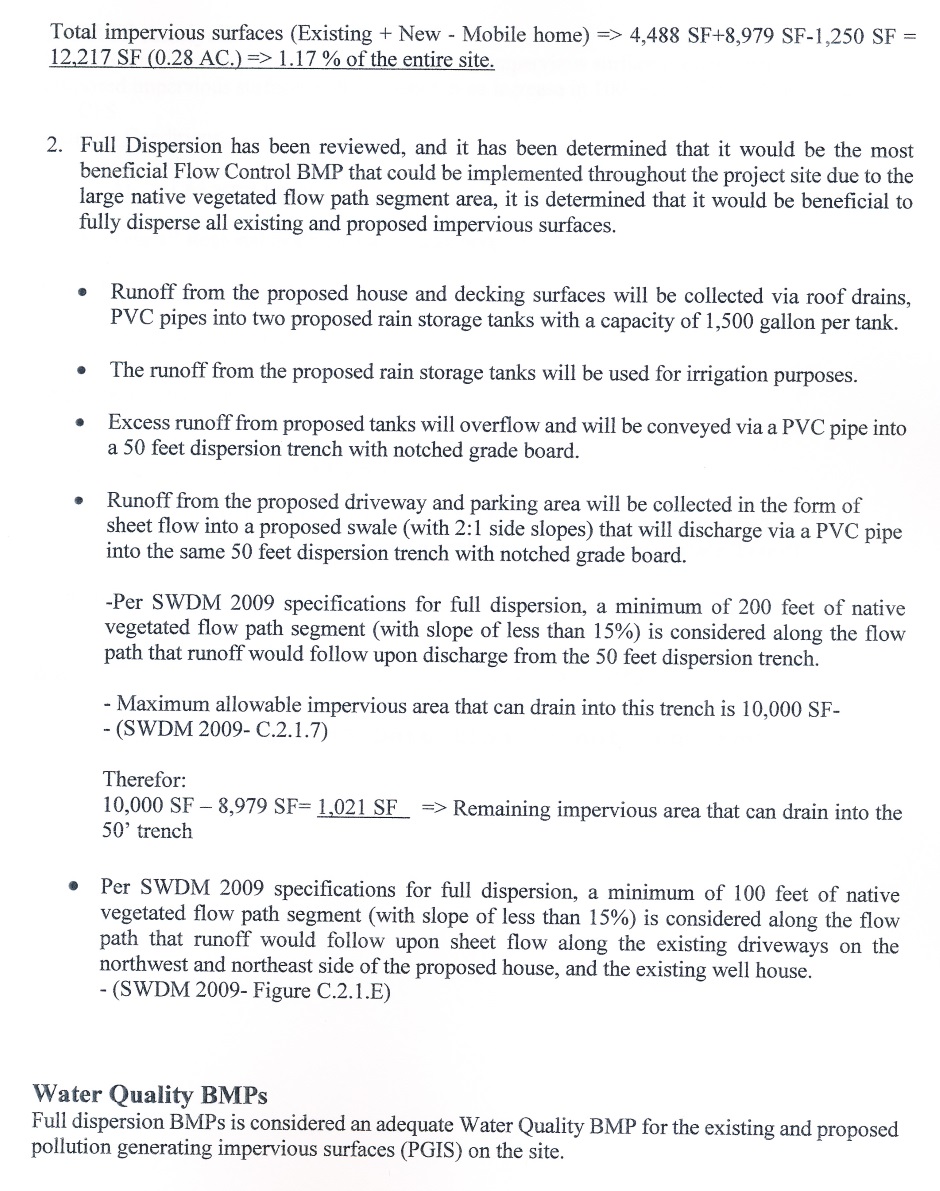

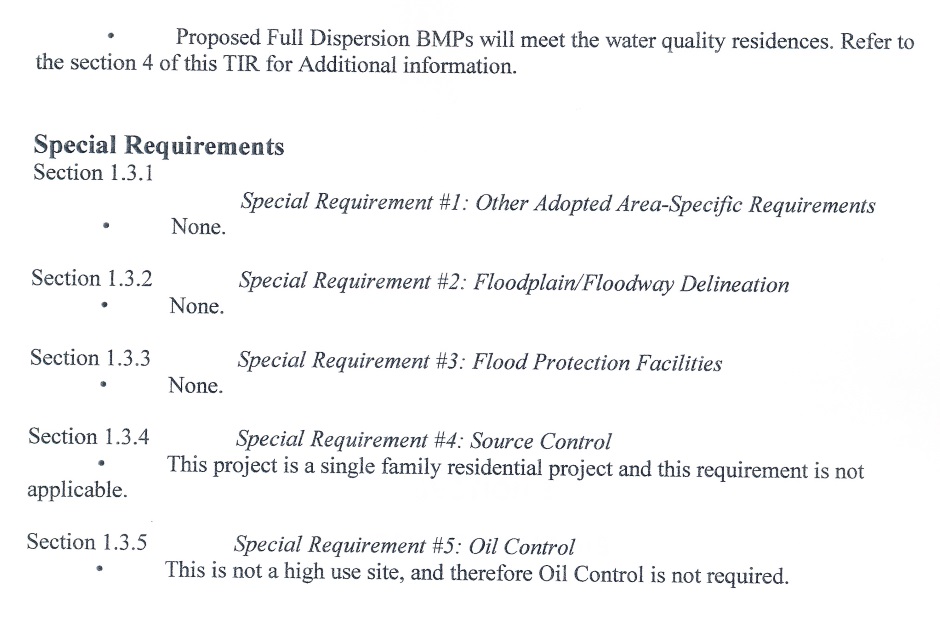

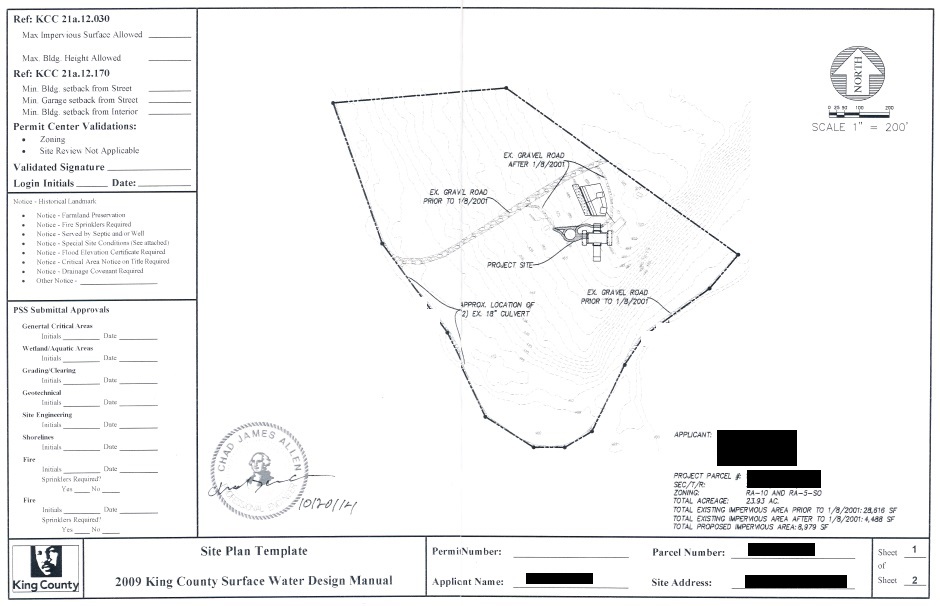

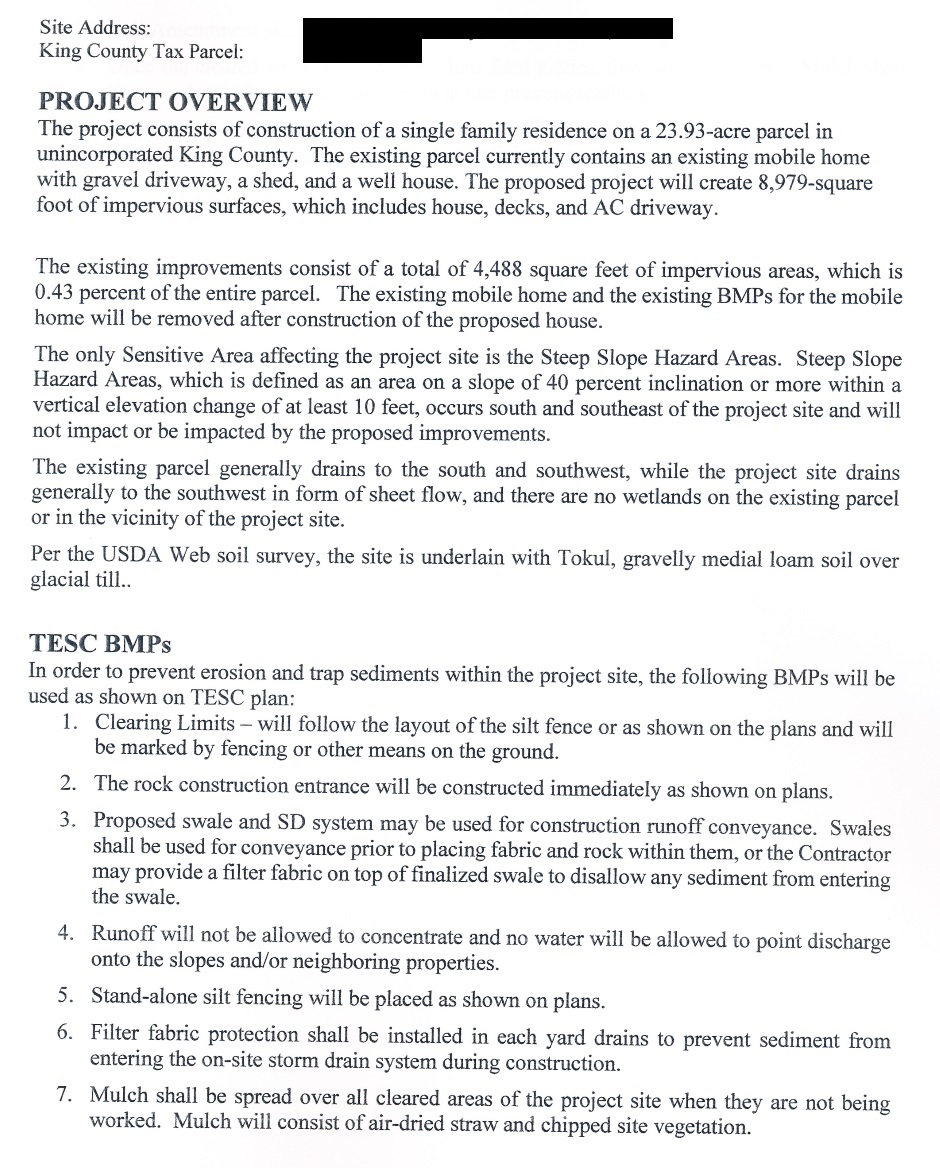

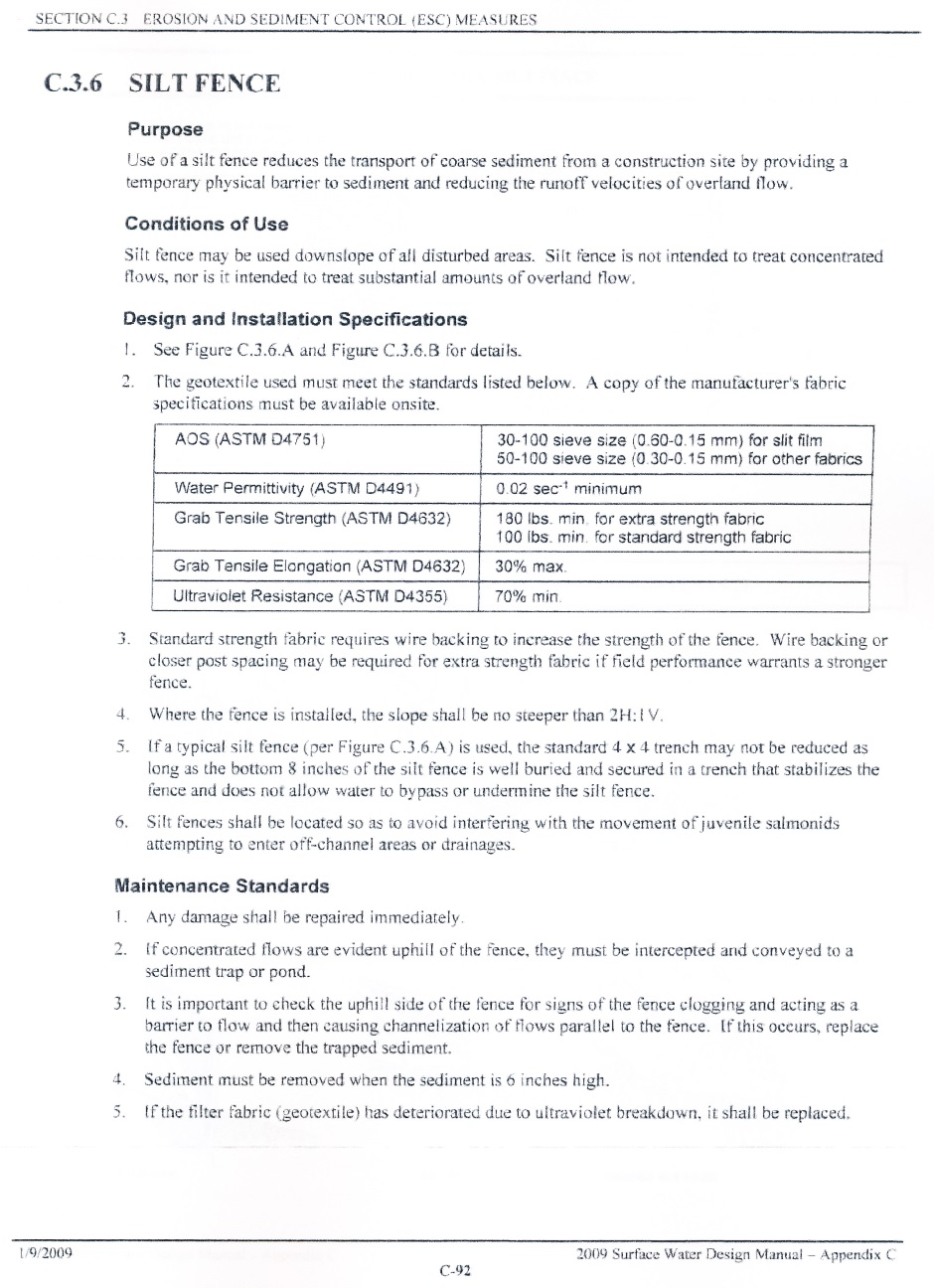

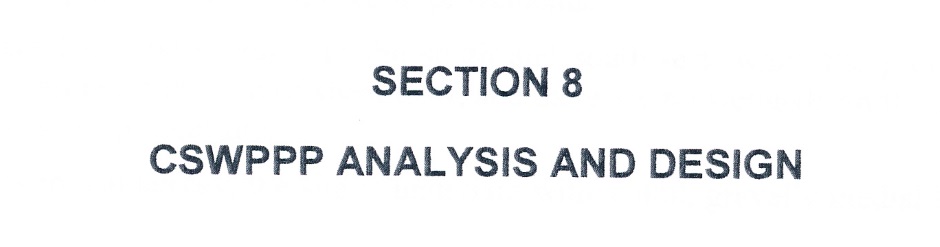

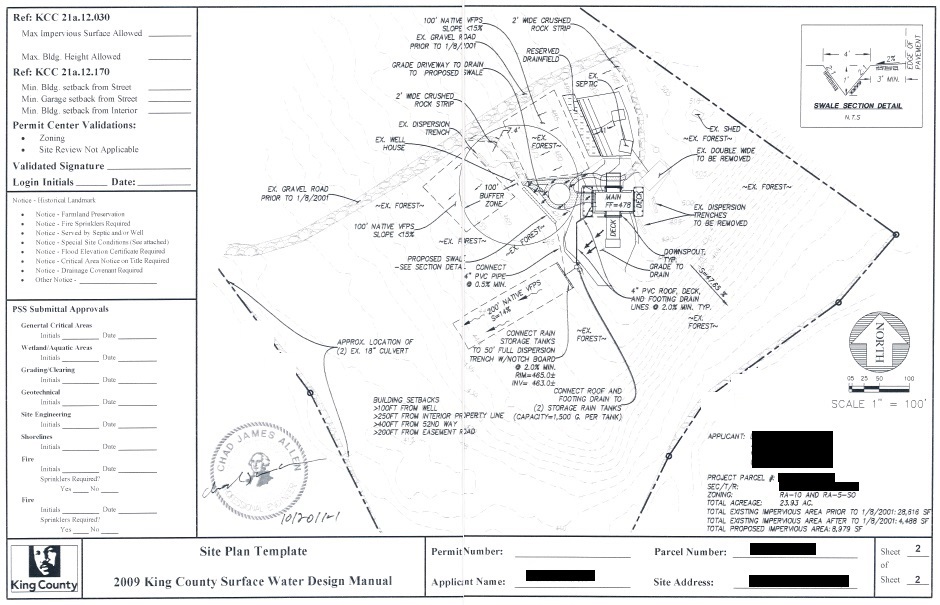

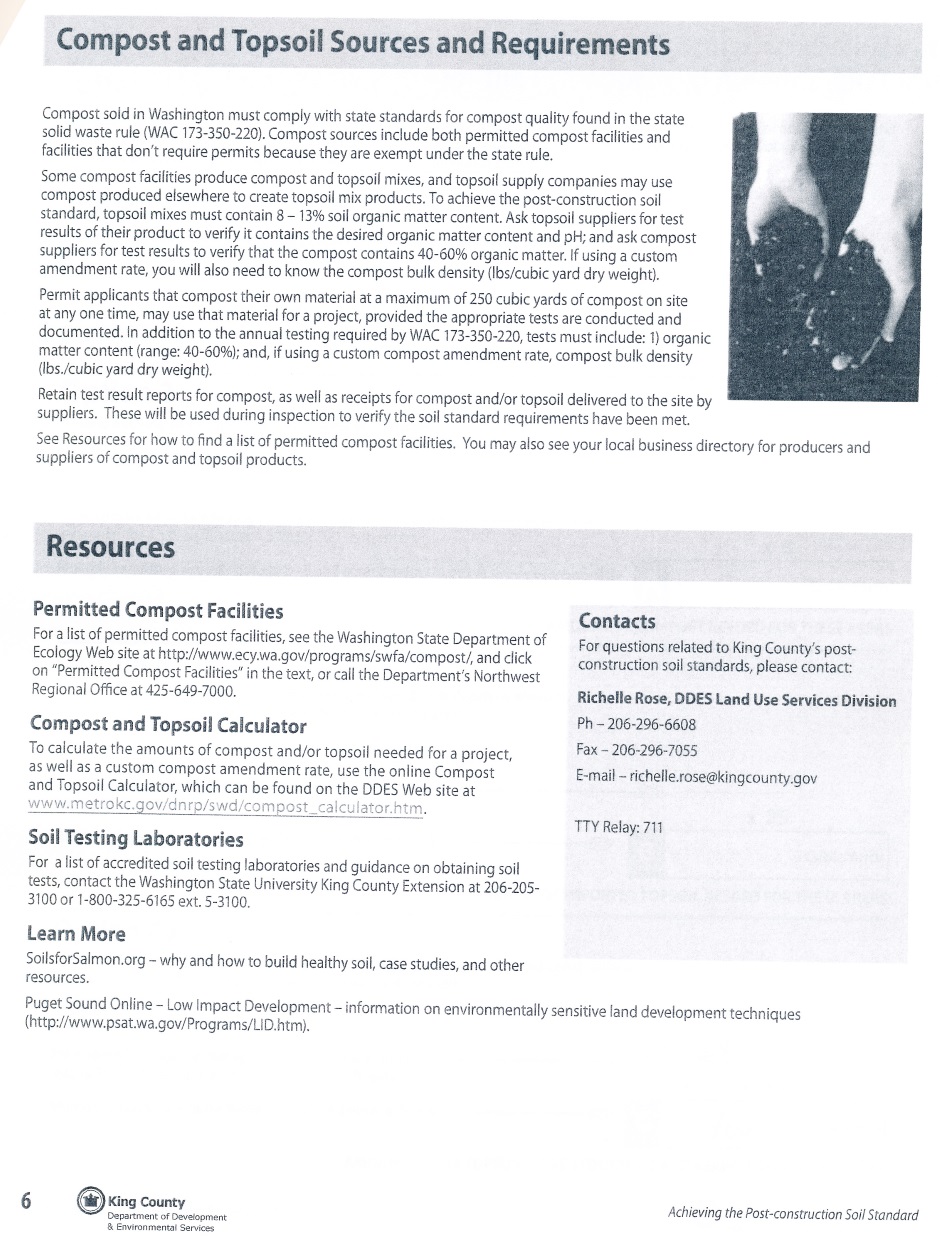

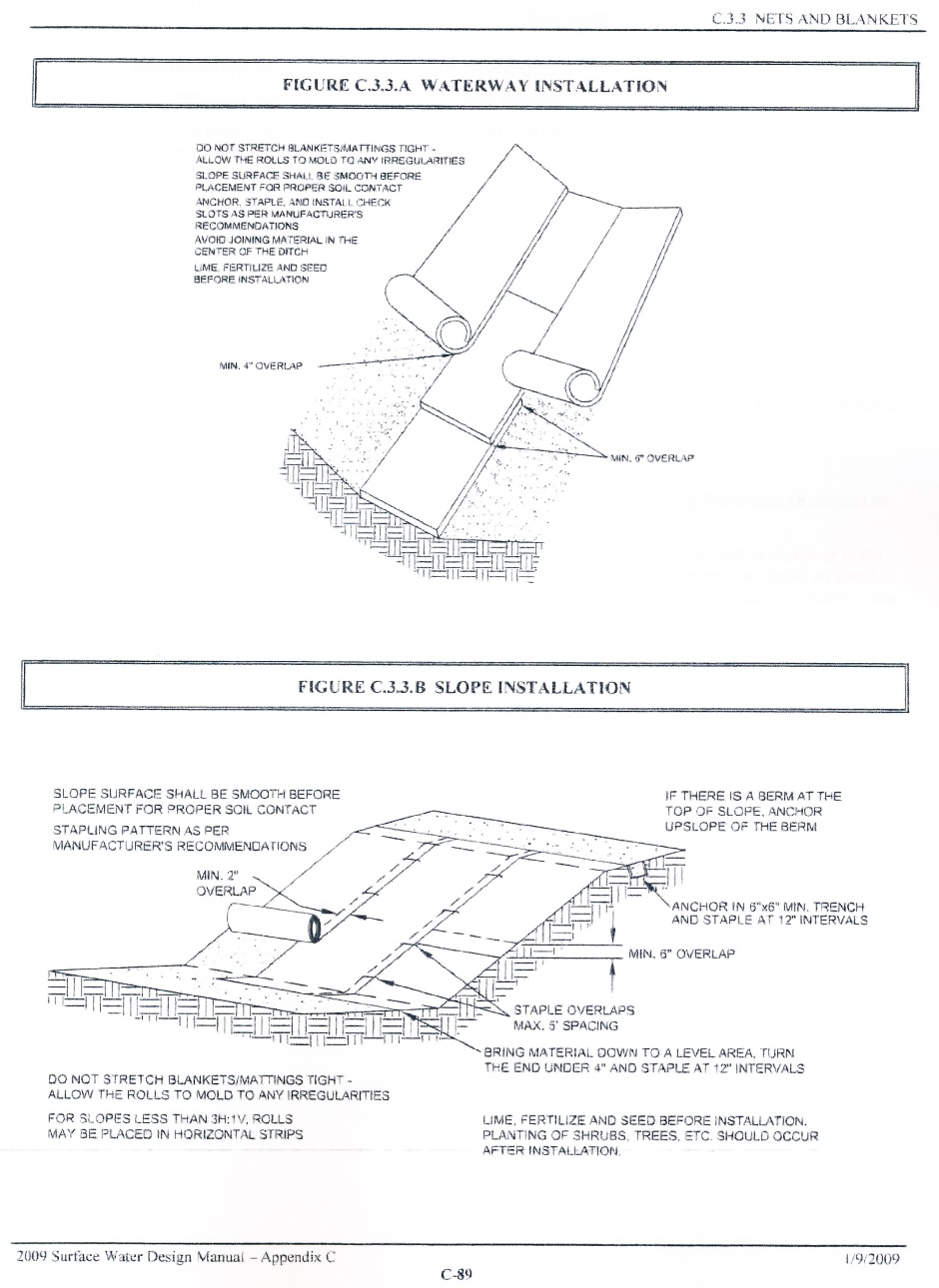

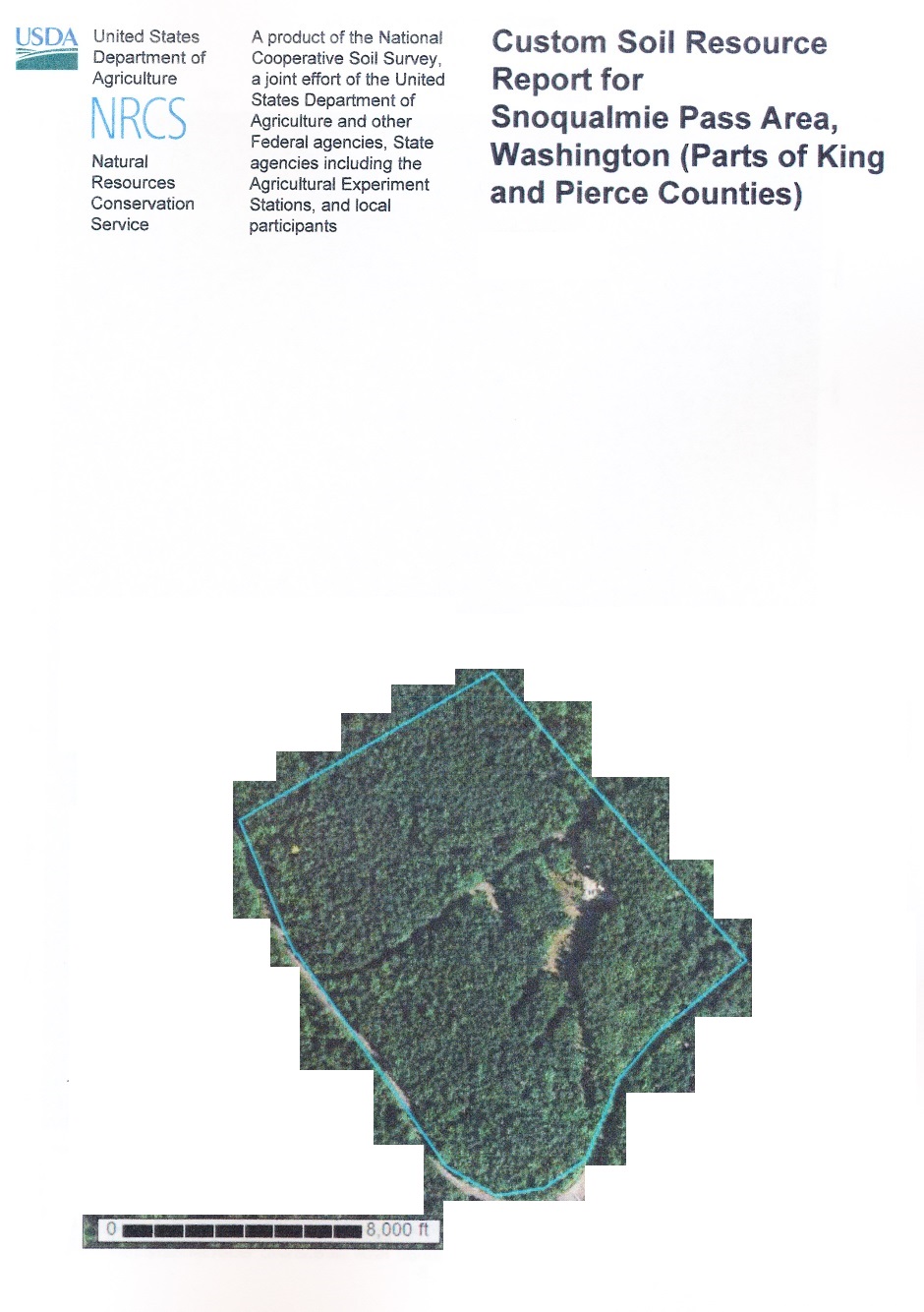

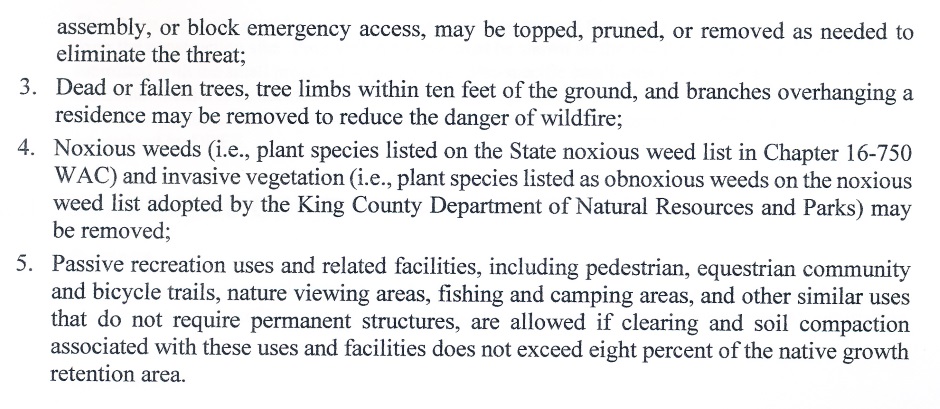

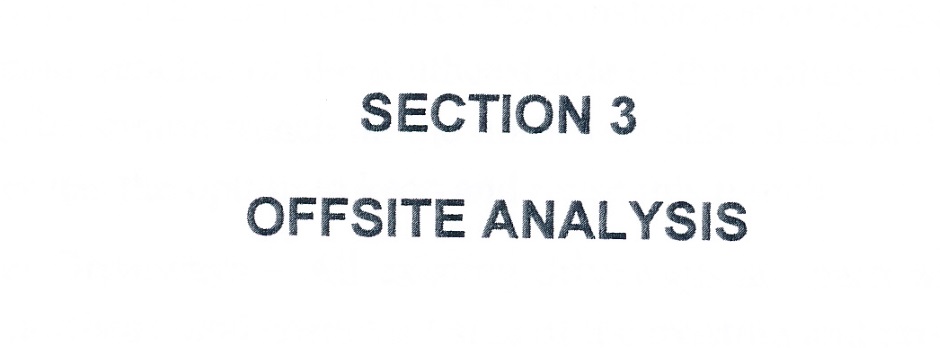

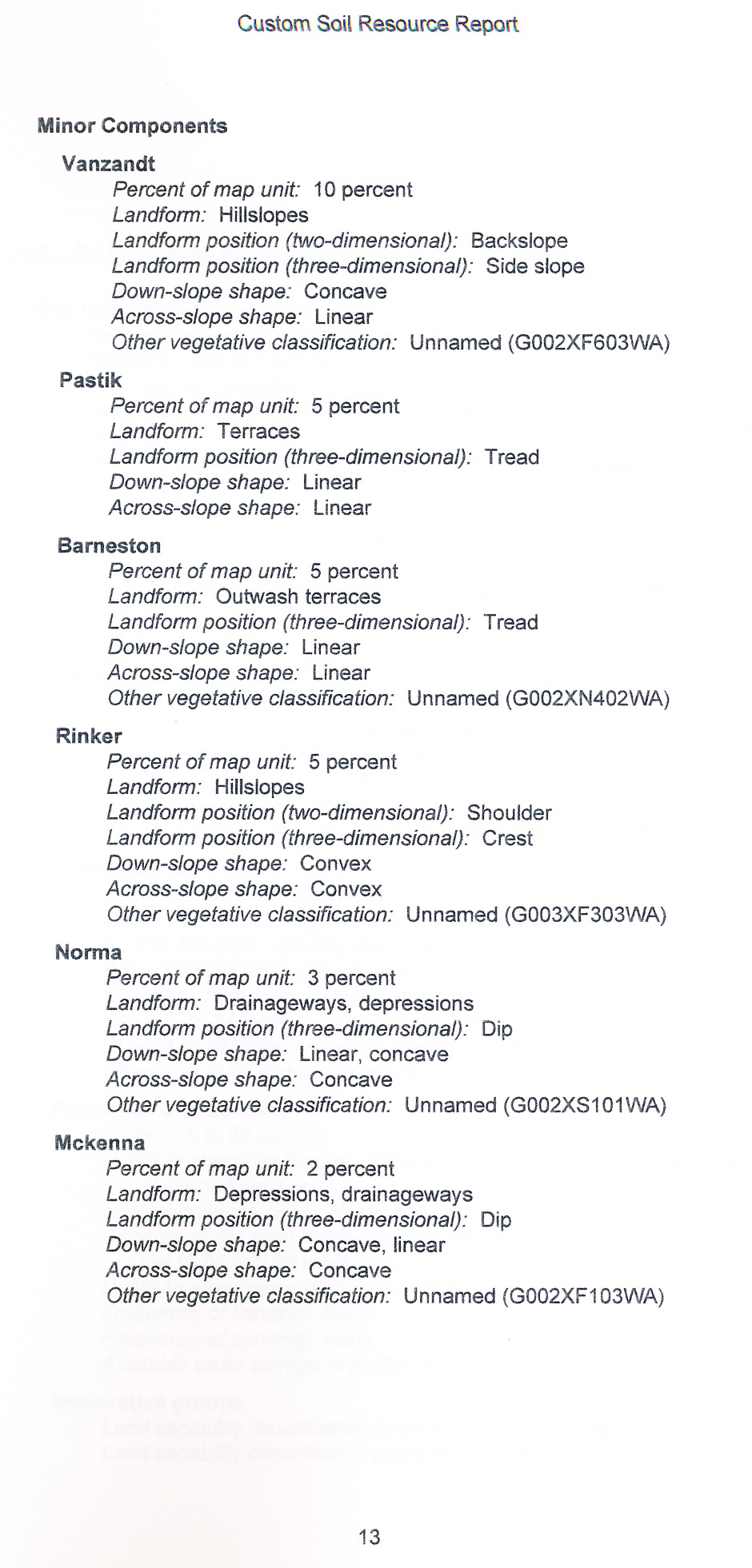

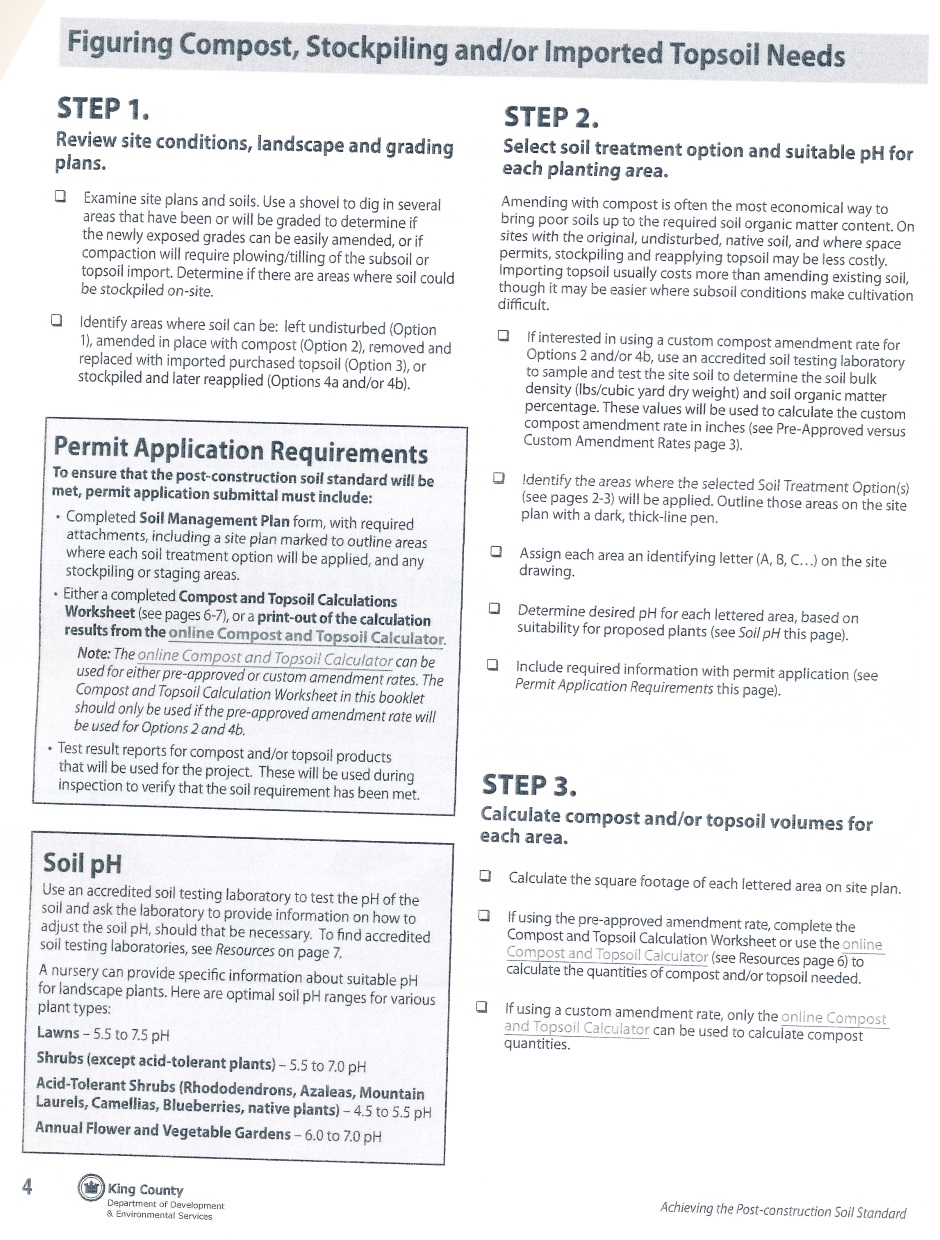

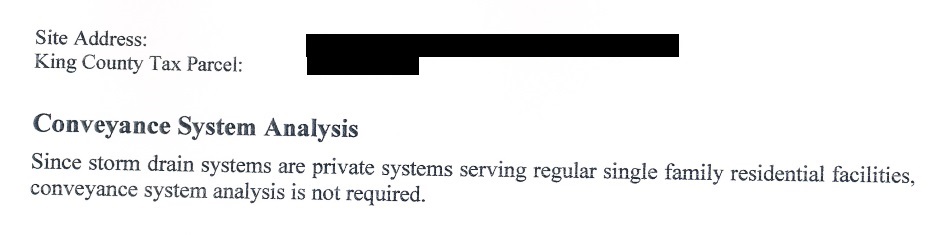

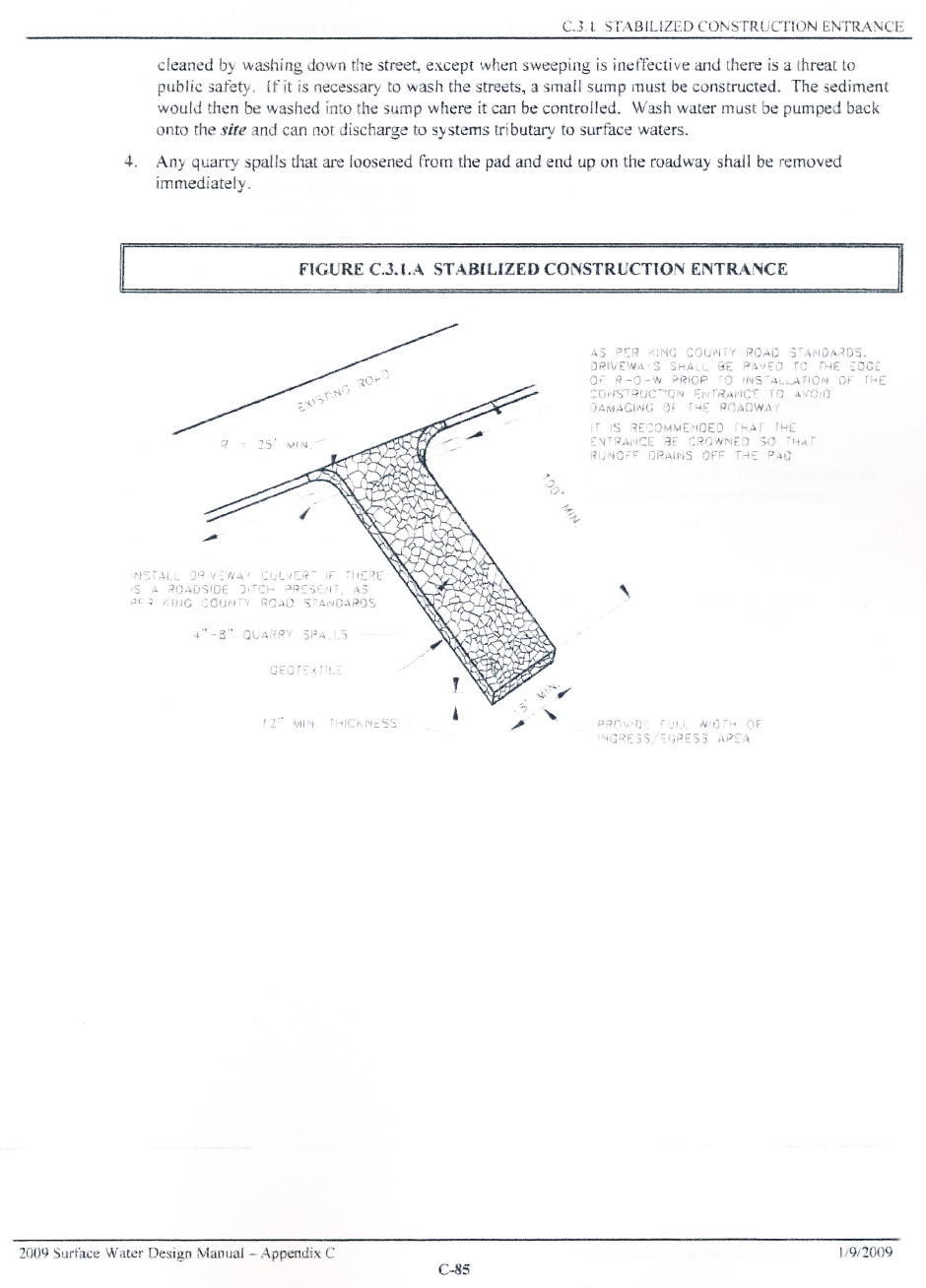

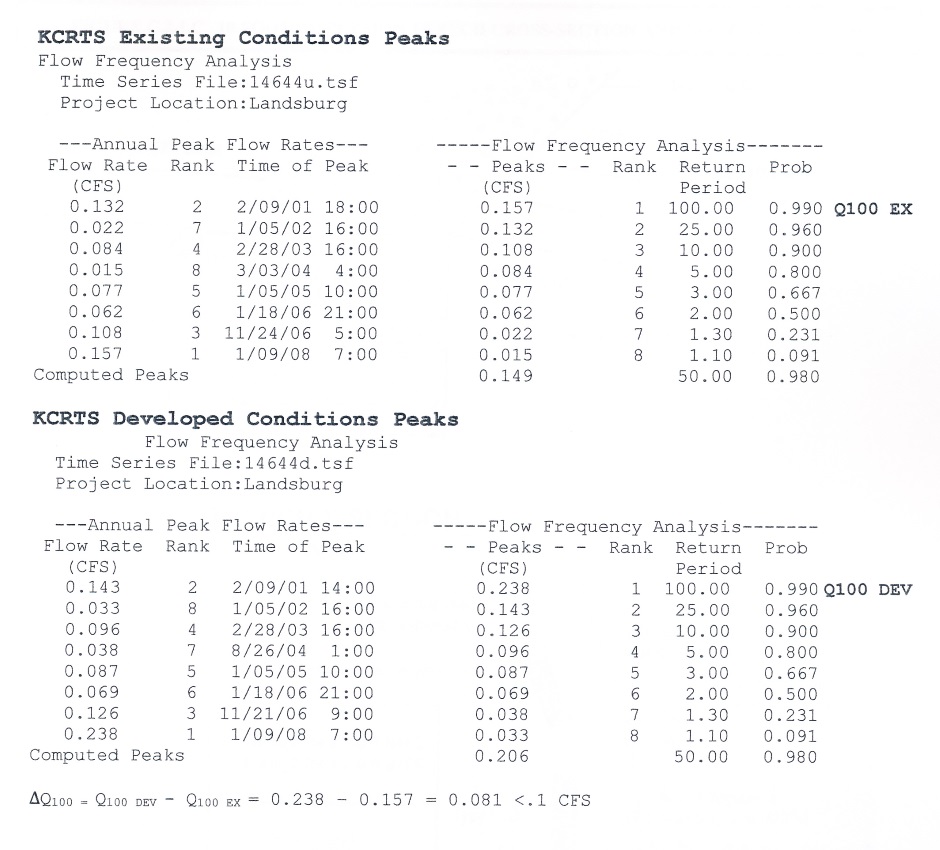

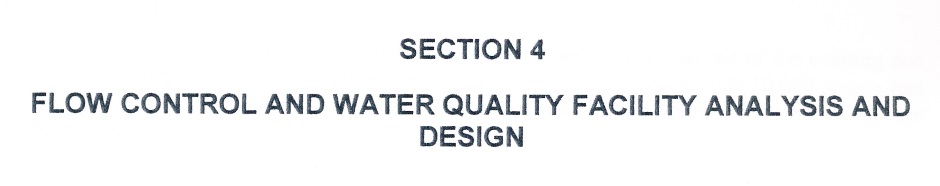

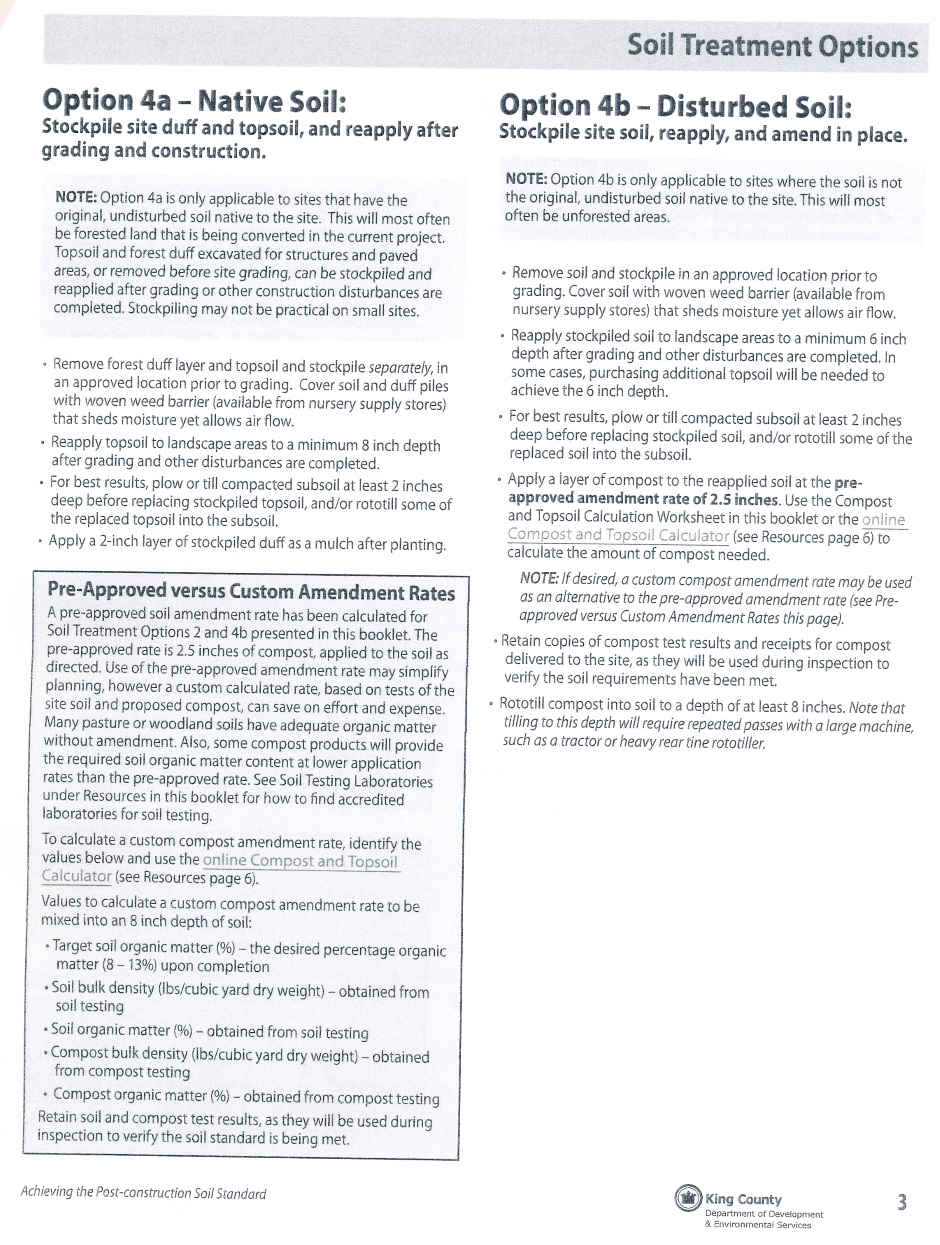

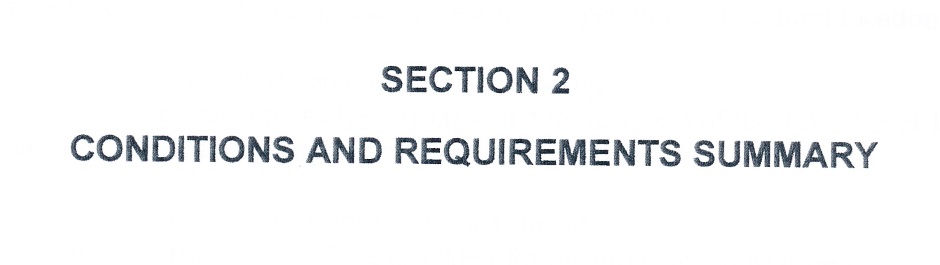

King County requires a drainage plan prepared by a drainage engineer that is licensed by King County.  The following drainage plan was prepared by the drainage engineers I hired to produce the drainage plan.  I have blanked out some personal info.

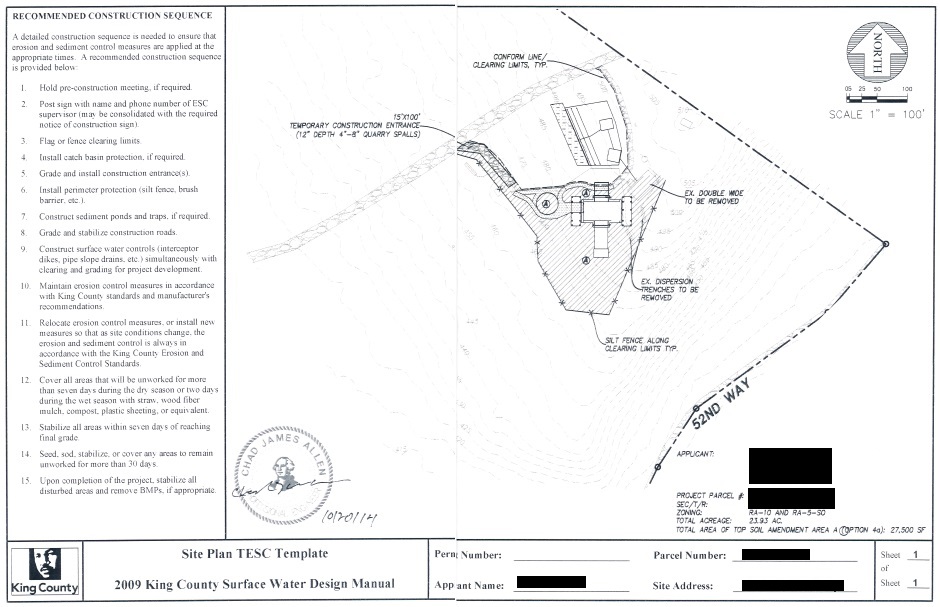

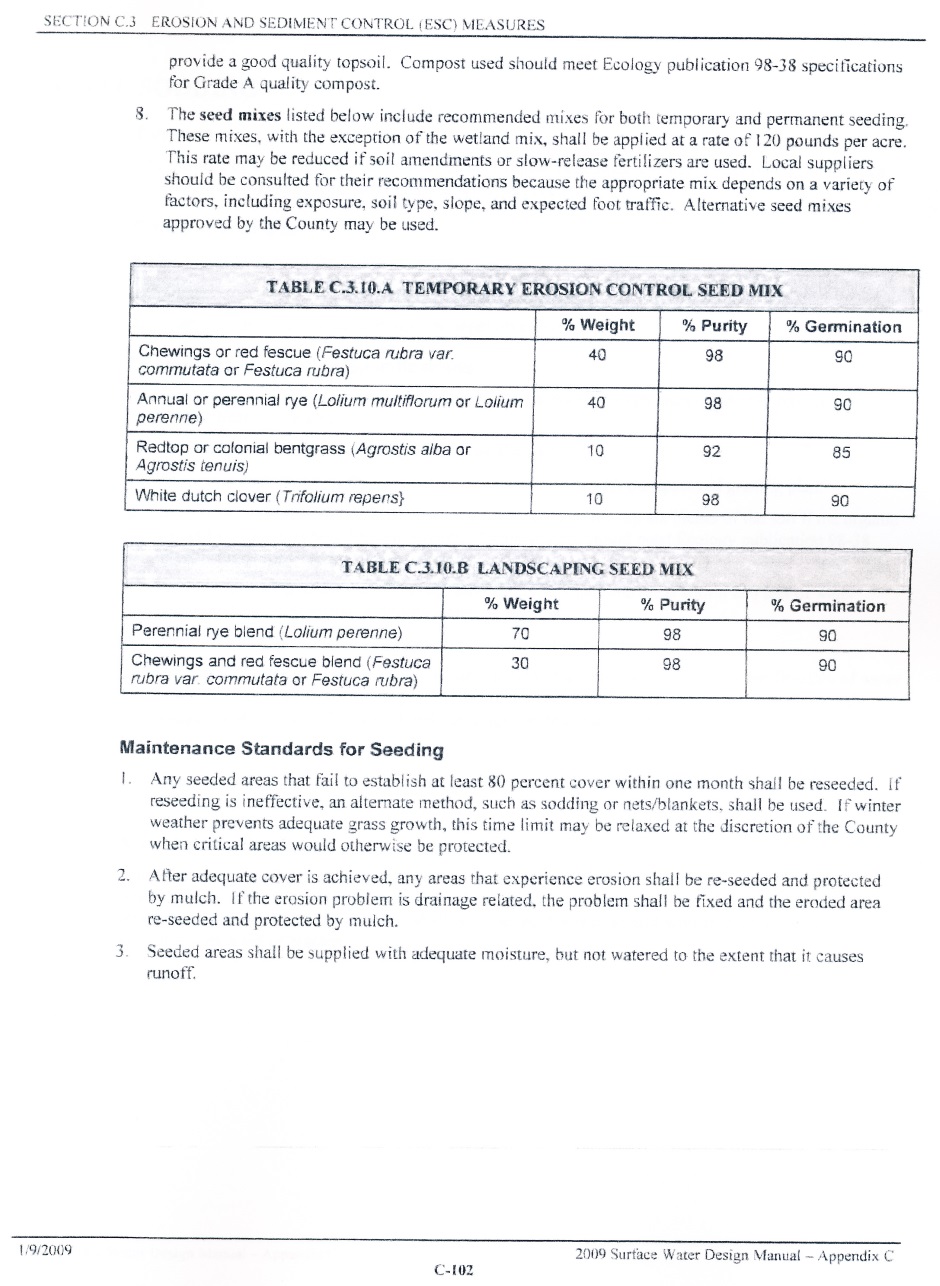

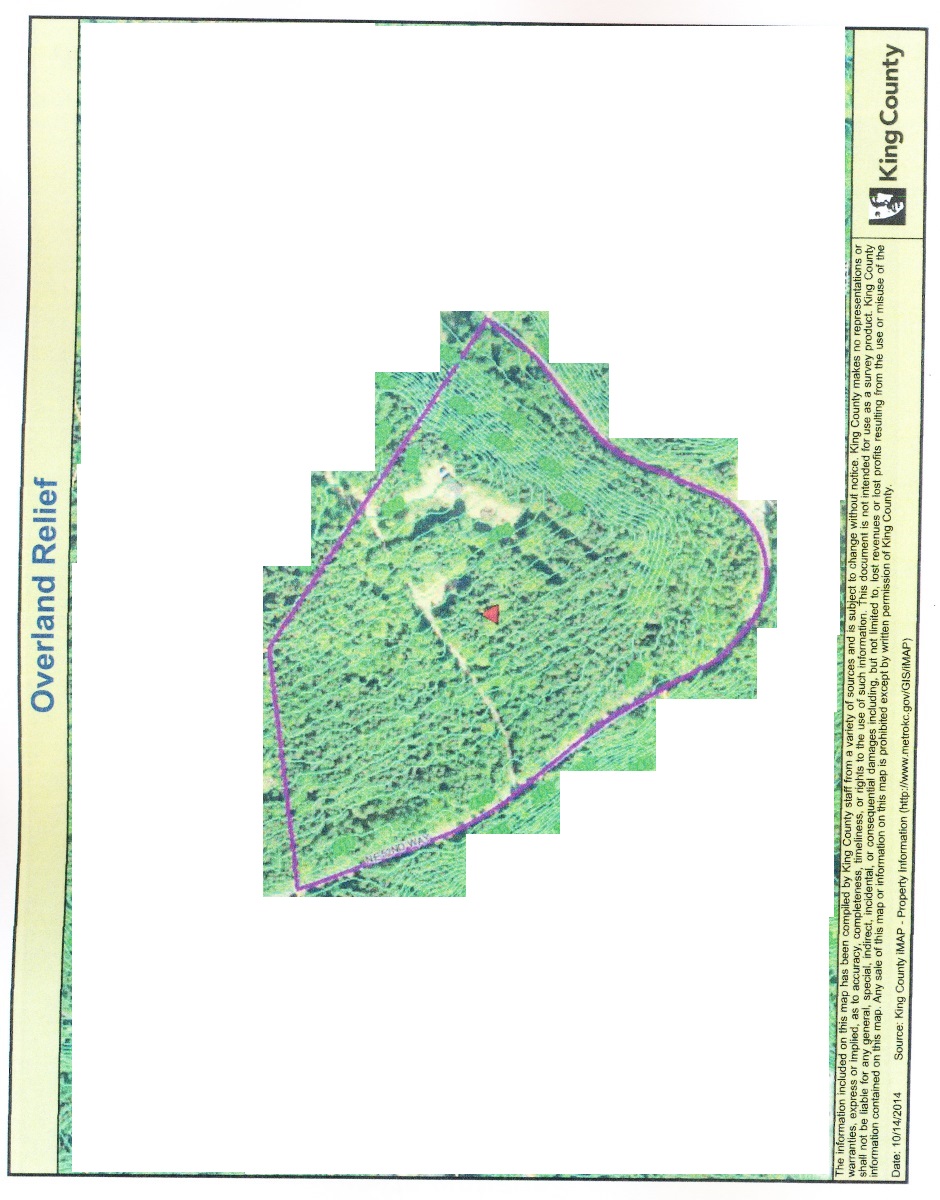

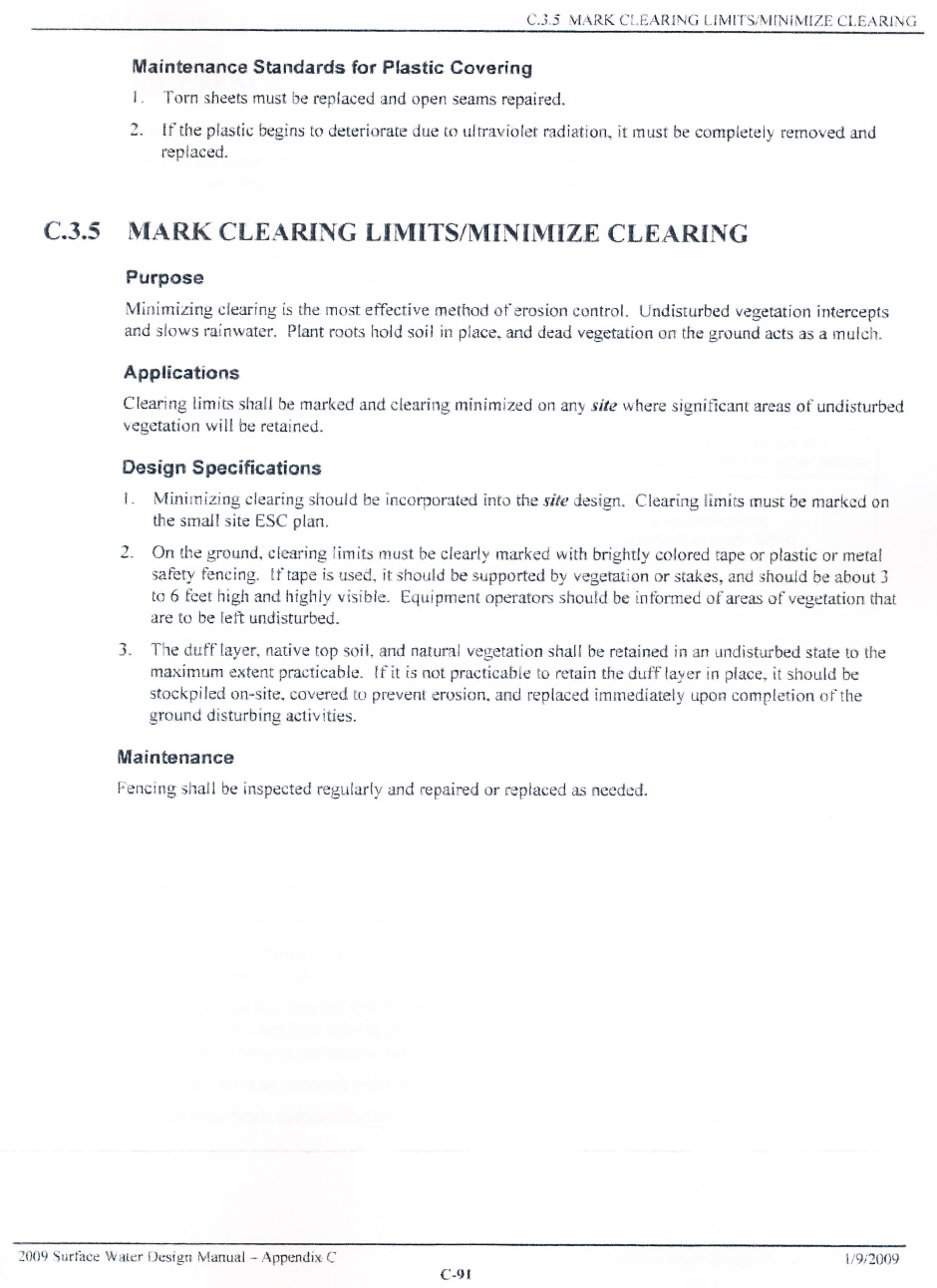

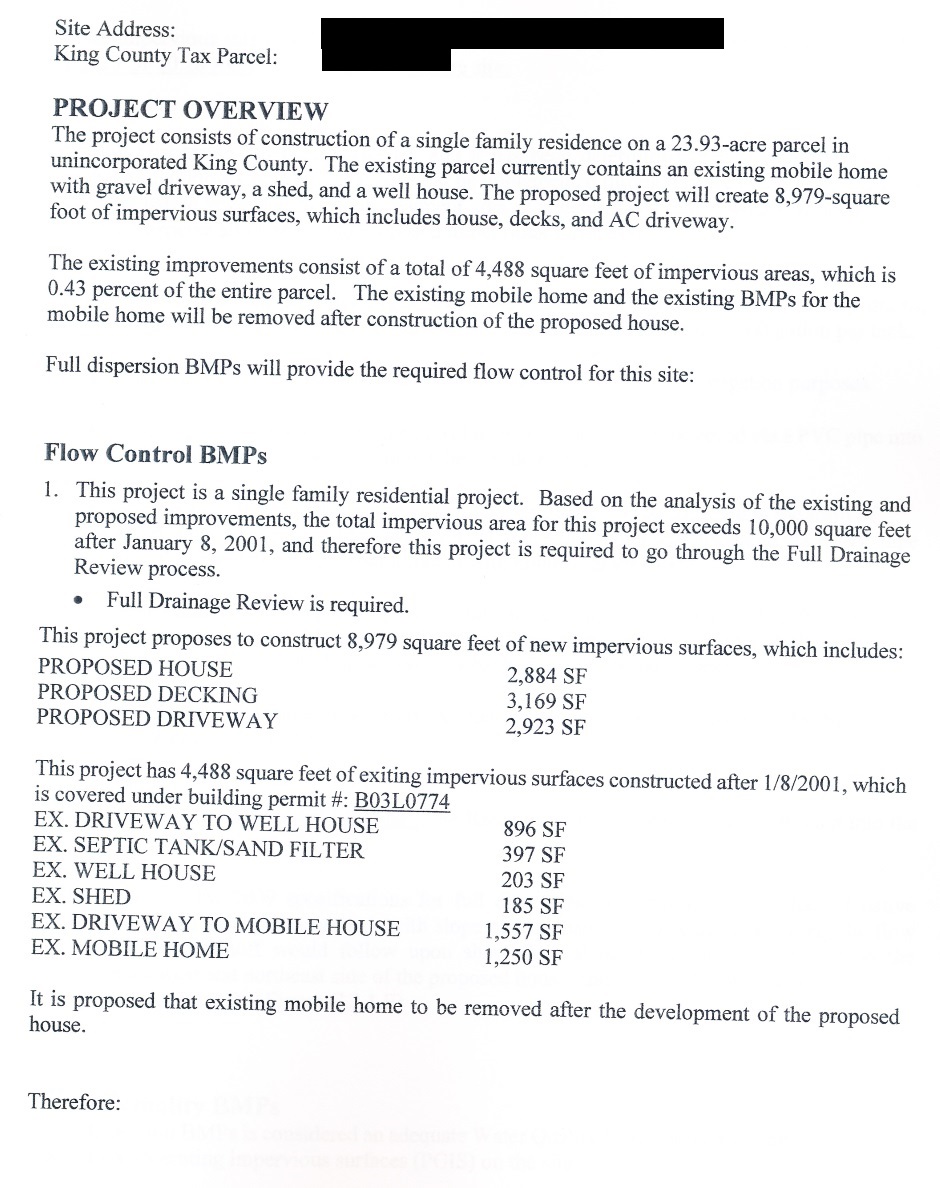

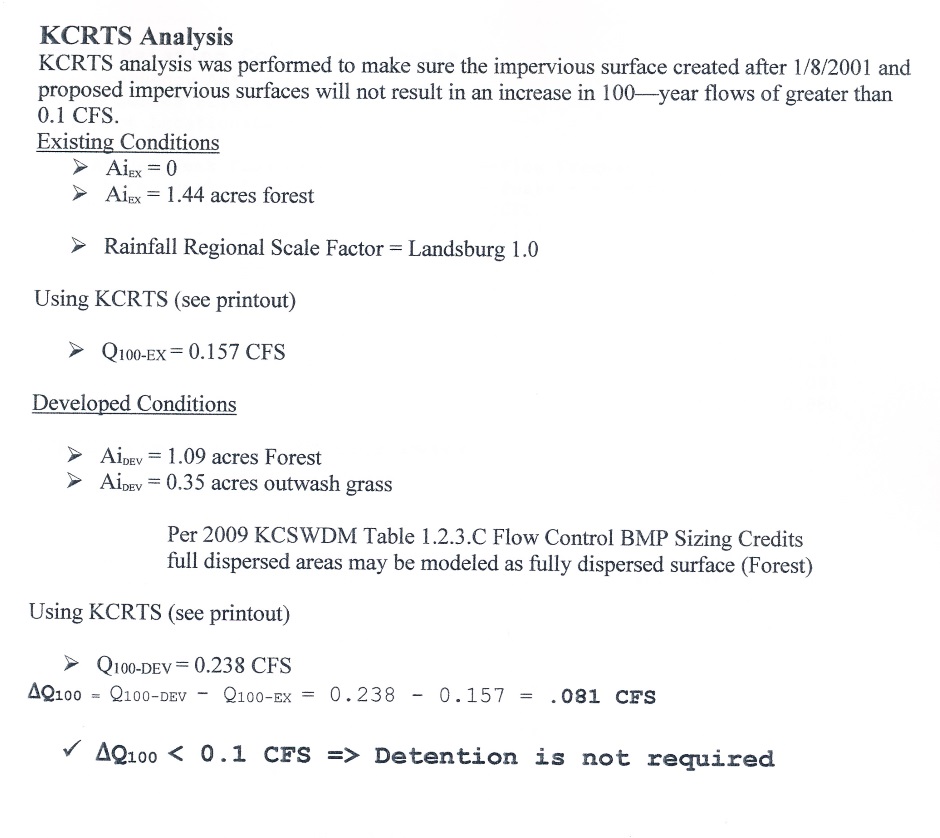

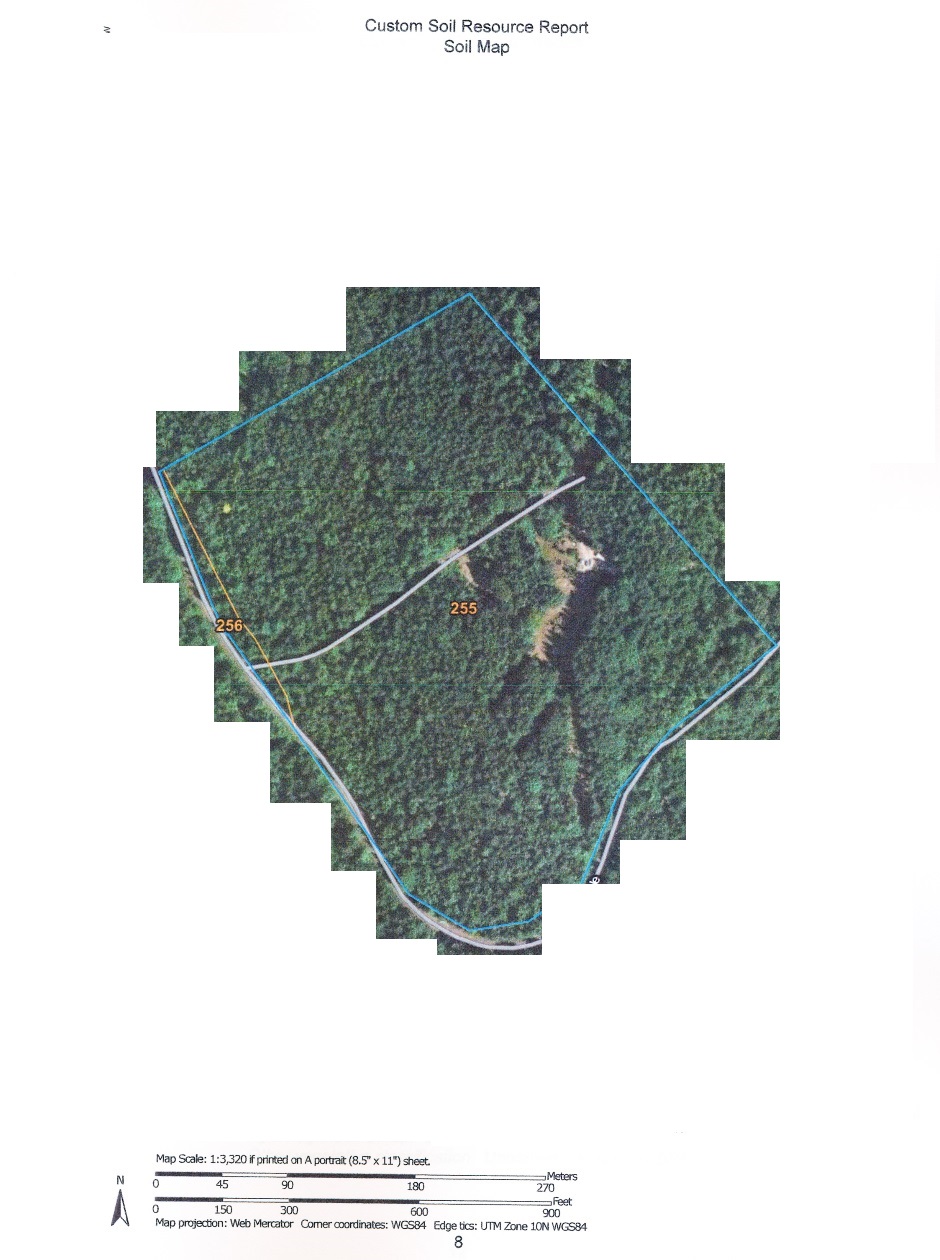

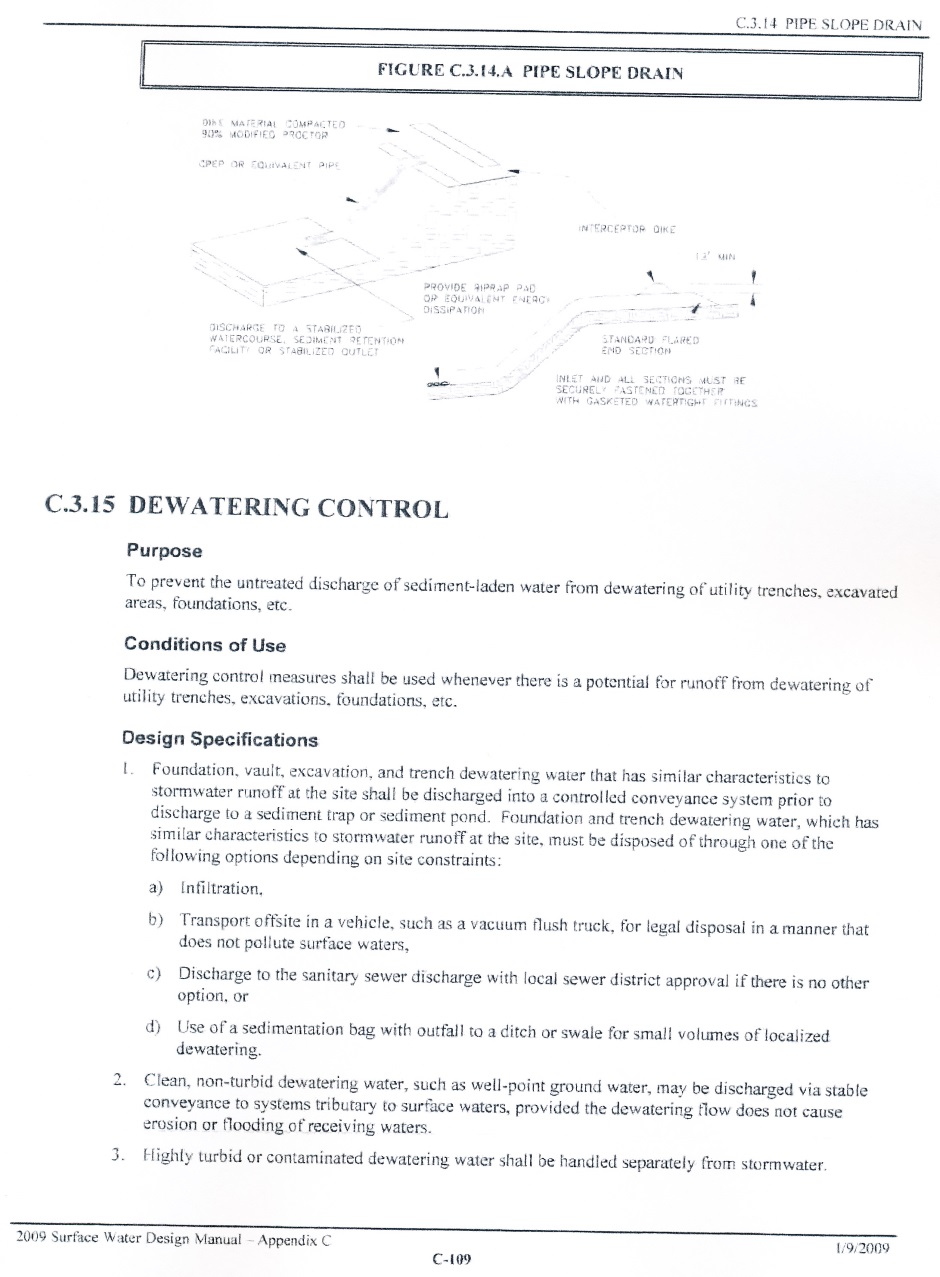

Drainage plan

Drainage plan

Drainage plan

Drainage plan

Drainage plan

Drainage plan

Drainage plan

Drainage plan

Drainage plan

Drainage plan

Drainage plan

Drainage plan

Drainage plan

Drainage Plan

Drainage Plan

Drainage Plan

Drainage Plan

Drainage Plan

Drainage Plan

Drainage Plan

Drainage Plan

Drainage Plan

Drainage Plan

Drainage Plan

Drainage Plan

Drainage Plan

Drainage Plan

Drainage Plan

Drainage Plan

Drainage Plan

Drainage Plan

Drainage Plan

Drainage Plan

Drainage Plan

Drainage Plan

Drainage Plan

Drainage Plan

Drainage Plan

Drainage Plan

Drainage Plan

Drainage Plan

Drainage Plan

Drainage Plan

Drainage Plan

Drainage Plan

Drainage Plan

Drainage Plan

Drainage Plan

Drainage Plan

Drainage Plan

Drainage Plan

Drainage Plan

Drainage Plan

Drainage Plan

Drainage Plan

Drainage Plan

Drainage Plan

Drainage Plan

Drainage Plan

Drainage Plan

Drainage Plan

Drainage Plan

Drainage Plan

Drainage Plan

Drainage Plan

Drainage Plan

Drainage Plan

Drainage Plan

Drainage Plan

Drainage Plan

Drainage Plan

Drainage Plan

Drainage Plan

Drainage Plan

Drainage Plan

Drainage Plan

Drainage Plan

Drainage Plan

Drainage Plan

Drainage Plan

Drainage Plan





*
