Structural Engineering - Calculations

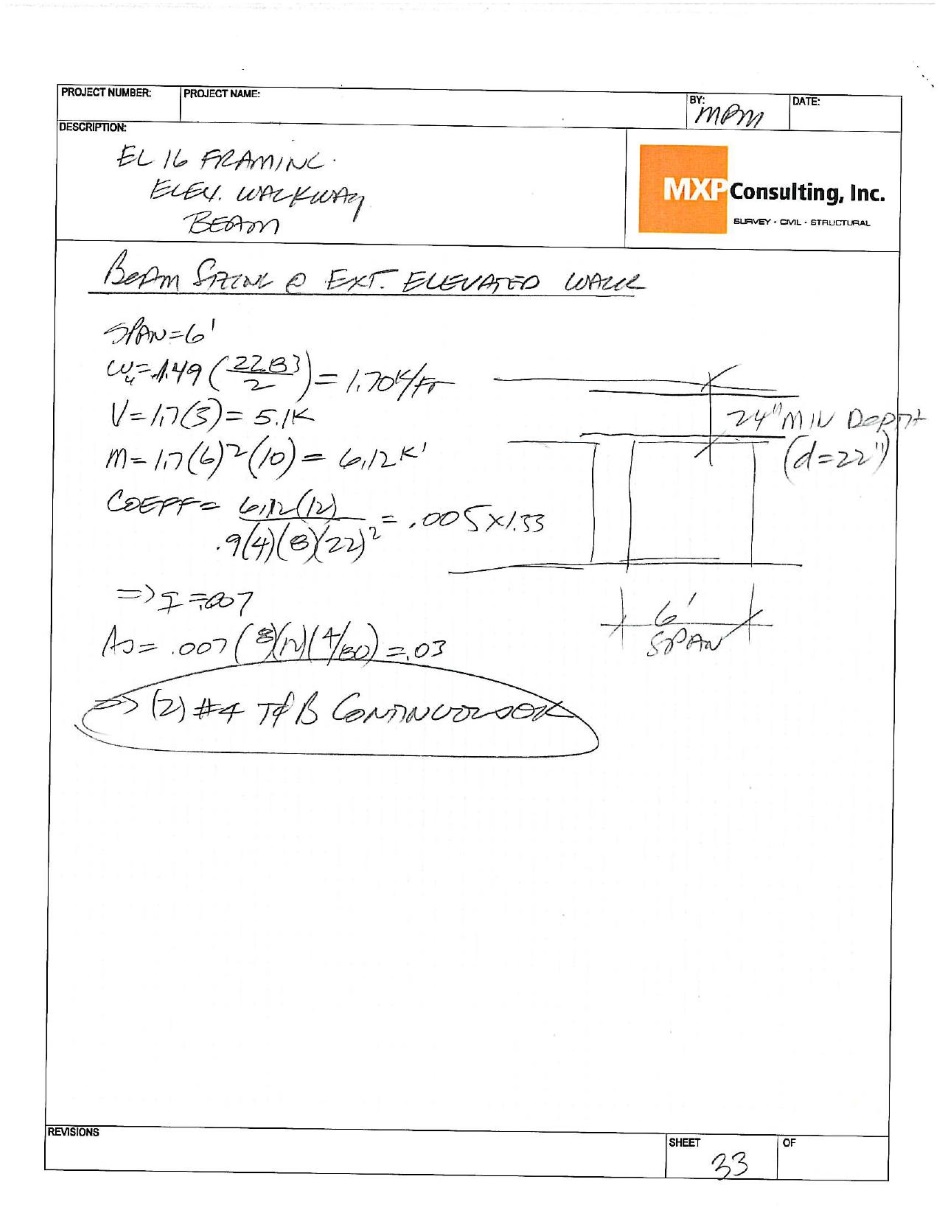

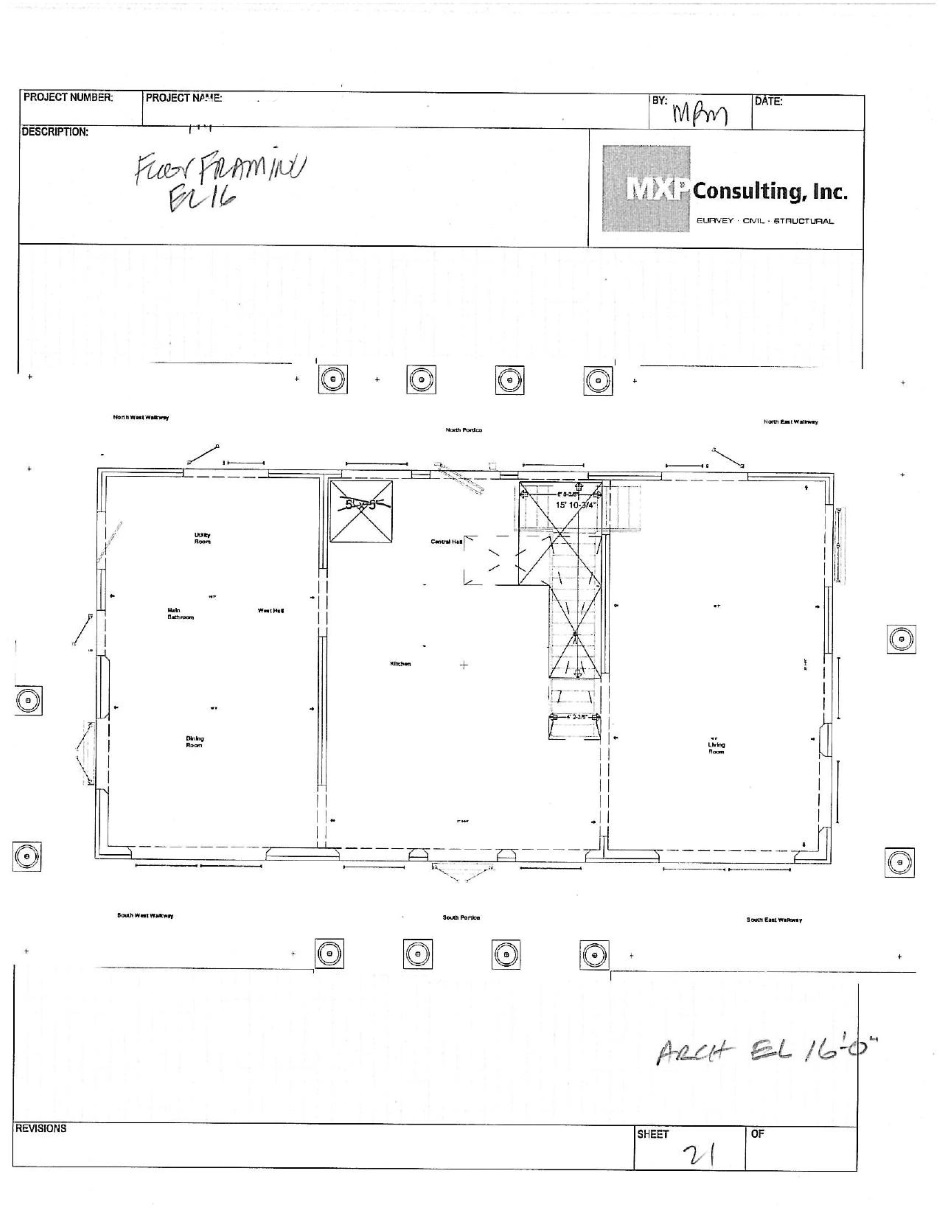

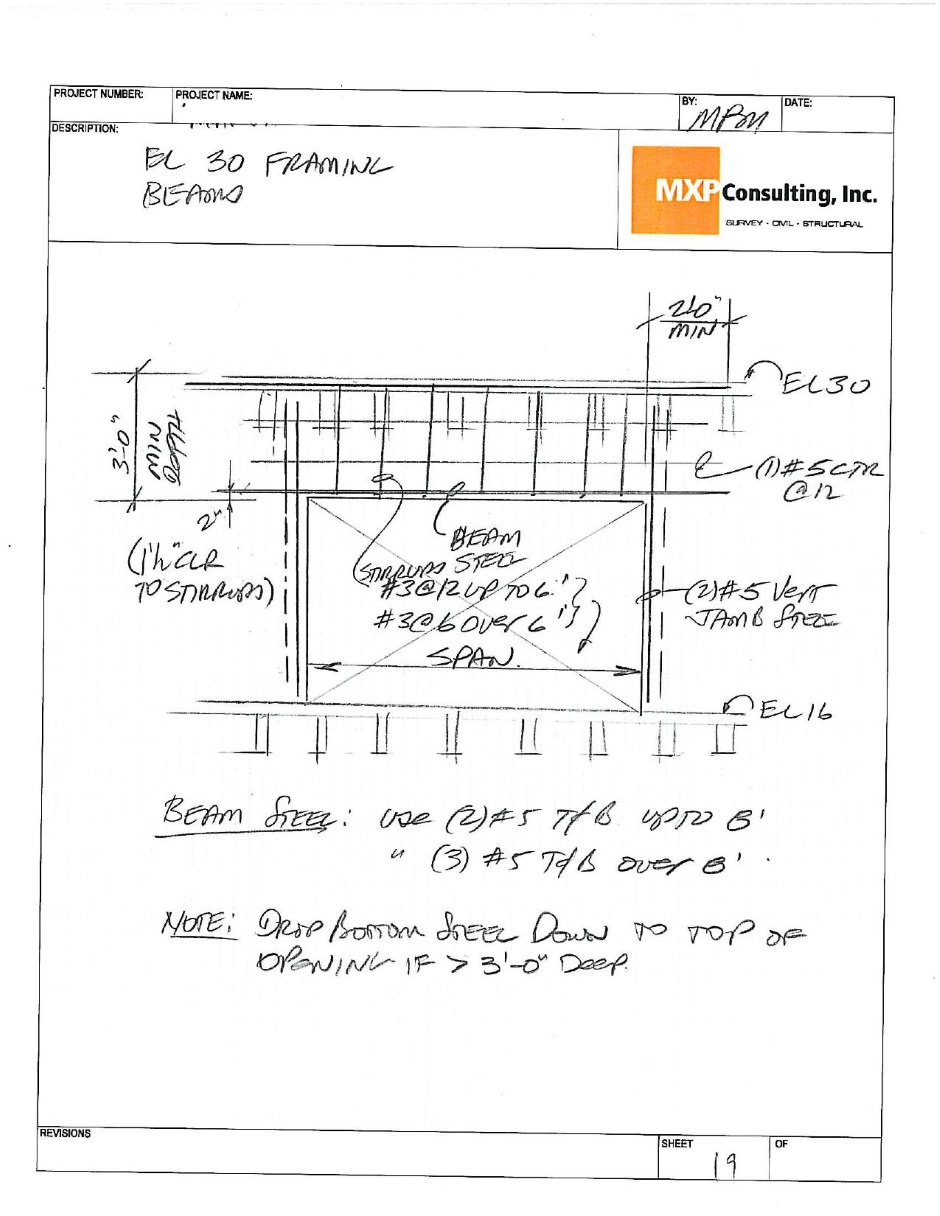

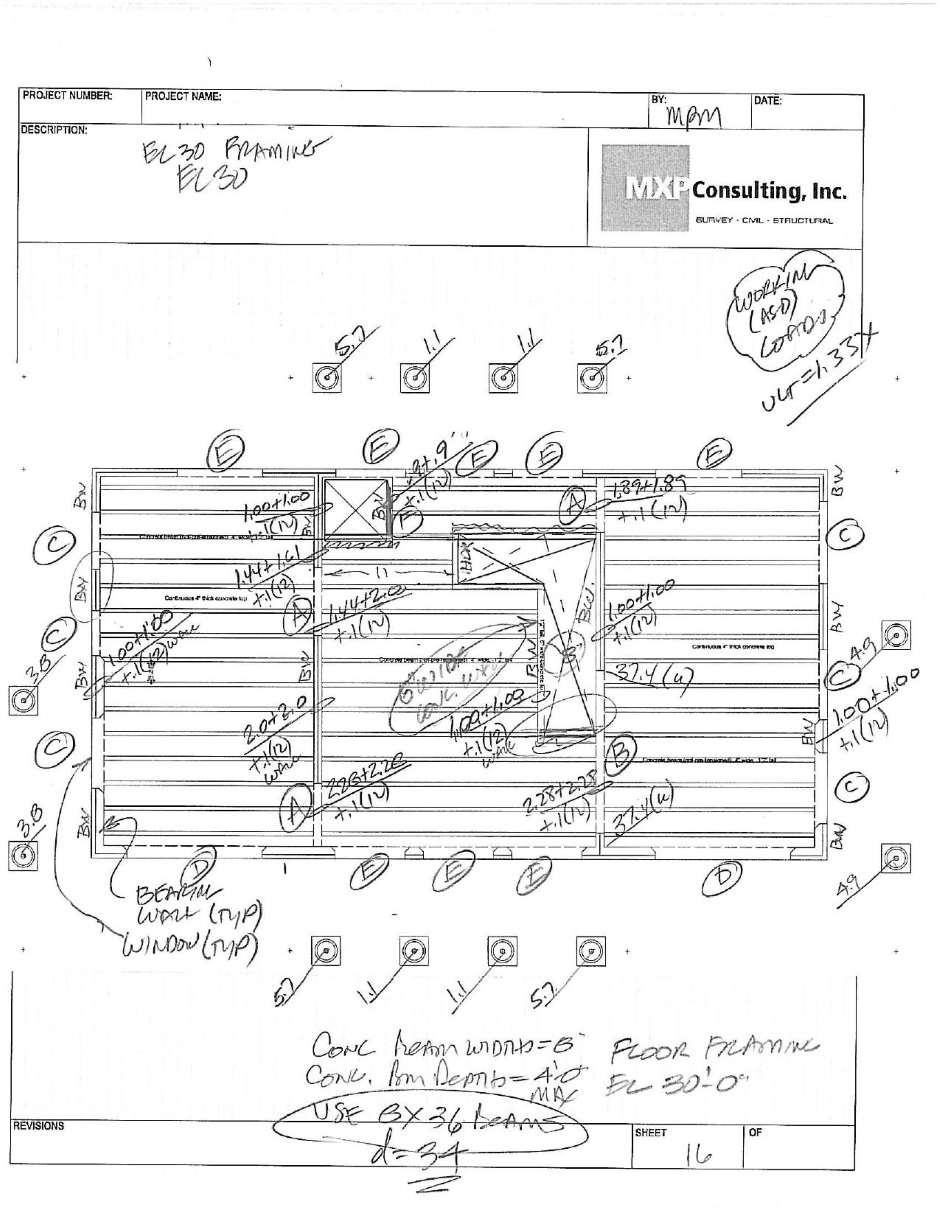

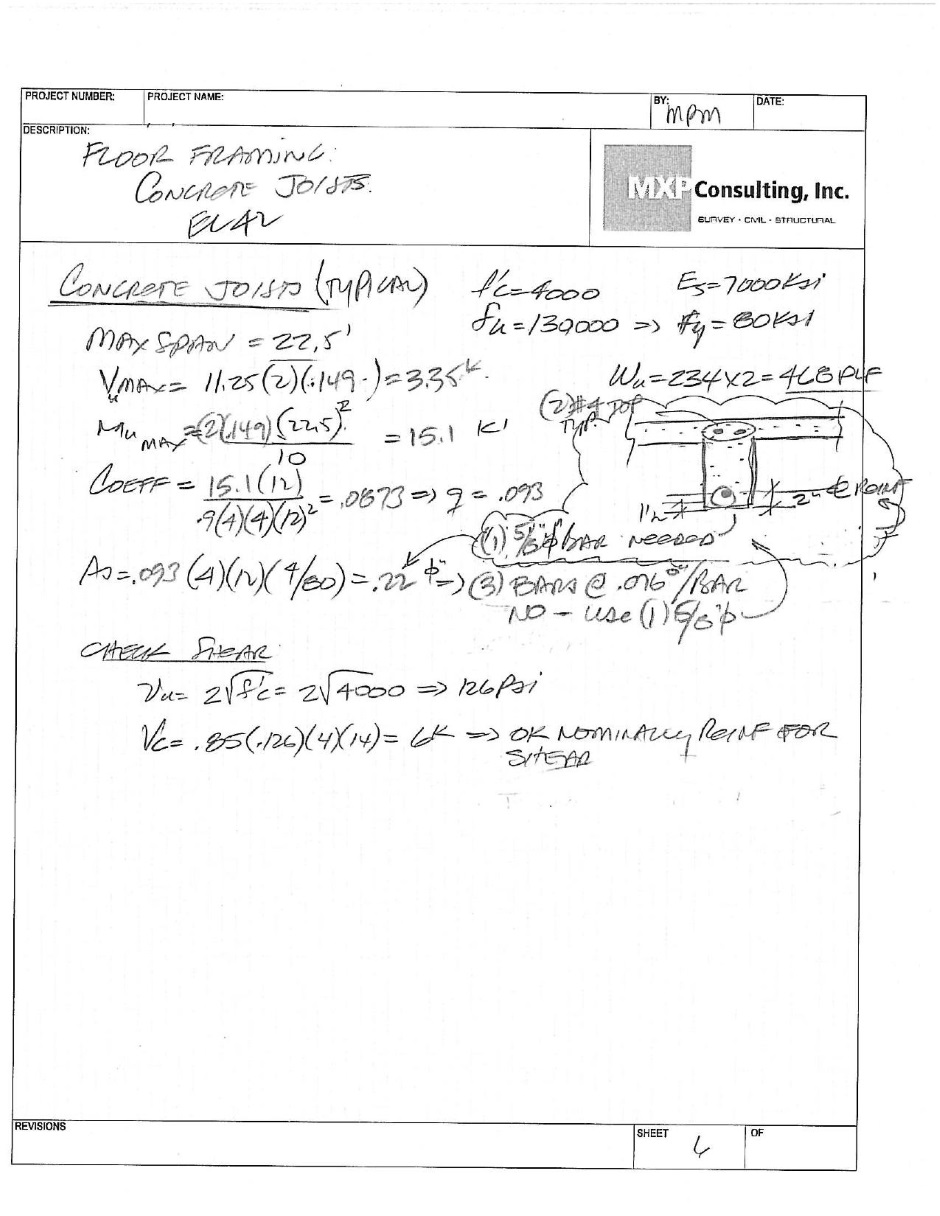

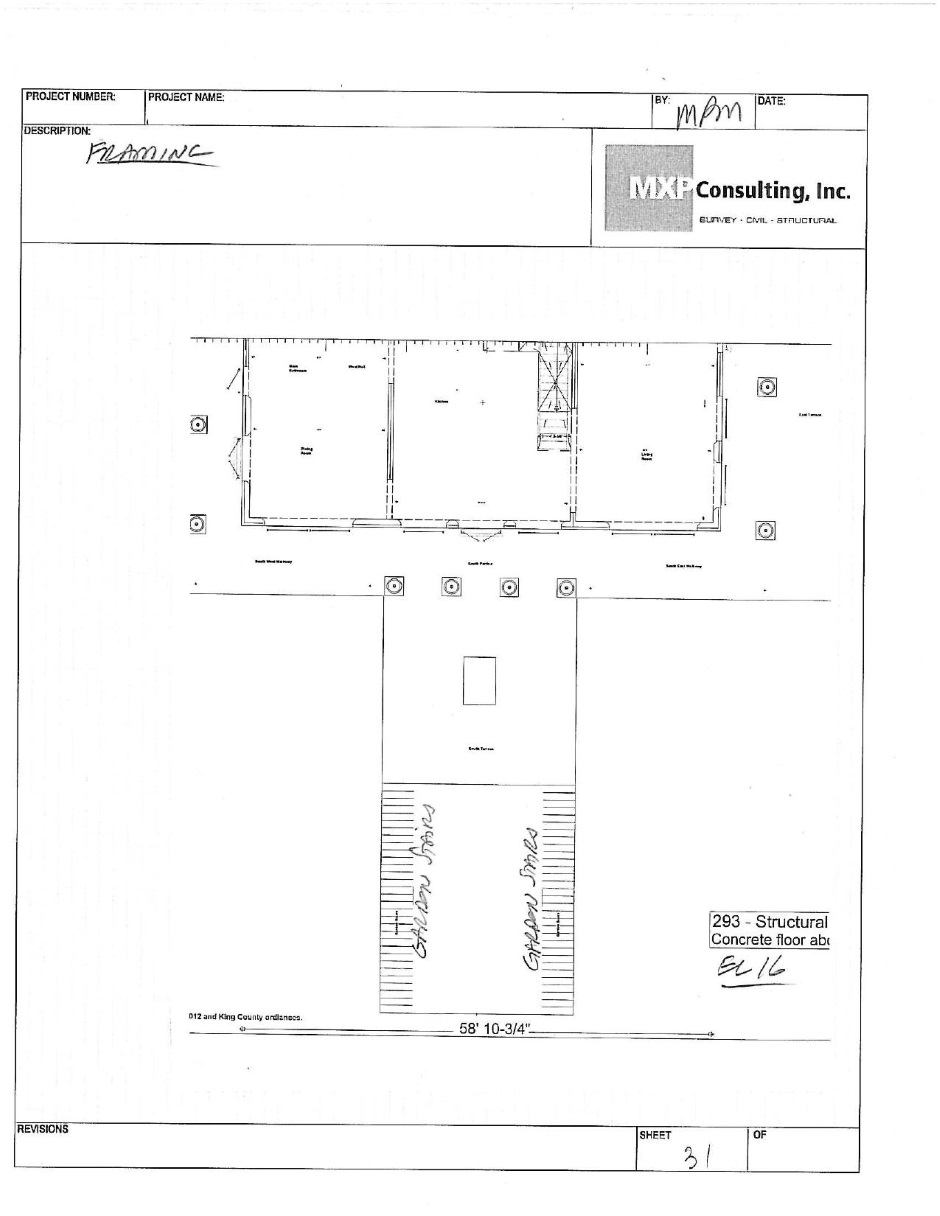

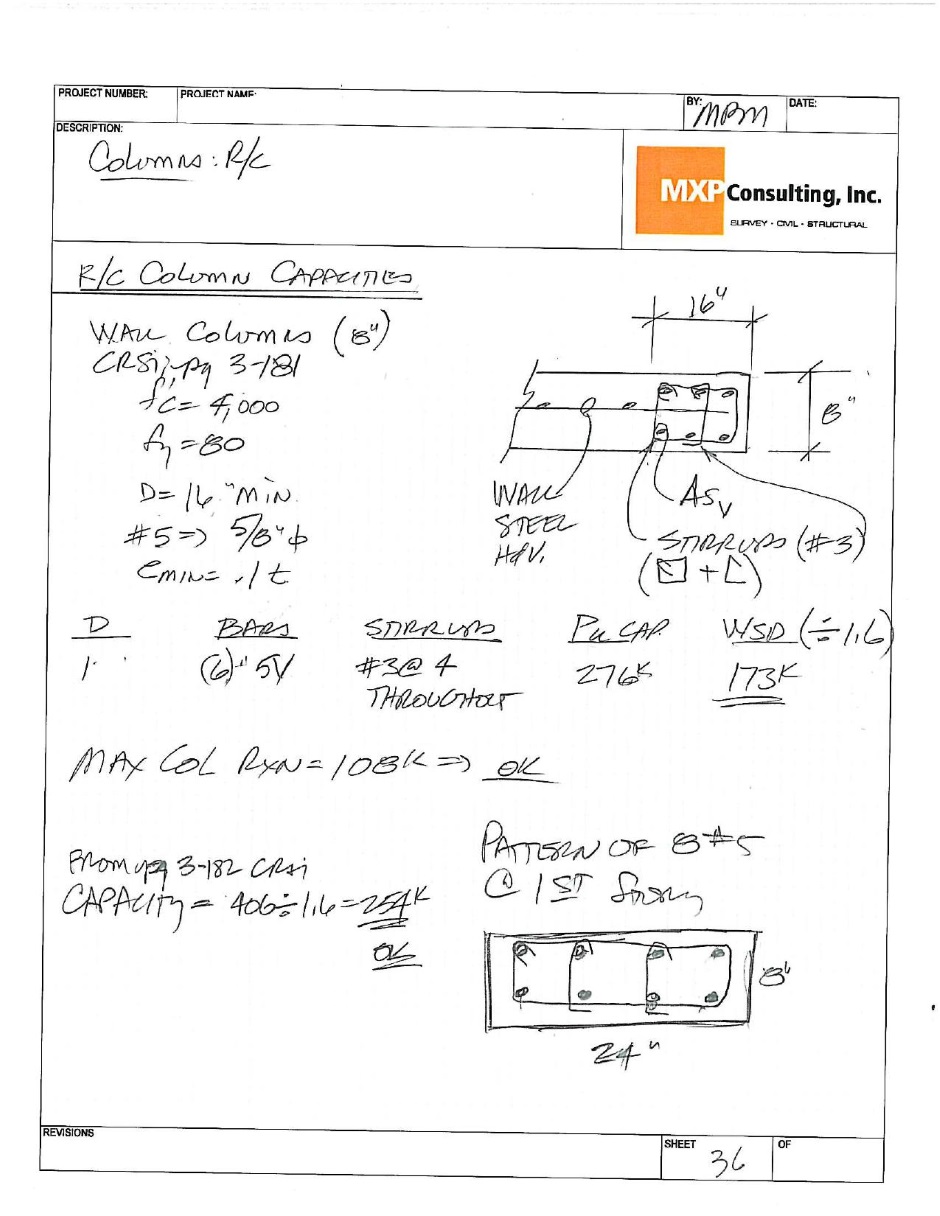

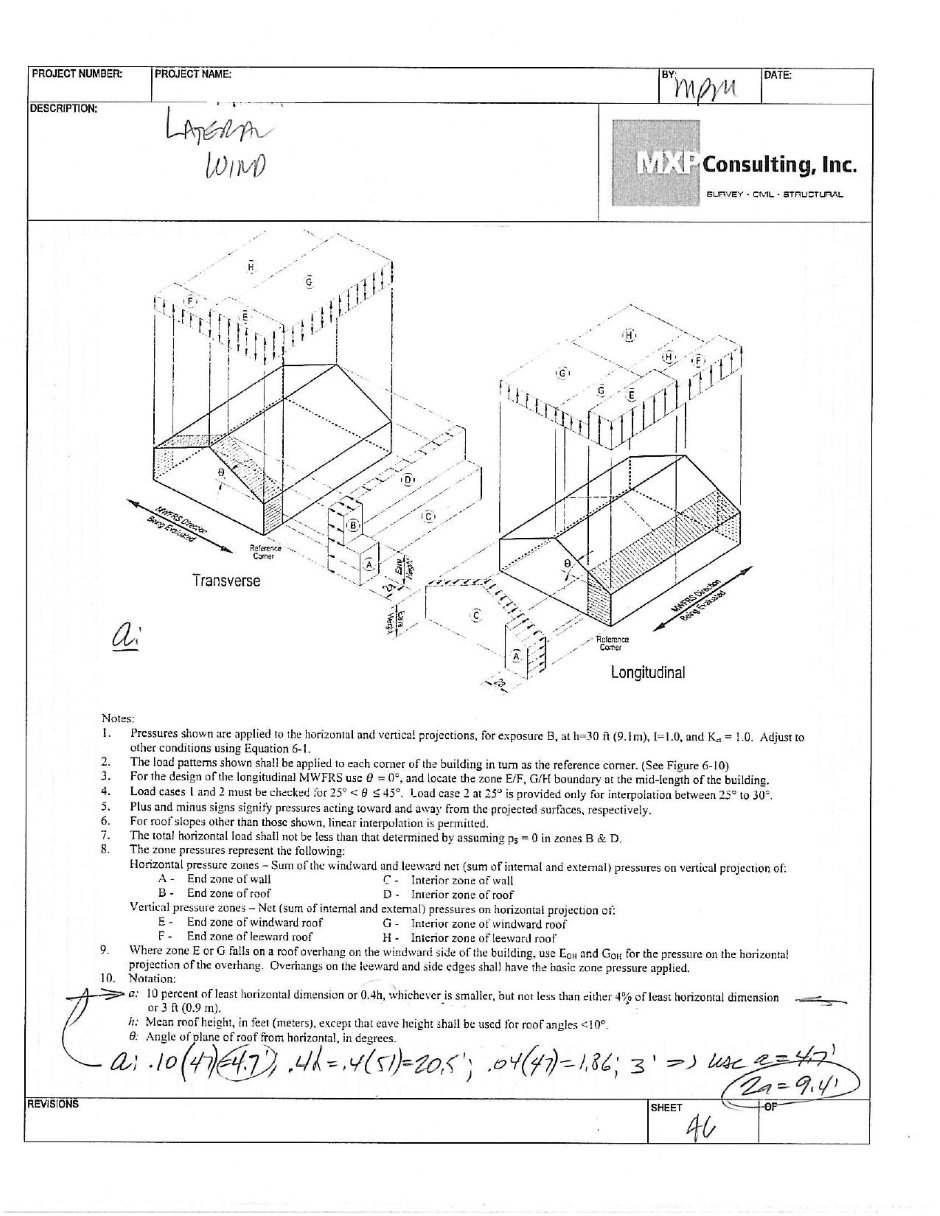

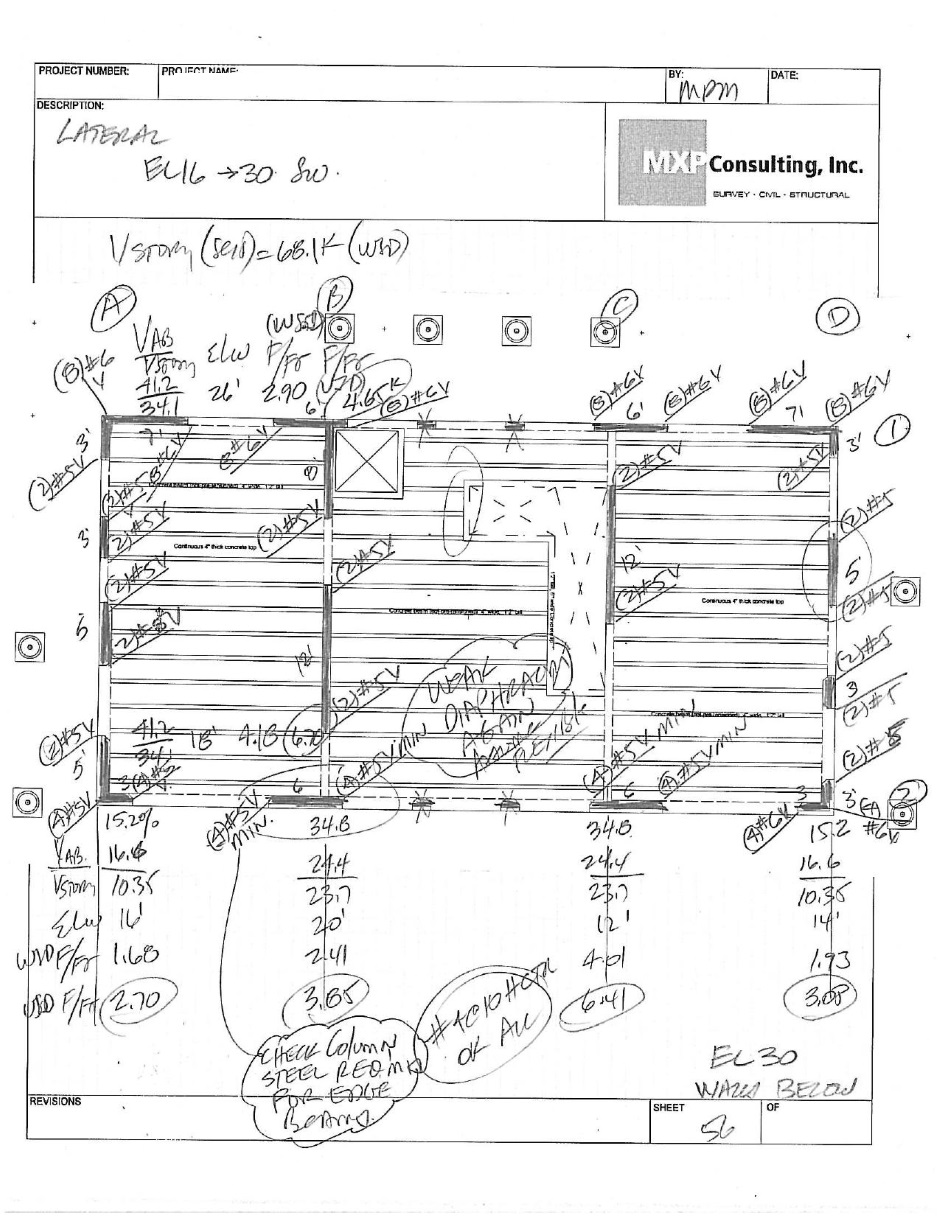

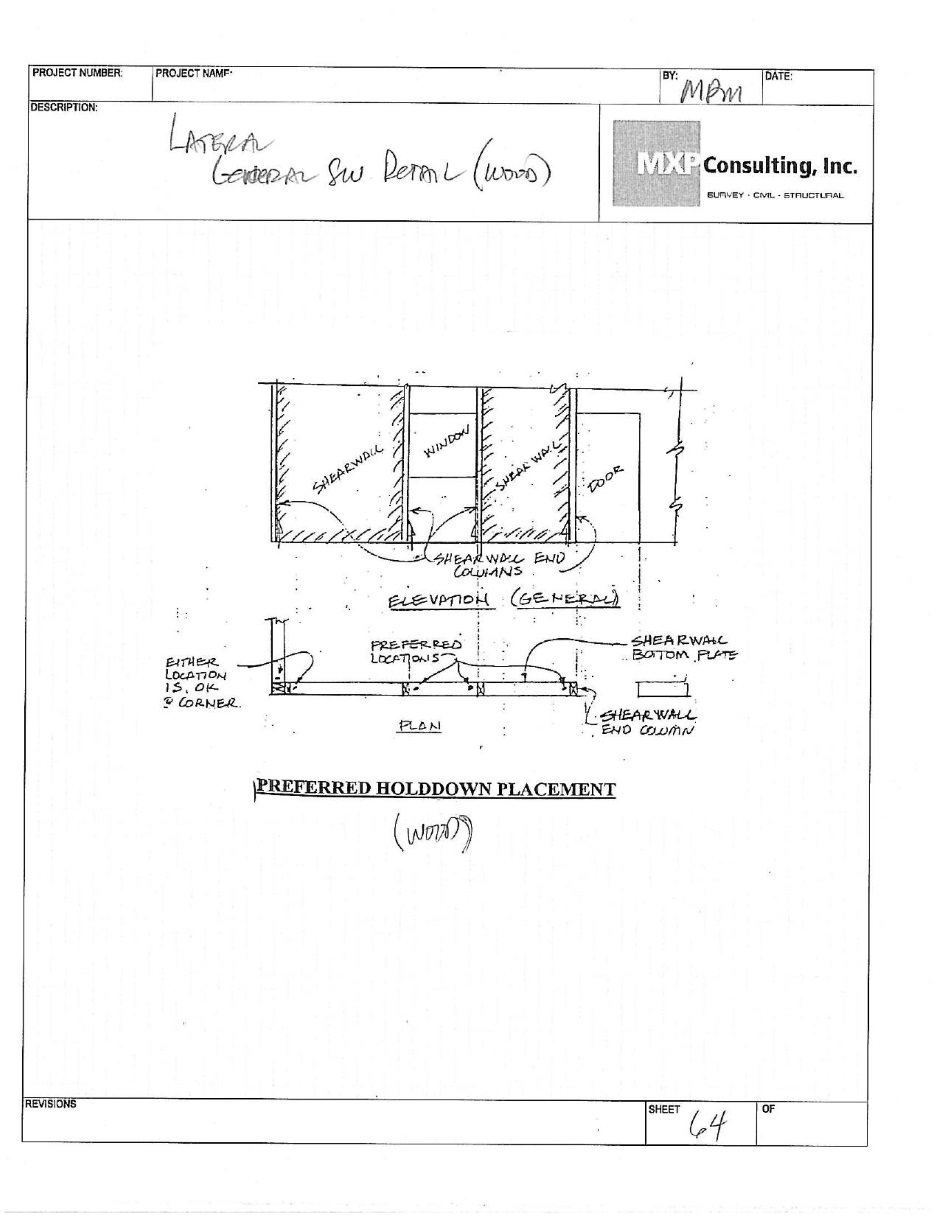

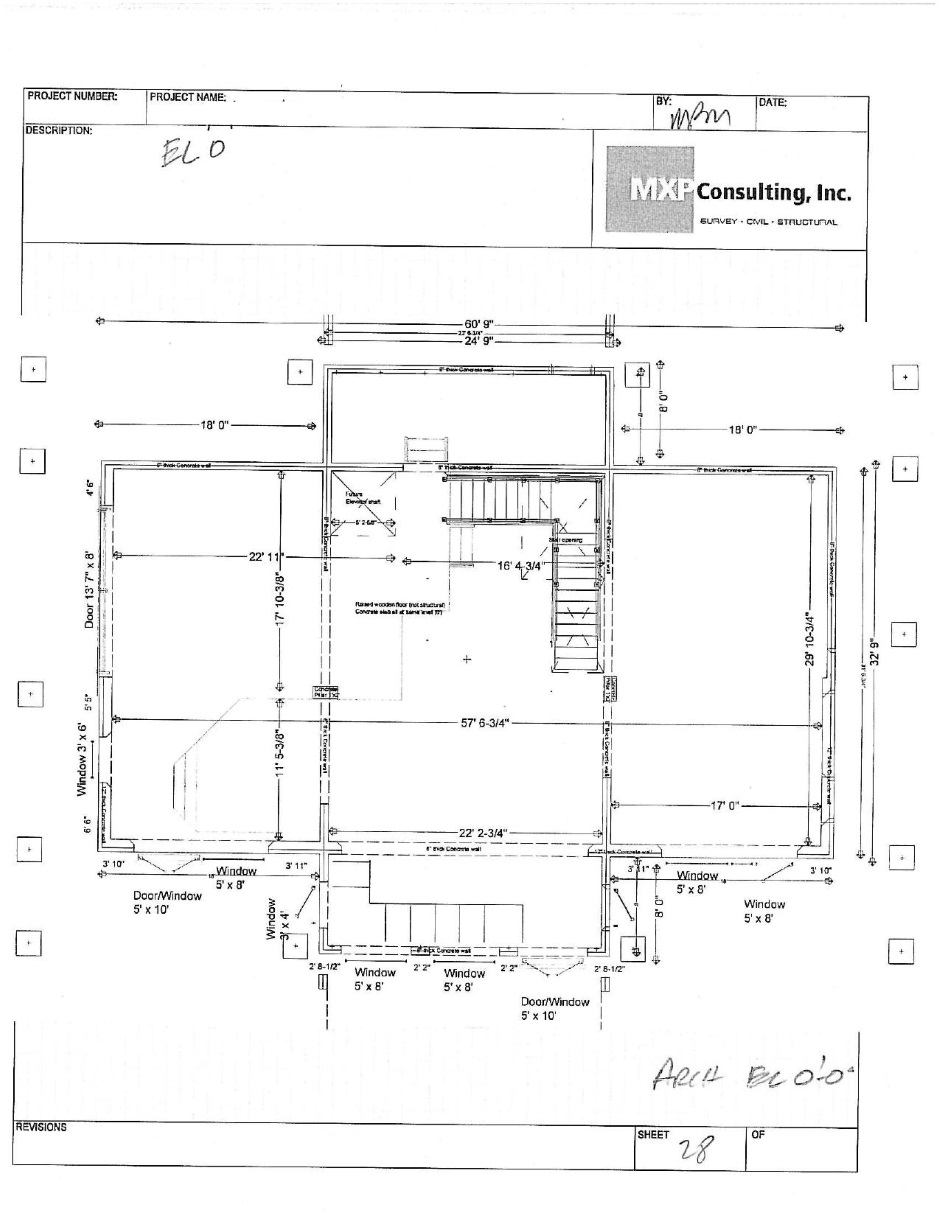

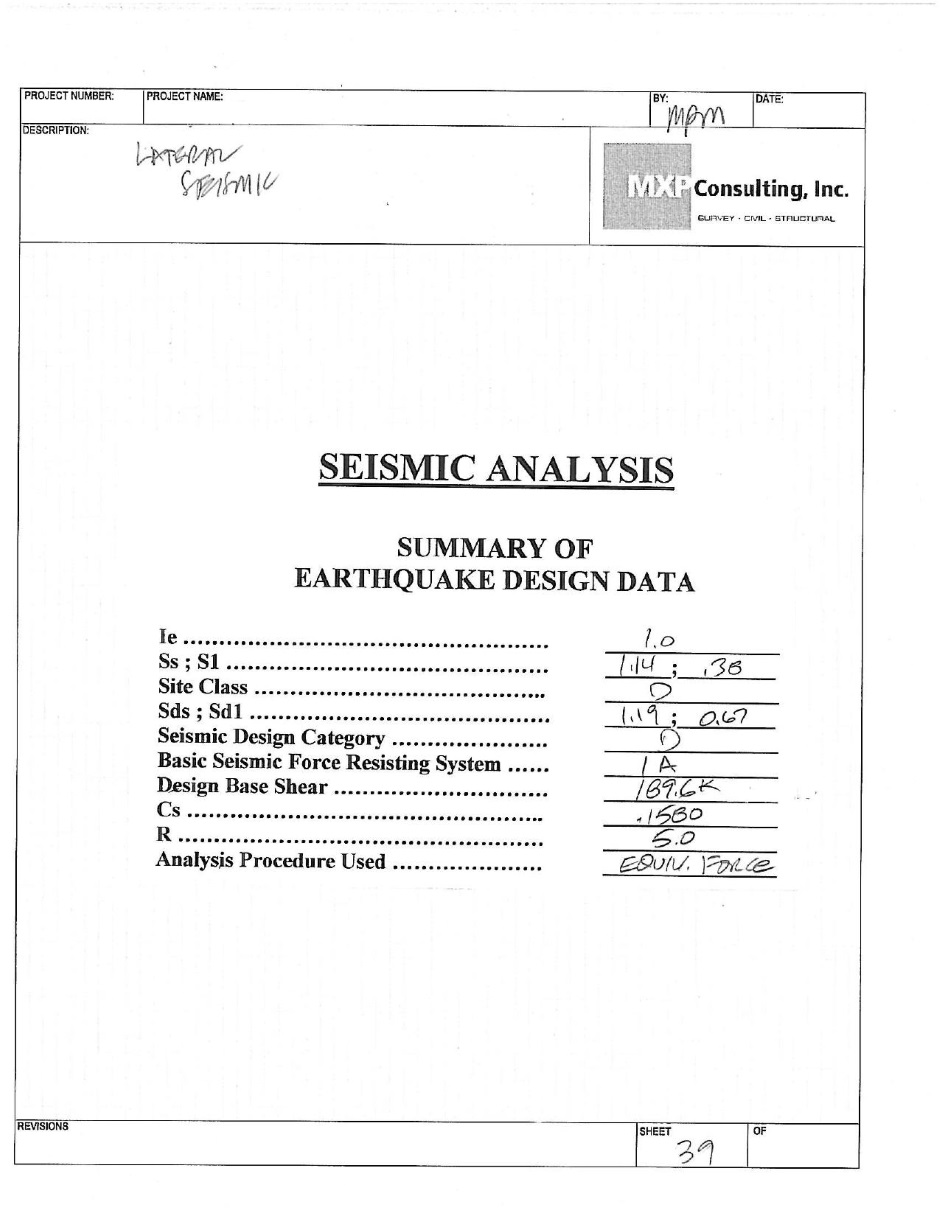

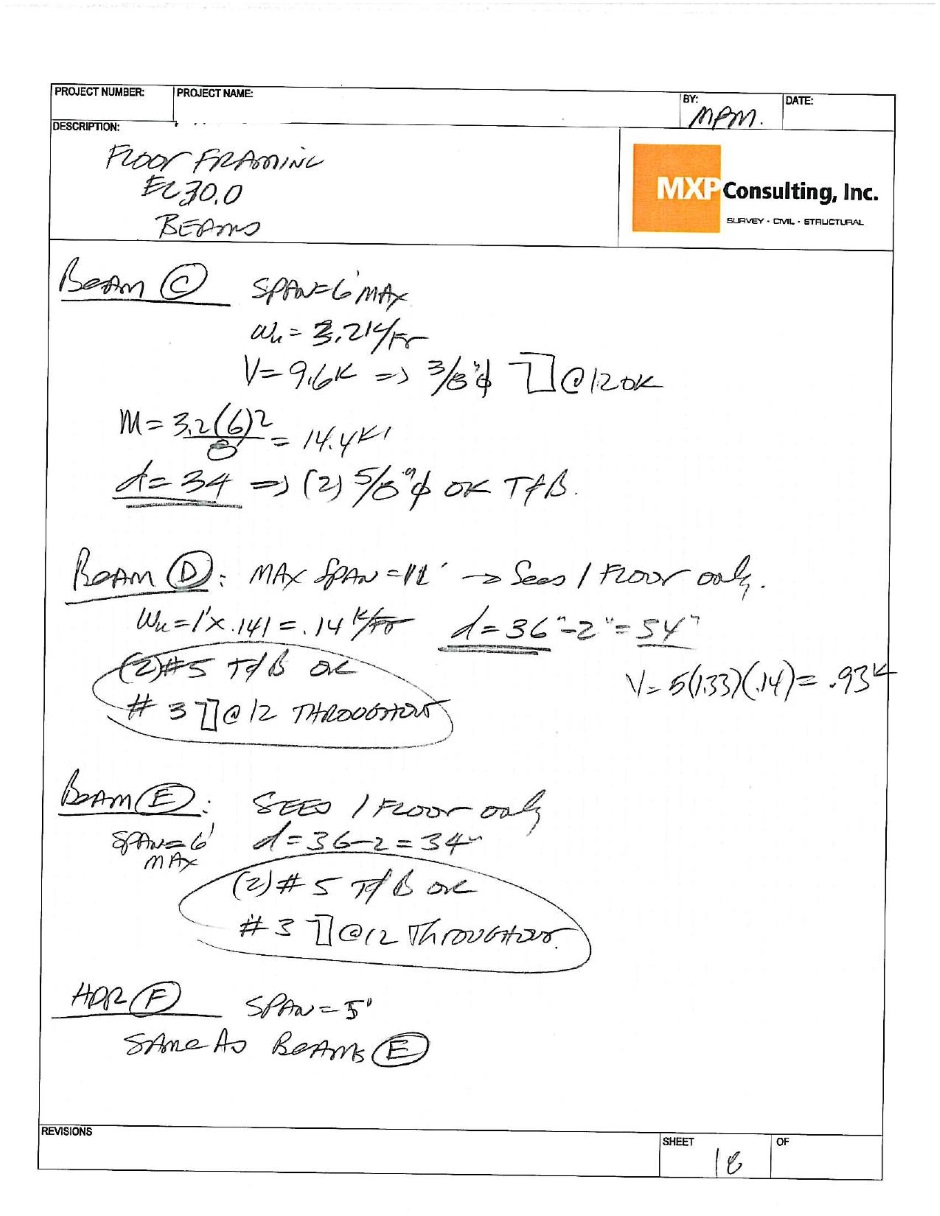

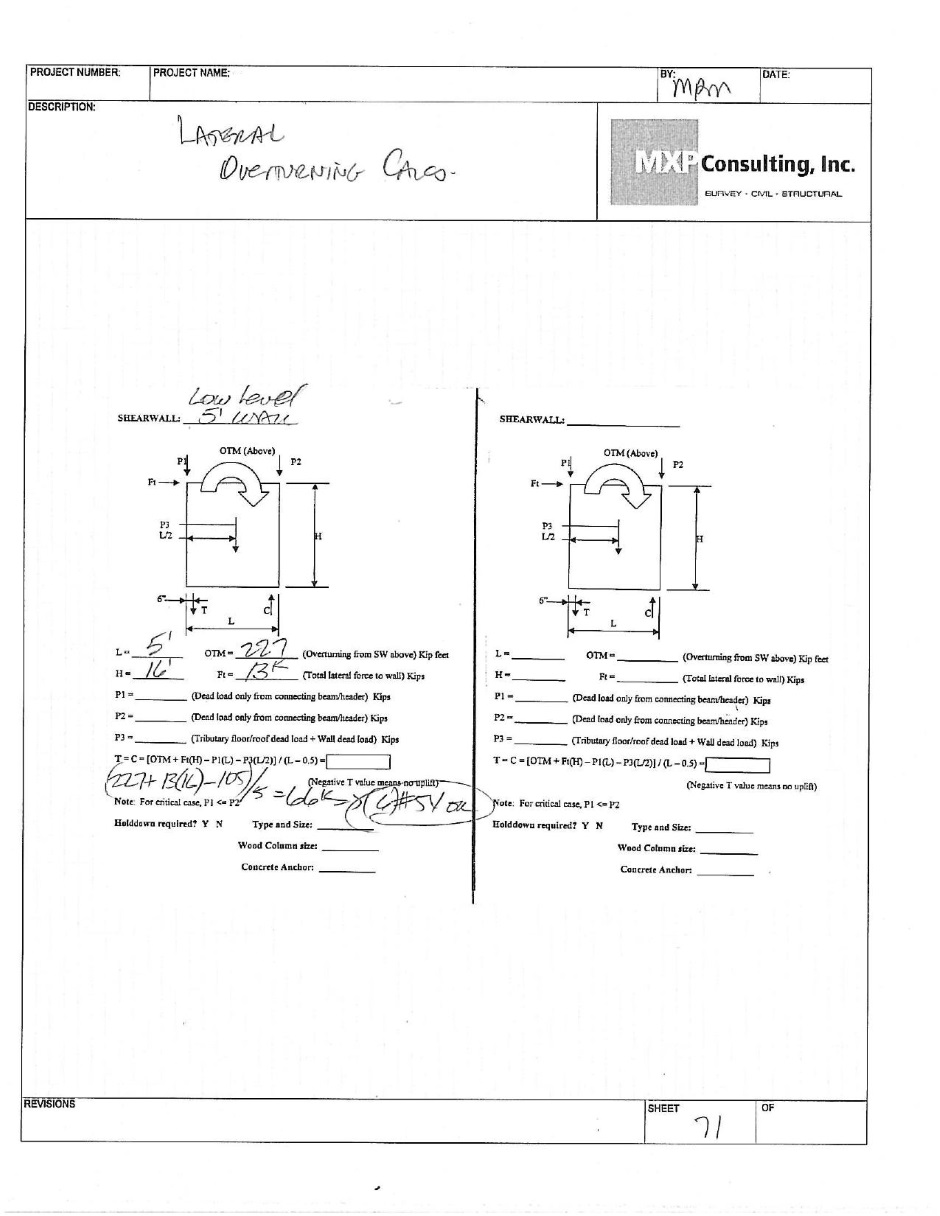

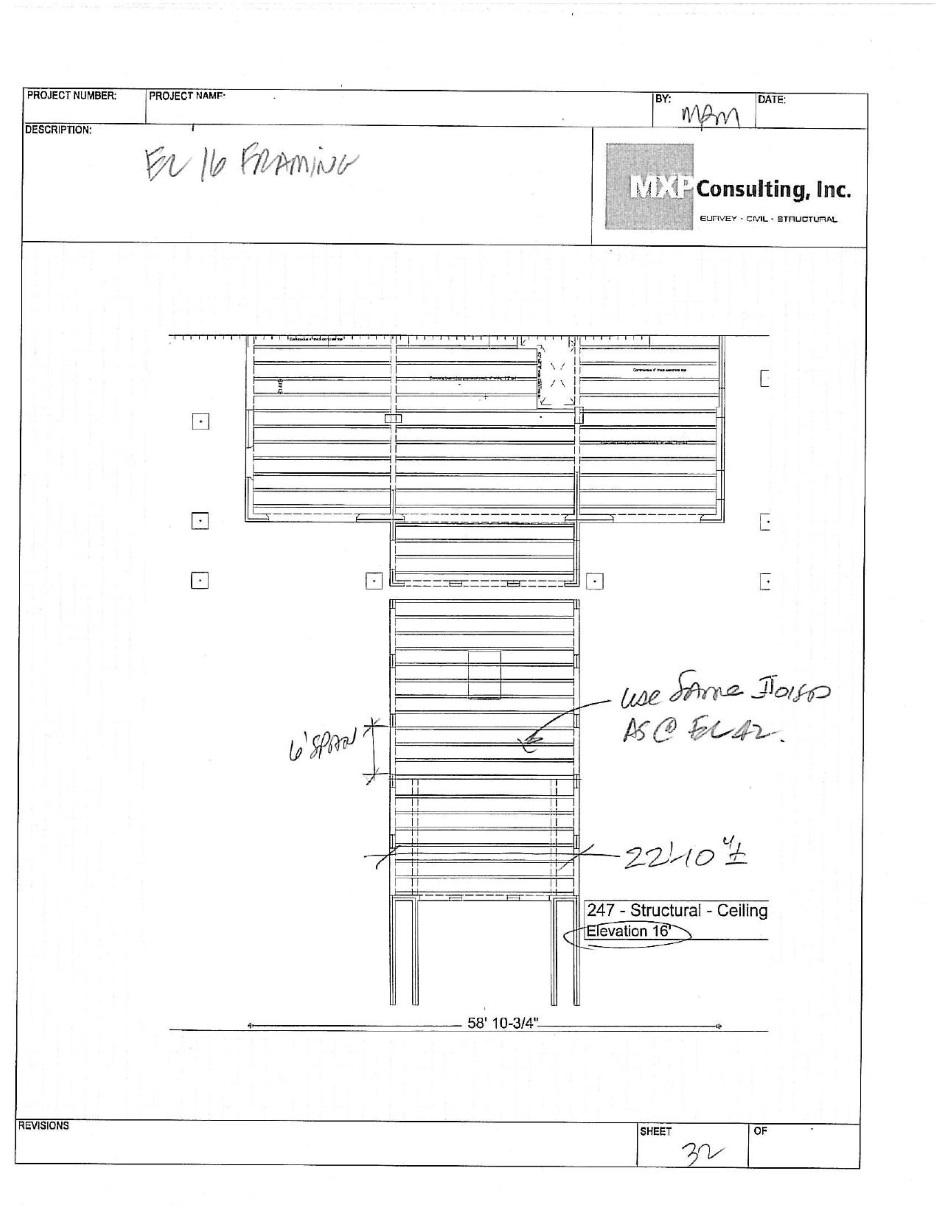

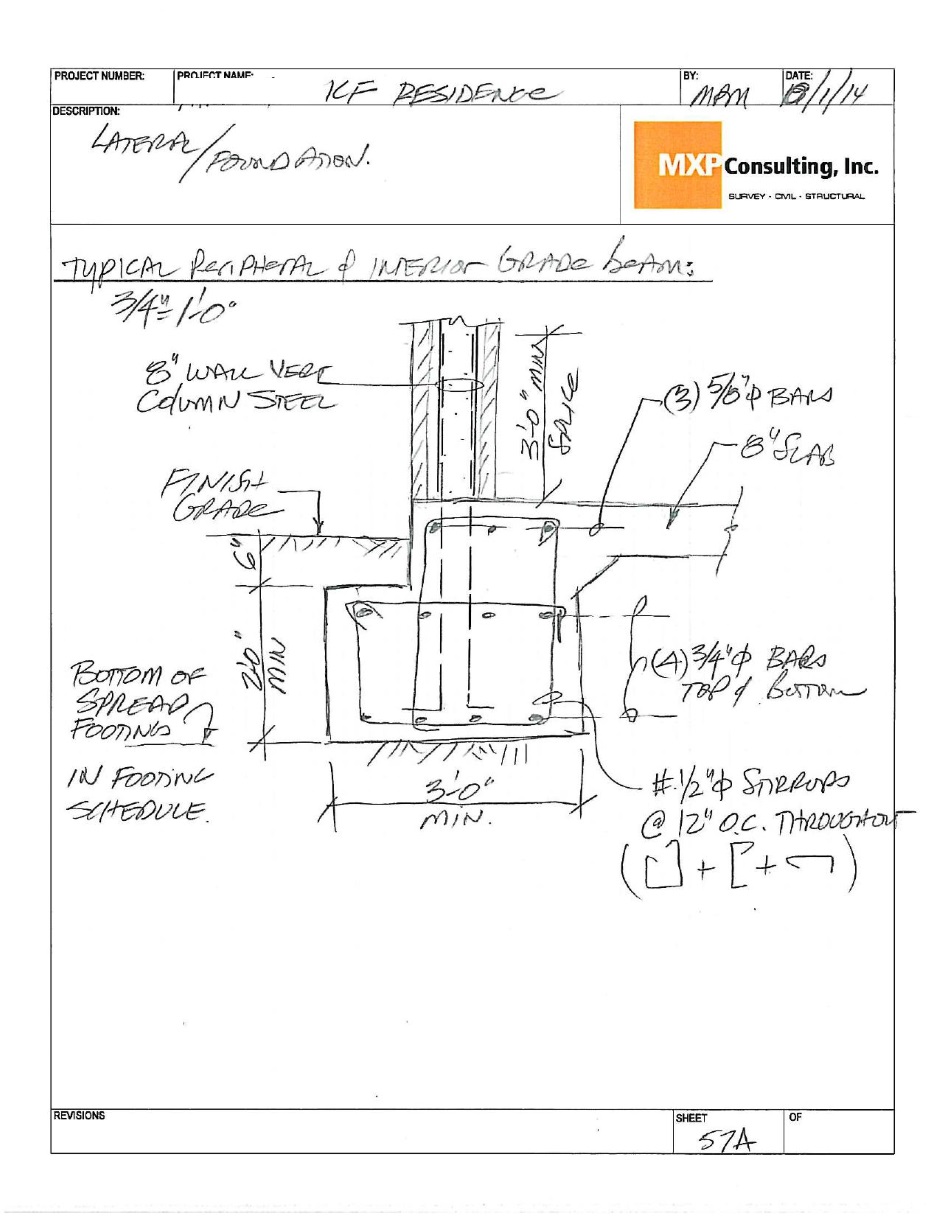

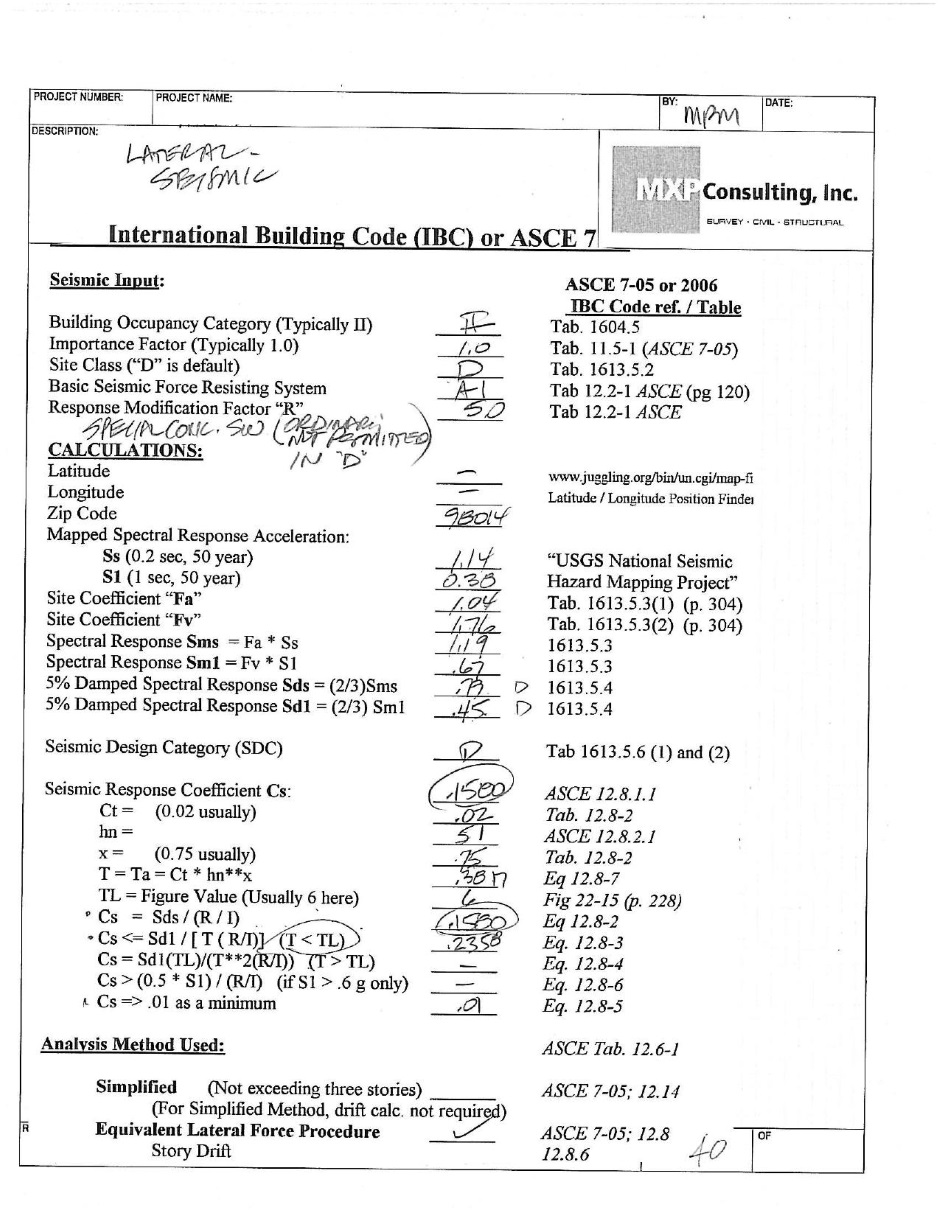

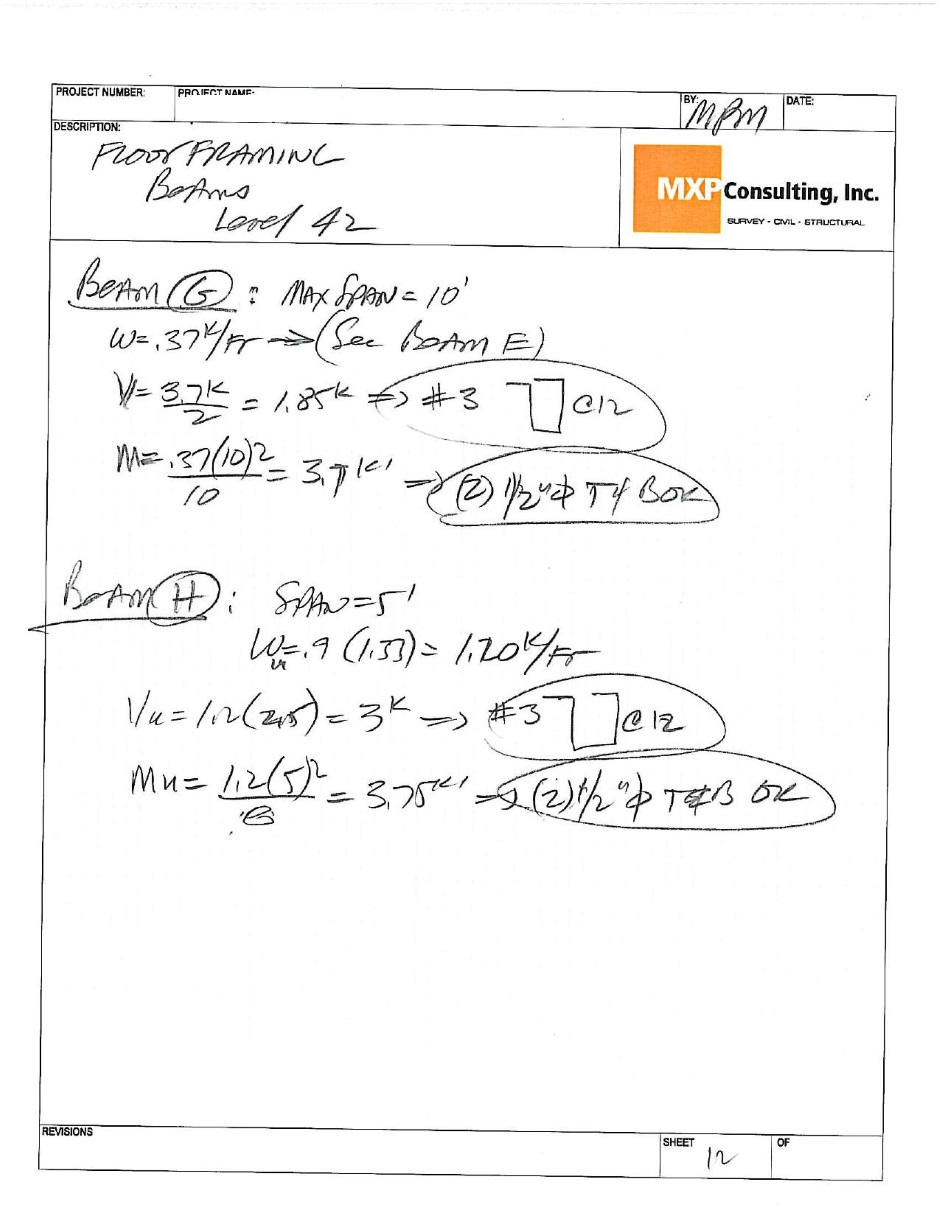

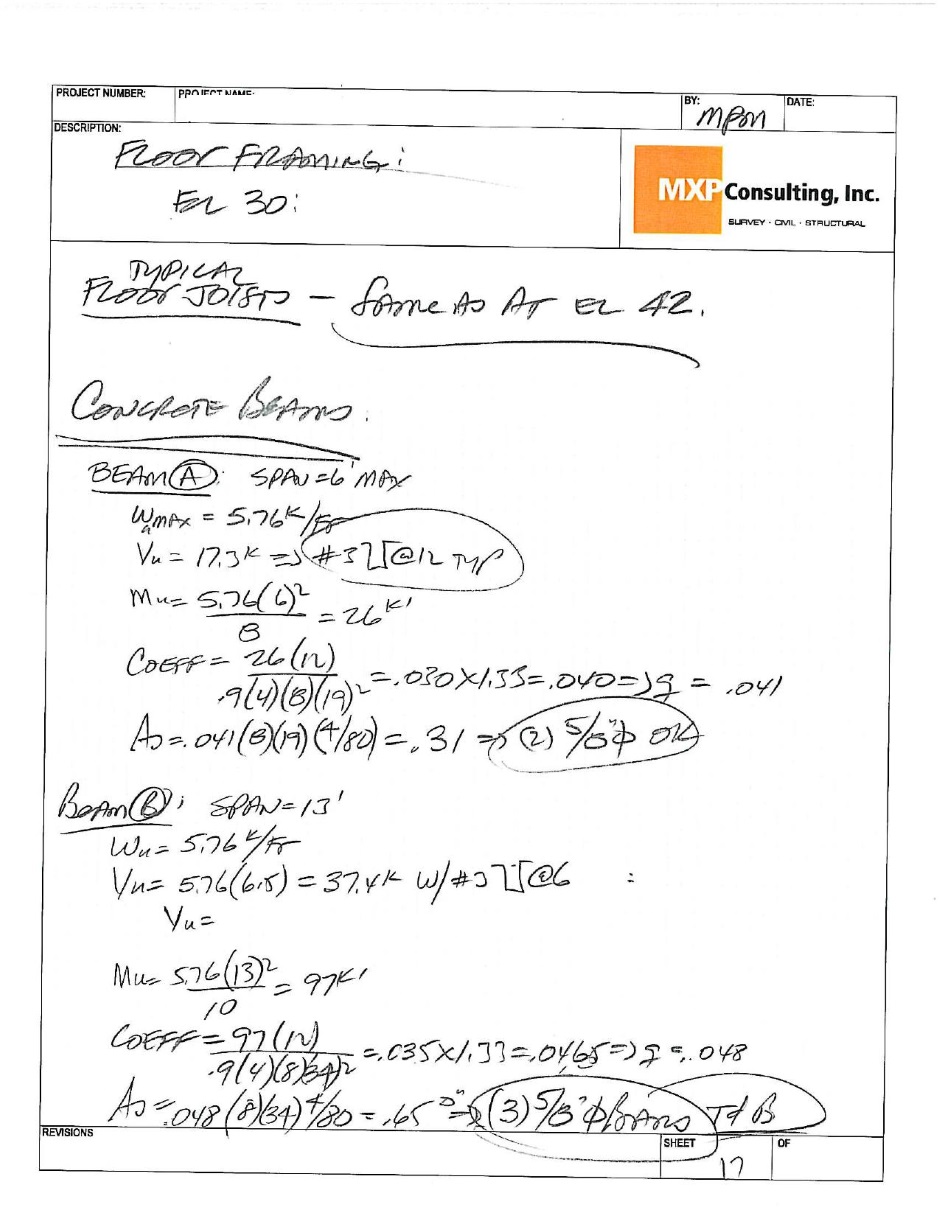

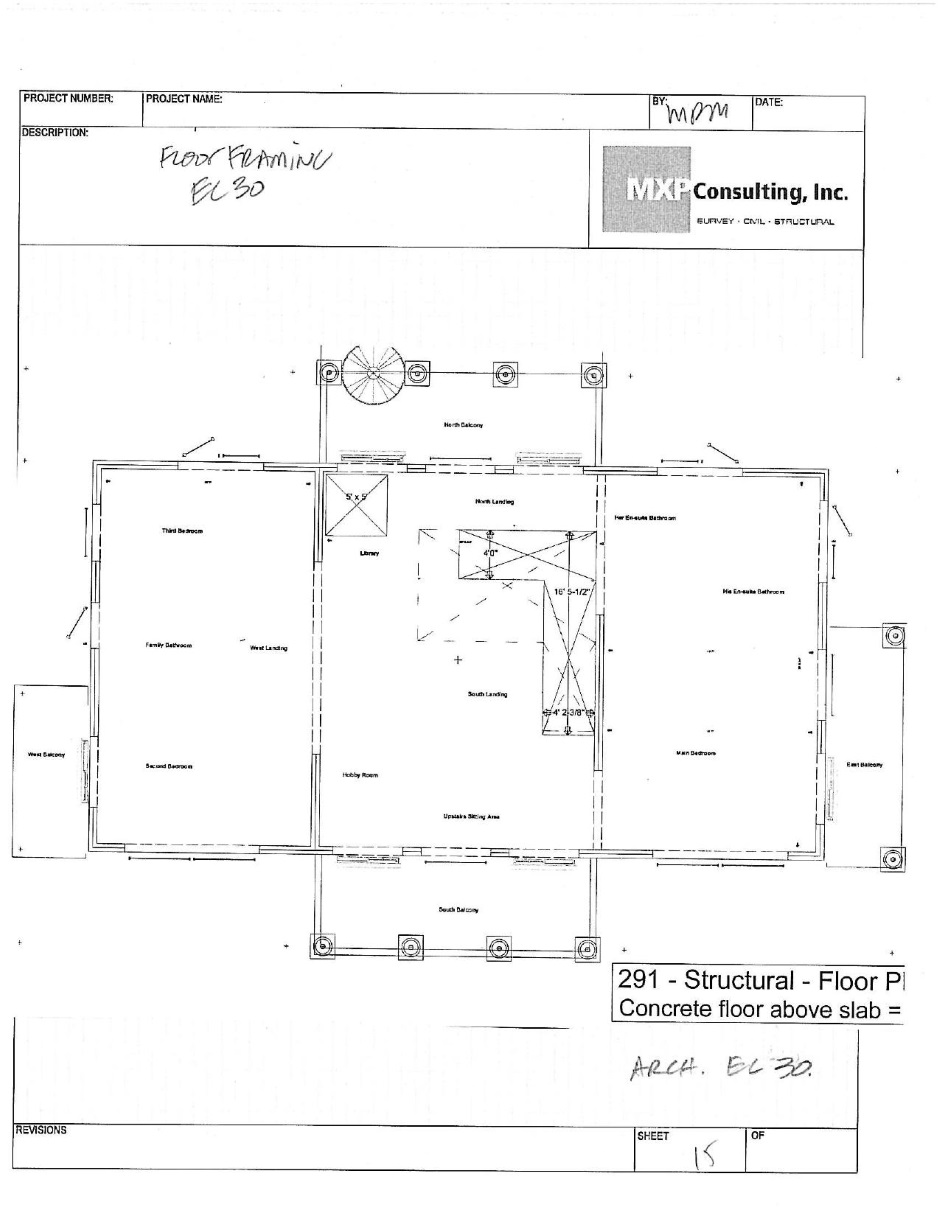

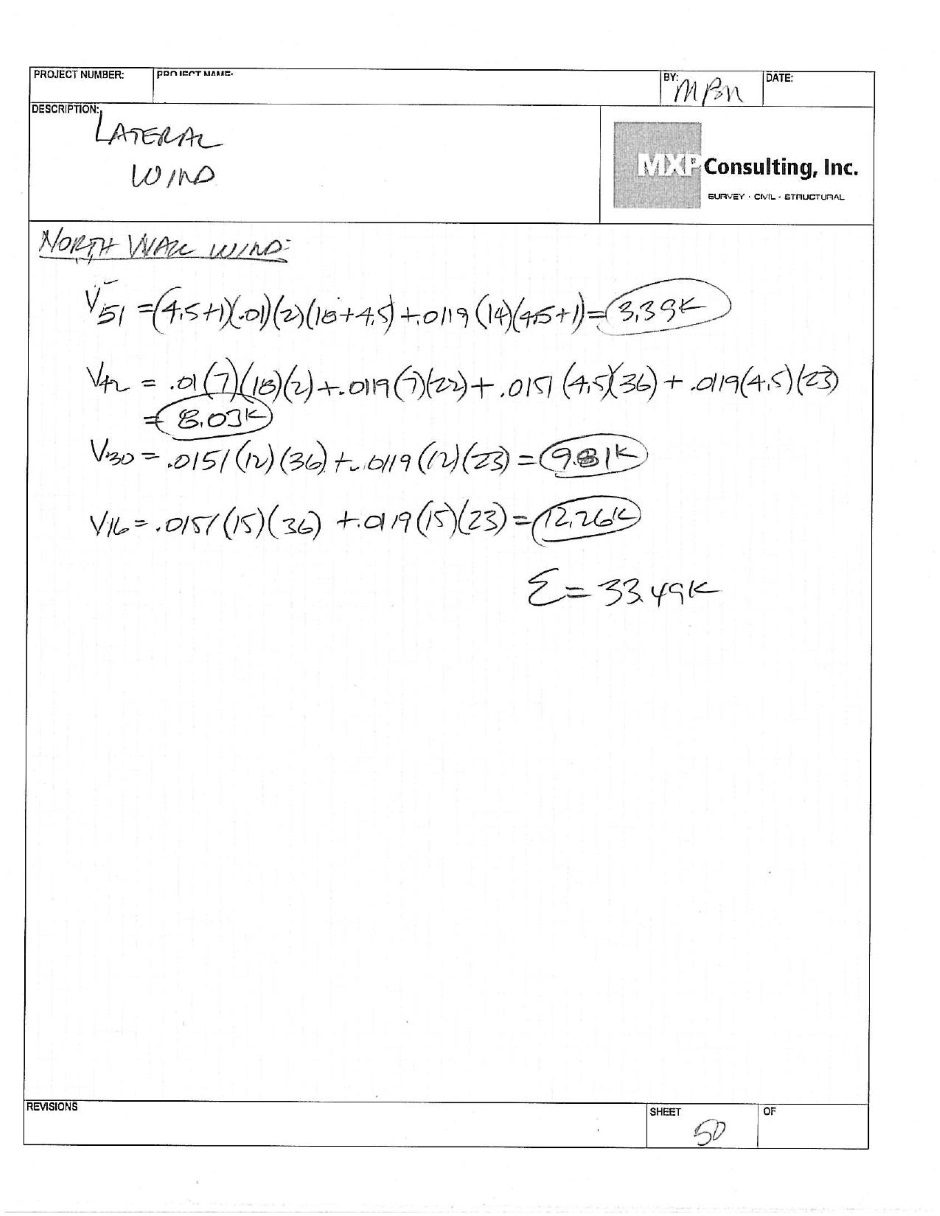

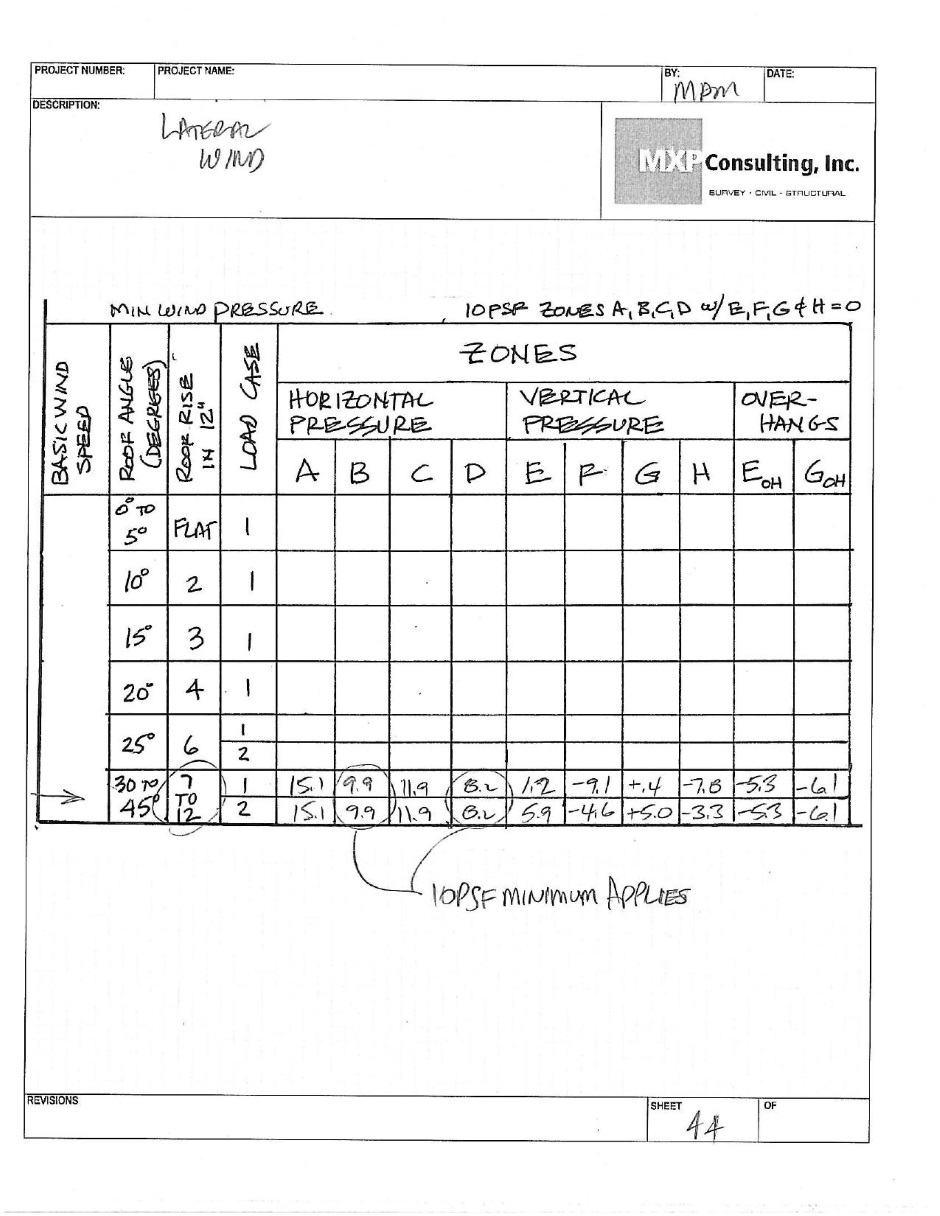

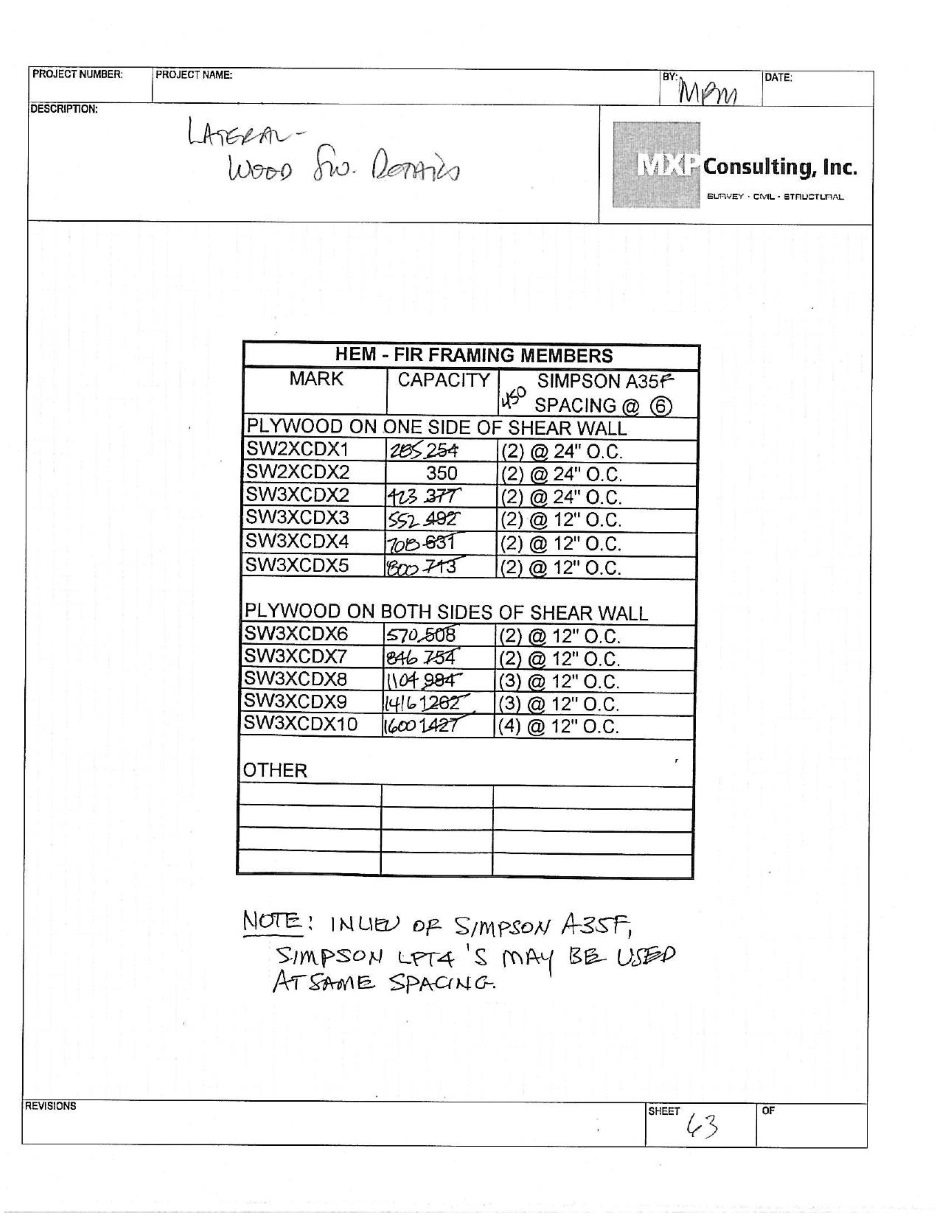

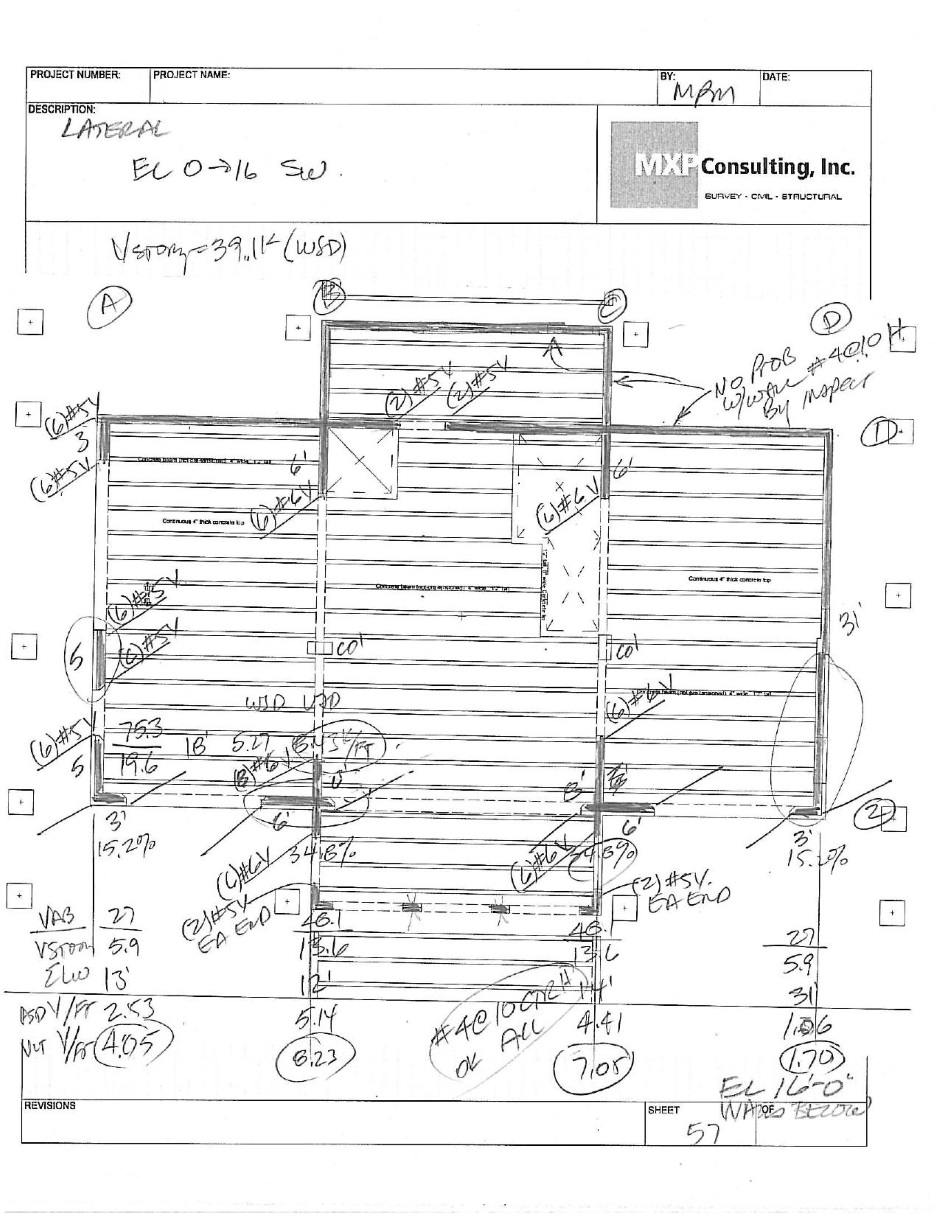

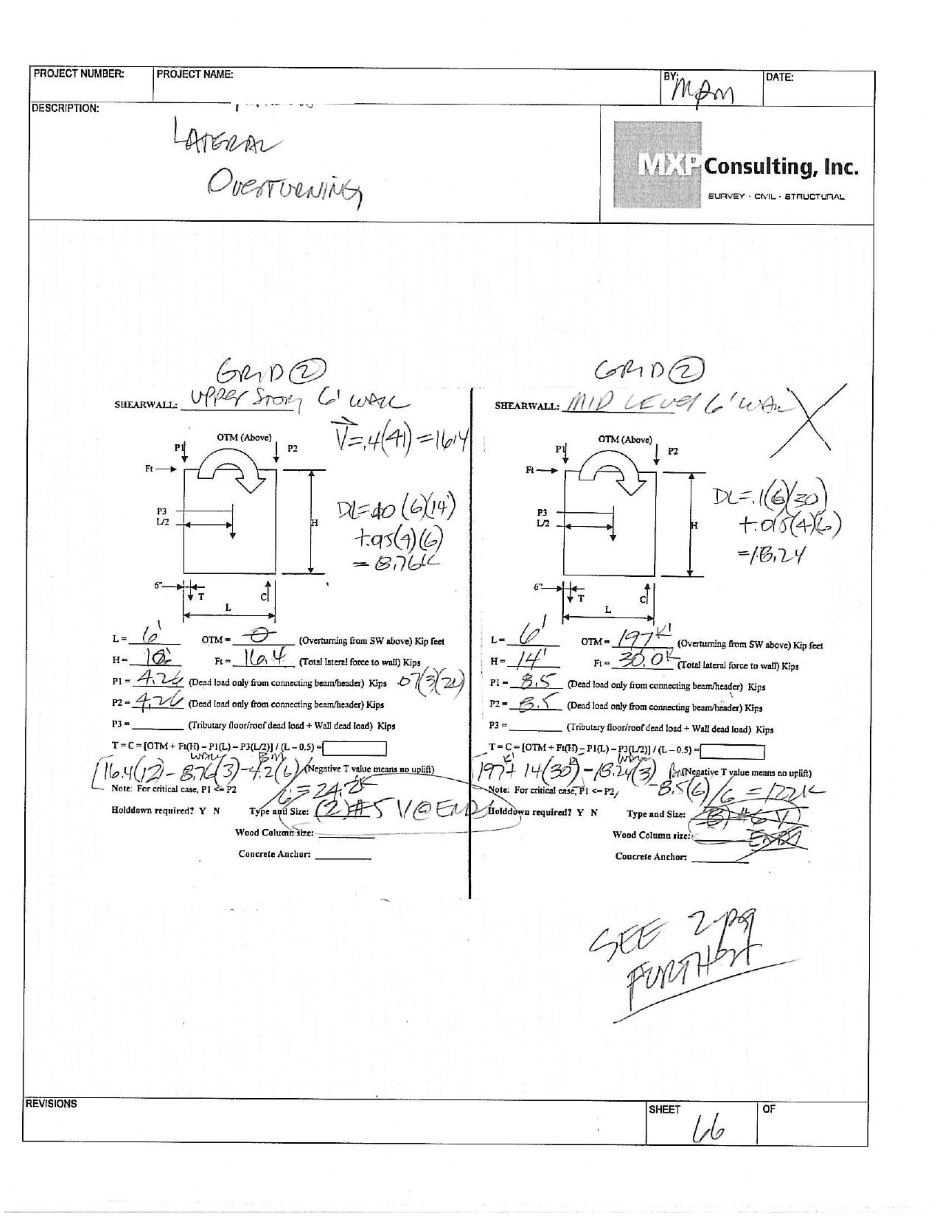

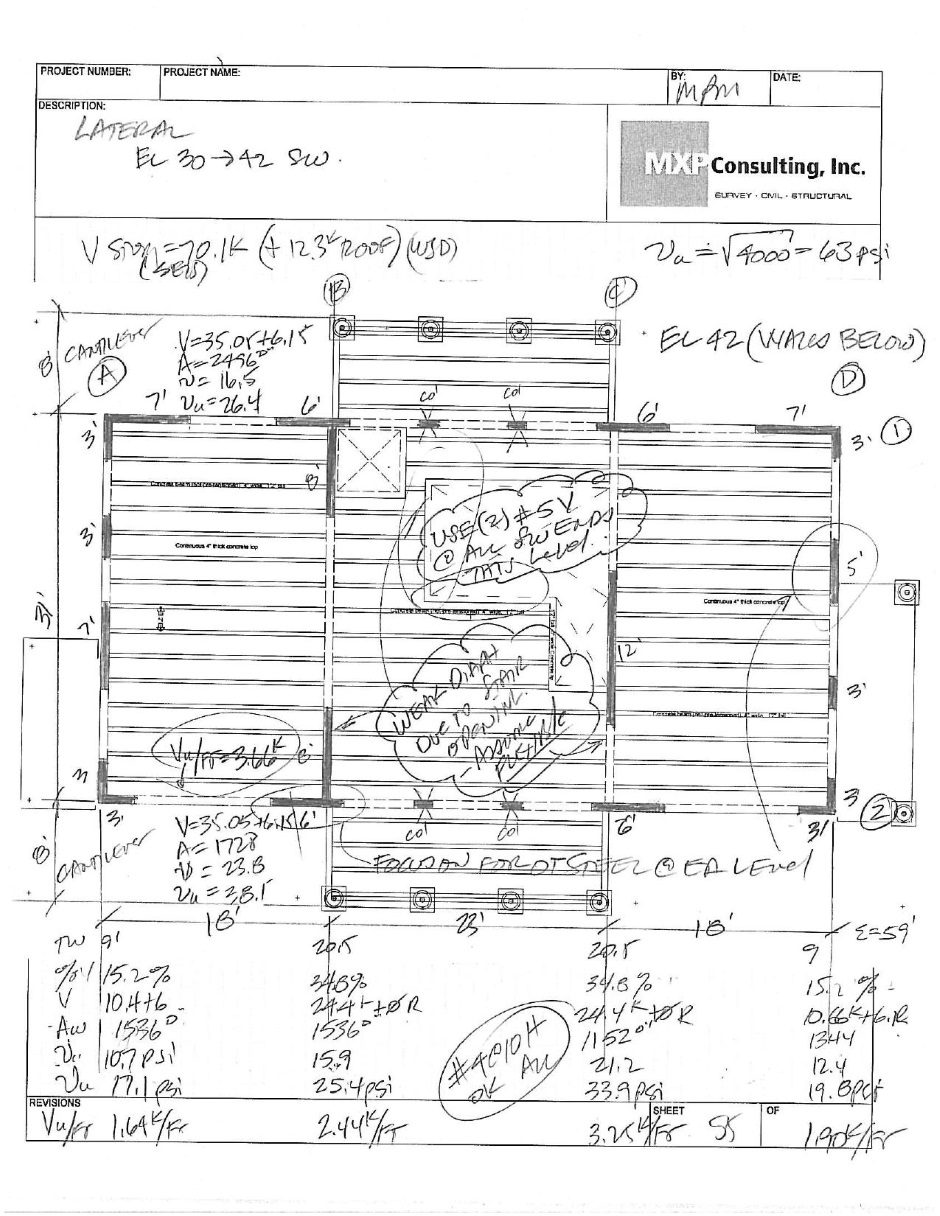

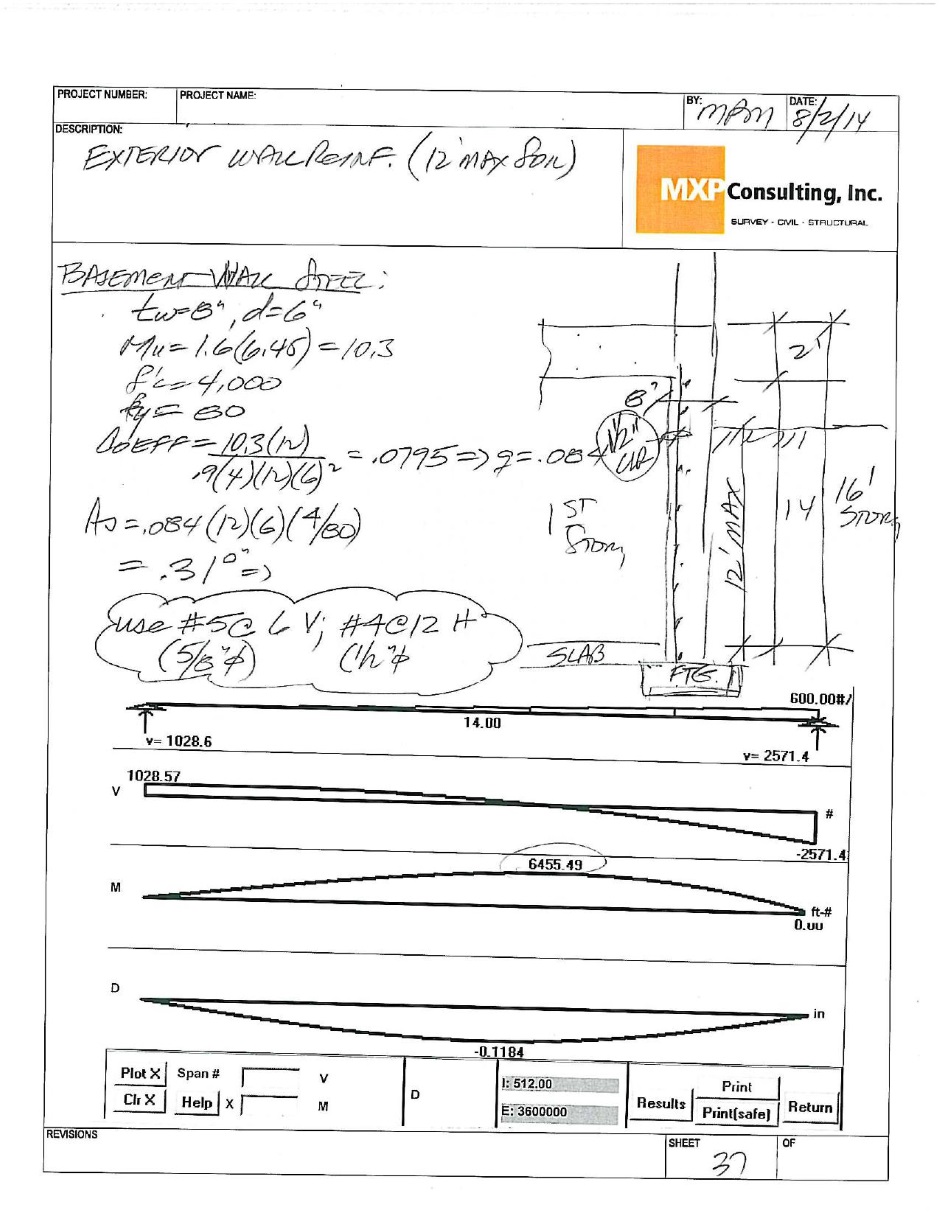

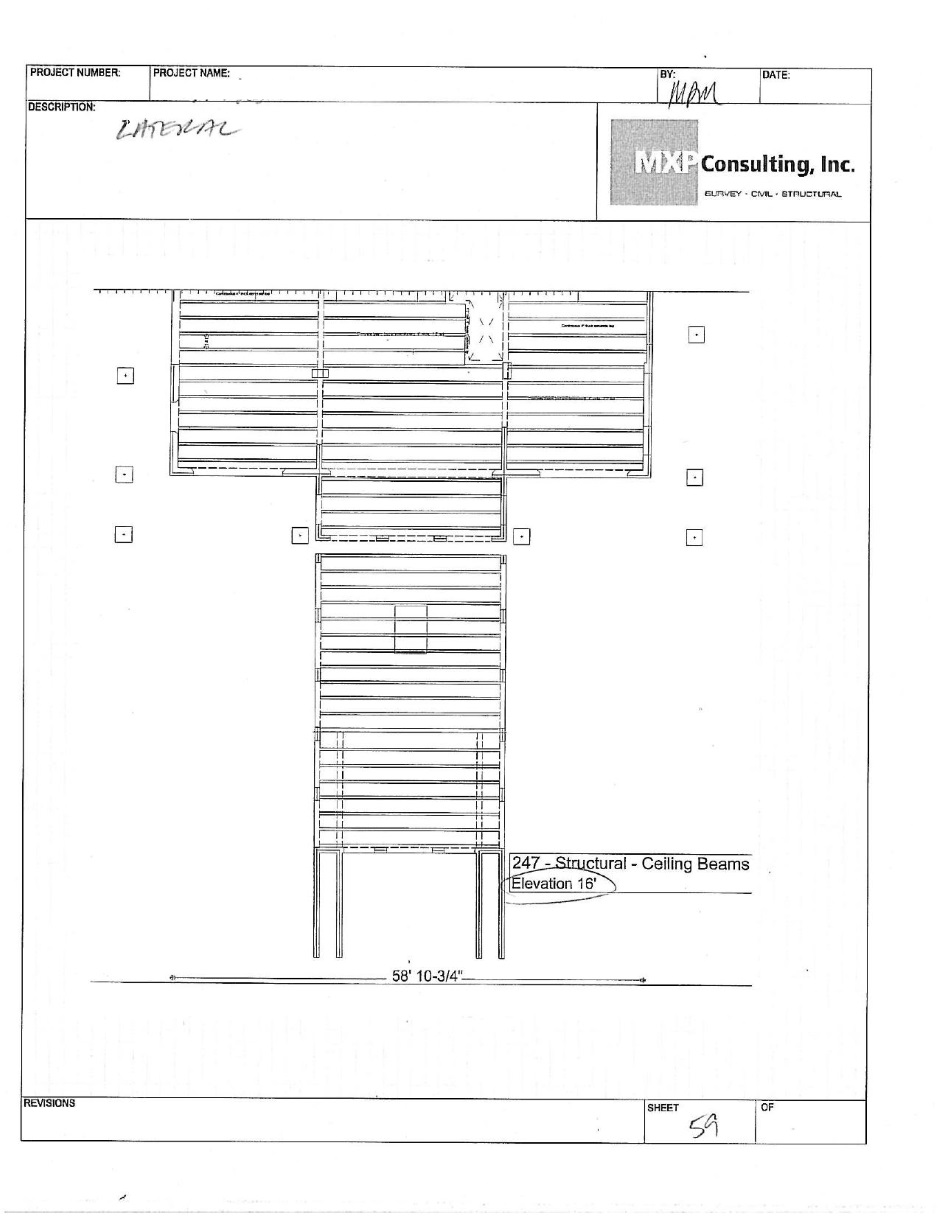

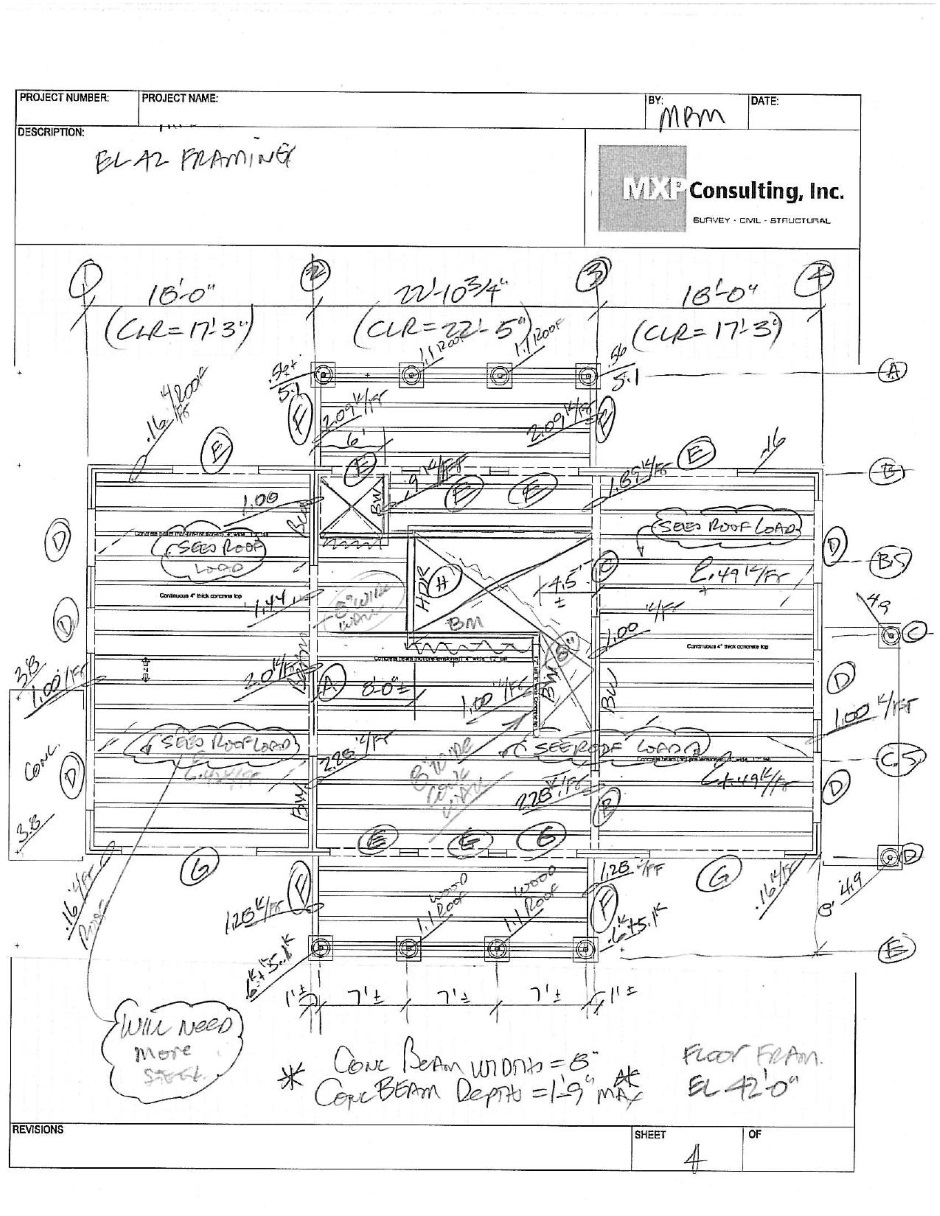

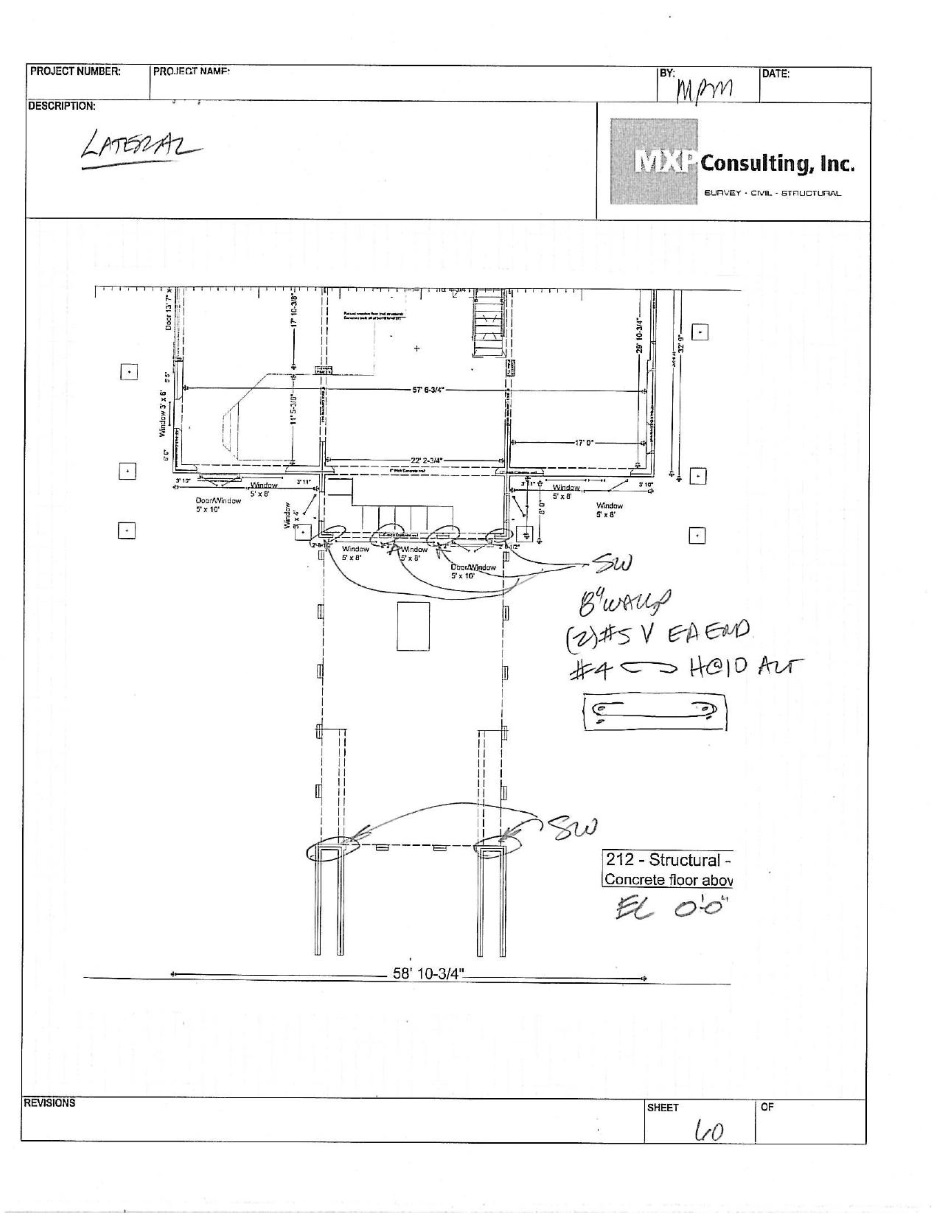

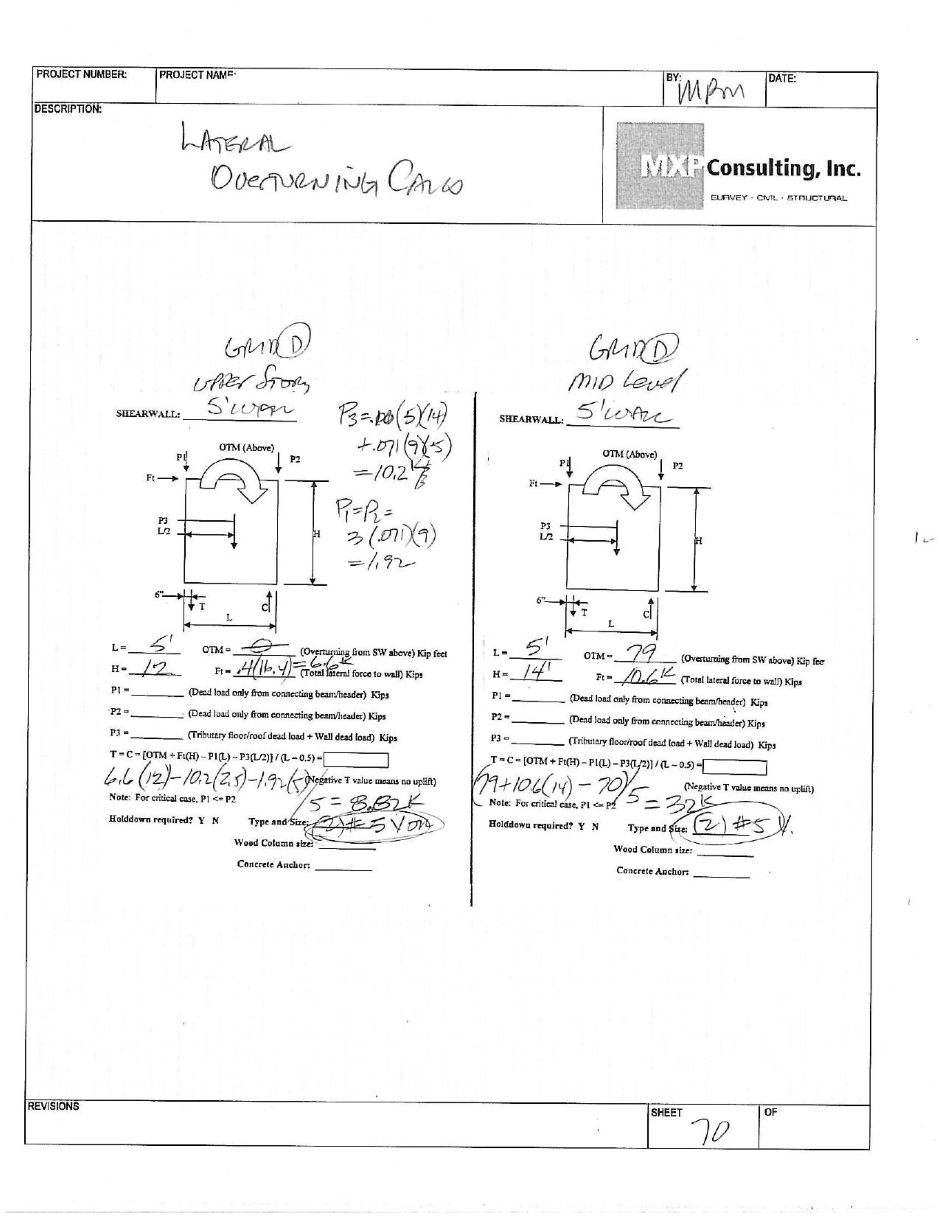

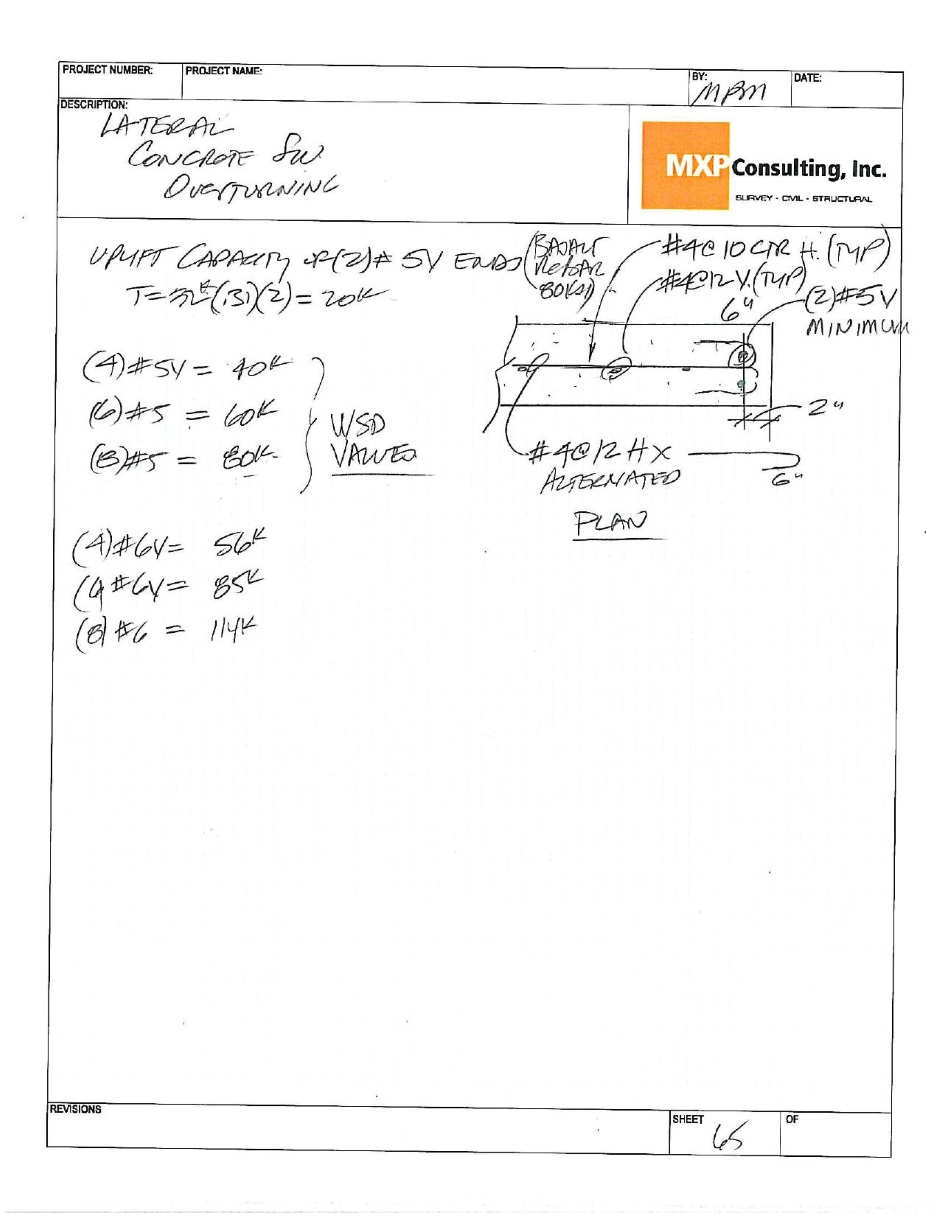

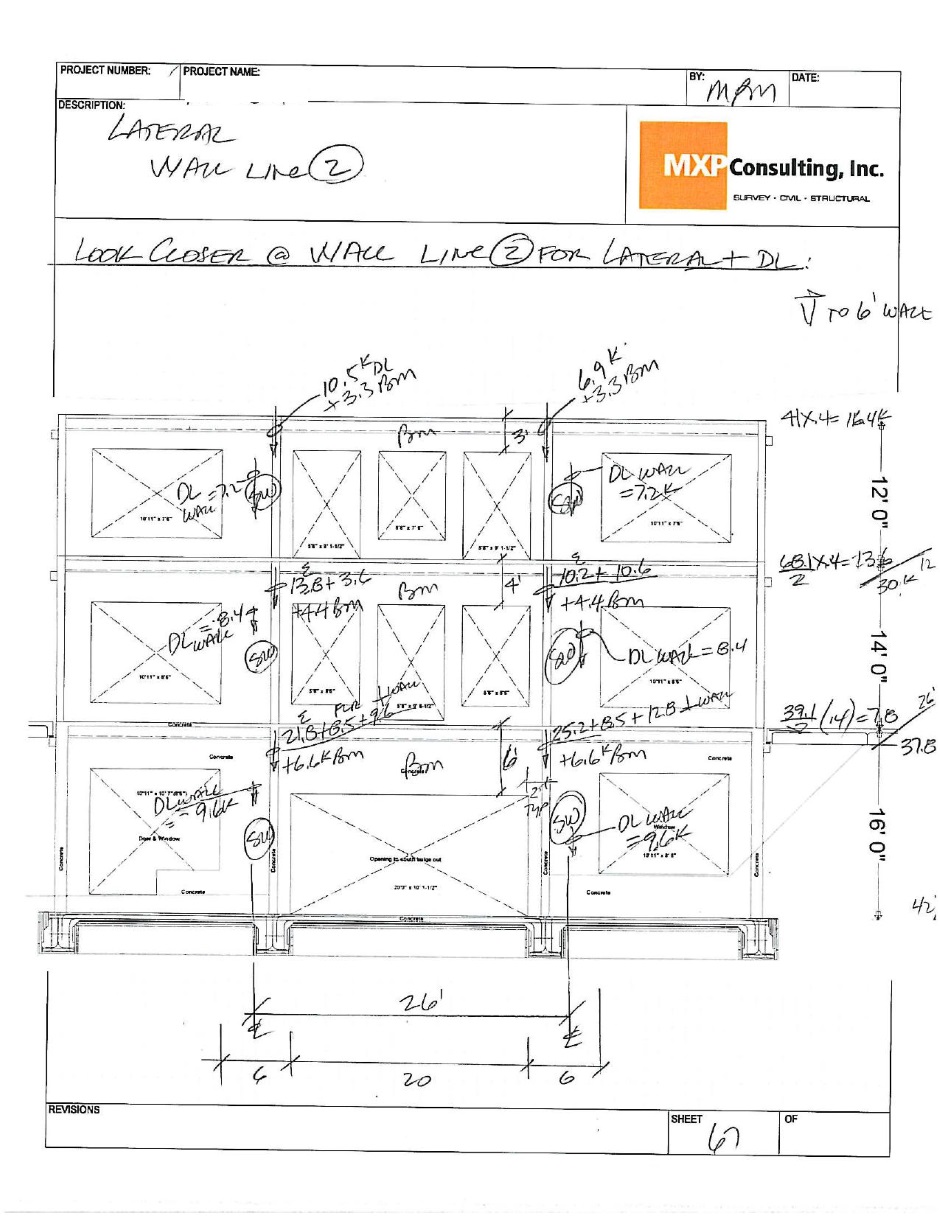

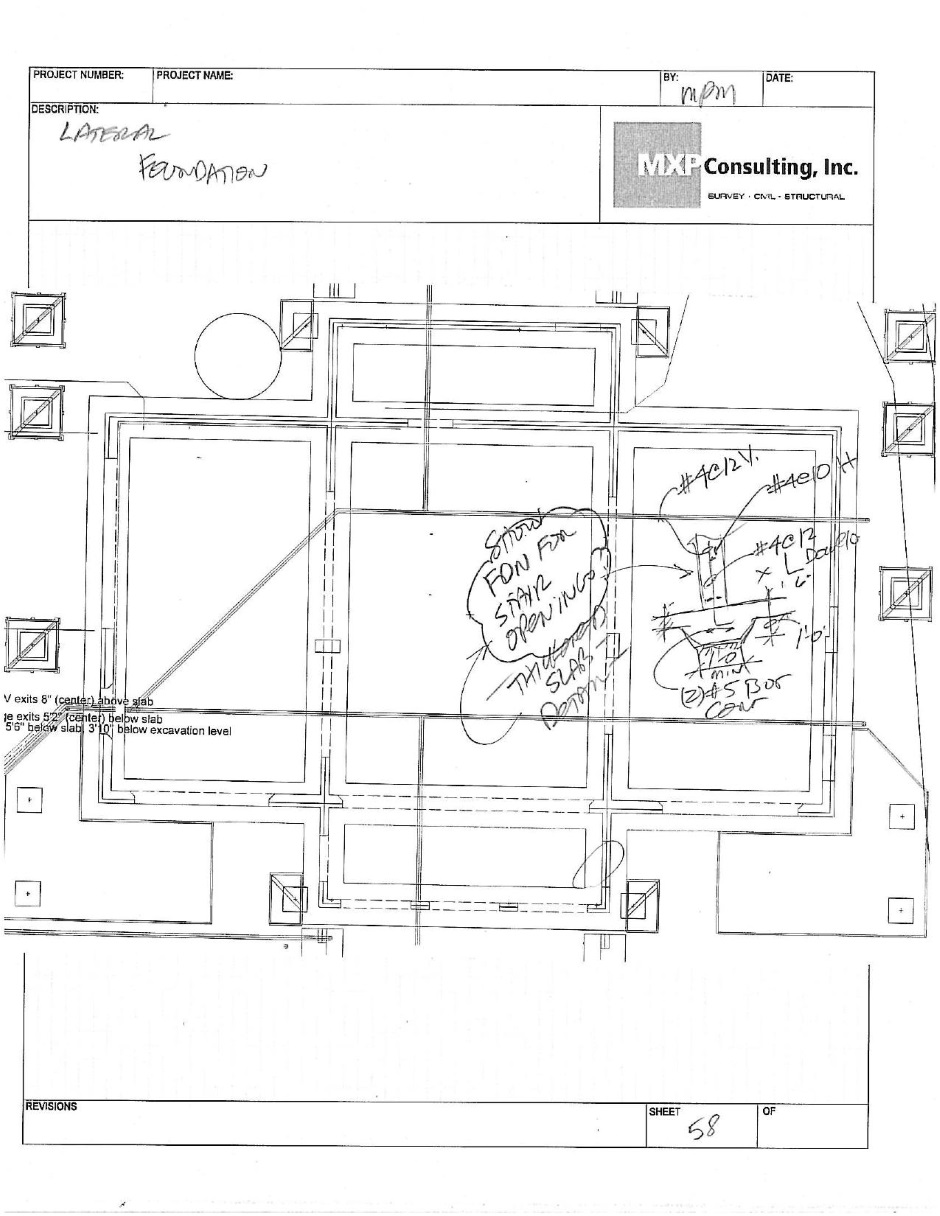

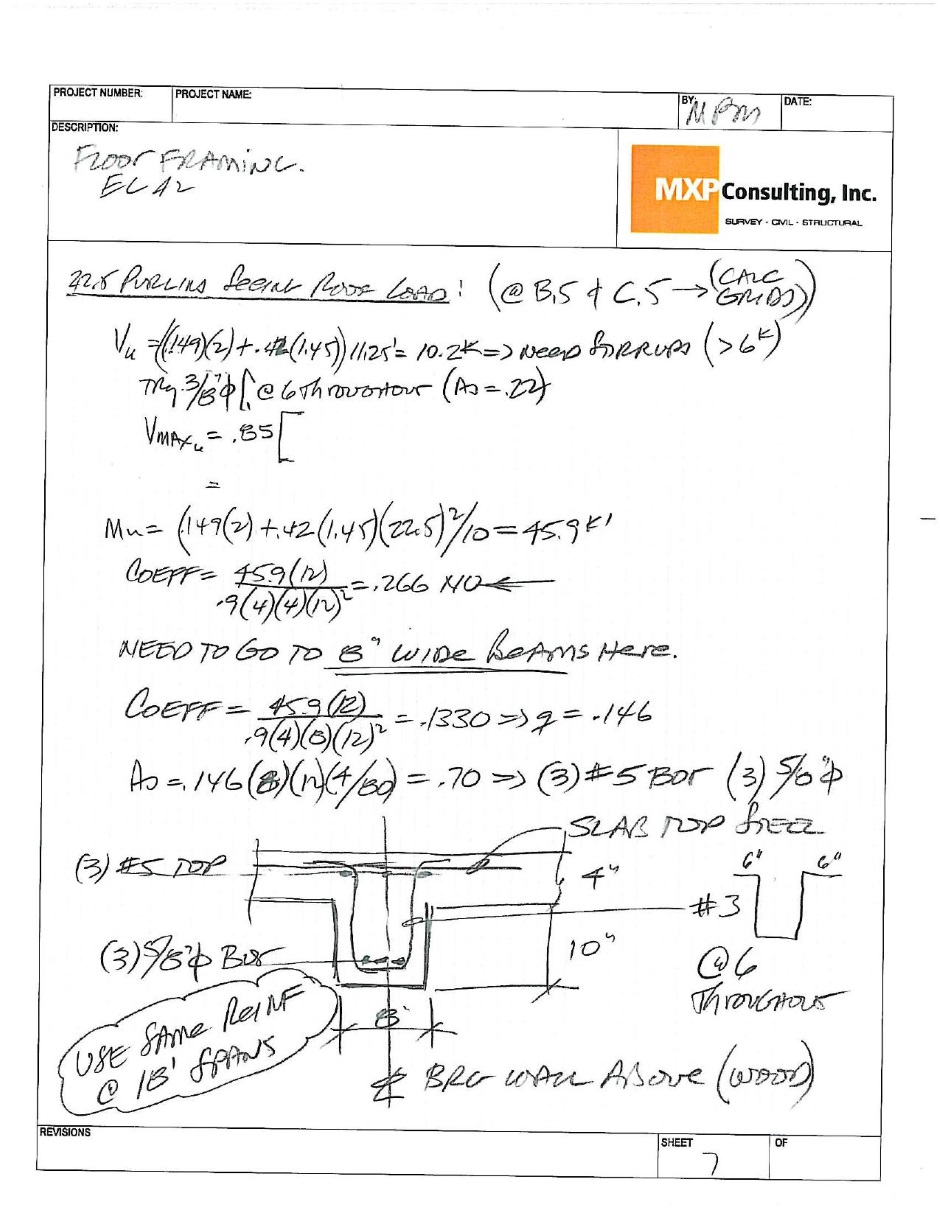

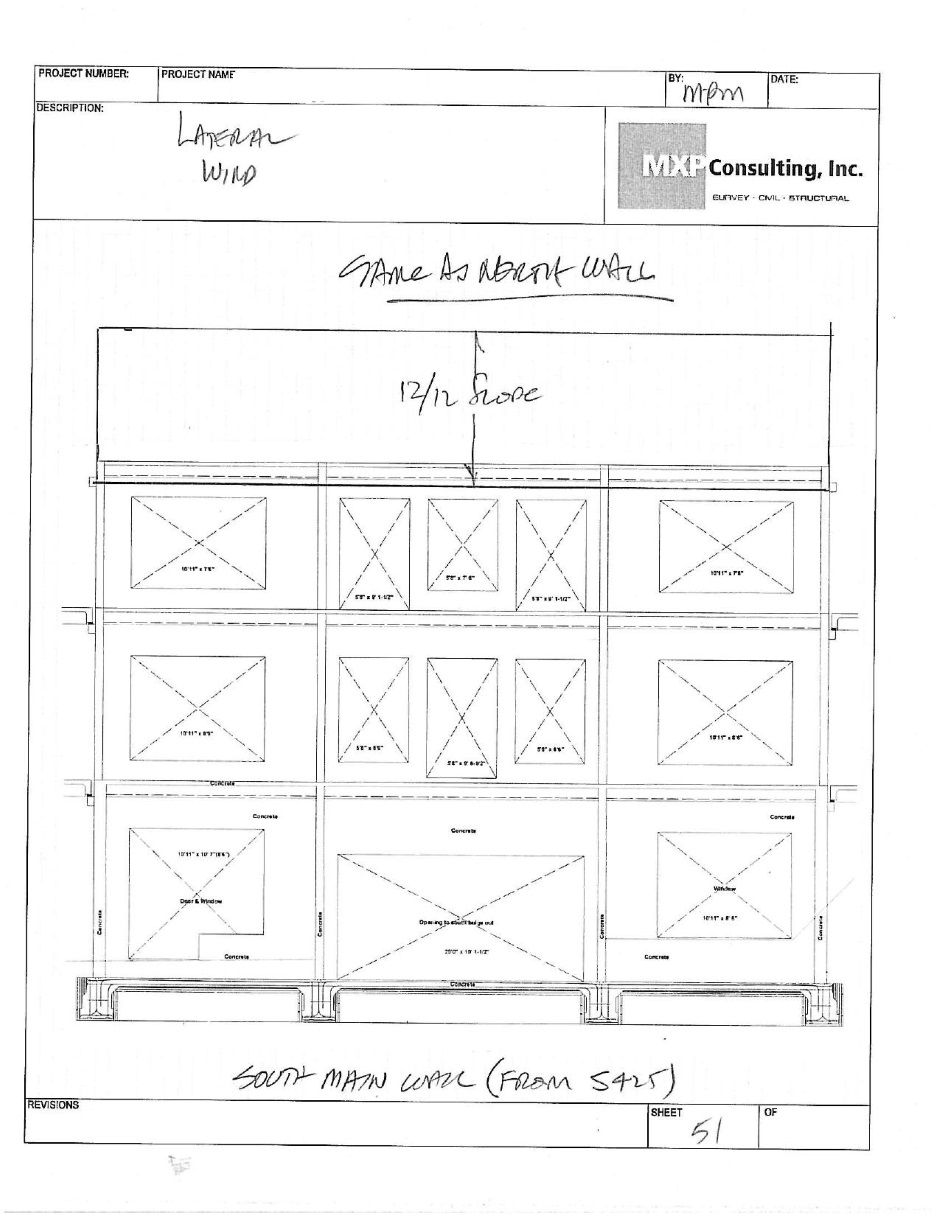

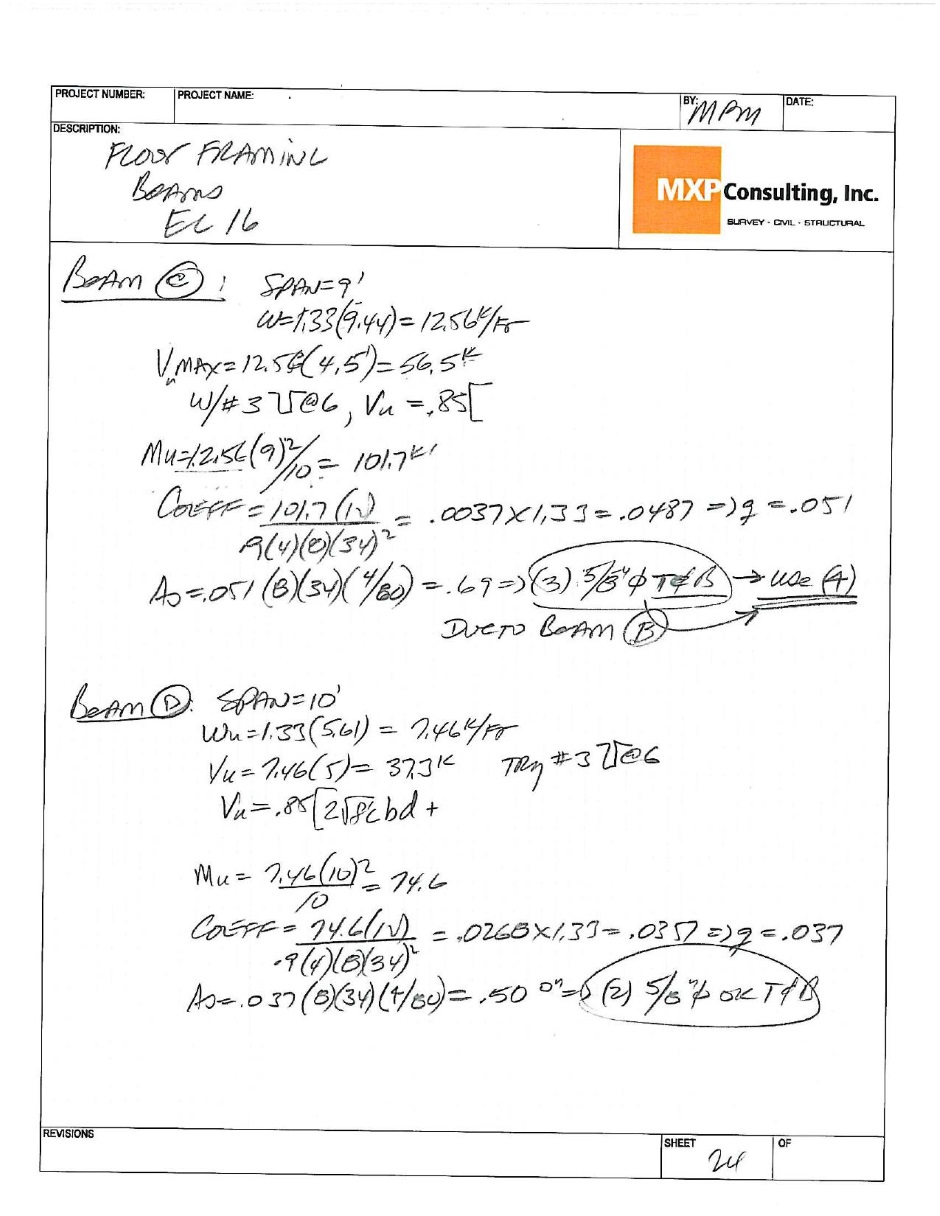

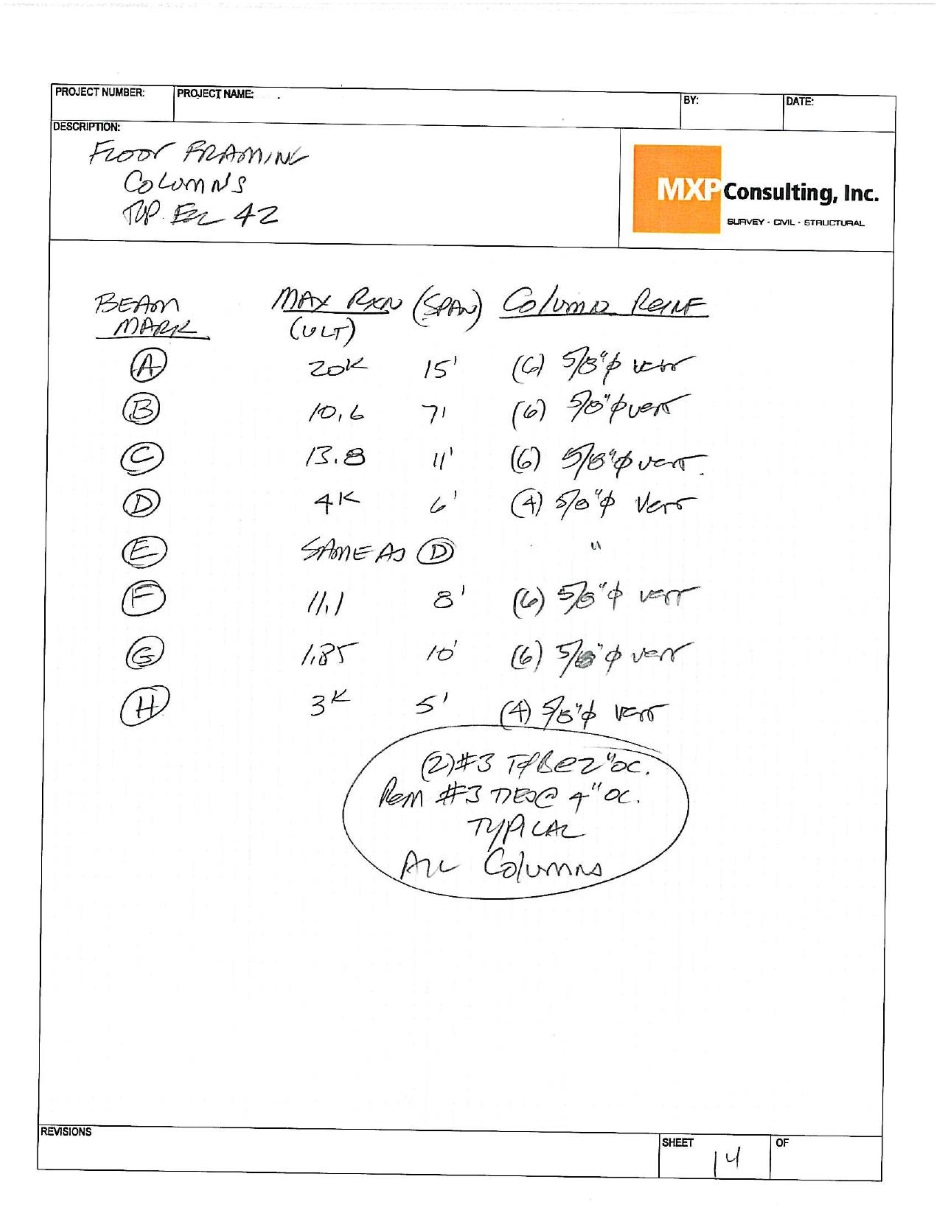

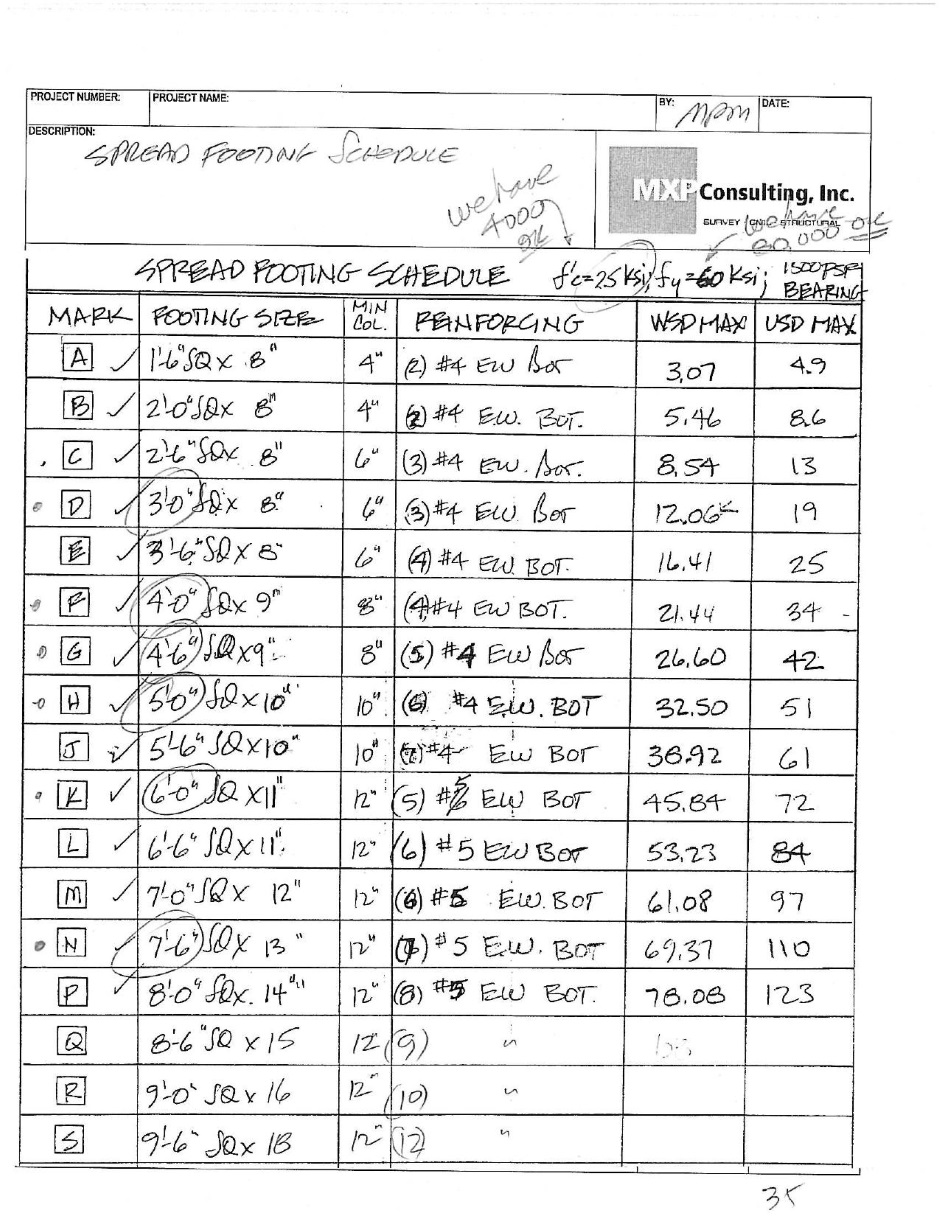

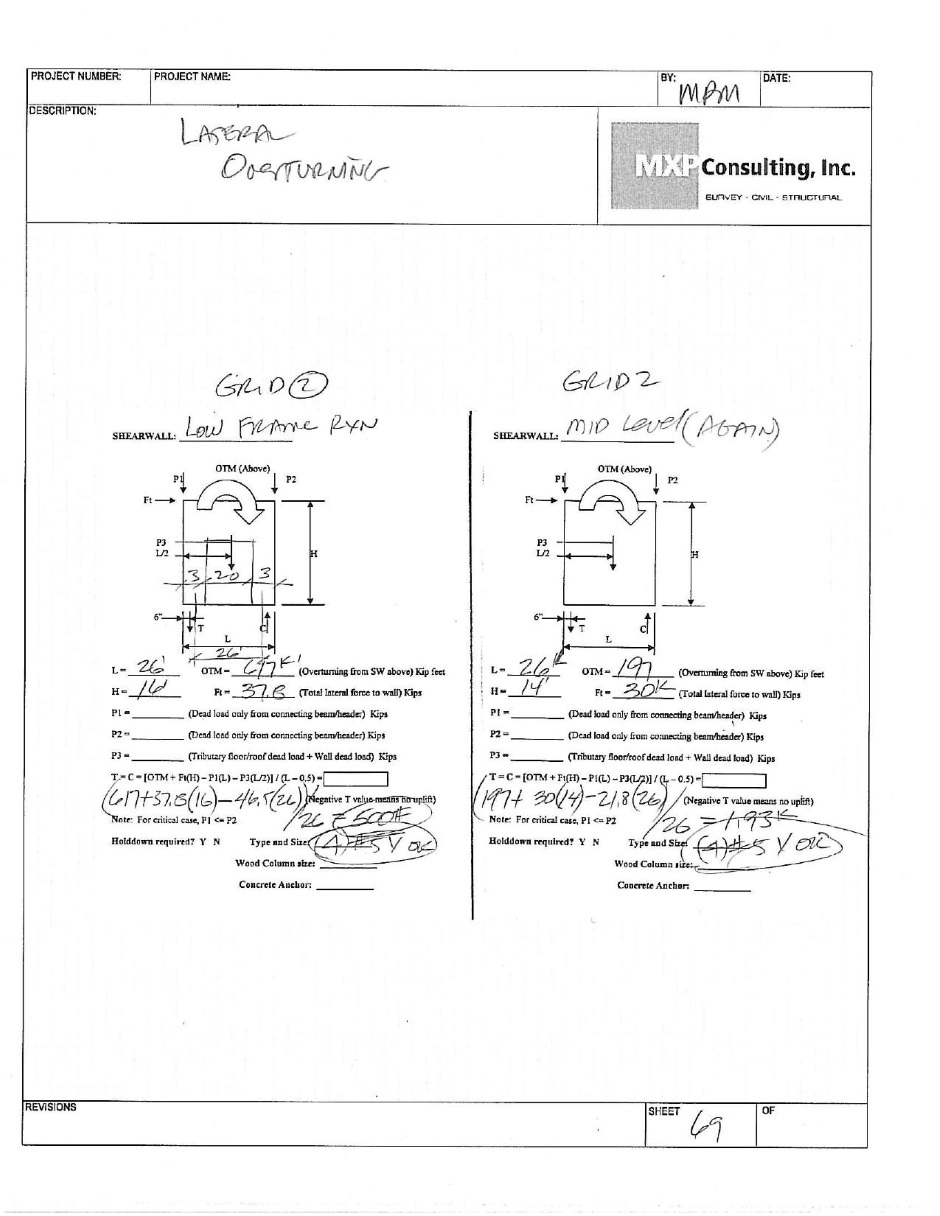

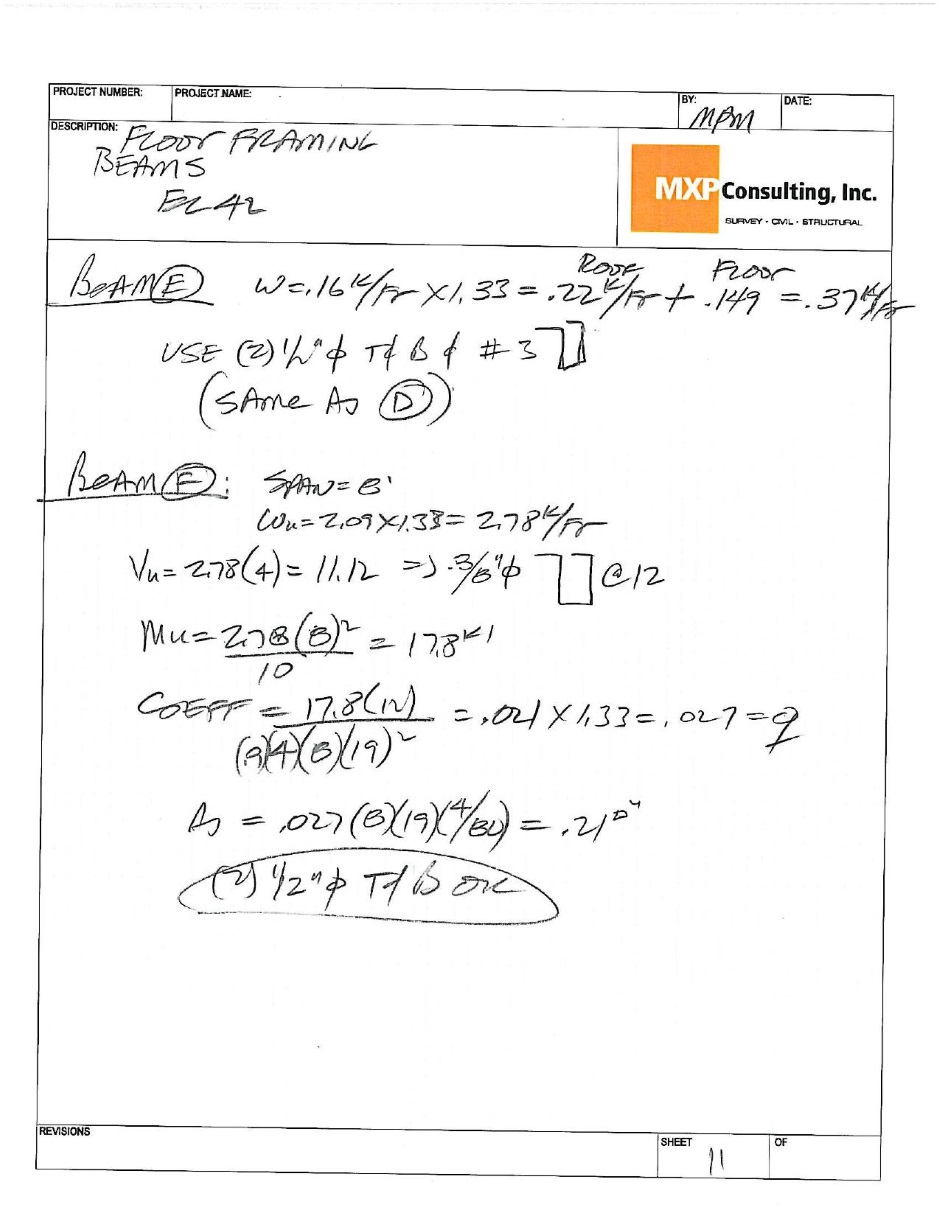

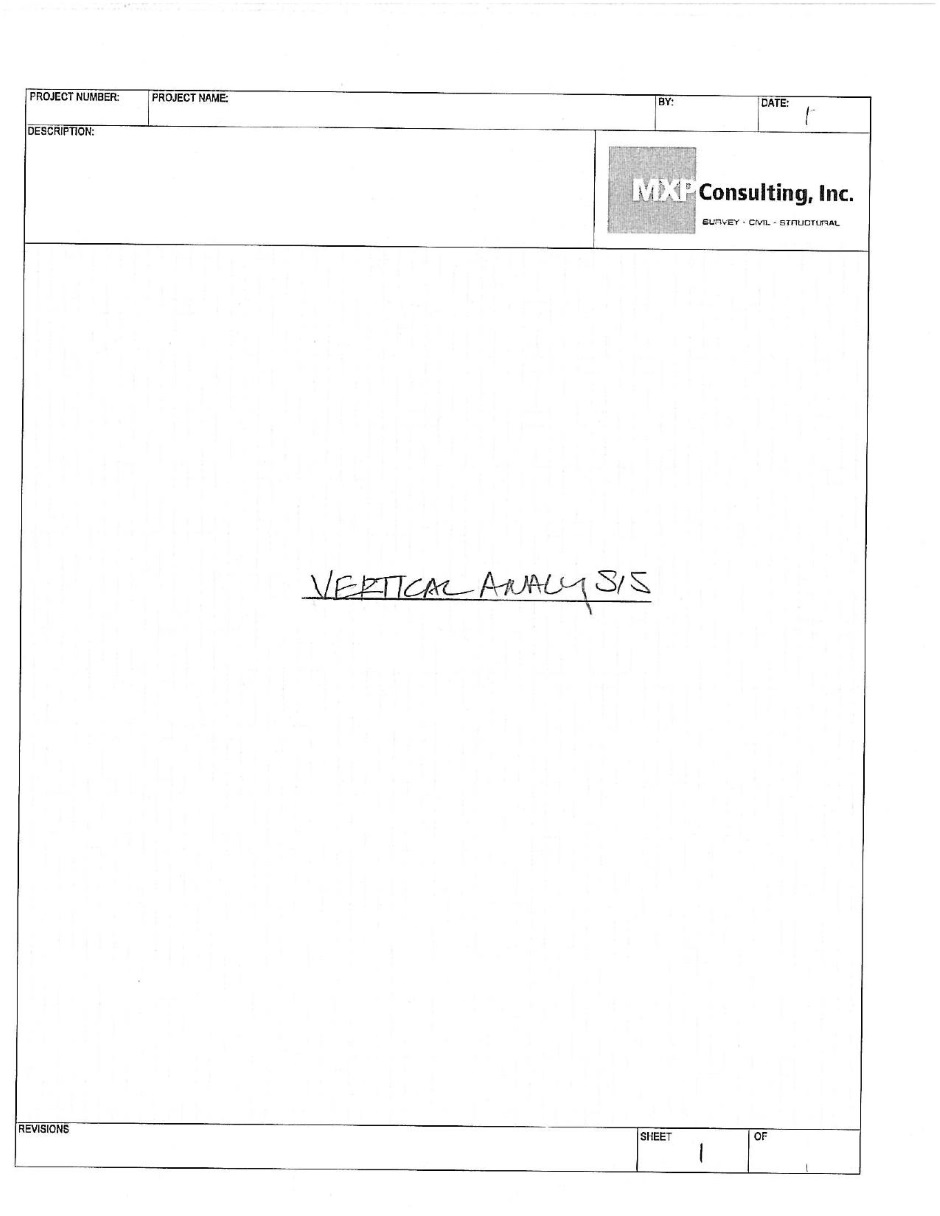

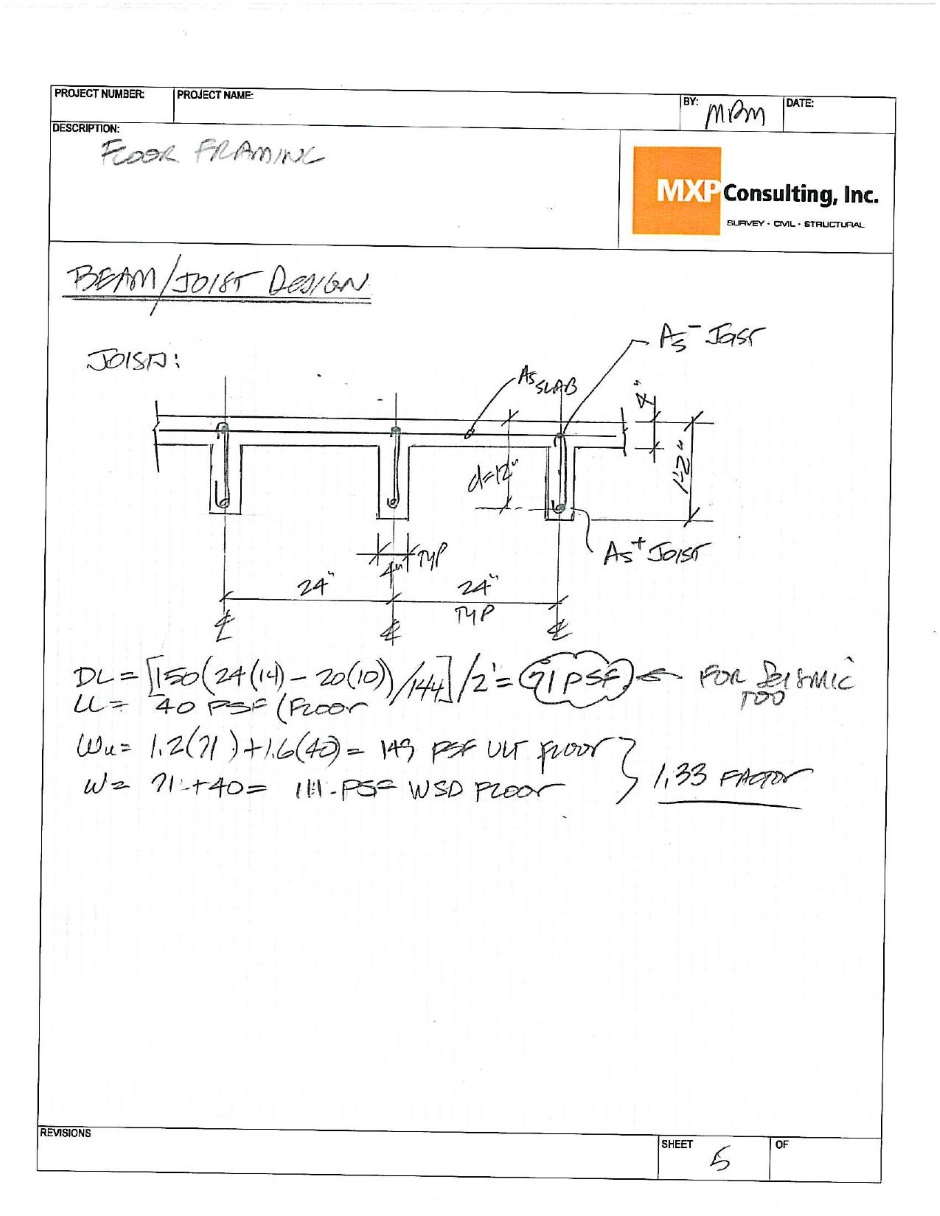

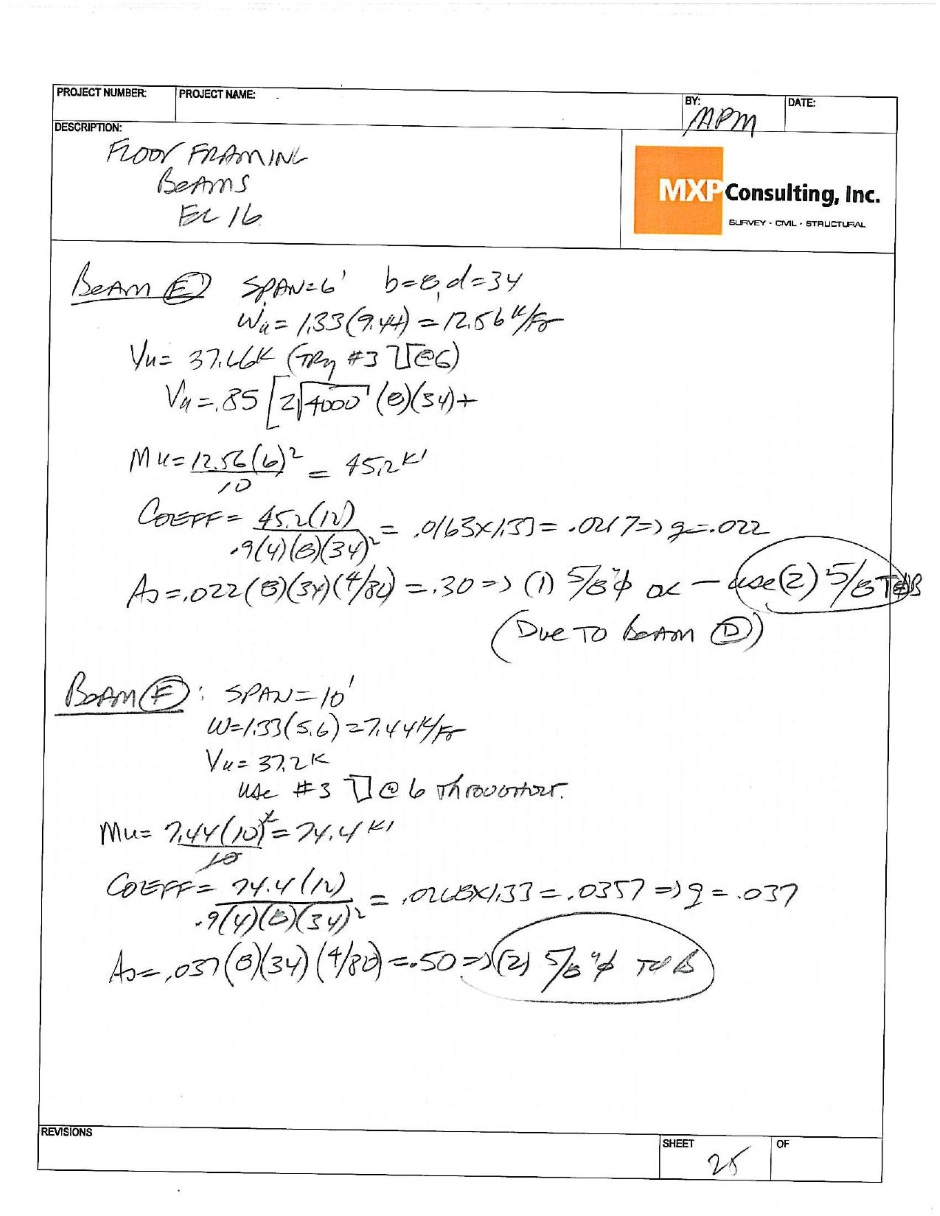

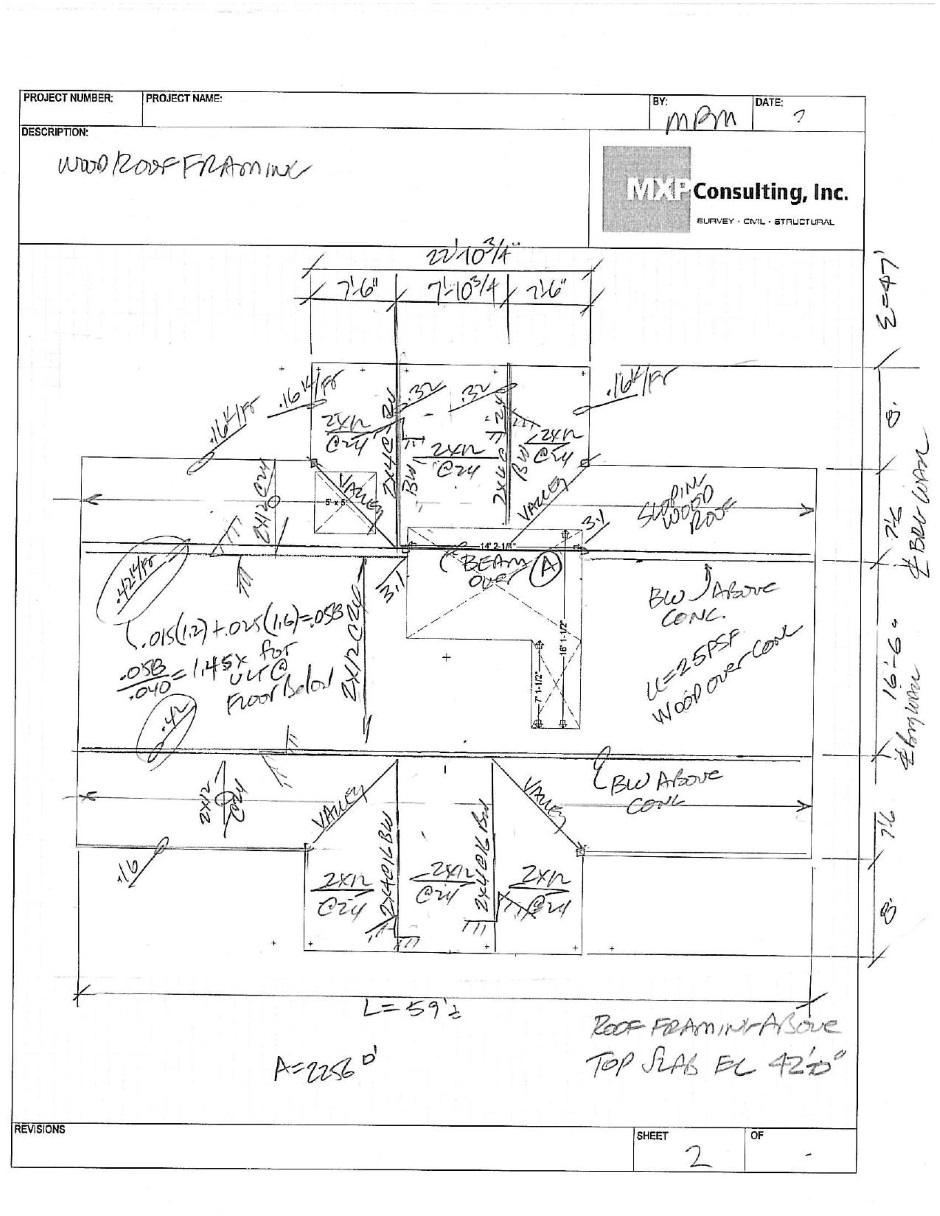

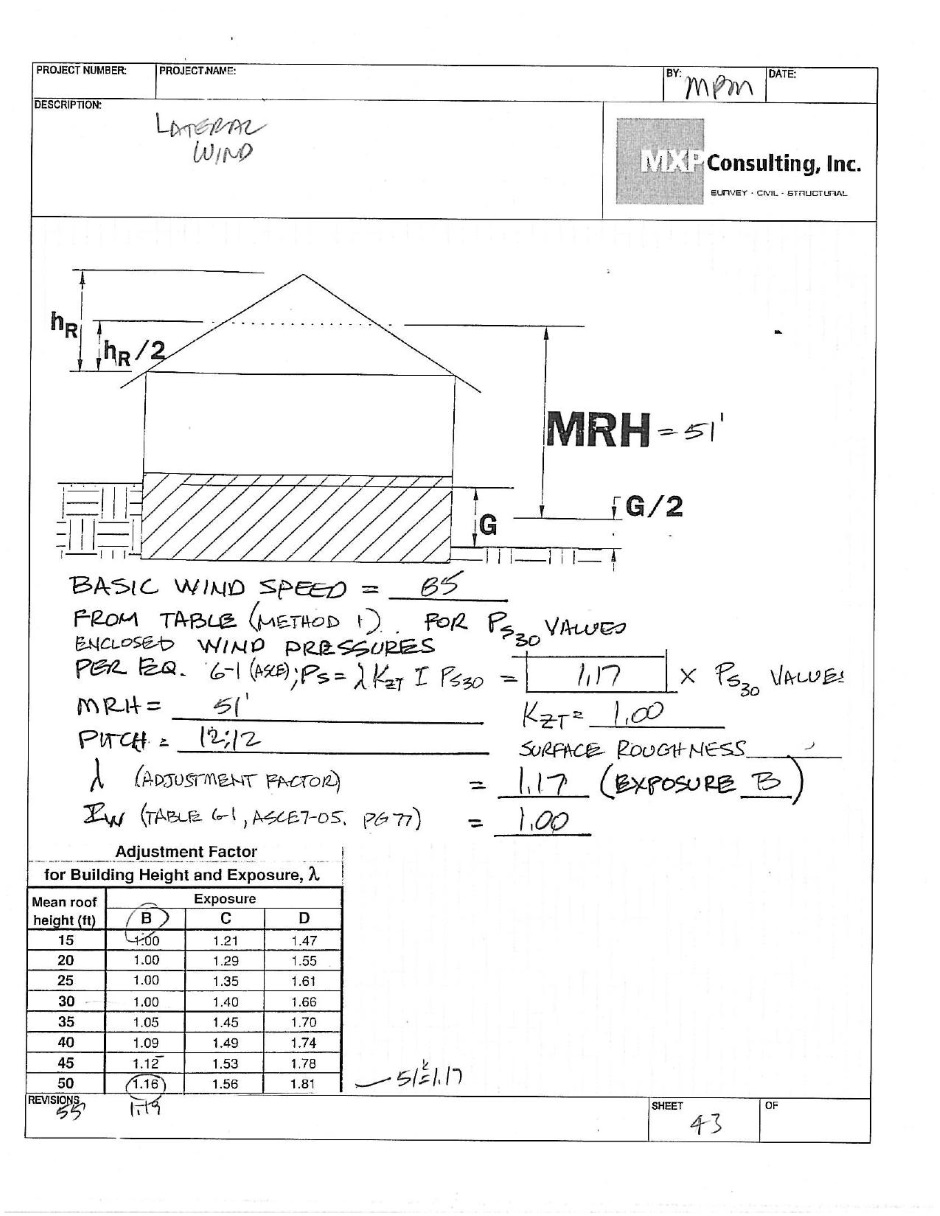

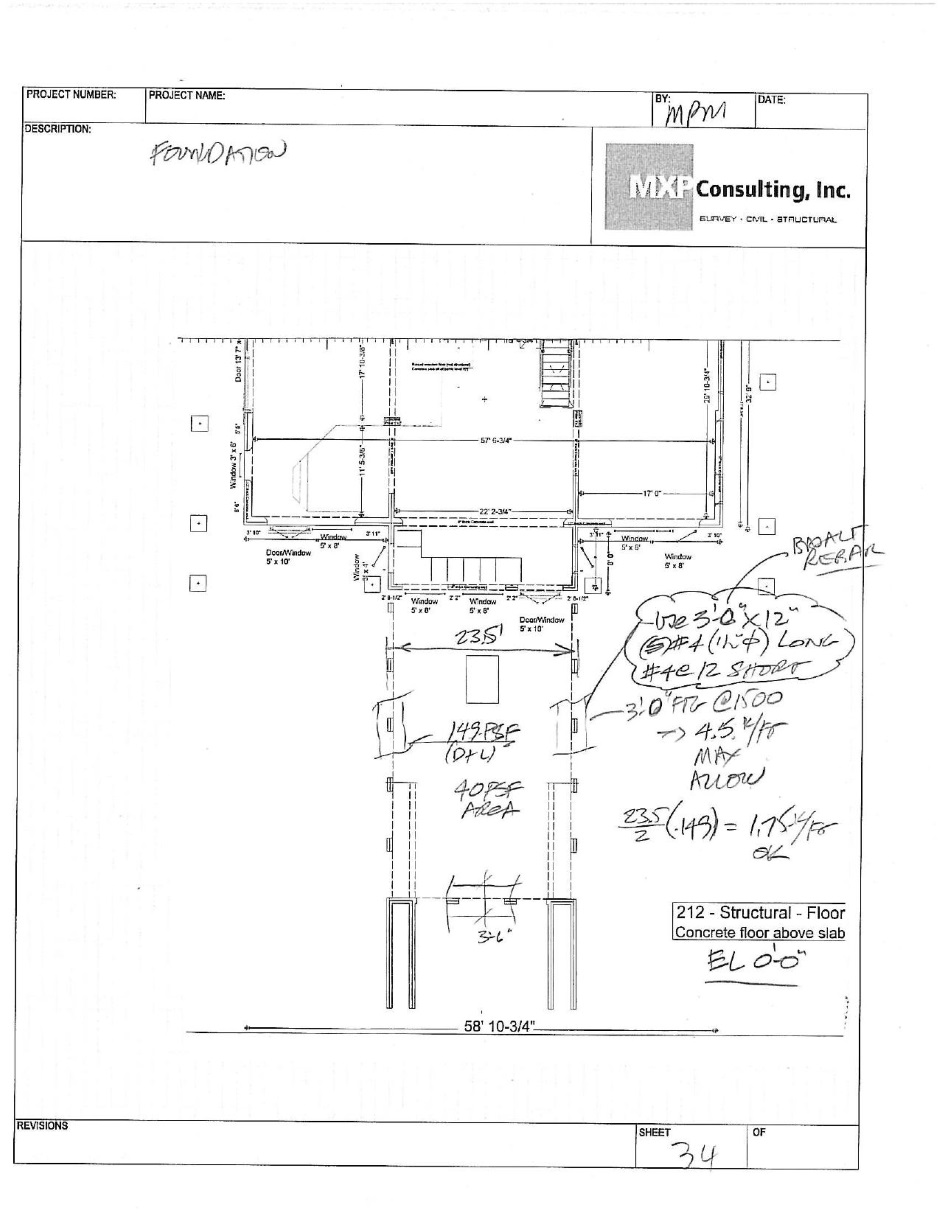

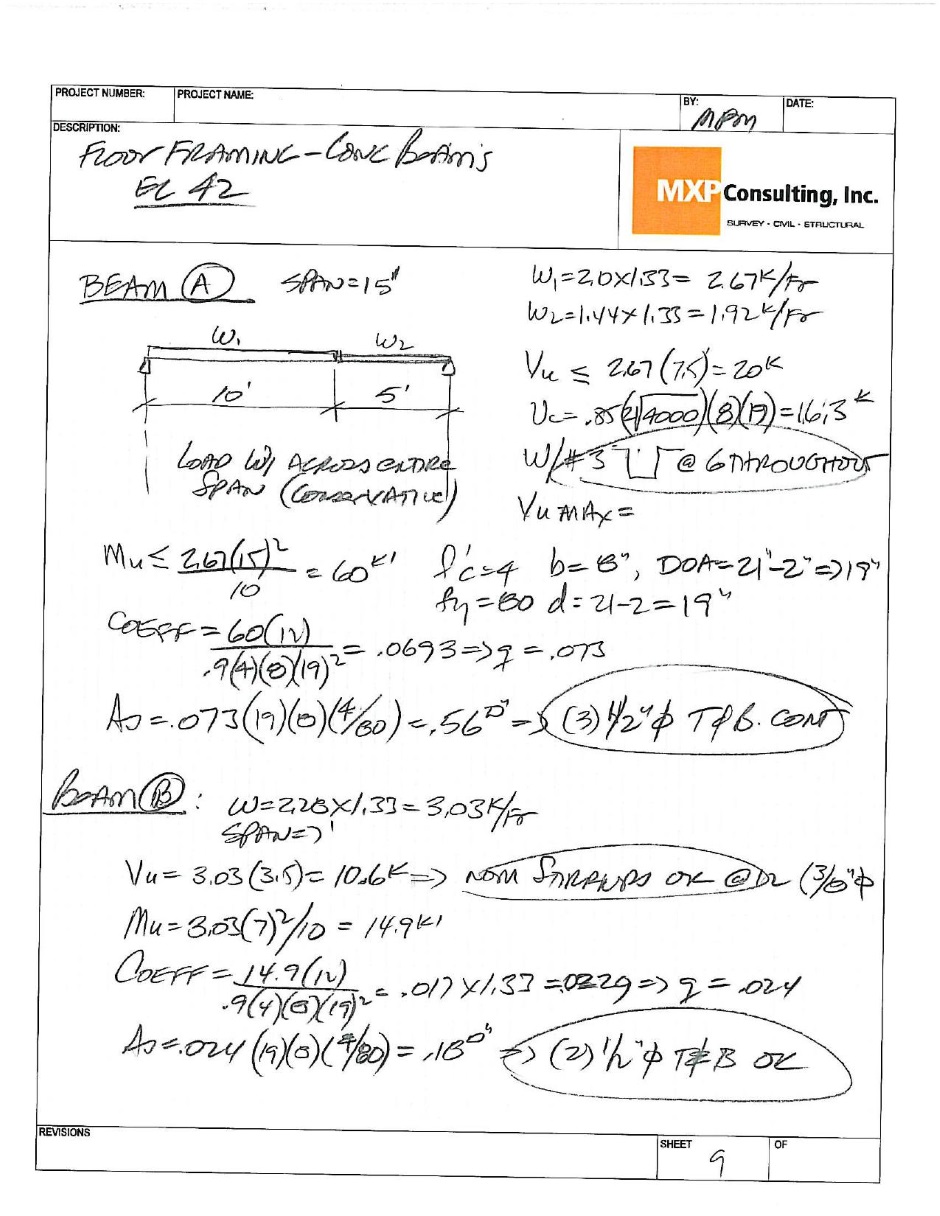

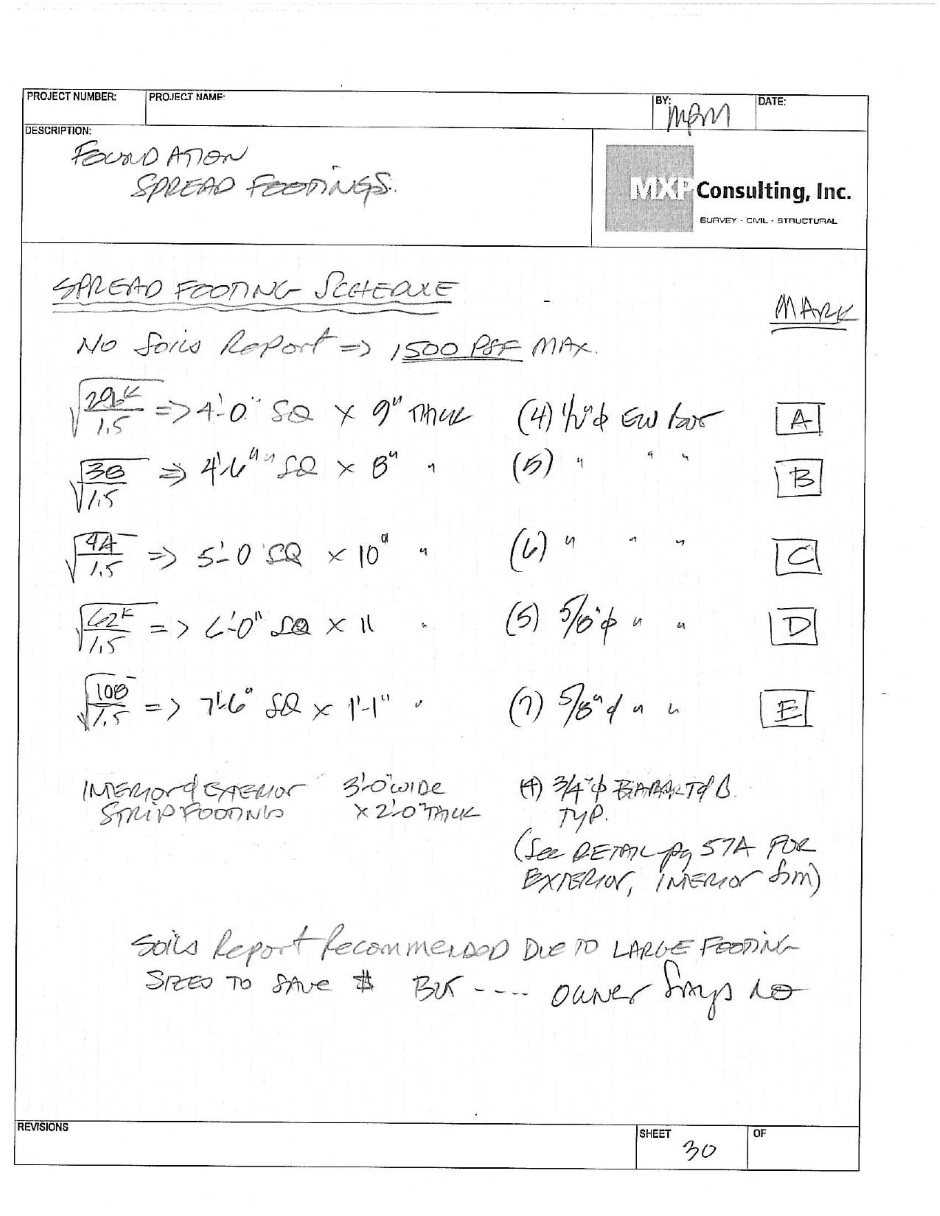

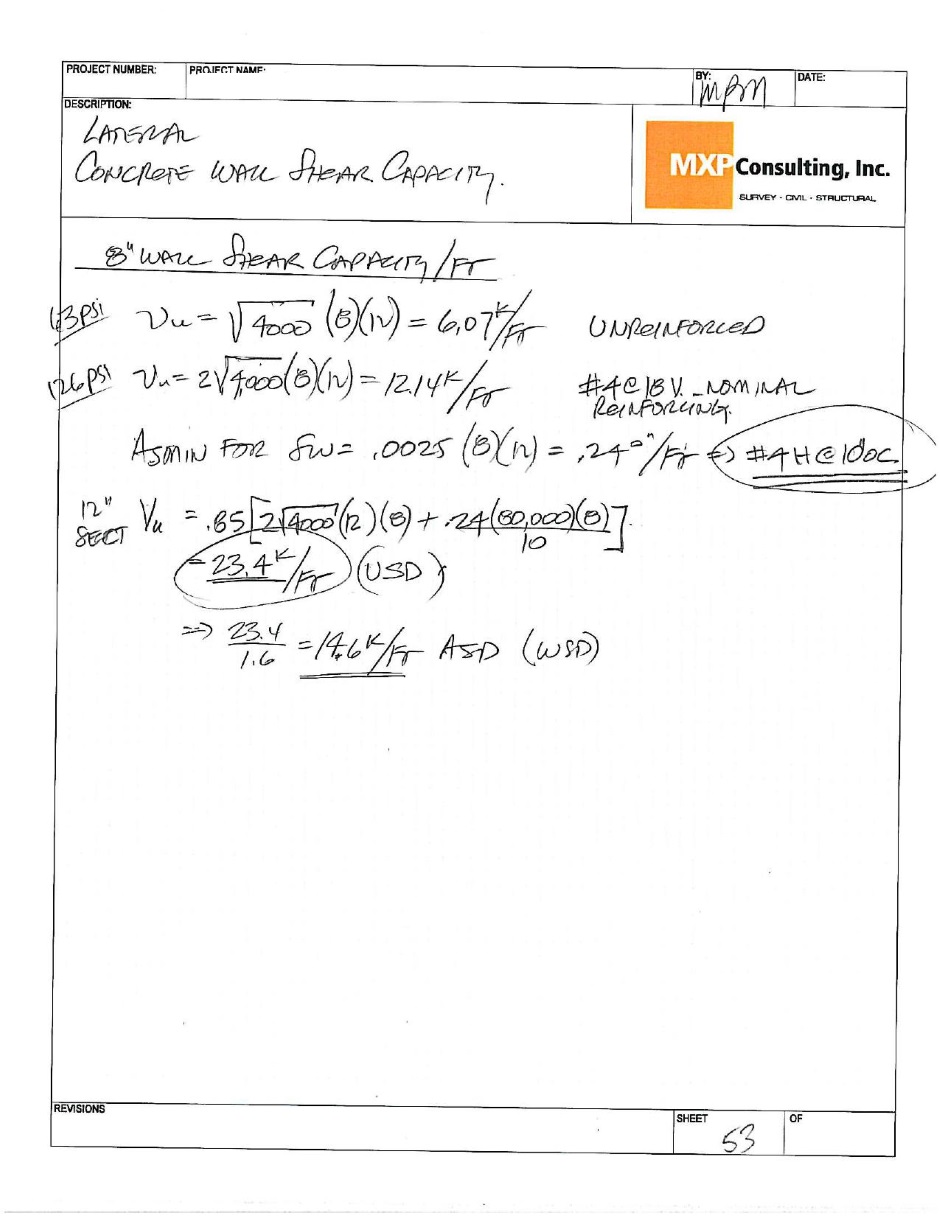

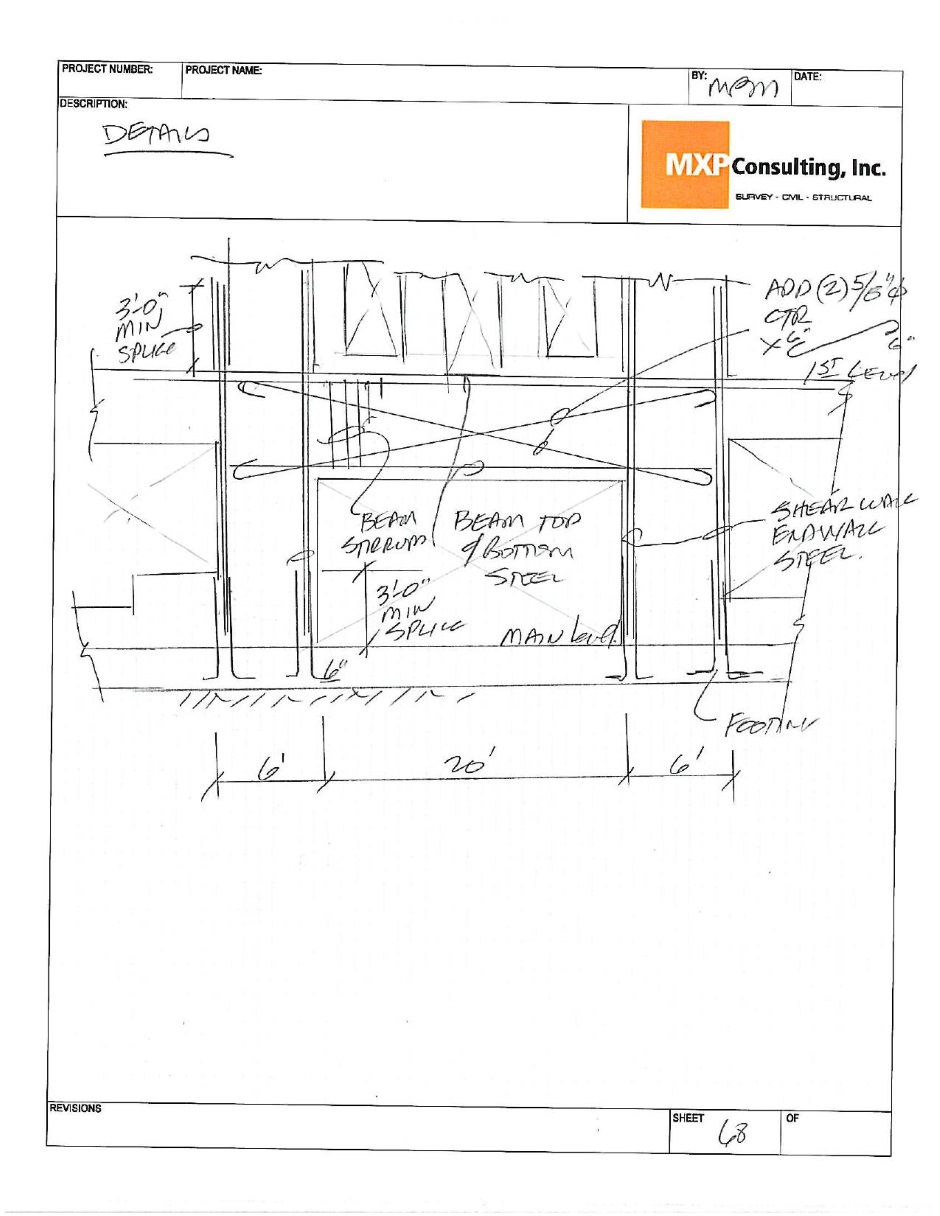

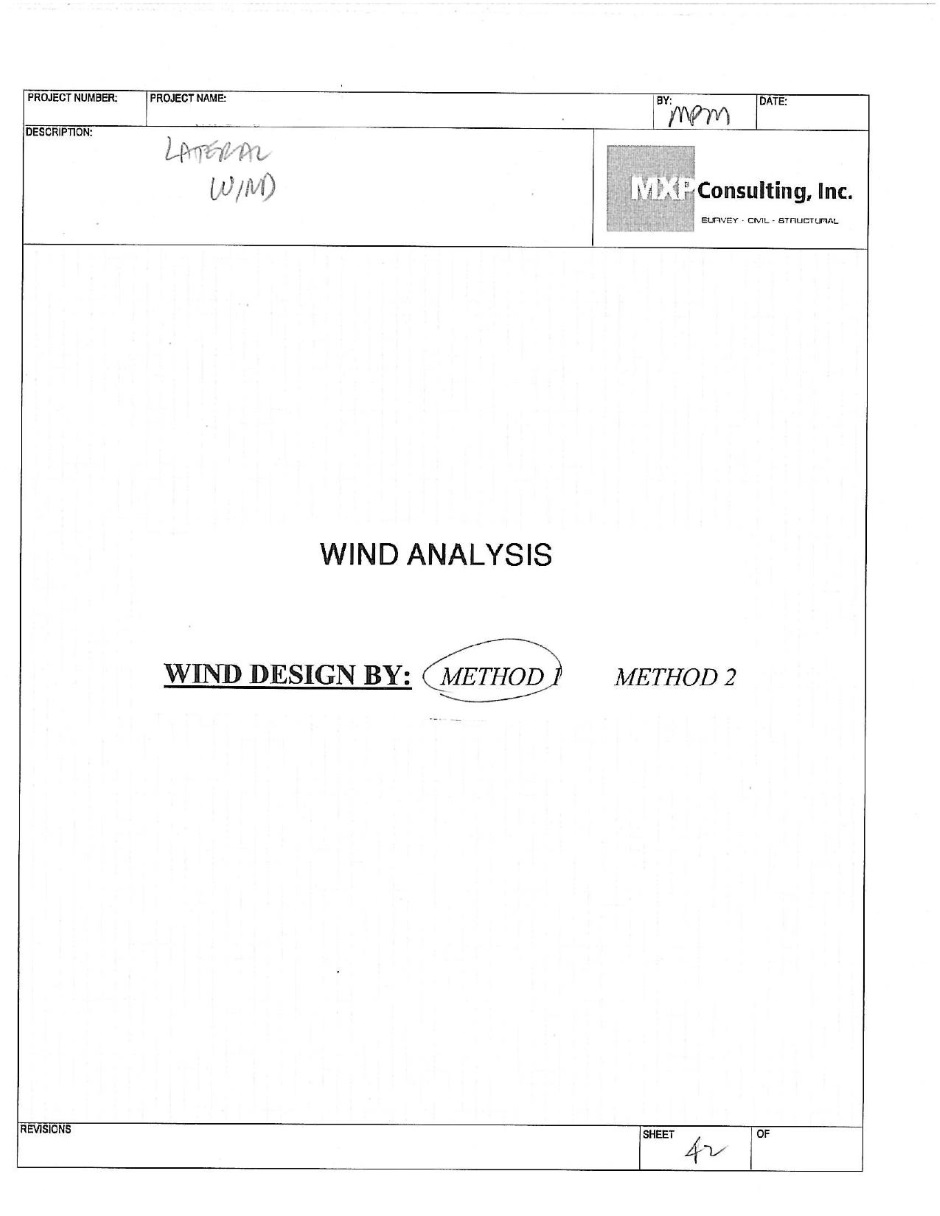

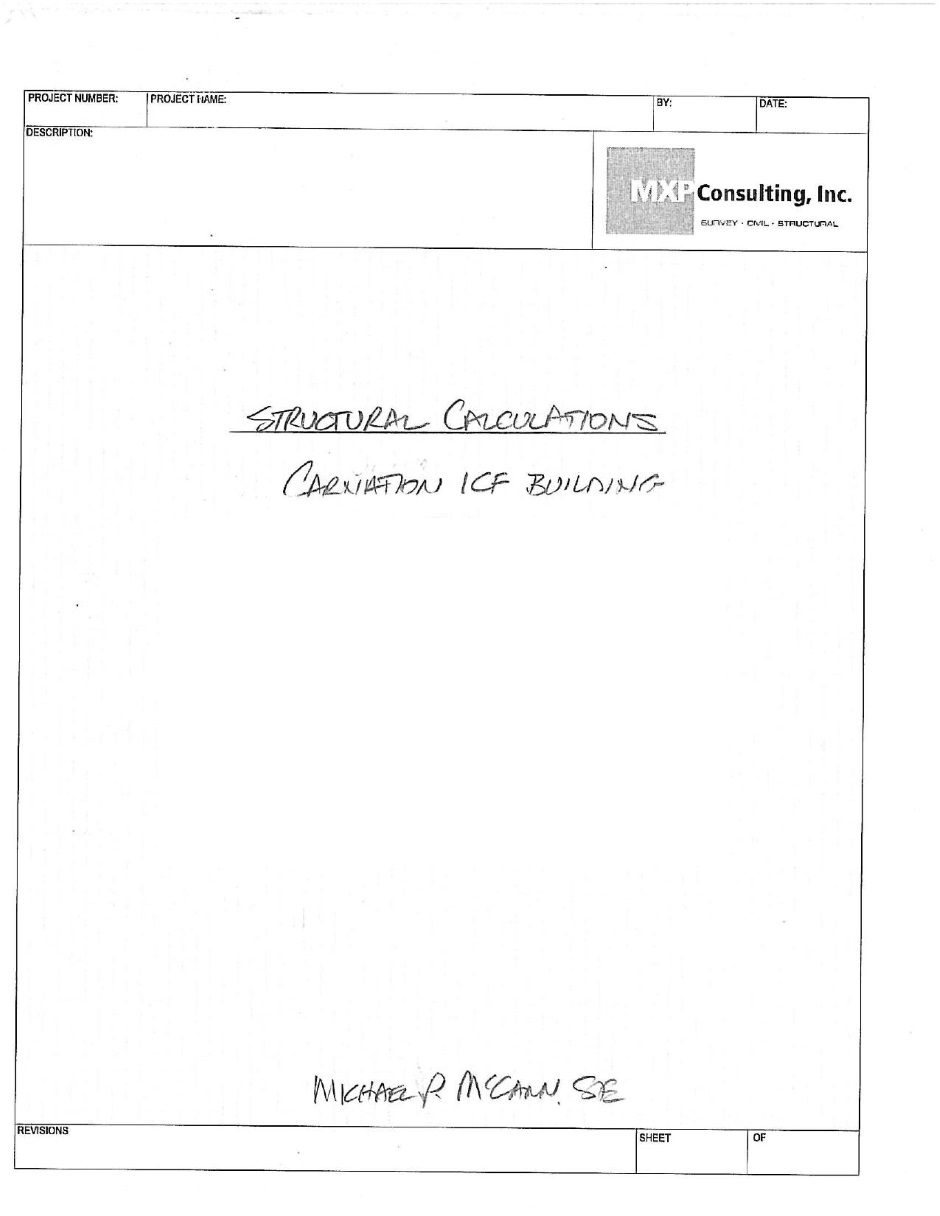

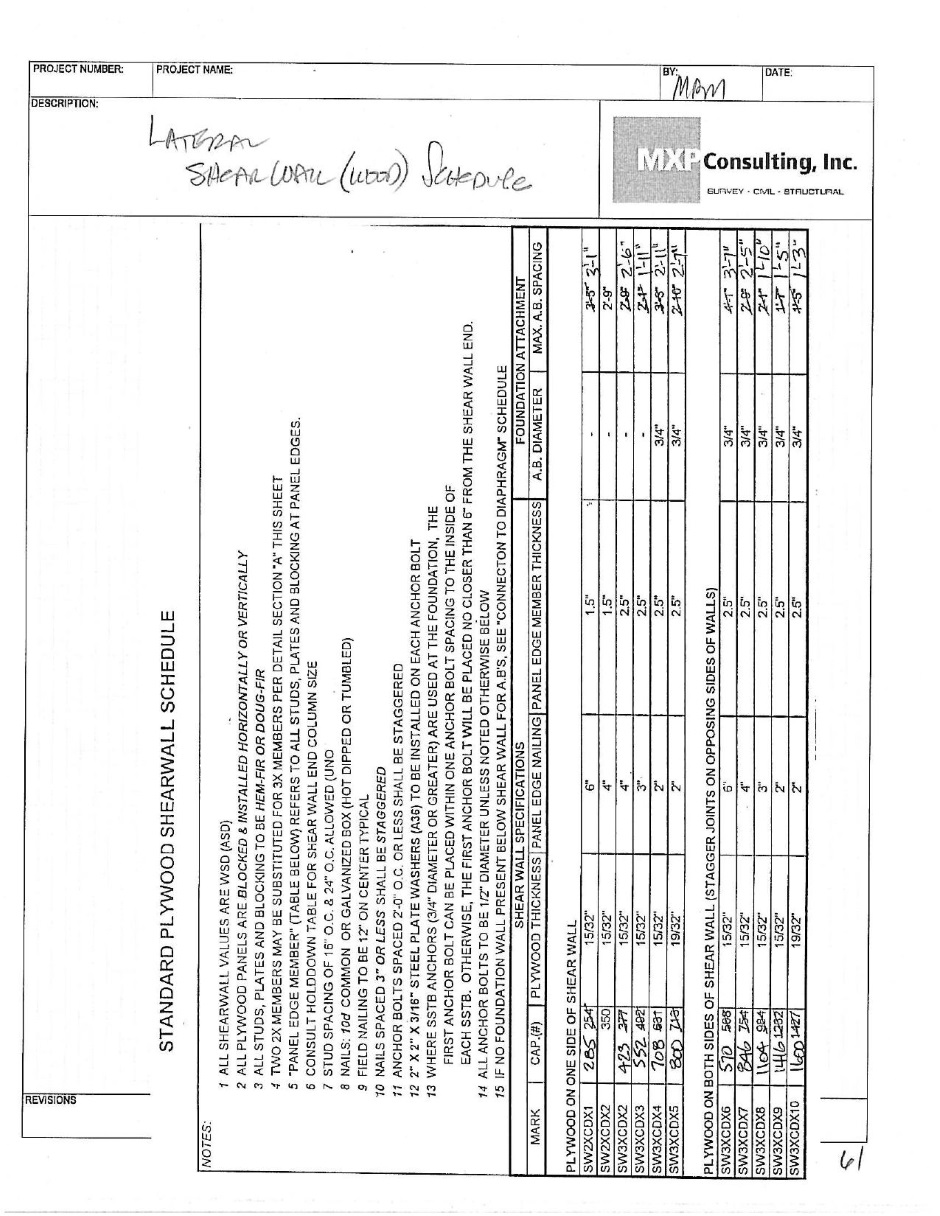

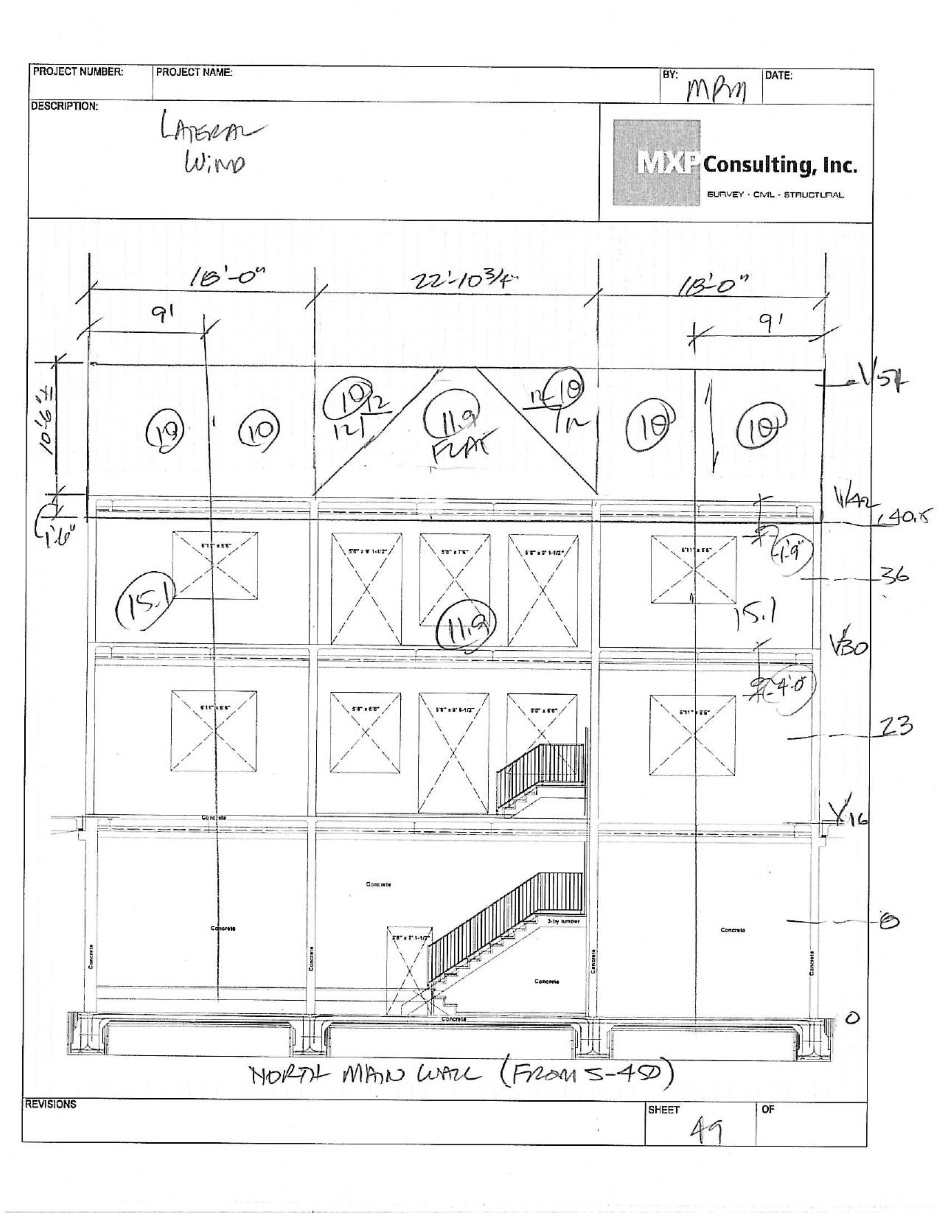

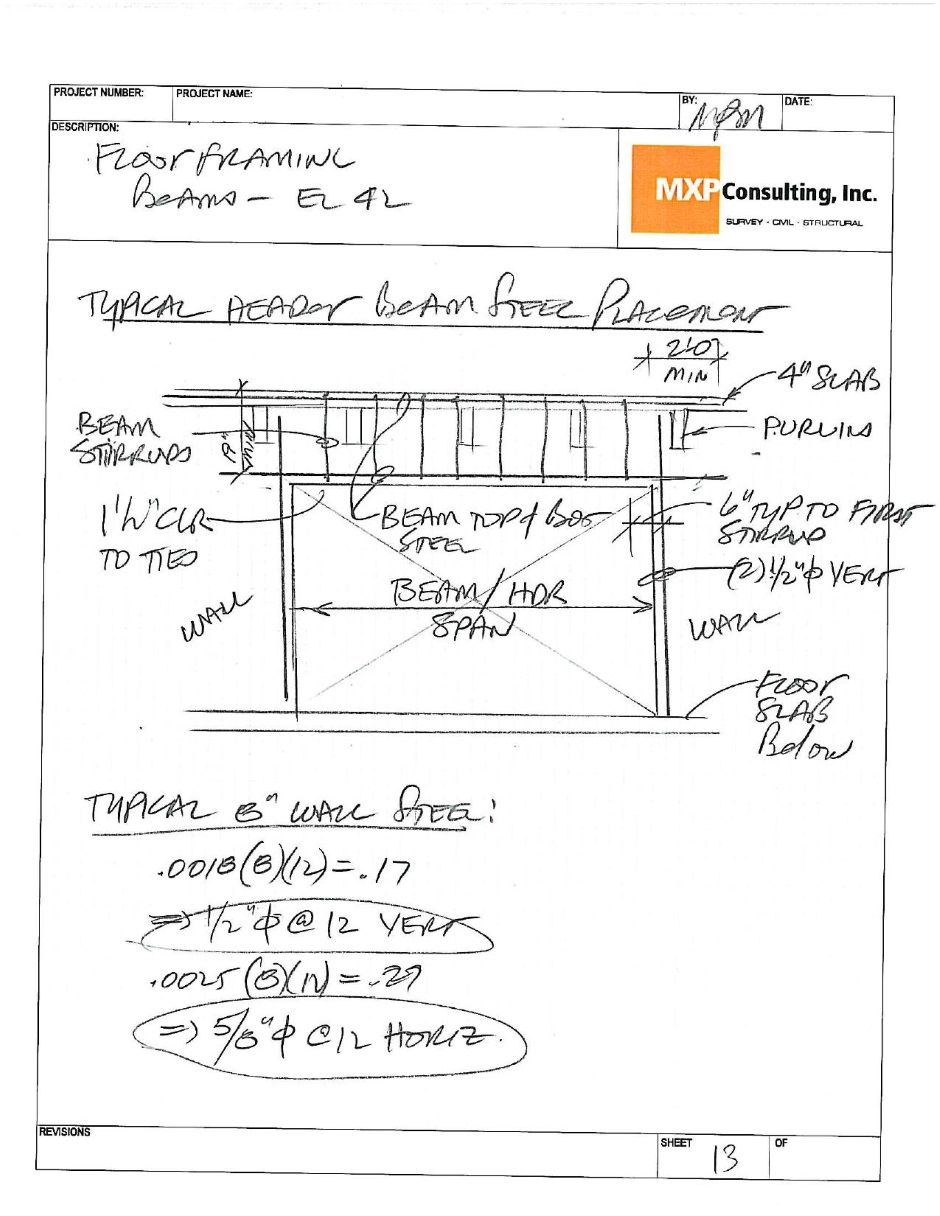

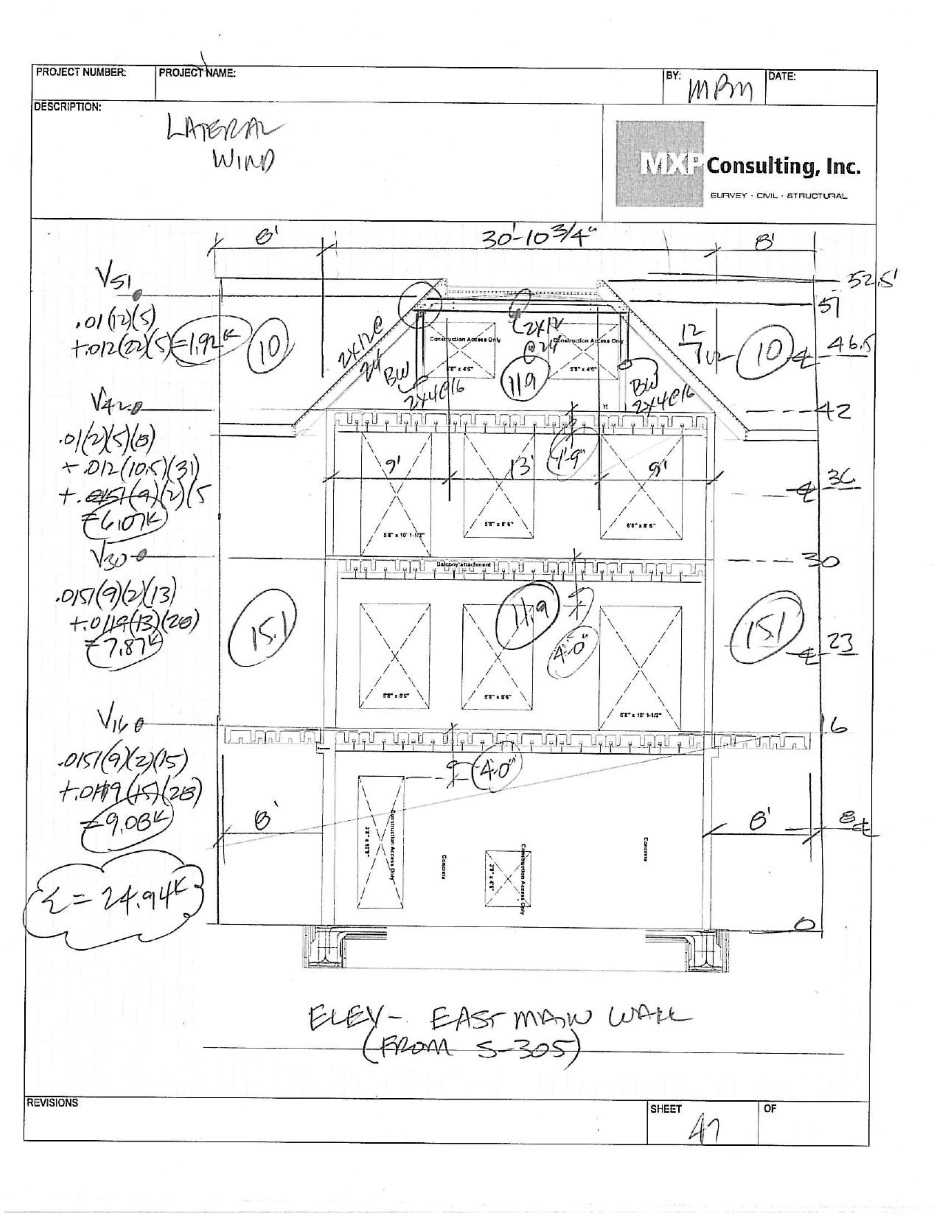

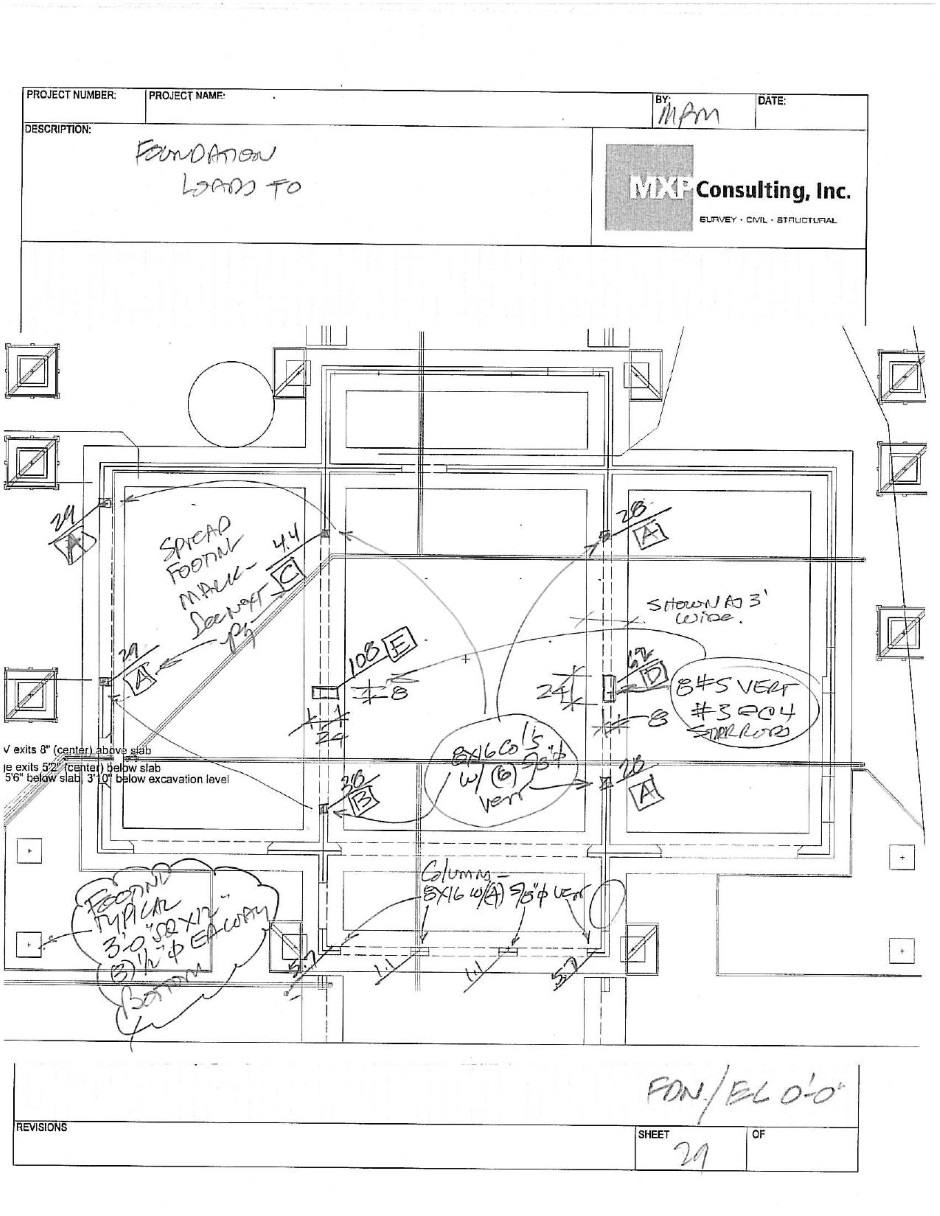

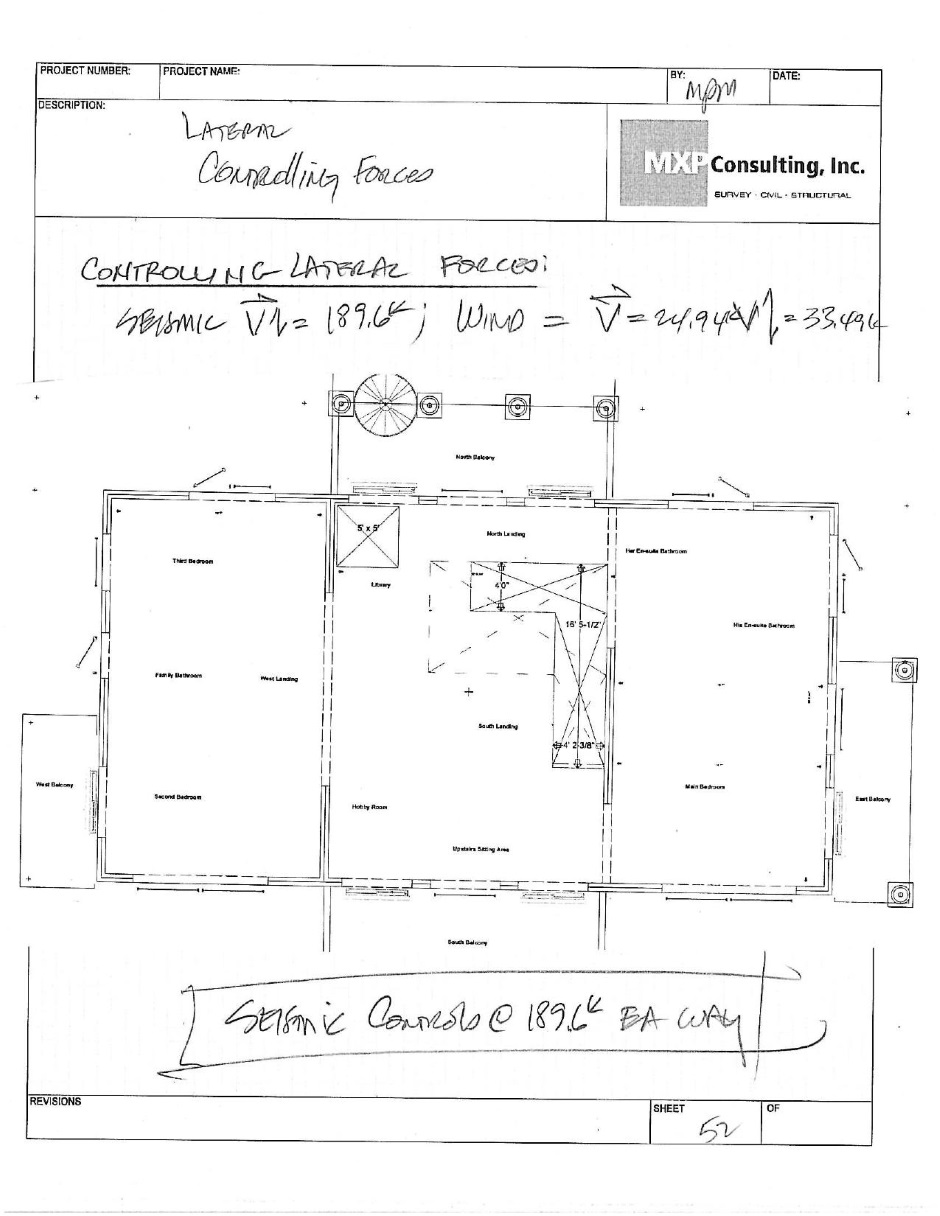

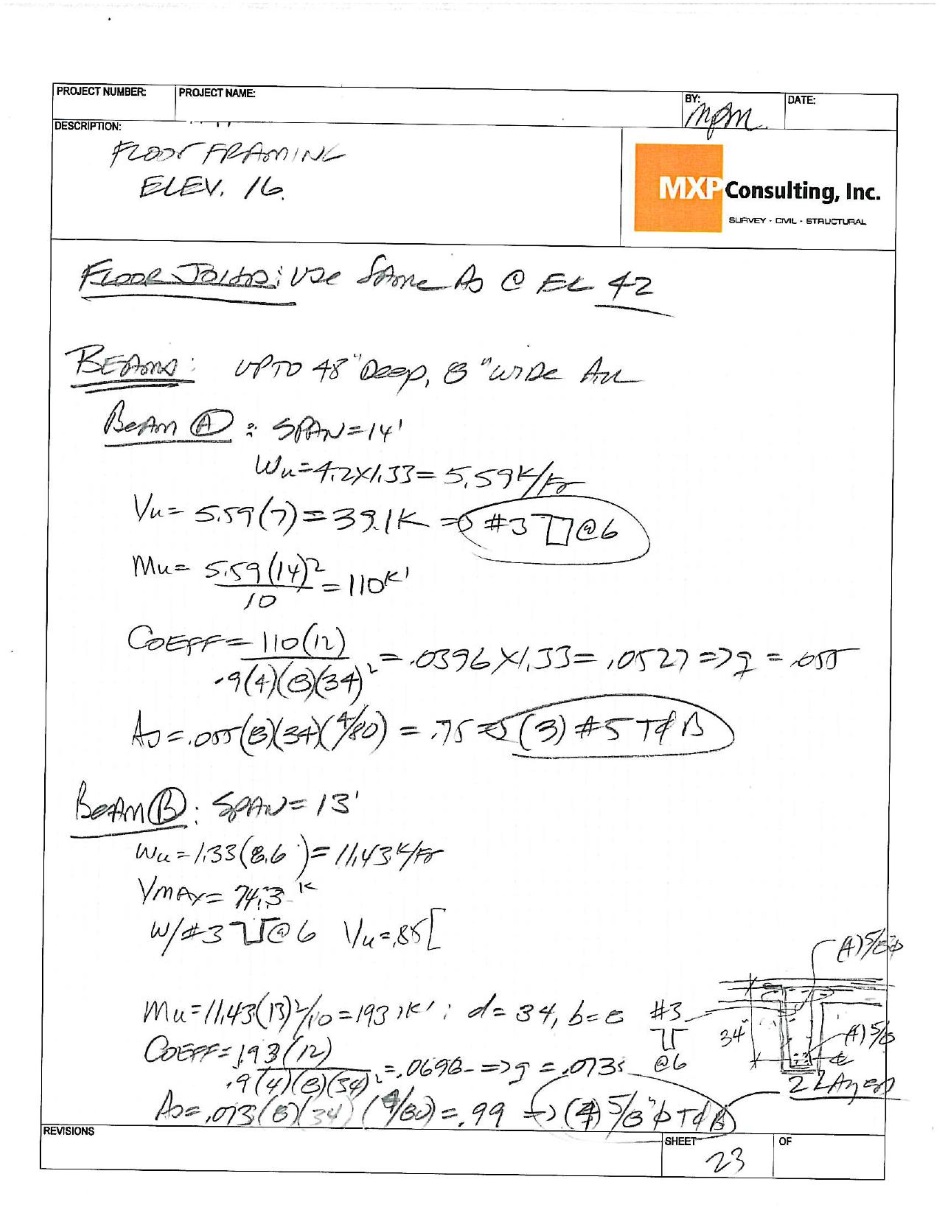

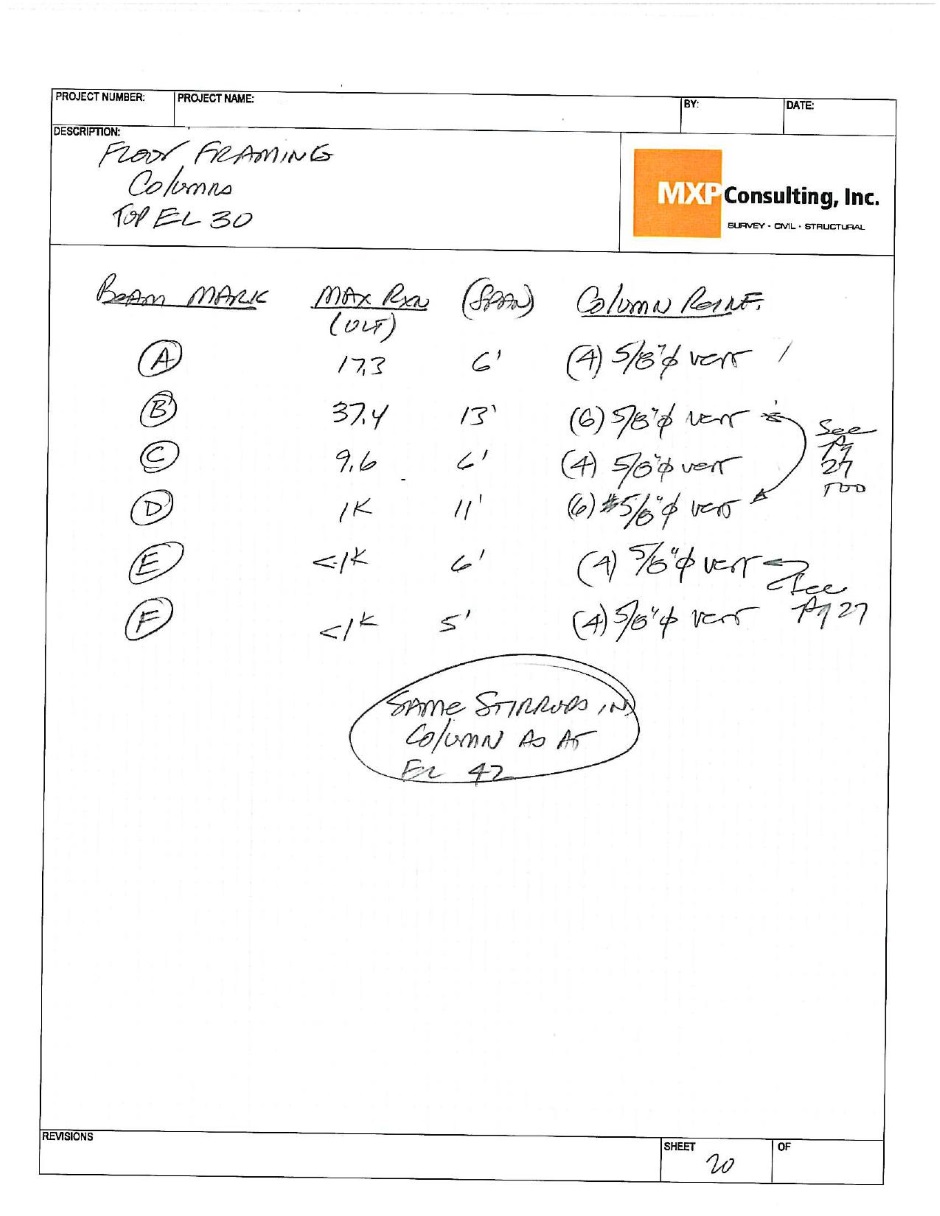

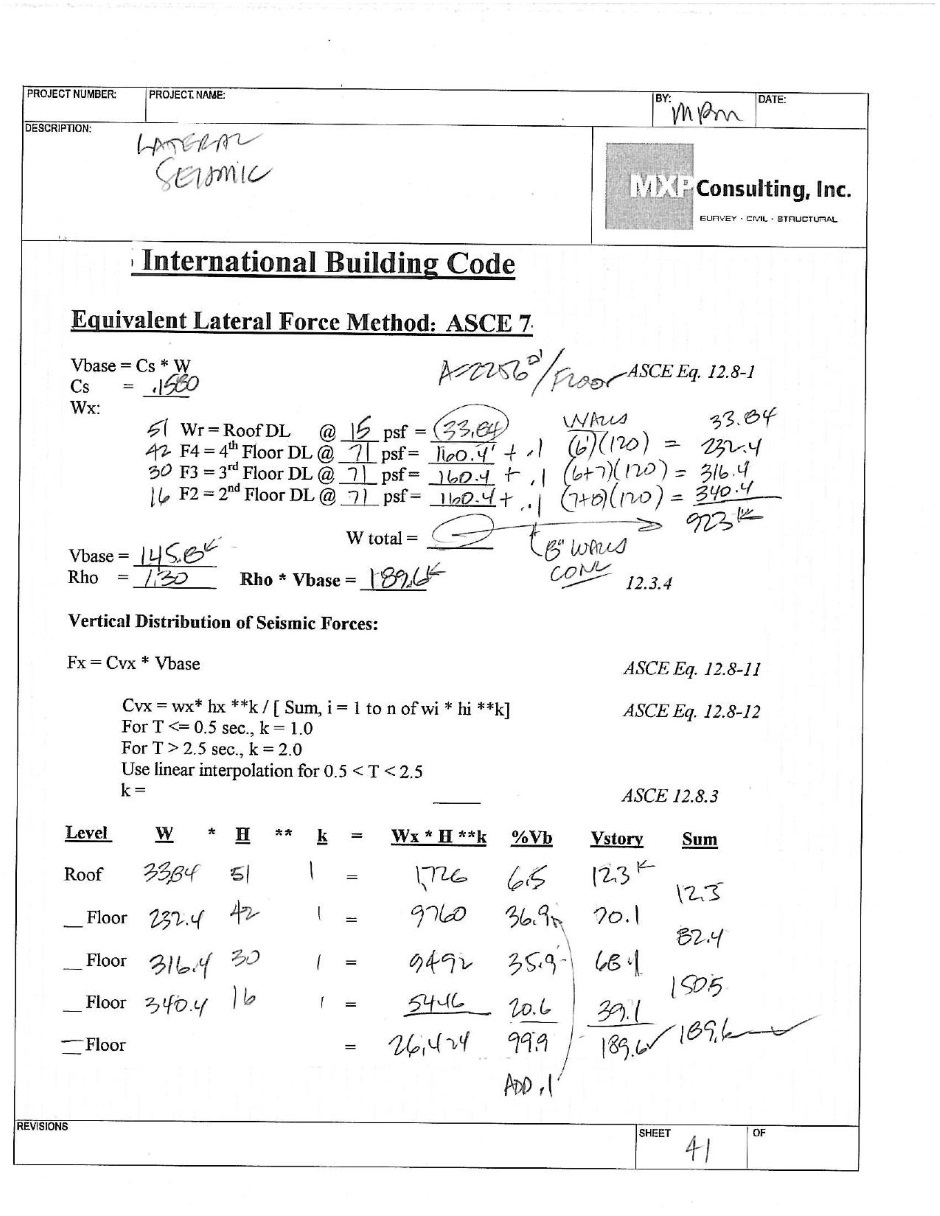

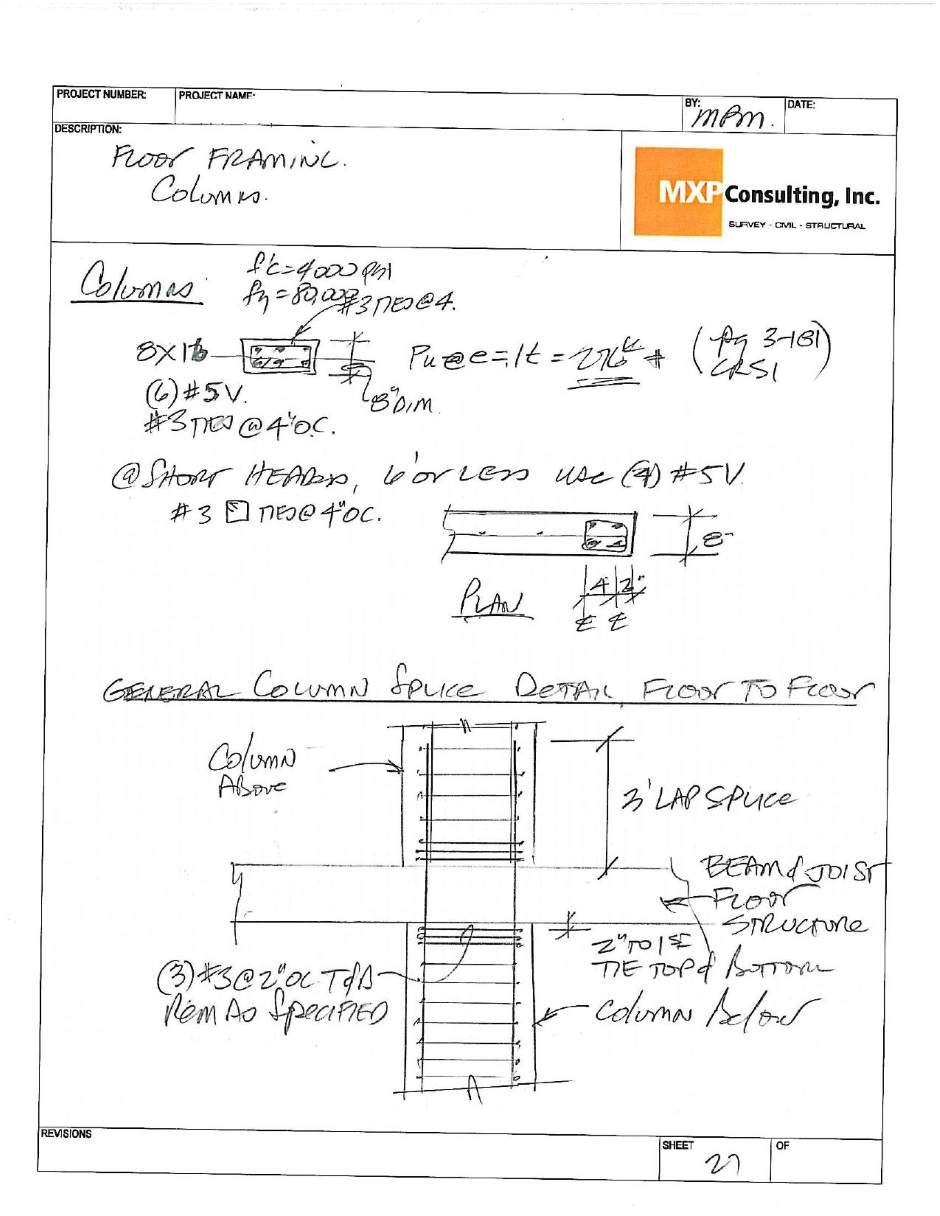

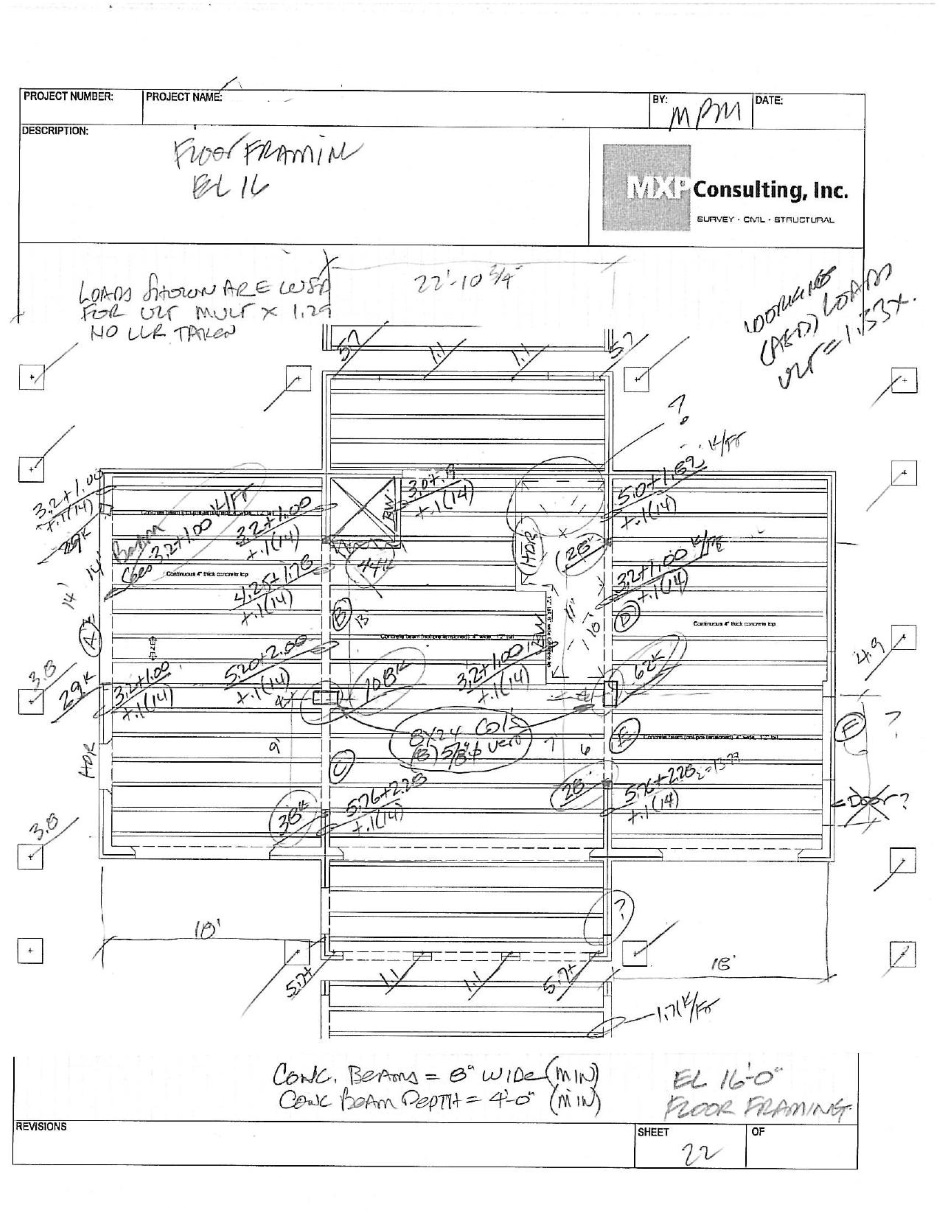

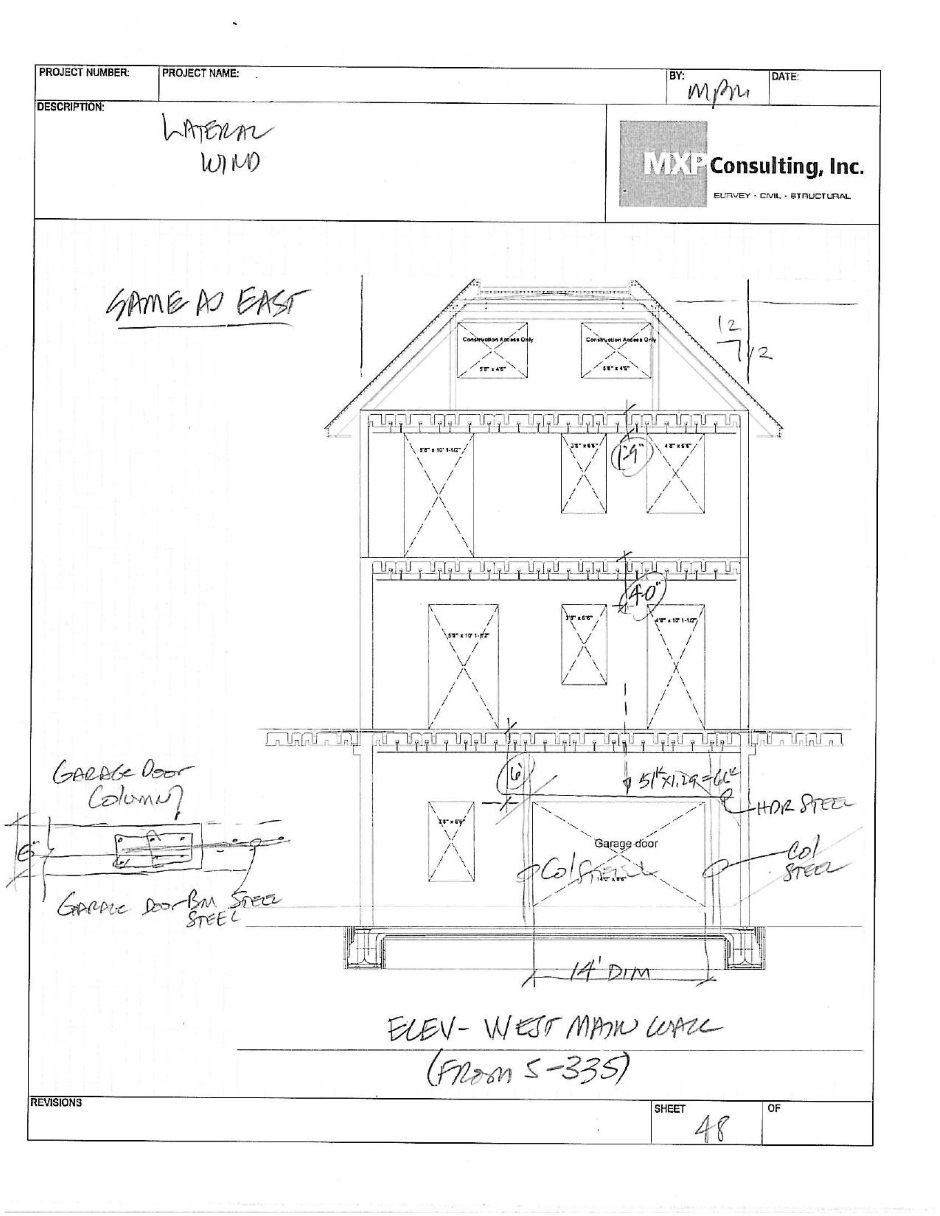

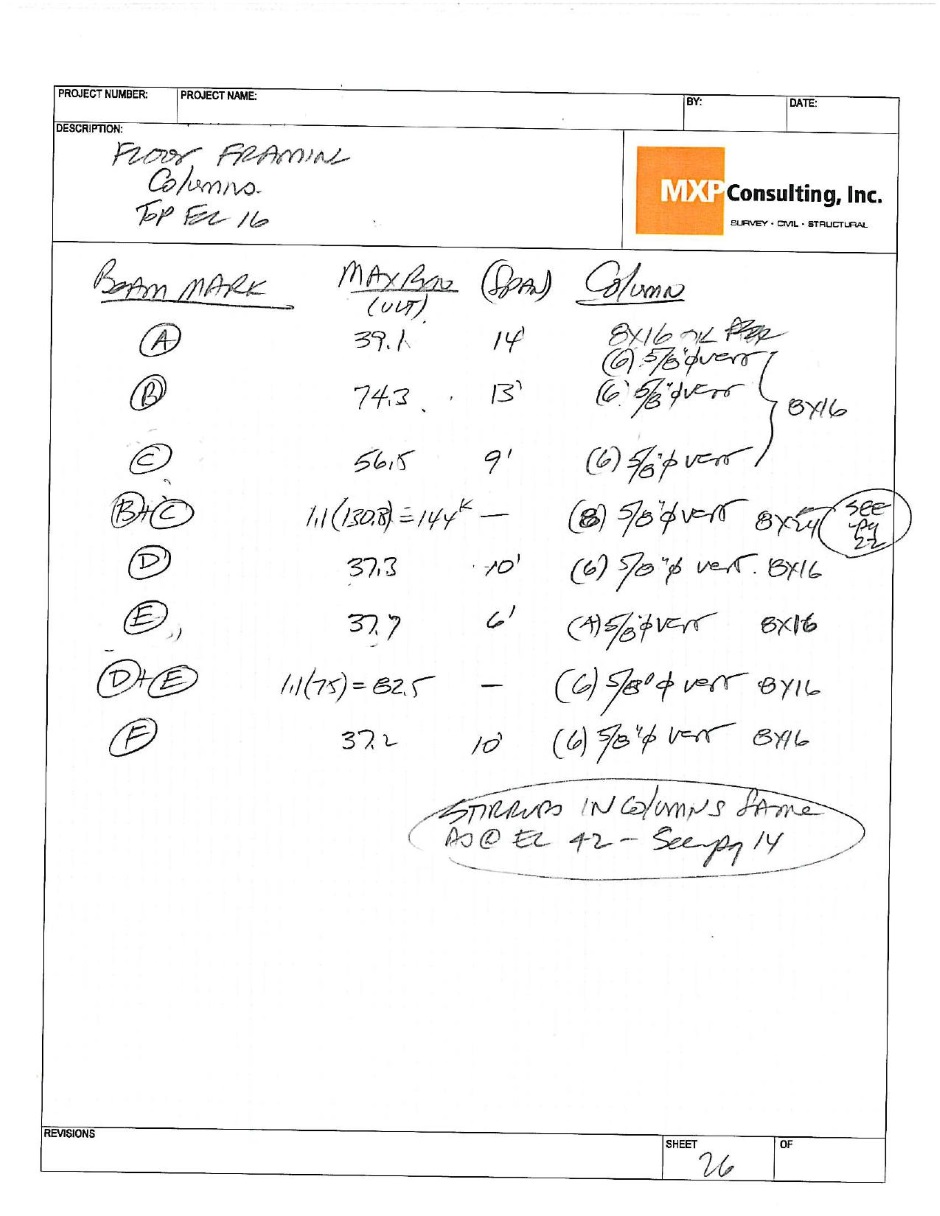

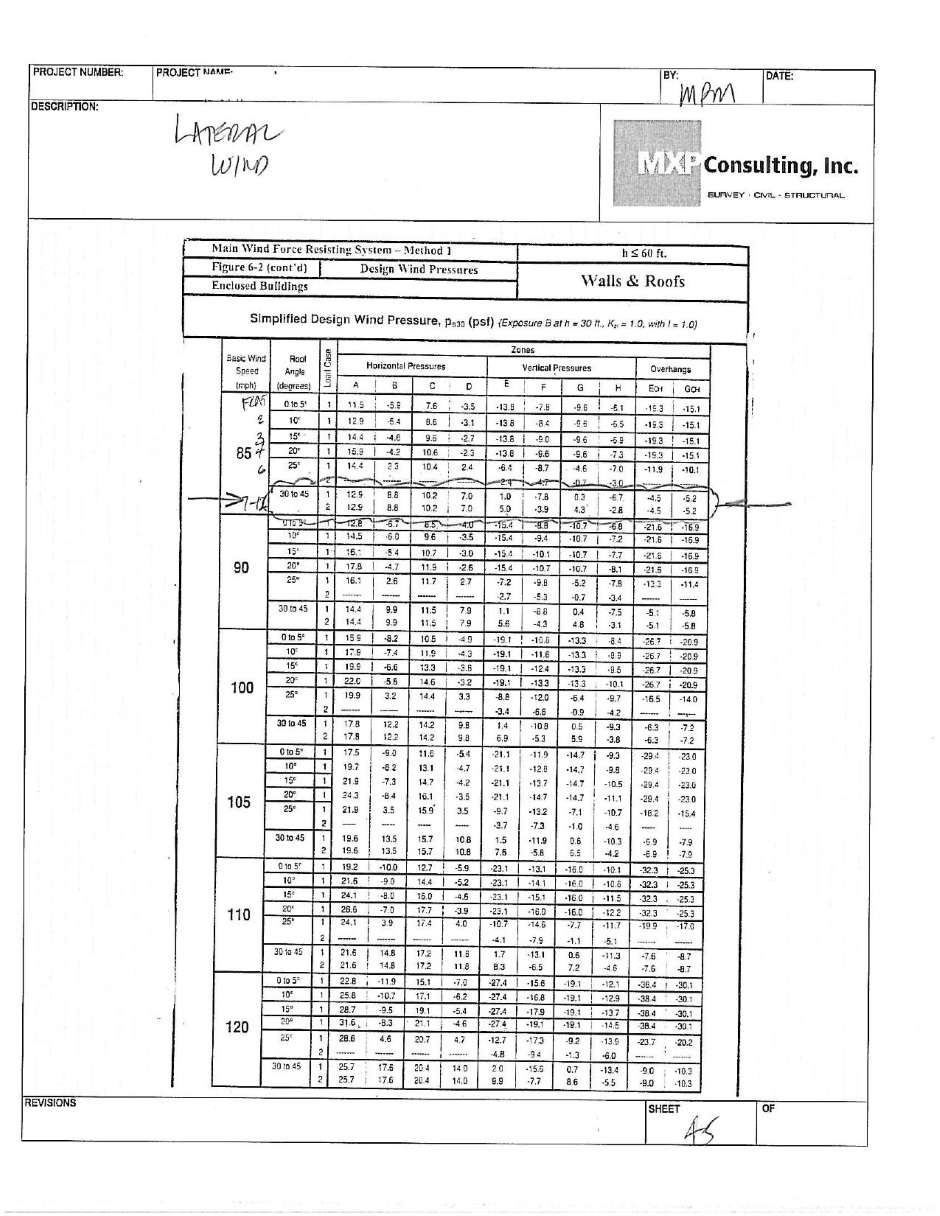

Star Here are the hand written calculations done by the structural engineer.

The drawing were done to comply with all the requirements determined in the calculations that the structural engineer did.  His calculations are as follows...

Structural Calculations

Structural calculations

Structural calculations

Structural calculations

Structural calculations

Structural calculations

Structural calculations

Structural calculations

Structural calculations

Structural calculations

Structural calculations

Structural calculations

Structural calculations

Structural calculations

Structural calculations

Structural calculations

Structural calculations

Structural calculations

Structural calculations

Structural calculations

Structural calculations

Structural calculations

Structural calculations

Structural calculations

Structural calculations

Structural calculations

Structural calculations

Structural calculations

Structural calculations

Structural calculations

Structural calculations

Structural calculations

Structural calculations

Structural calculations

Structural calculations

Structural calculations

Structural calculations

Structural calculations

Structural calculations

Structural calculations

Structural calculations

Structural calculations

Structural calculations

Structural calculations

Structural calculations

Structural calculations

Structural calculations

Structural calculations

Structural calculations

Structural calculations

Structural calculations

Structural calculations

Structural calculations

Structural calculations

Structural calculations

Structural calculations

Structural calculations

Structural calculations

Structural calculations

Structural calculations

Structural calculations

Structural calculations

Structural calculations

Structural calculations

Structural calculations

Structural calculations

Structural calculations

Structural calculations

Structural calculations



*
