Carnation

Heating - Wood Fire

RSF Delta 2

Wood Fire RSF Delta 2

http://www.icc-rsf.com/en/delta-2-fireplace

http://www.icc-rsf.com/c/iccrsf/file_db/pdfs.pdf_en/RSF-IID2_2007-01.pdf

Something like $4K but depends on the local dealer, eg Sutter Home, 14475 Woodinville-Redmond Road, Woodinville, WA 98072

Big bay window

Holds 24” logs

Tested by a certified EPA facility to burn as clean as an EPA Phase II wood heater at 3.8 grams per hour.  May not be good enough to meet WA state rules - need to check!!!!!!!!

The maximum chimney height is 40 feet which means it will not work for the mudroom !!!!!!!!!!!  It is ok for the living room fire.  Note that a joggle is required to get the chimney more than 10 feet from the edge of the cupola.

8" chimney  http://www.icc-rsf.com/en/iccrsf/a-bit-of-history

http://www.icc-rsf.com/en/heating-performance-options

http://www.icc-rsf.com/en/heat-distribution-options

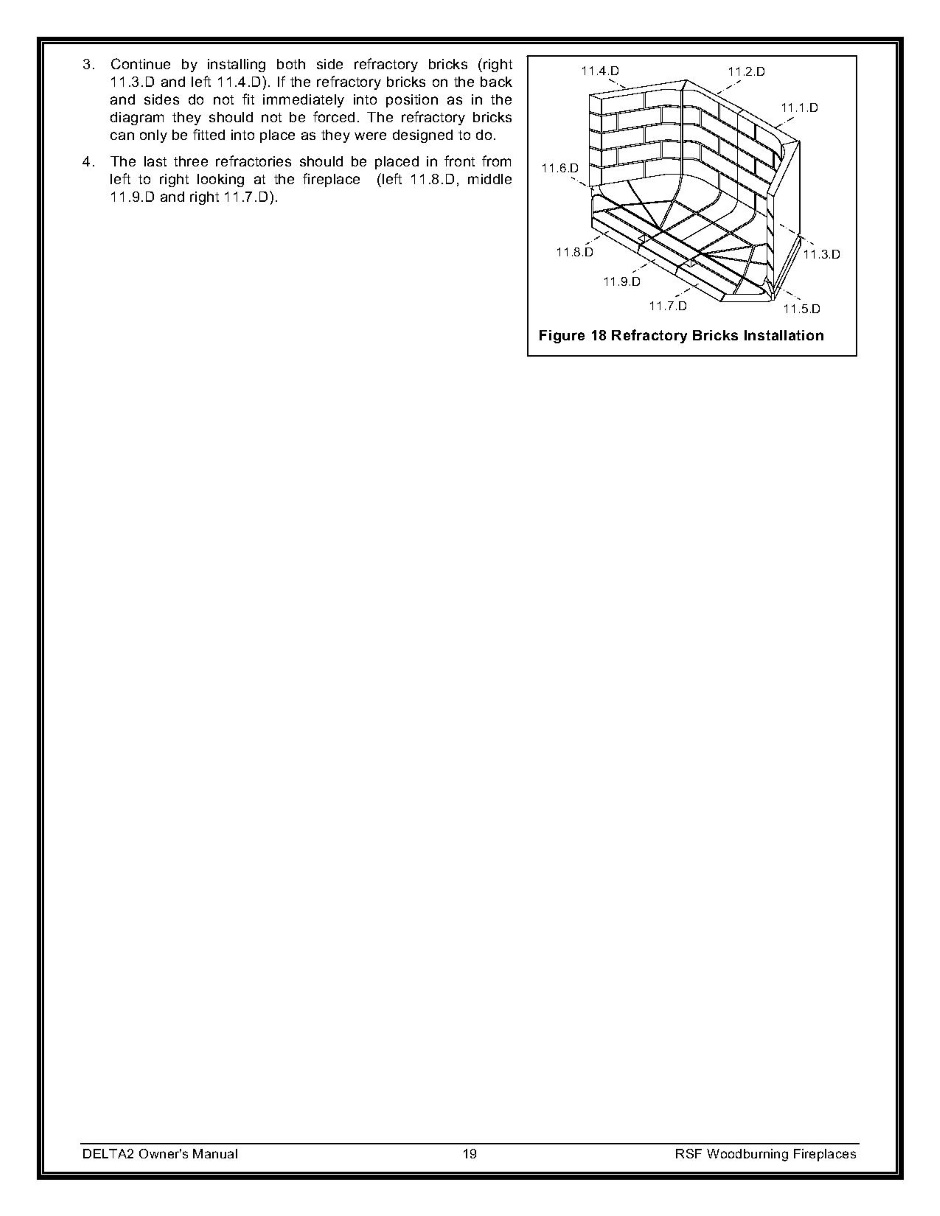

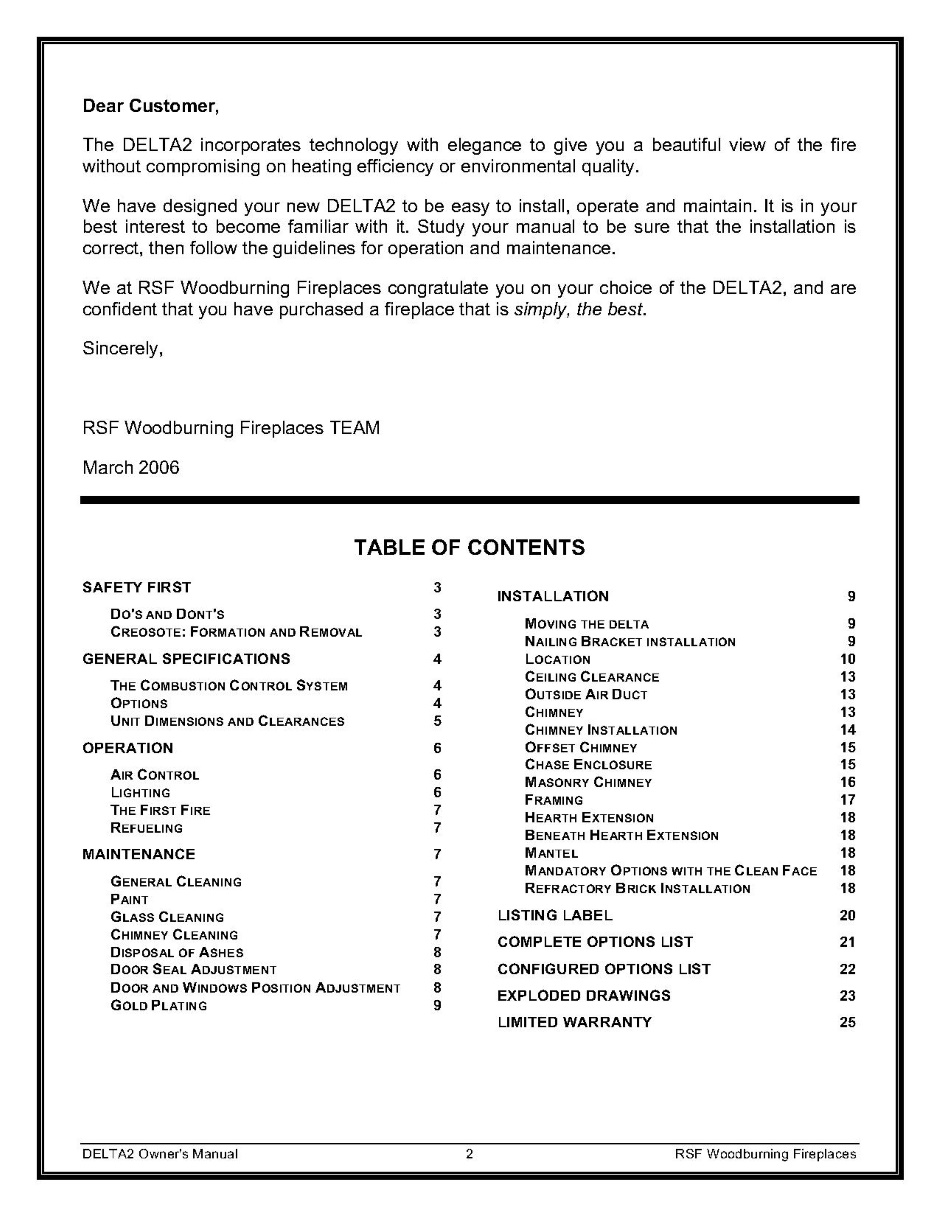

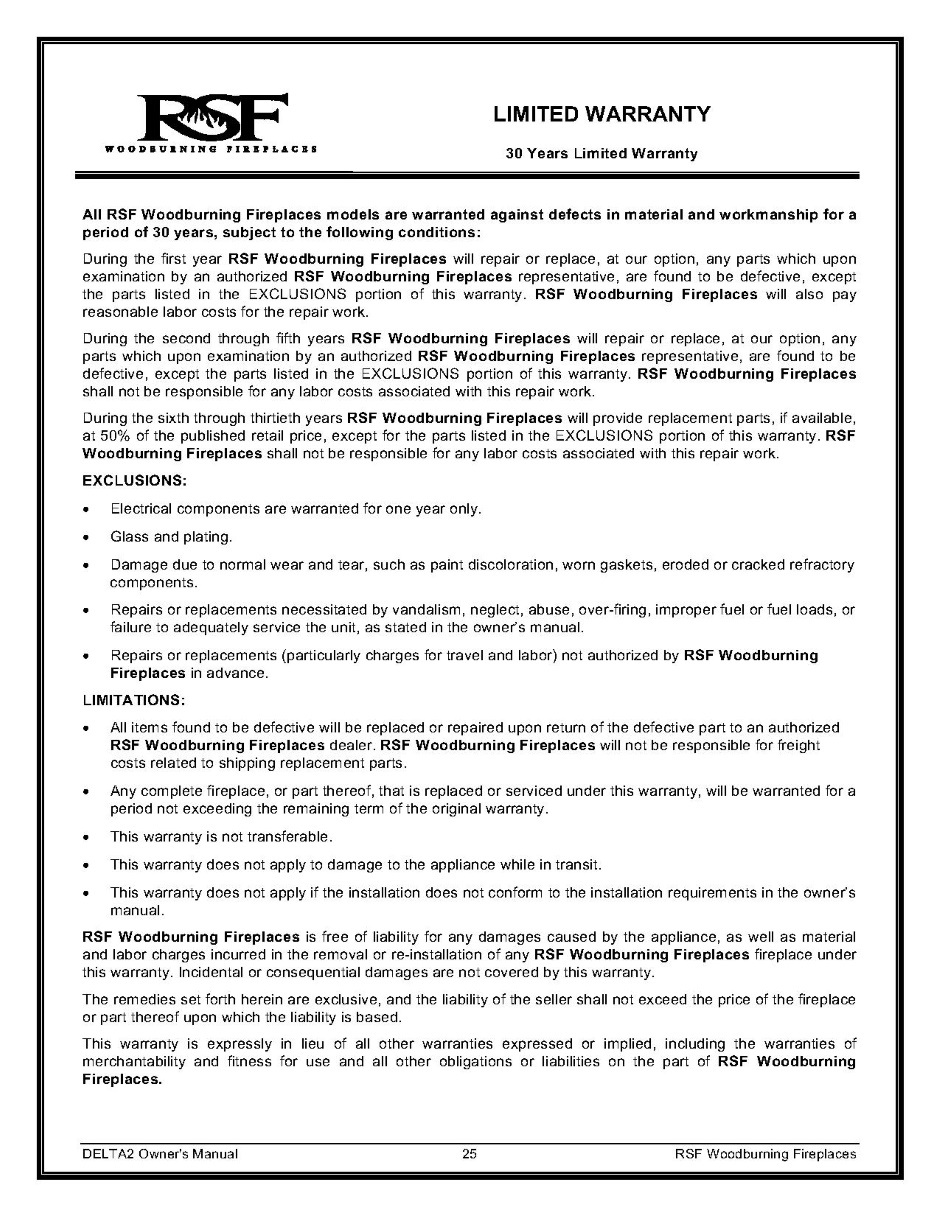

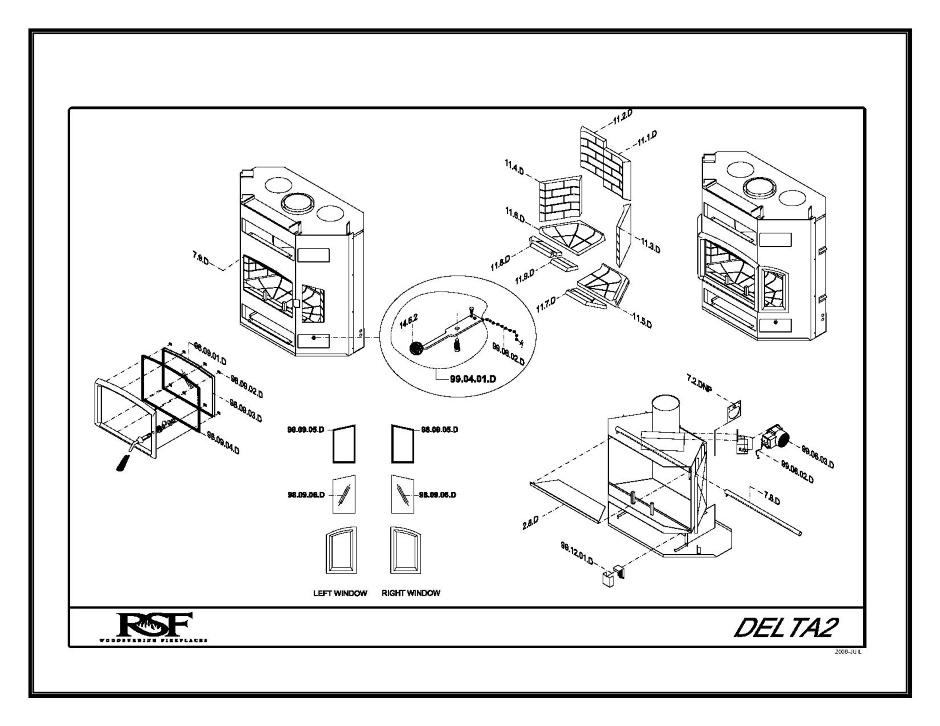

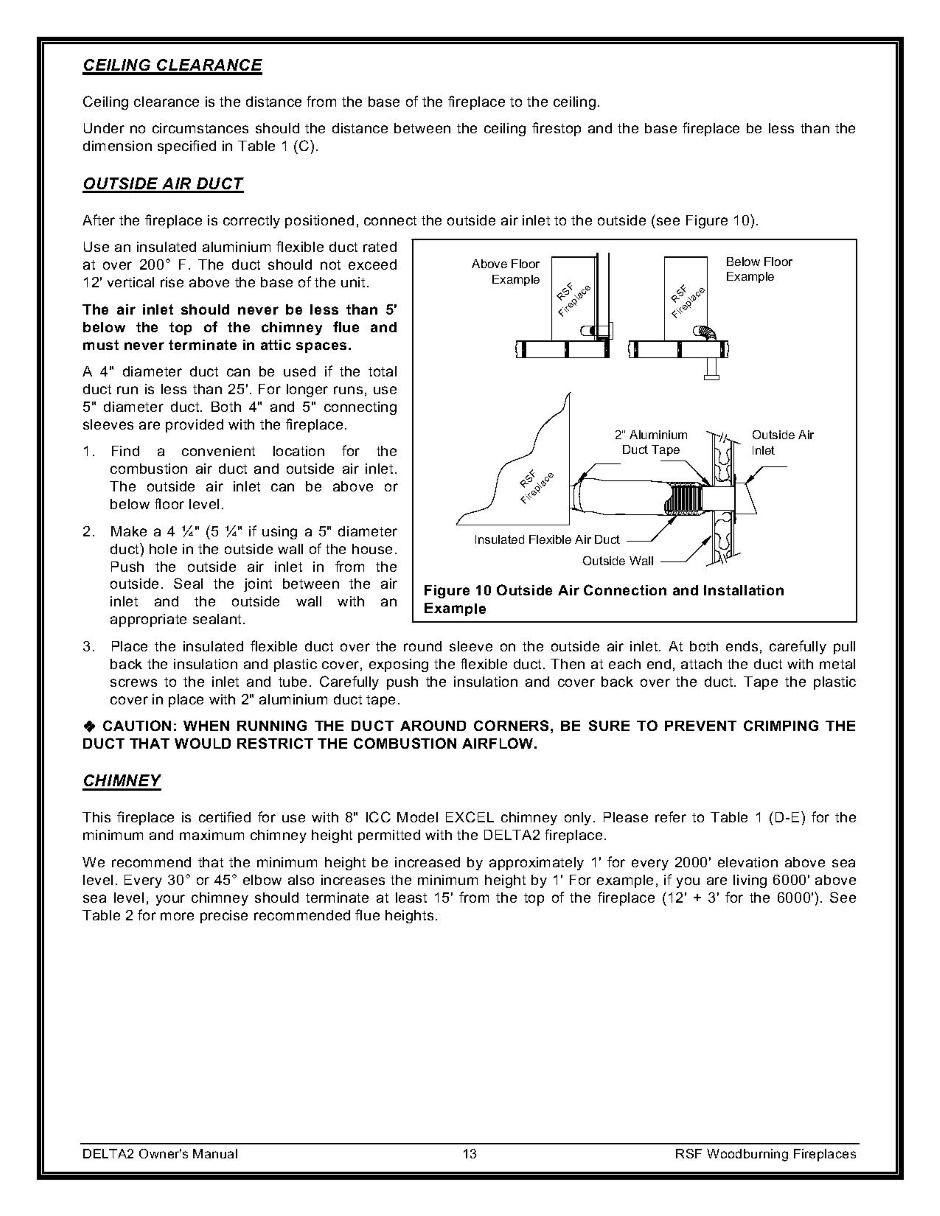

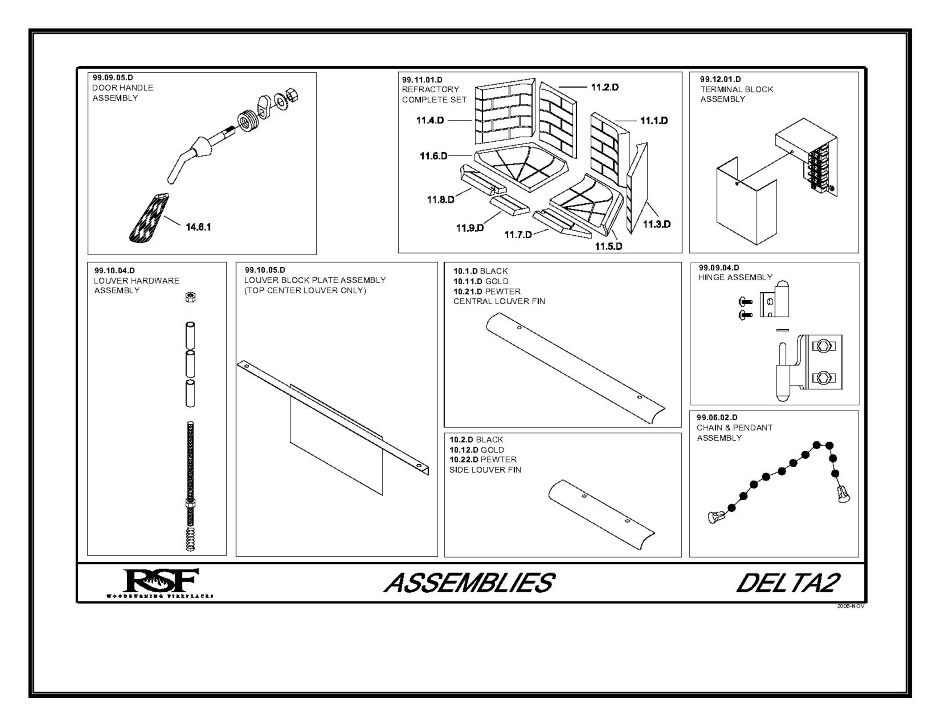

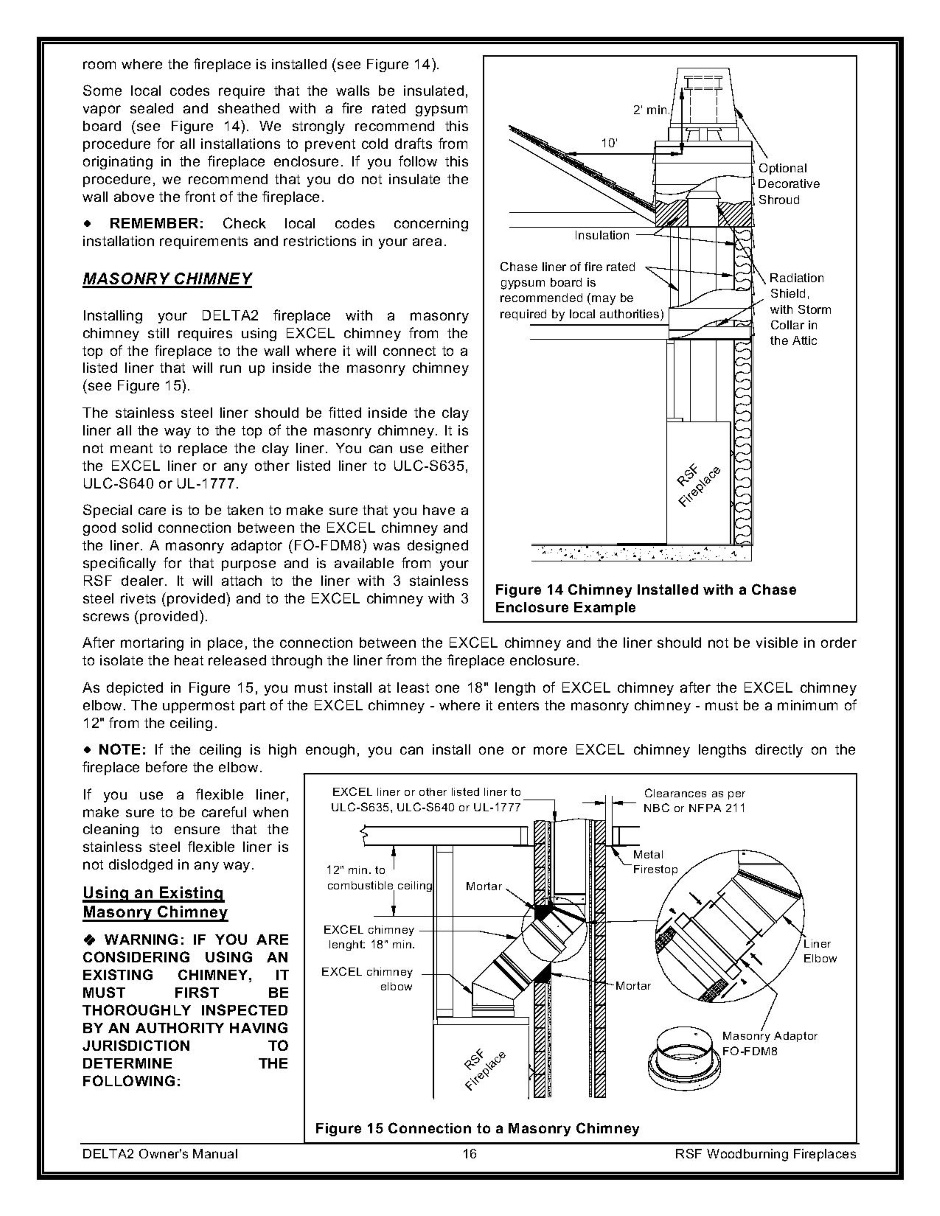

Delta2Fire

Delta2Fire

Delta2Fire

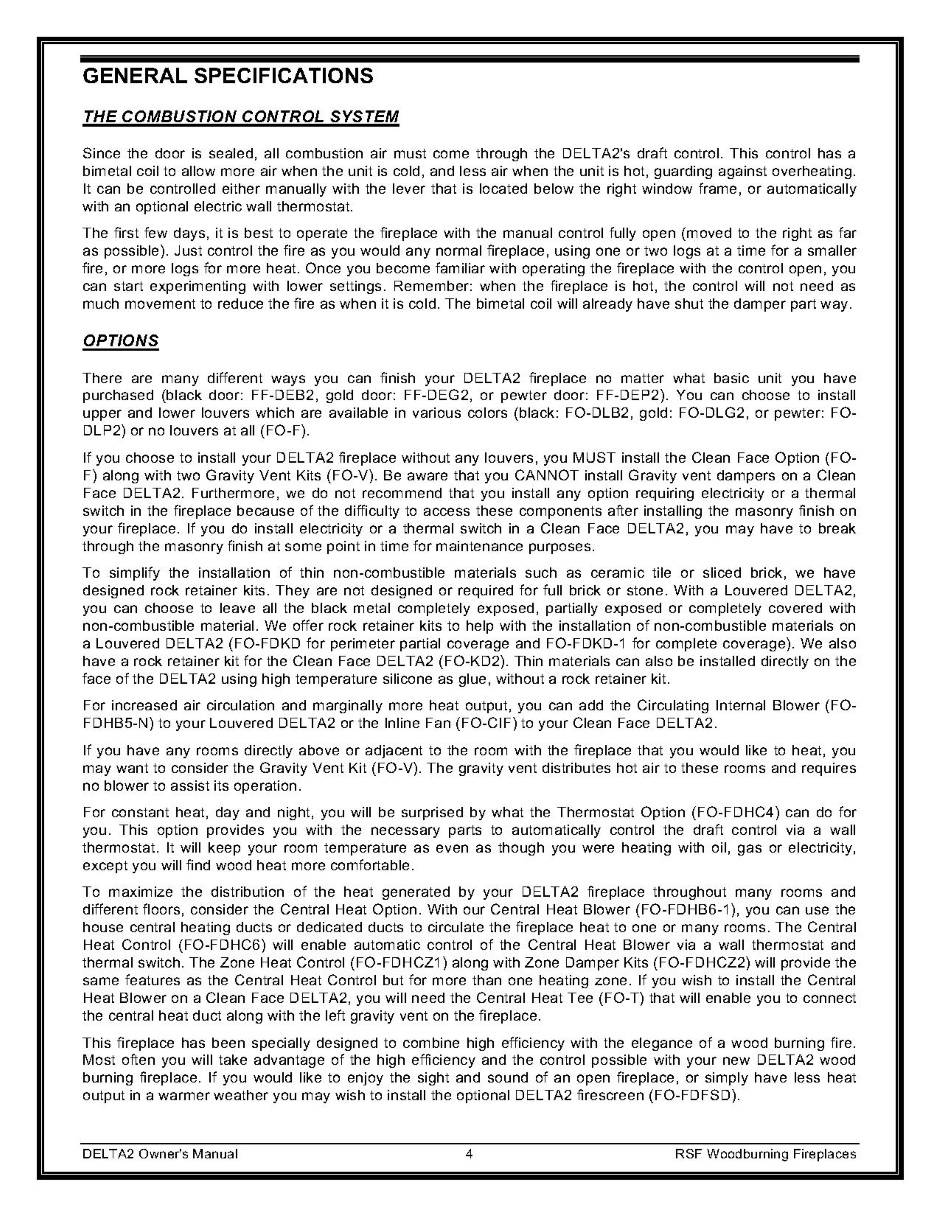

Delta2Fire

Delta2Fire

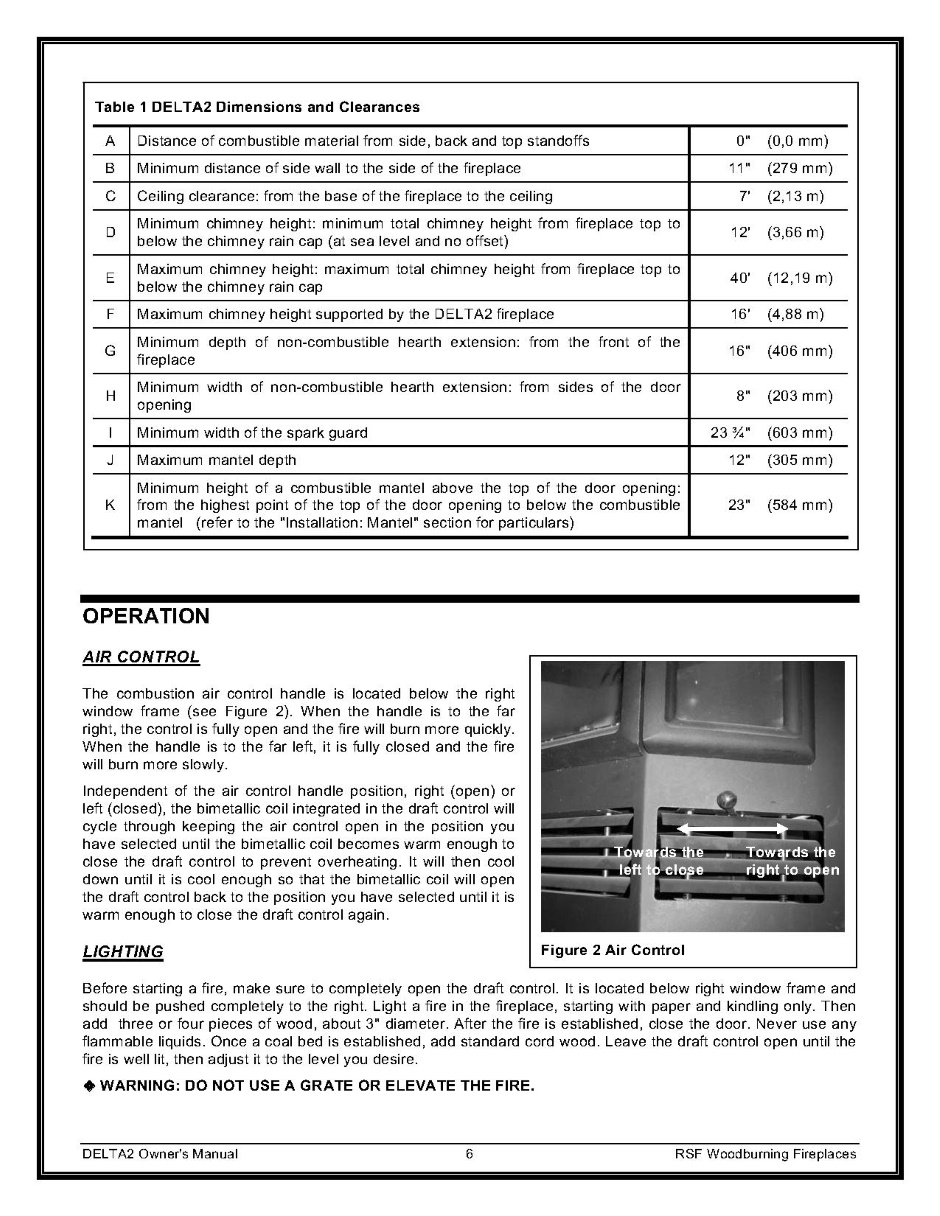

Delta2Fire

Delta2Fire

Delta2Fire

Delta2Fire

Delta2Fire

Delta2Fire

Delta2Fire

Delta2Fire

Delta2Fire

Delta2Fire

Delta2Fire

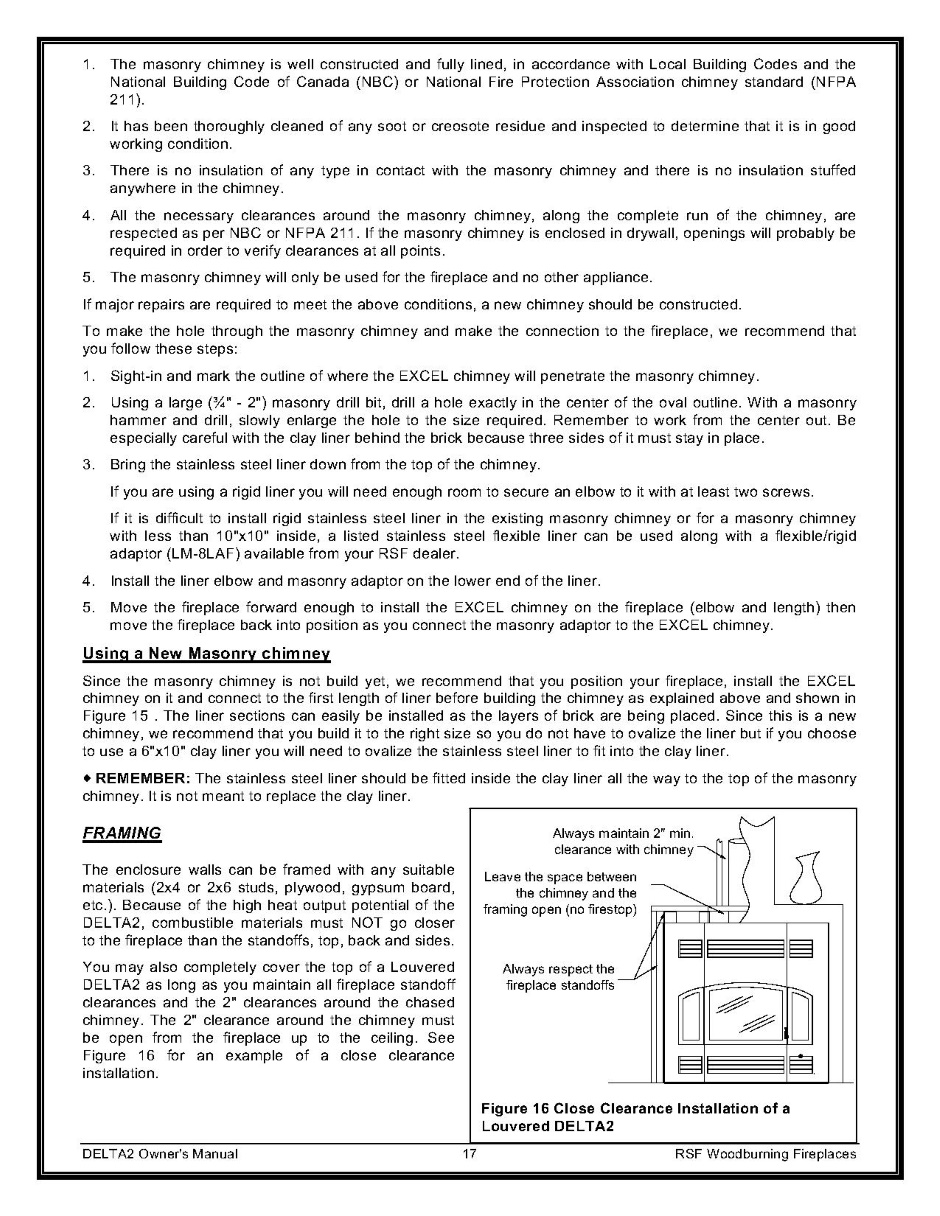

Delta2Fire

Delta2Fire

Delta2Fire

Delta2Fire

Delta2Fire

Delta2Fire

Delta2Fire

Delta2Fire

Delta2Fire

Stove for mudroom

The issue with the mudroom is that it needs a 50 foot chimney.  Most fires/stoves are speced at 40' max.



Drolet HT3000

On pedestal - High-Efficiency EPA Certified Wood Stove DB07300 (The HT3000 replaces the legendary HT2000)

It needs to be fitted with the outside burn air option.

Wood Stove Drolet Ht3000

https://www.amazon.com/gp/product/B07SX4T4Y9/ref=ox_sc_saved_title_2?smid=A28O29YFUDL5G4&psc=1   $1,299

https://myfireplaceproducts.com/us_en/drolet-ht3000-wood-stove-db07300        $1,349
https://www.drolet.ca/en/products/stoves/ht3000-wood-stove/
https://sbiweb.blob.core.windows.net/media/5209/46109a_2019-06-14.pdf

22" logs

1.32 g/h average particulate emissions rate (Meets EPA 2020 standard)

https://www.drolet.ca/en/products/stoves/ht3000-wood-stove/#fiche-technique

Eligible for a $300 biomass stove tax credit ( www.hpba.org/Advocacy/Biomass-Stove-Tax-Credit )

Drolet ht2000 vs ht3000
https://www.hearth.com/talk/threads/drolet-ht3000-vs-ht2000.176472/

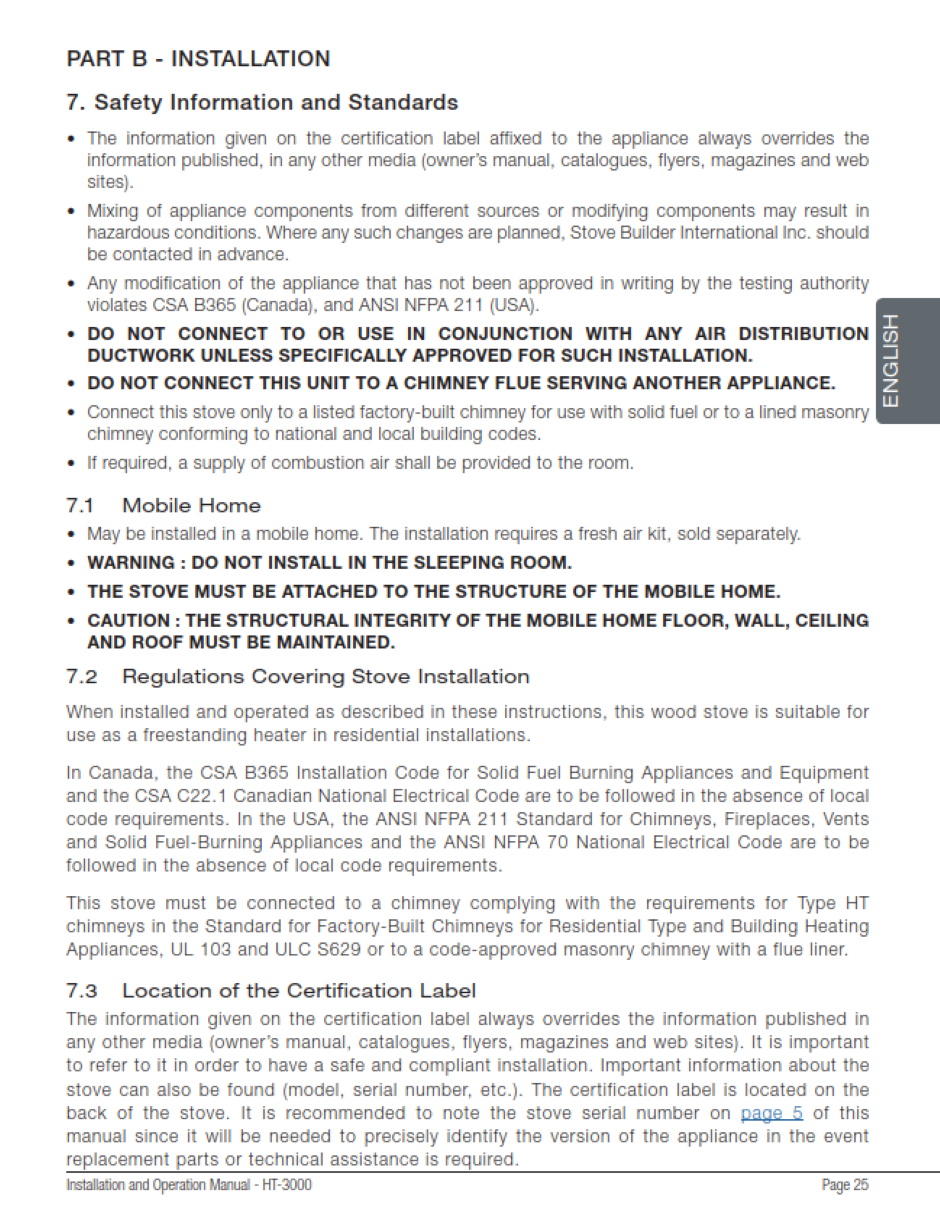

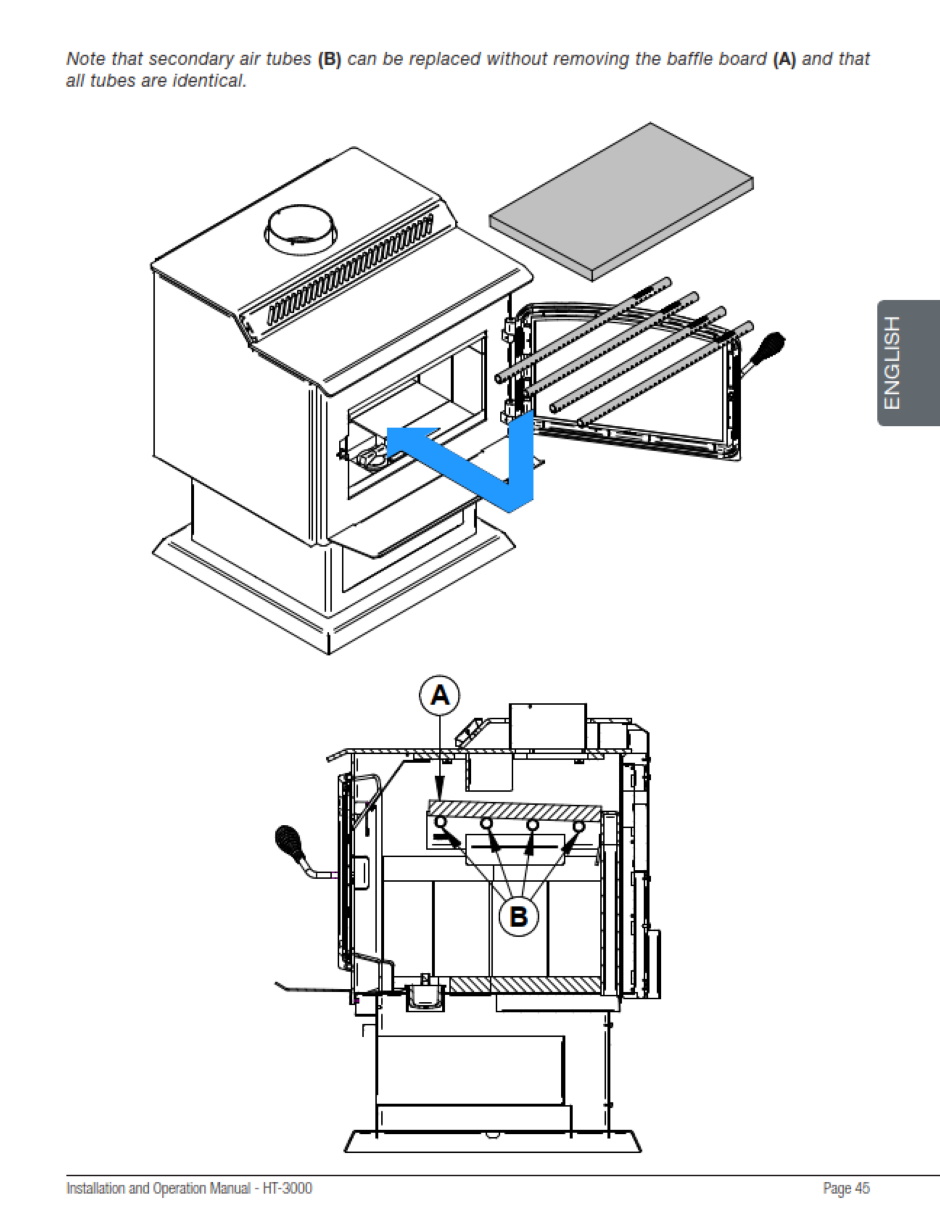

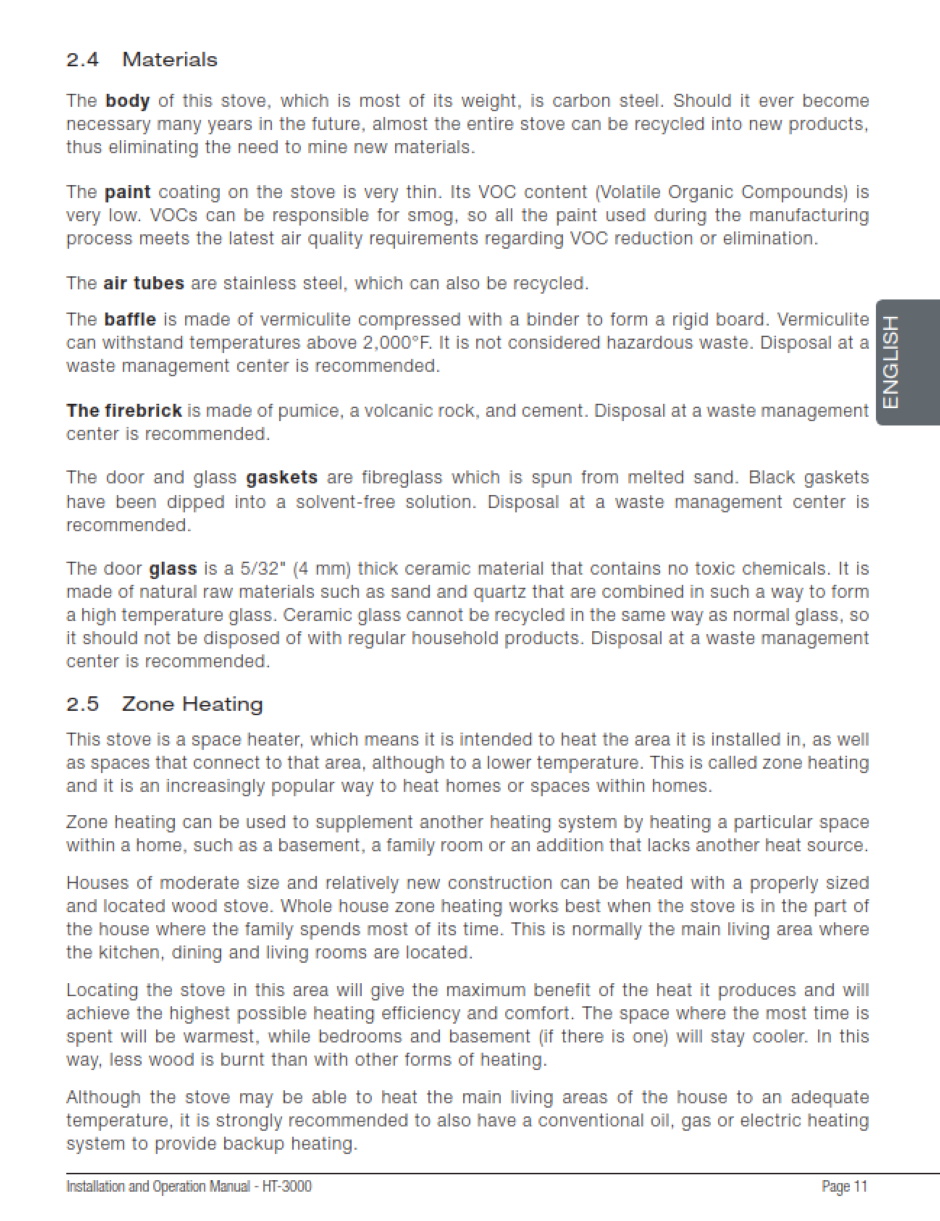

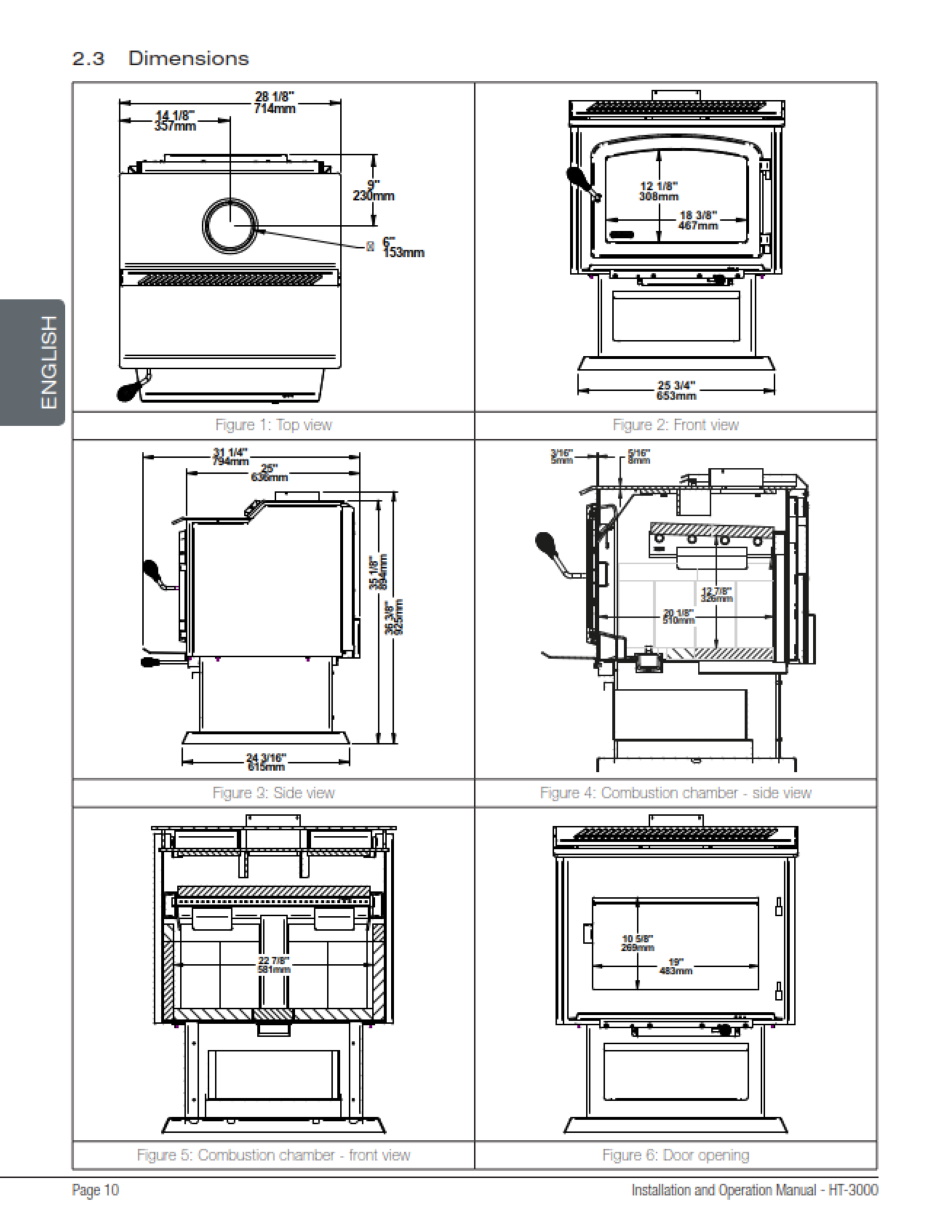

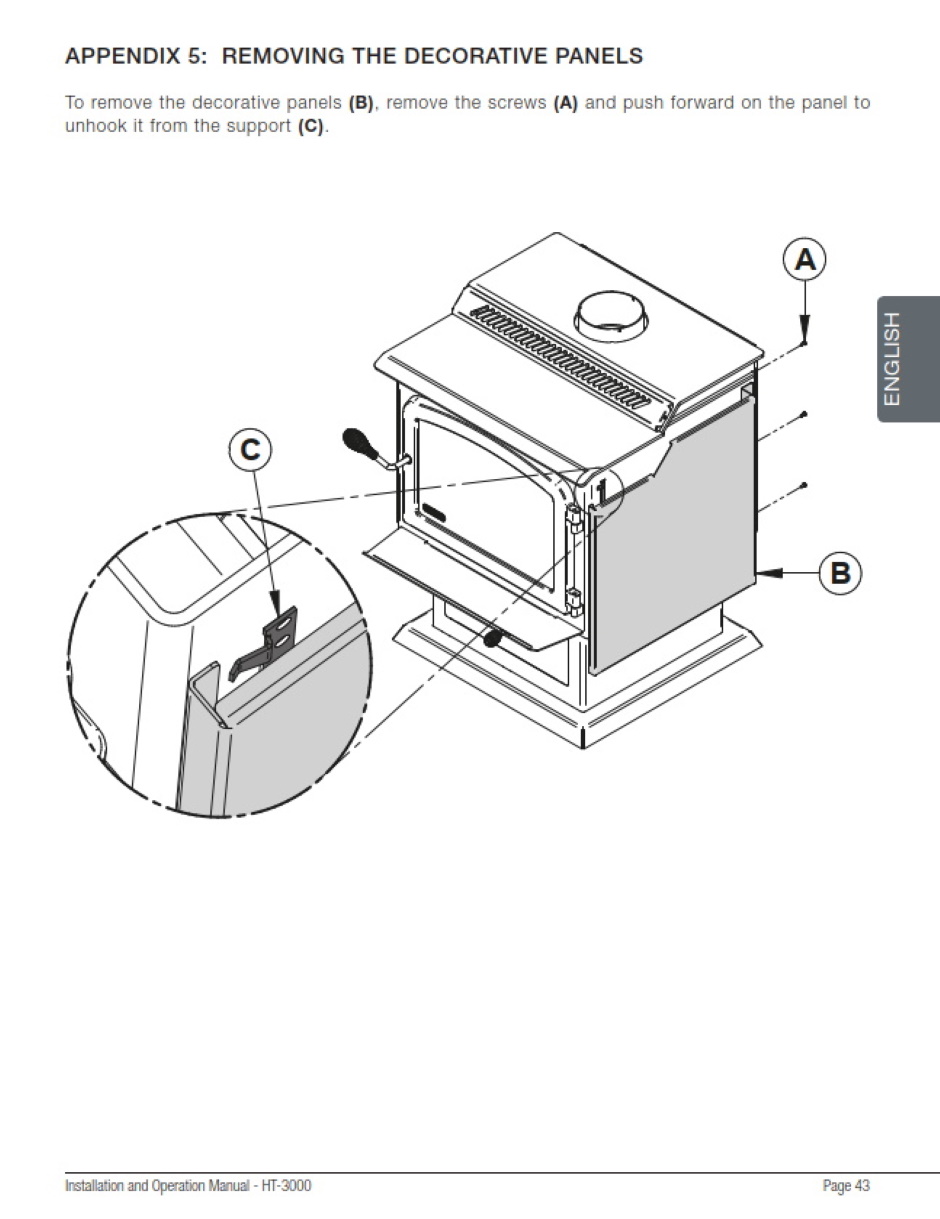

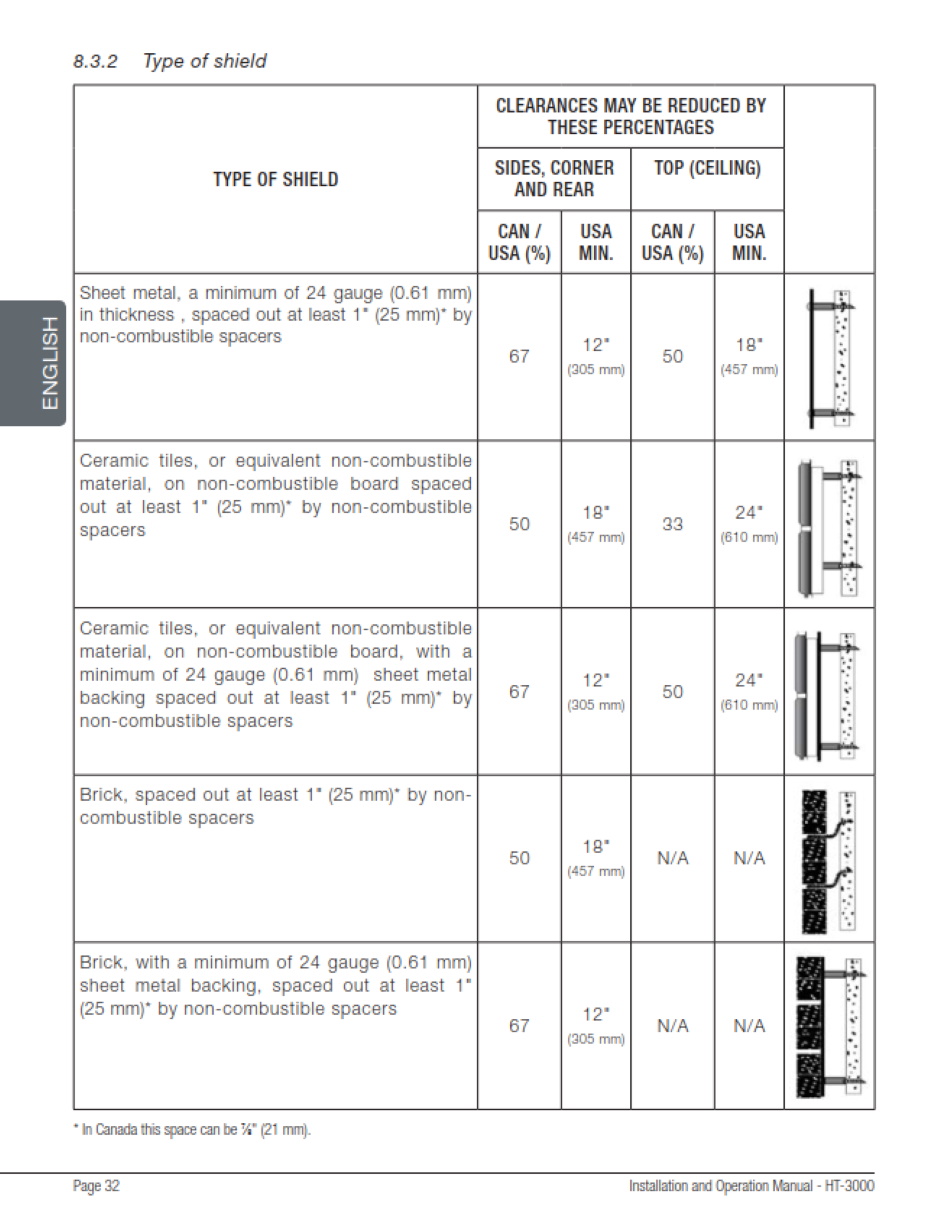

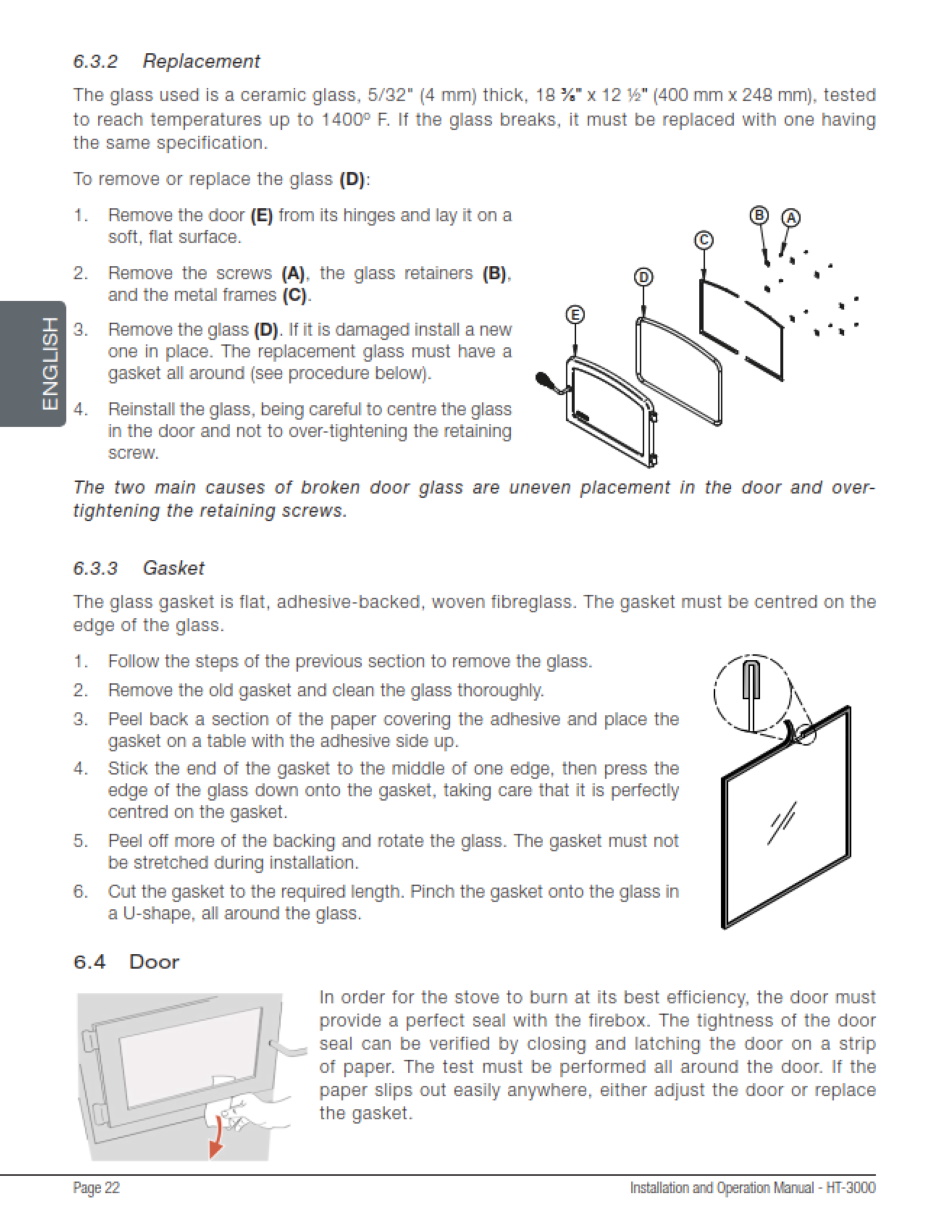

Drolet Ht3000 Manual

Drolet Ht3000 Manual

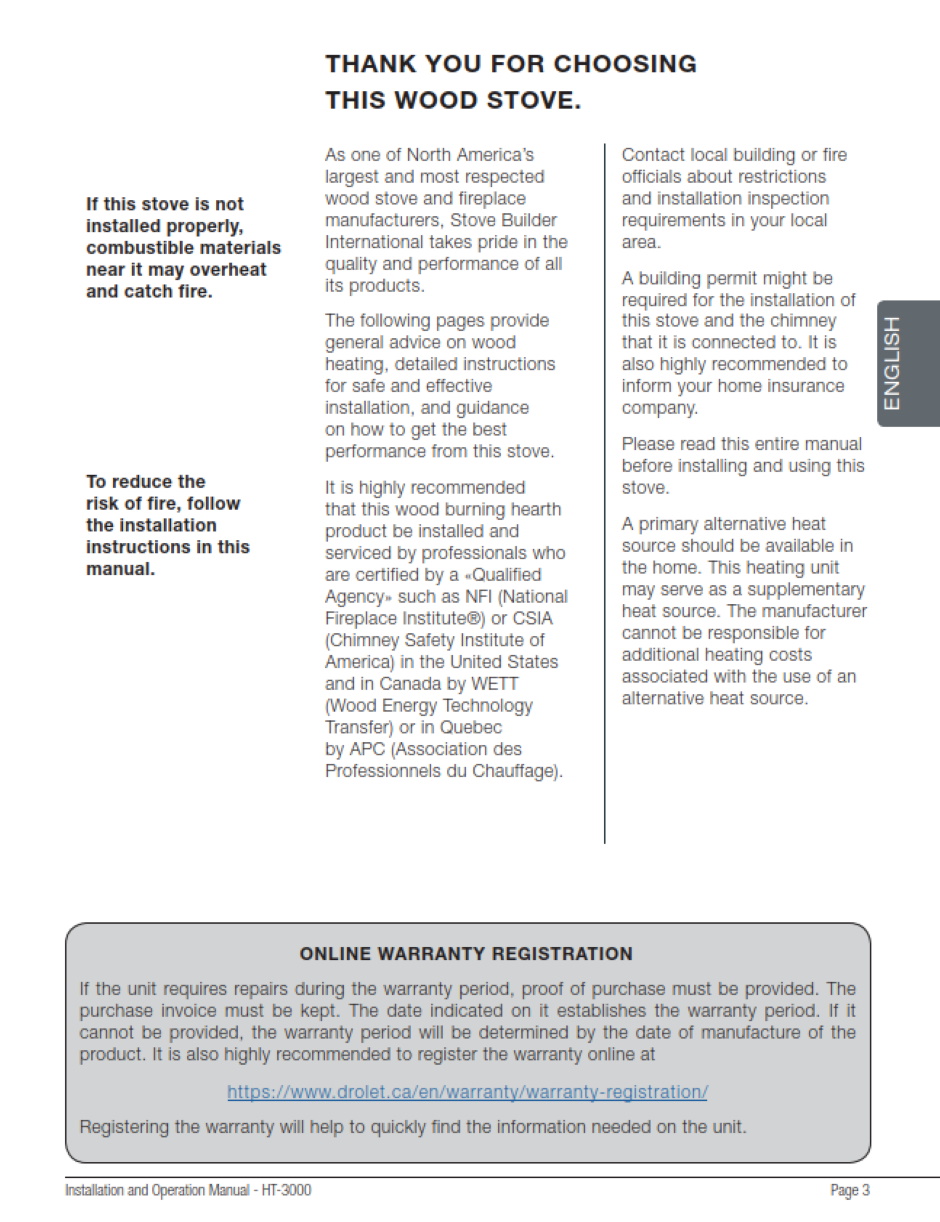

Drolet Ht3000 Manual

Drolet Ht3000 Manual

Drolet Ht3000 Manual

Drolet Ht3000 Manual

Drolet Ht3000 Manual

Drolet Ht3000 Manual

Drolet Ht3000 Manual

Drolet Ht3000 Manual

Drolet Ht3000 Manual

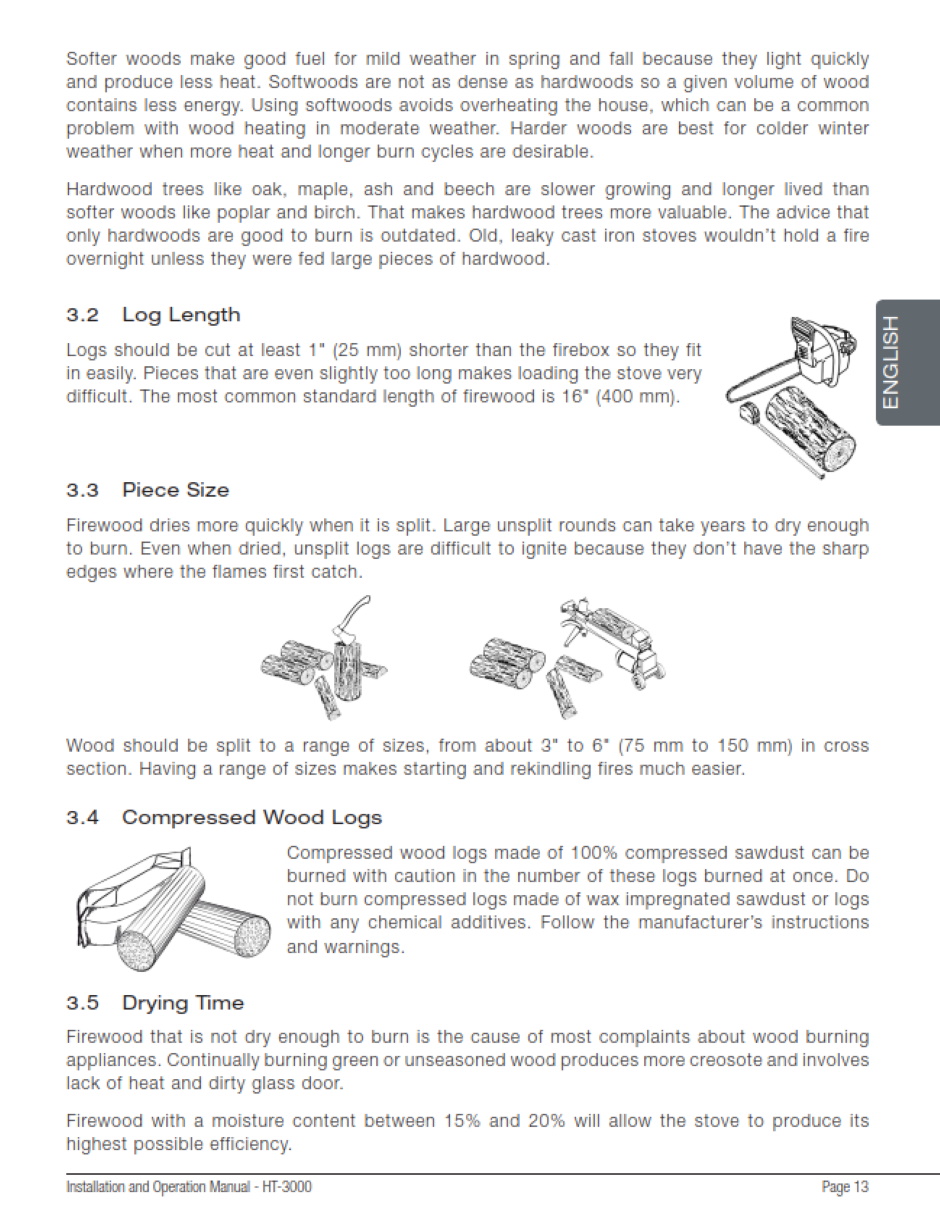

Drolet Ht3000 Manual

Drolet Ht3000 Manual

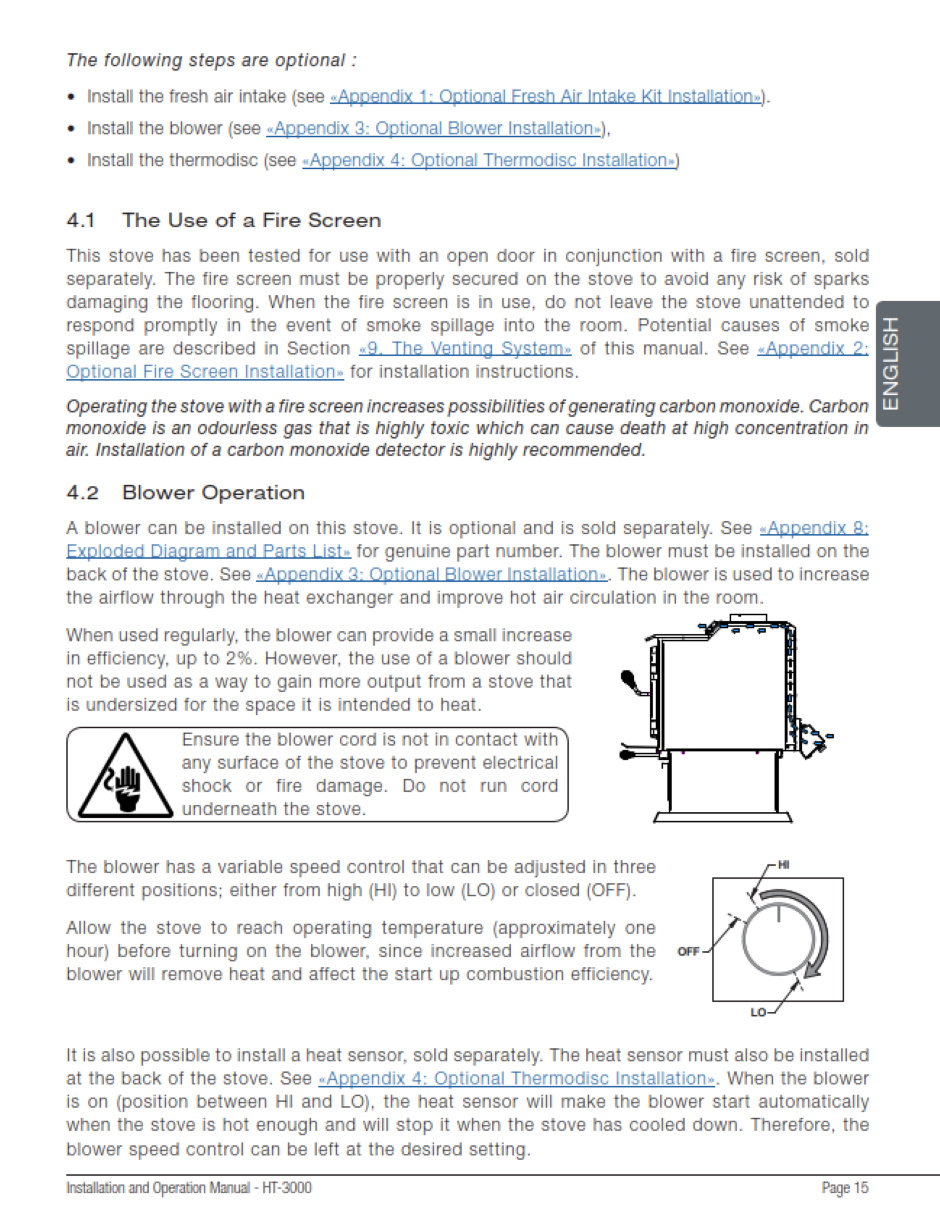

Drolet Ht3000 Manual 015

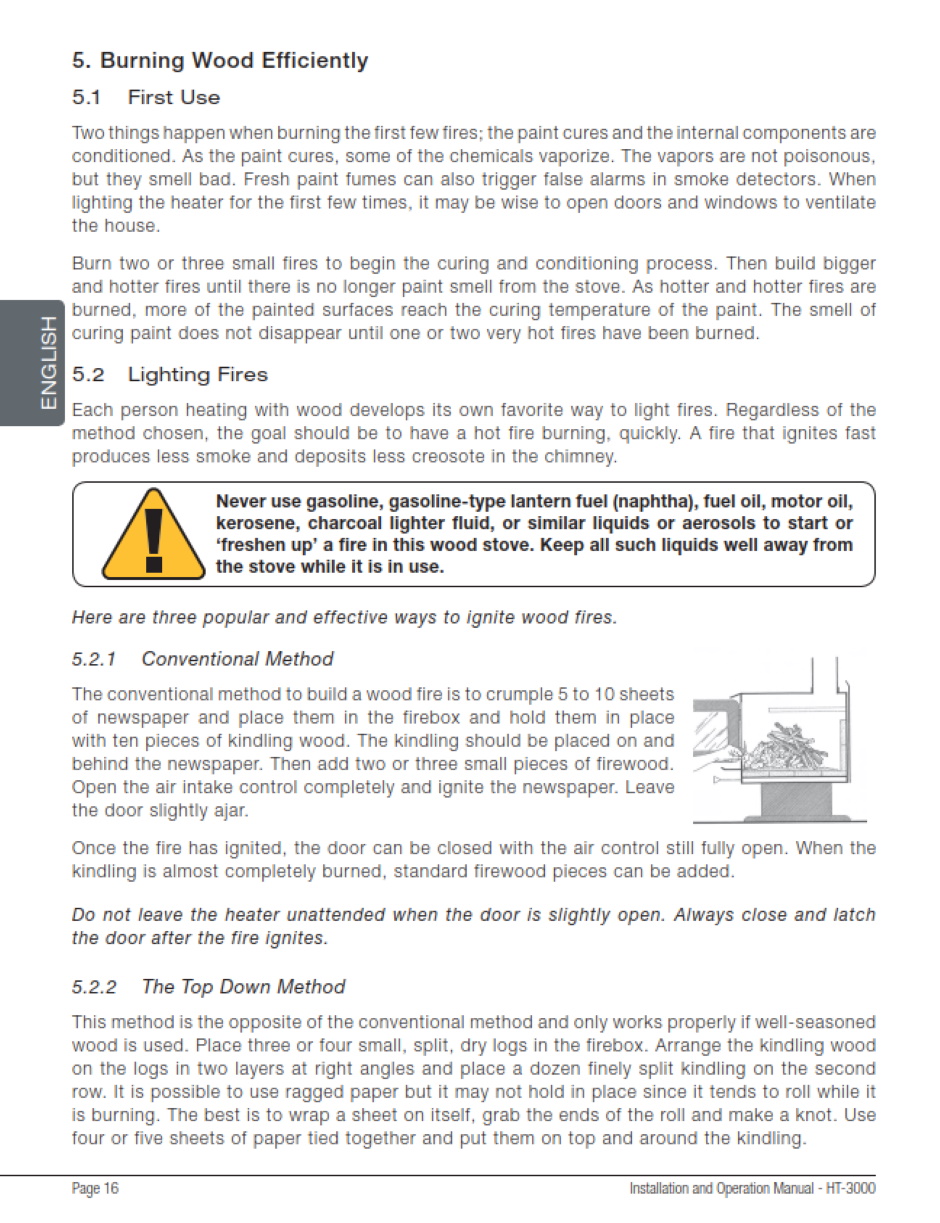

Drolet Ht3000 Manual 016

Drolet Ht3000 Manual 017

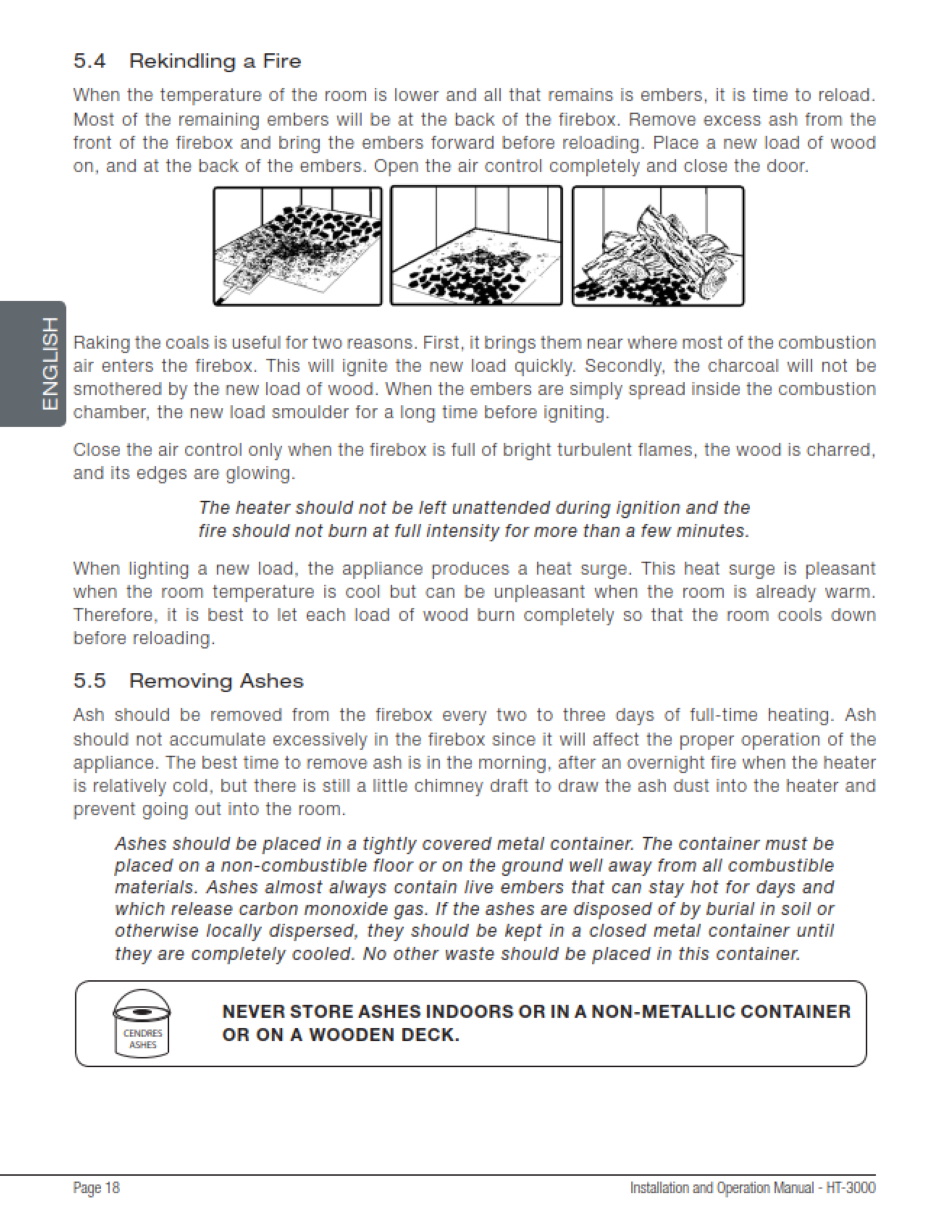

Drolet Ht3000 Manual 018

Drolet Ht3000 Manual 019

Drolet Ht3000 Manual 020

Drolet Ht3000 Manual 021

Drolet Ht3000 Manual 022

Drolet Ht3000 Manual 023

Drolet Ht3000 Manual 024

Drolet Ht3000 Manual 025

Drolet Ht3000 Manual 026

Drolet Ht3000 Manual 027

Drolet Ht3000 Manual 028

Drolet Ht3000 Manual 029

Drolet Ht3000 Manual 030

Drolet Ht3000 Manual 031

Drolet Ht3000 Manual 032

Drolet Ht3000 Manual 033

Drolet Ht3000 Manual 034

Drolet Ht3000 Manual 035

Drolet Ht3000 Manual 036

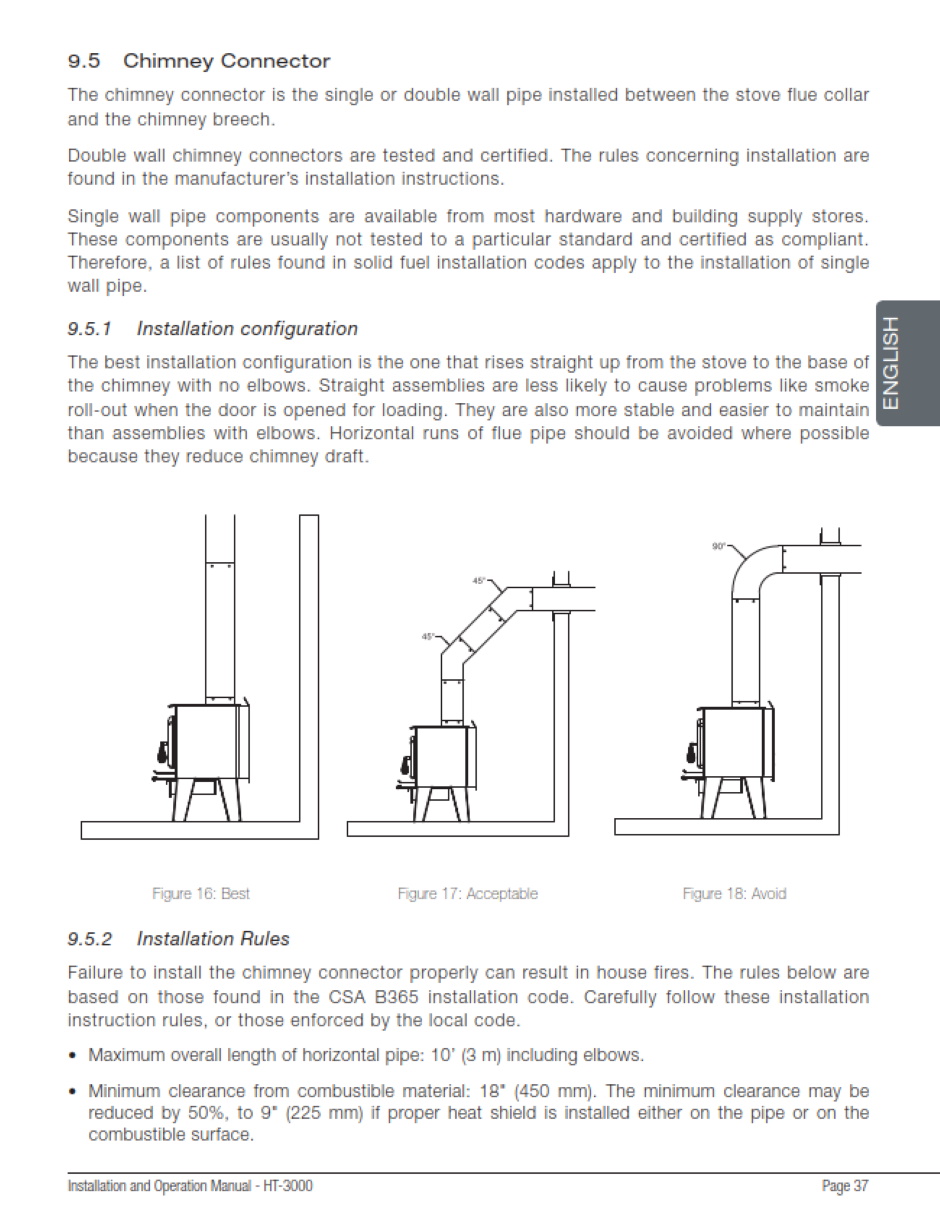

Drolet Ht3000 Manual 037

Drolet Ht3000 Manual 038

Drolet Ht3000 Manual 039

Drolet Ht3000 Manual 040

Drolet Ht3000 Manual 041

Drolet Ht3000 Manual 042

Drolet Ht3000 Manual 043

Drolet Ht3000 Manual 044

Drolet Ht3000 Manual 045

Drolet Ht3000 Manual 046

Drolet Ht3000 Manual 047

Drolet Ht3000 Manual 048

Drolet Ht3000 Manual 049

Drolet Ht3000 Manual 050

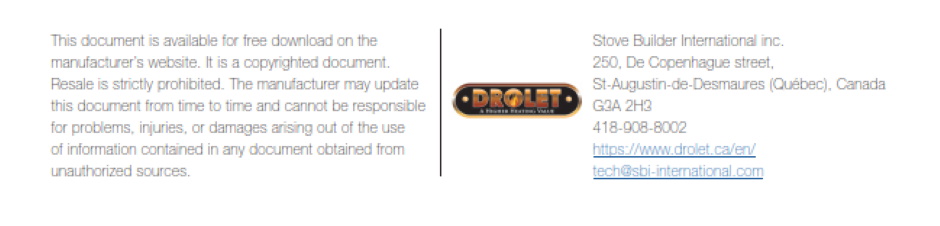

Drolet Ht3000 Manual 051



Rejected other fires...

US Stove 3000 Extra Large Wood Stove

Us Stove 3000 Wood Stove   Us Stove 3000 Rear   Us Stove 3000 Open

Height 29", Width 27", Depth 35.5".

They said:  "40 feet is the max chimney height spec, but if you have a draft that goes up .04 to .06, you can have it checked by any certified chimney sweep, who can say if it will work.".

It says it is WA state approved.

21" log length

It is good value but not really as big as I would like.  The small diameter (6") chimney gives it more chance of working with the long chimney length as the gasses will move faster and cool less.  It is going to be a bit iffy as to how well it works with a 50 foot chimney but at least it is not too much money to waste if it does not work.

http://www.usstove.com/index.php?route=product/product&path=59_61&product_id=118

https://www.lowesforpros.com/pd/US-Stove-Company-3000-sq-ft-Wood-Burning-Stove/3775871   $1,221 + $30 WA + $80 delivery - 10% + tax  (385 lbs)

https://images.homedepot-static.com/catalog/pdfImages/ab/ab7b3650-11d6-4ea2-aa77-5a86149fb196.pdf

http://www.lowes.com/pd_415906-850-3000_0__?productId=3775871&cm_mmc=SCE_PLA_ONLY-_-SeasonalLiving-_-SosHeating-_-3775871:US_Stove_Company&CAWELAID=1483801872&kpid=3775871&CAGPSPN=pla&k_clickID=07c36b5d-f778-4932-9c01-d0dbb8400182   $1,221 + $30 WA + $80 delivery - 10% + tax  (385 lbs)

http://www.homedepot.com/p/US-Stove-3-000-sq-ft-EPA-Certified-Wood-Burning-Stove-3000/202815106     $1,324.51

http://www.wayfair.com/Extra-Large-EPA-Certified-3-000-Square-Foot-Wood-Stove-3000-XXC1023.html    $1,285.93  Free shipping

http://www.northerntool.com/shop/tools/product_200577815_200577815    $1,249

http://www.amazon.com/US-Stove-3000-Extra-Certified/dp/B005RB2OII   $1,249.99 + $255.24 shipping

http://www.woodlanddirect.com/Wood-Stove-and-Accessories/Wood-Stoves-Large-Over-2000-sqft/US-Stove-3000-Extra-Large-Wood-Stove     $1,859.00

Manual:  https://www.northlineexpress.com/media/wysiwyg/pdf/3000-owners-manual.pdf

Venting worksheet:  http://www.northerntool.com/images/downloads/charts/27855.pdf

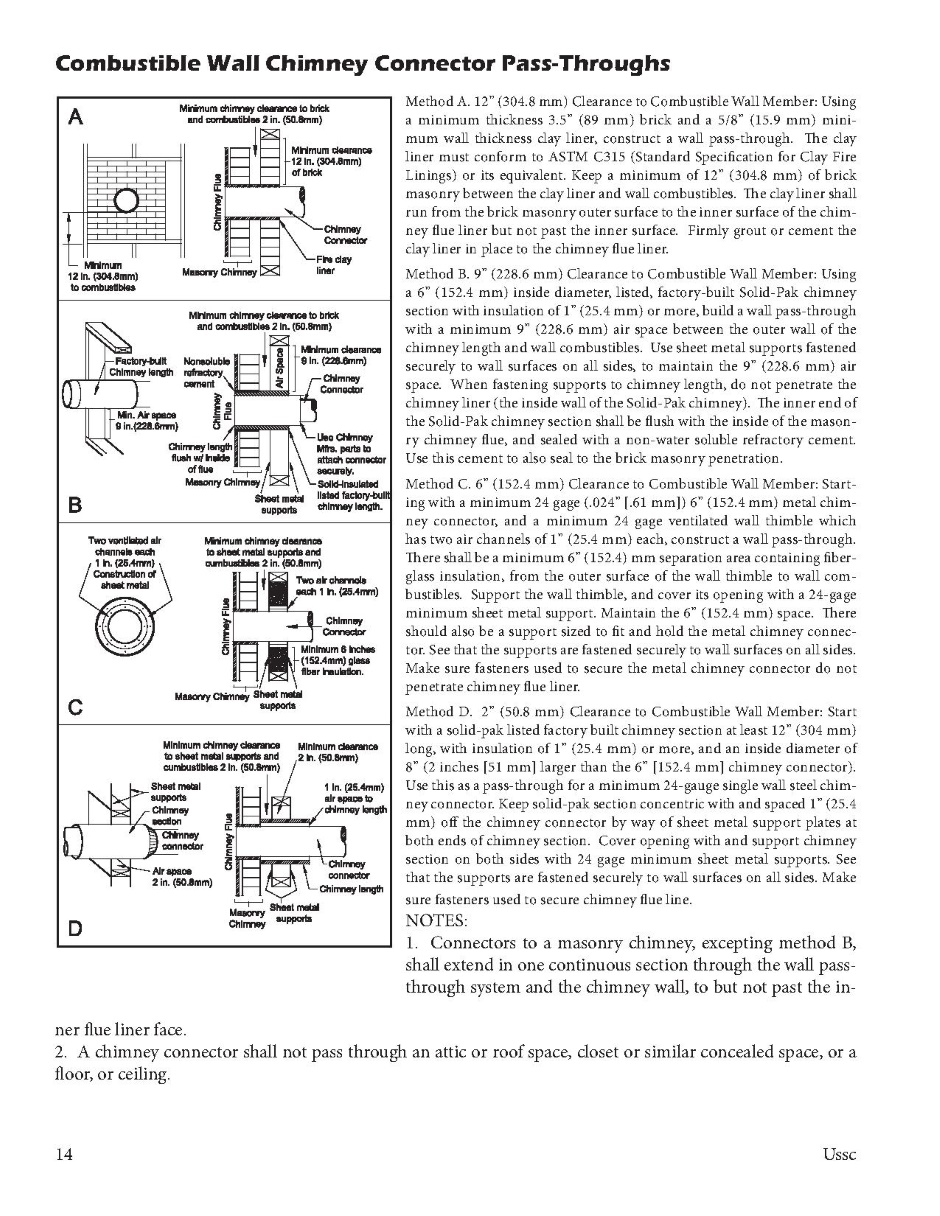

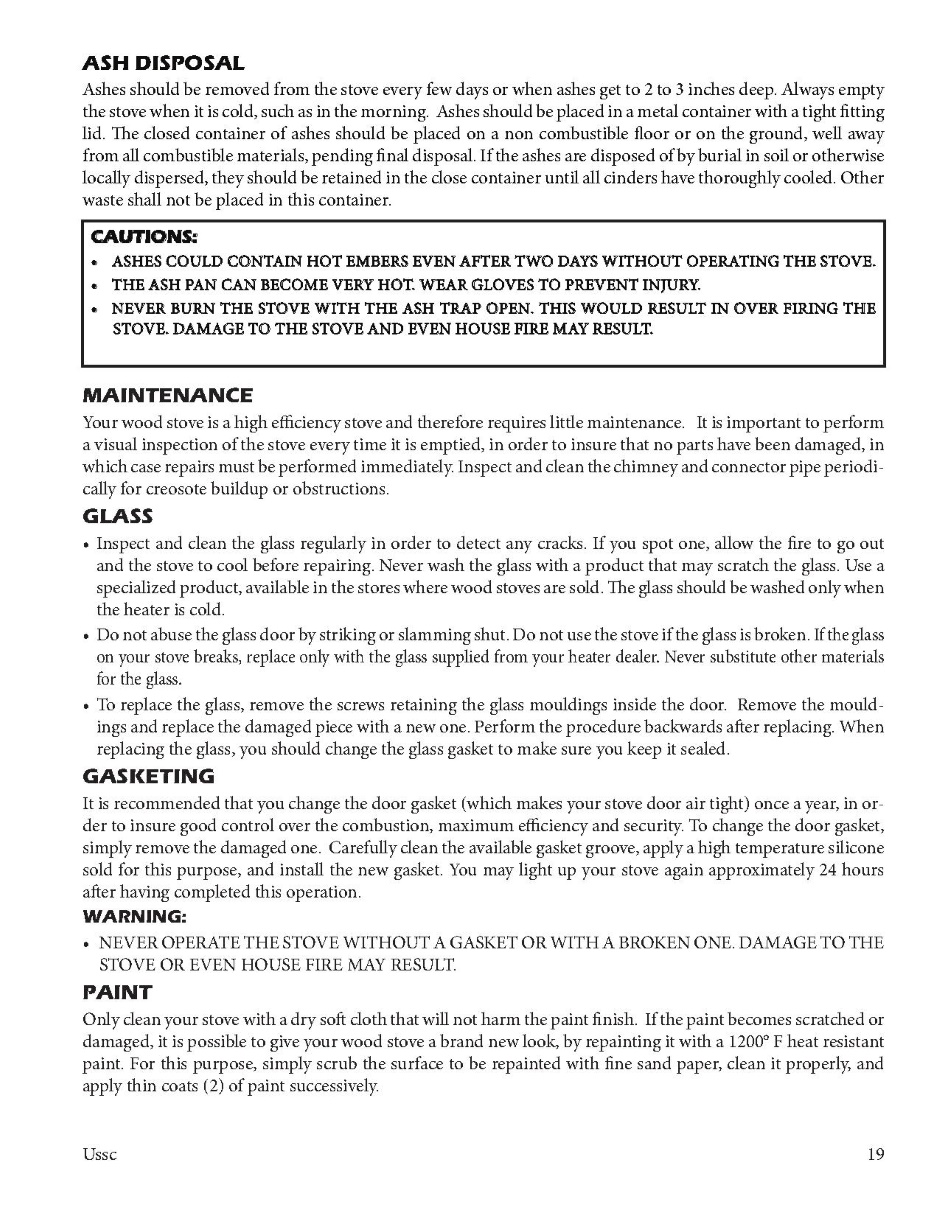

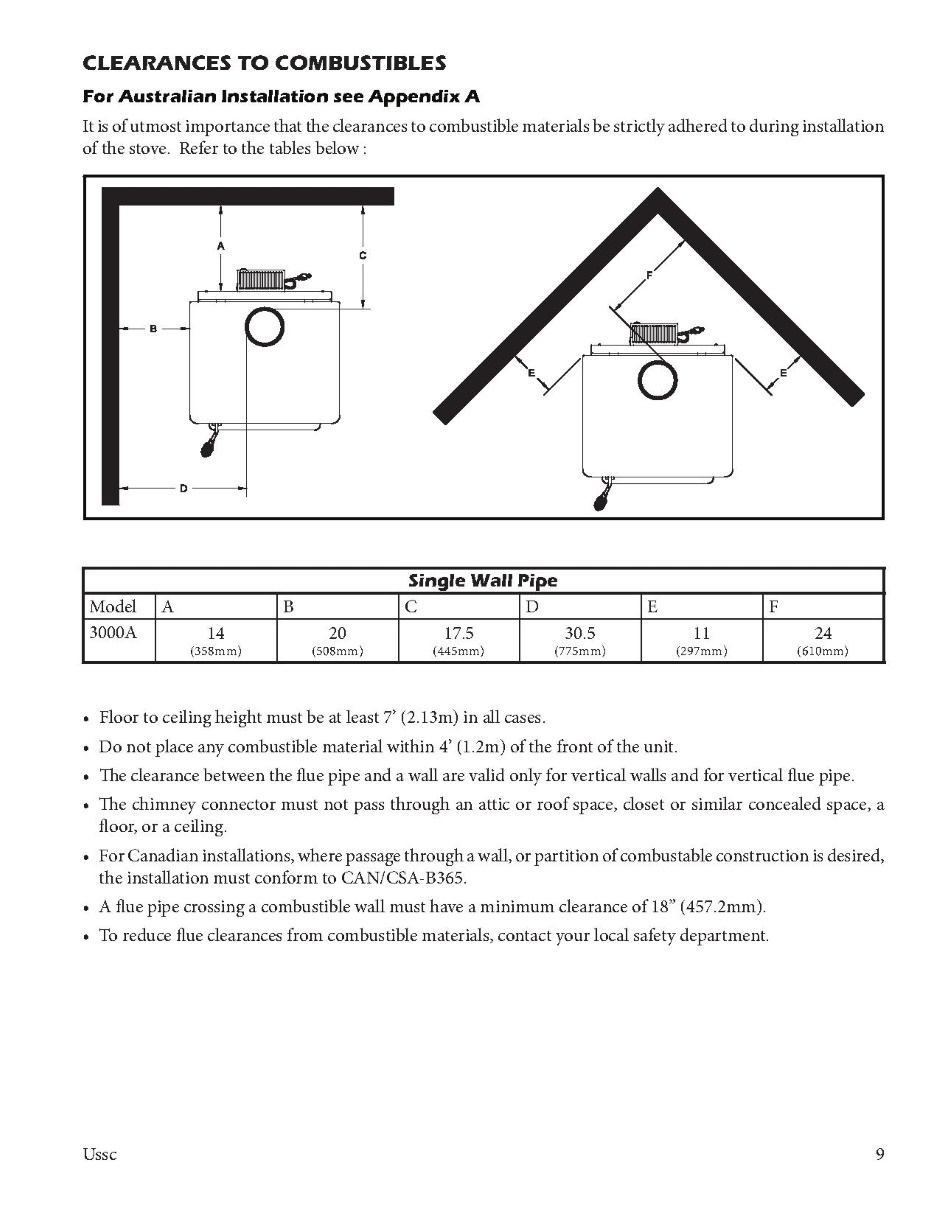

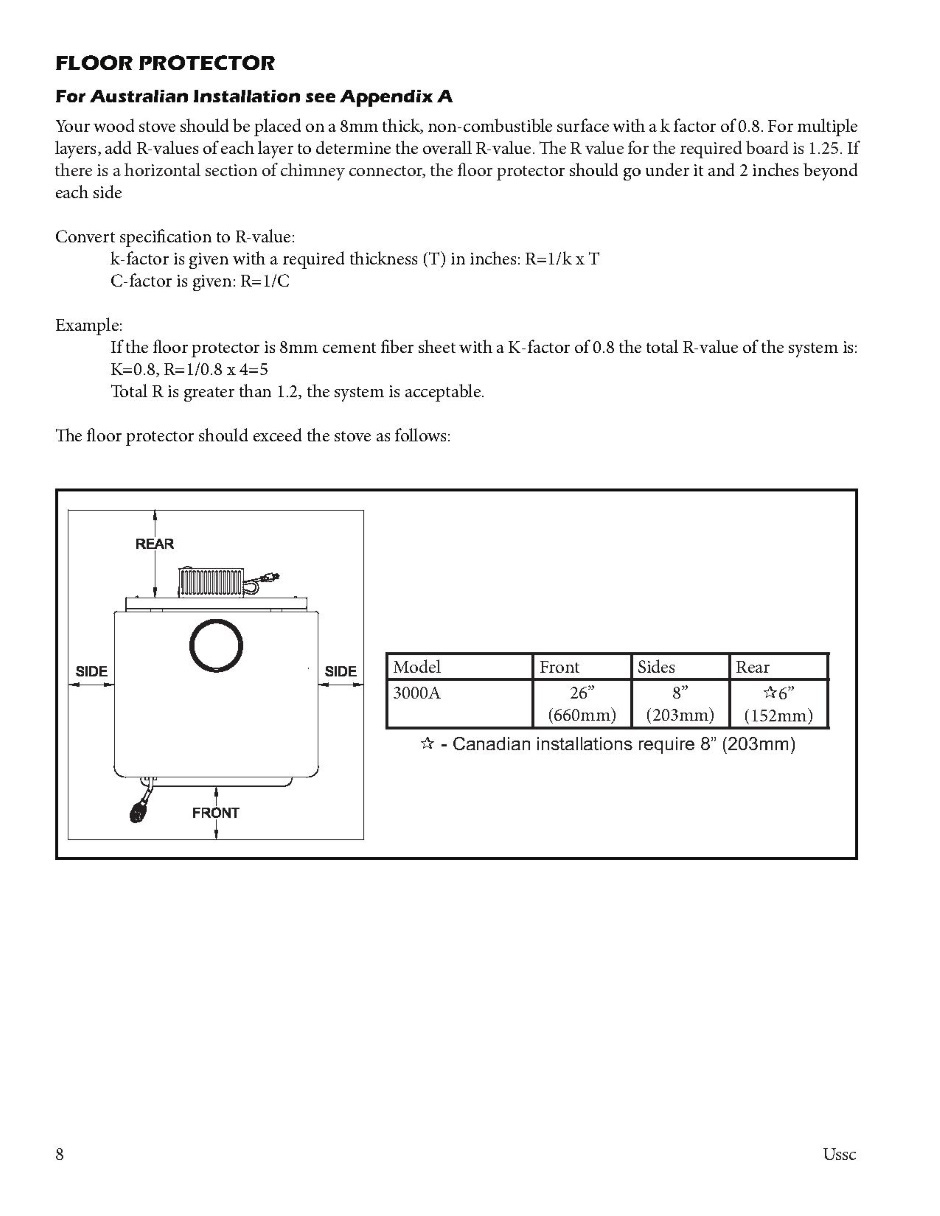

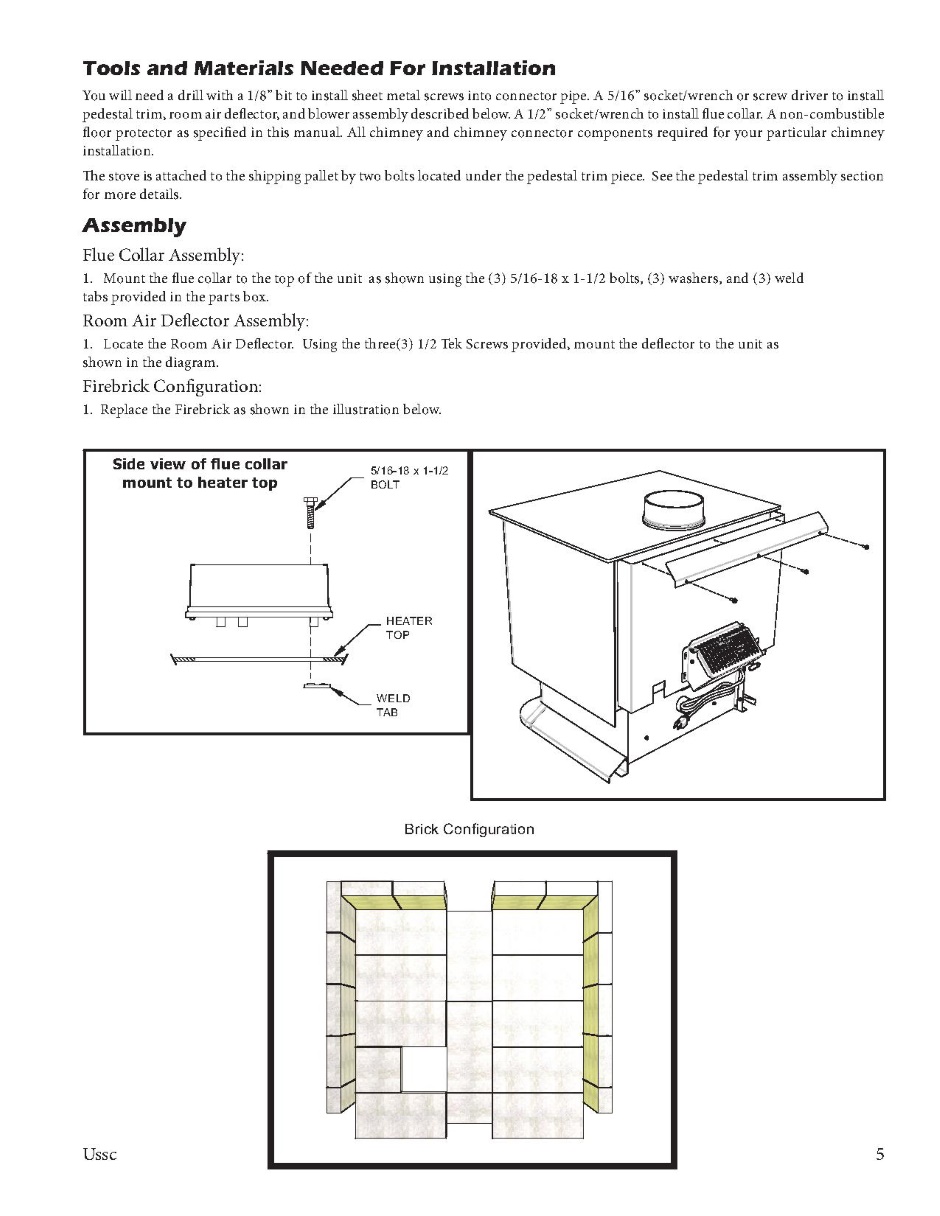

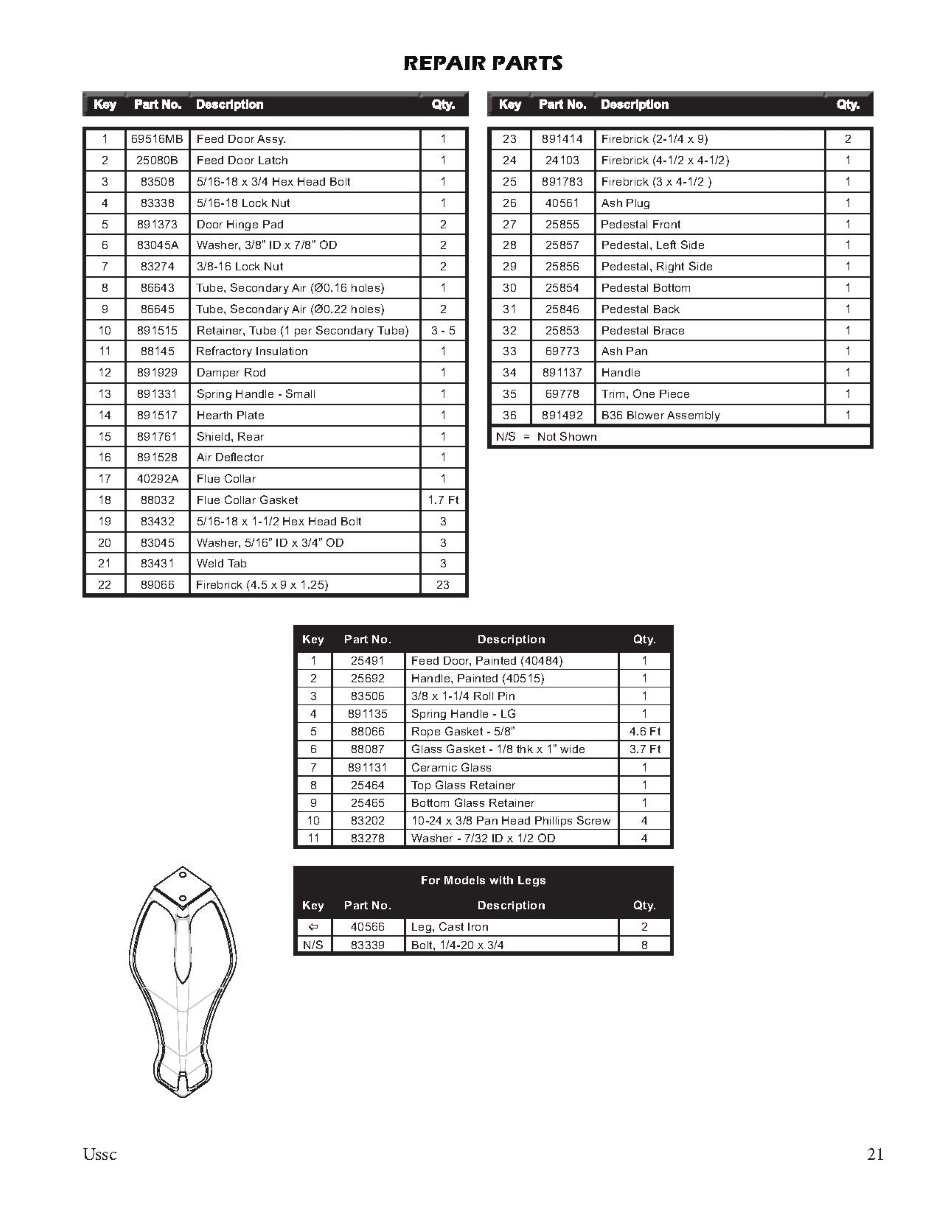

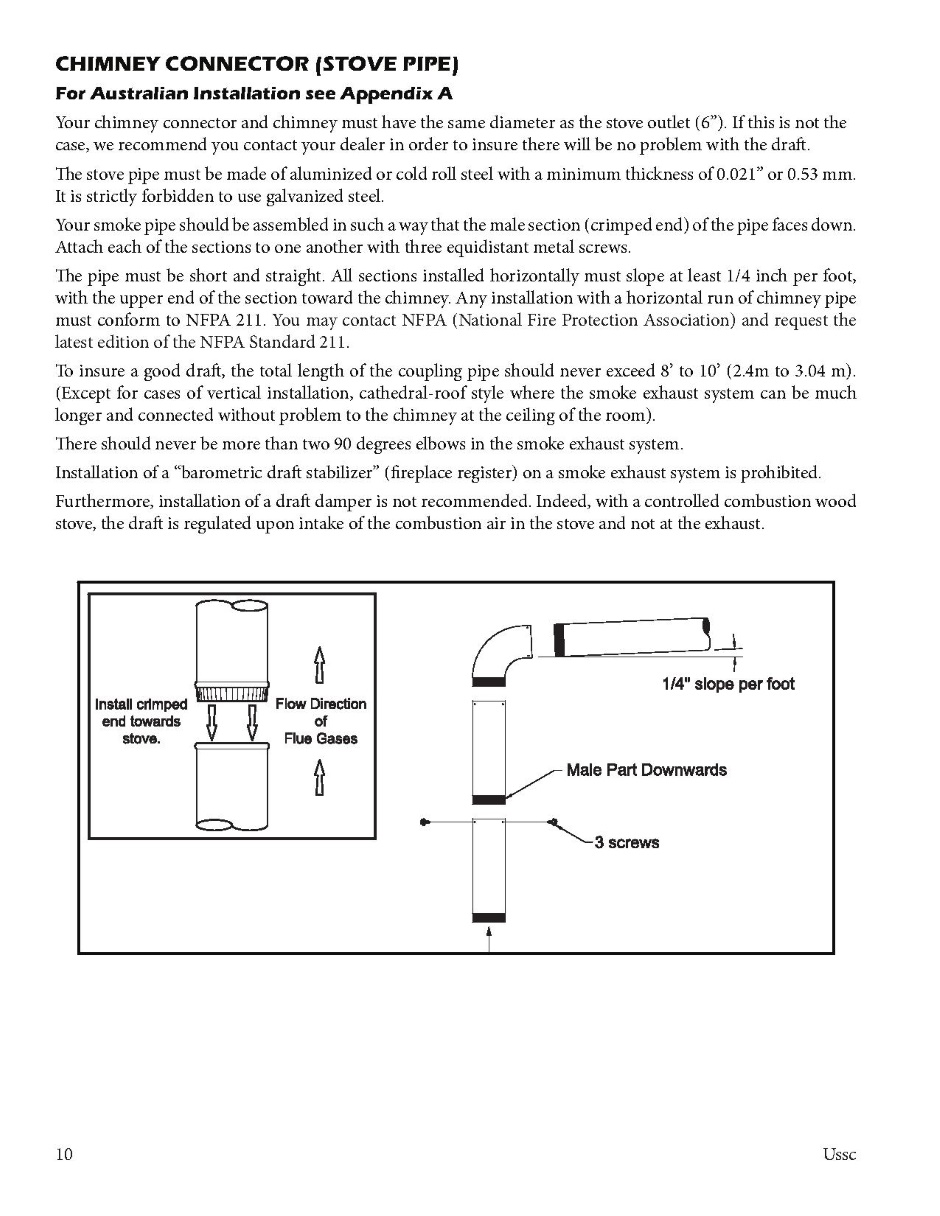

UsStove3000_

UsStove3000_

UsStove3000_

UsStove3000_

UsStove3000_

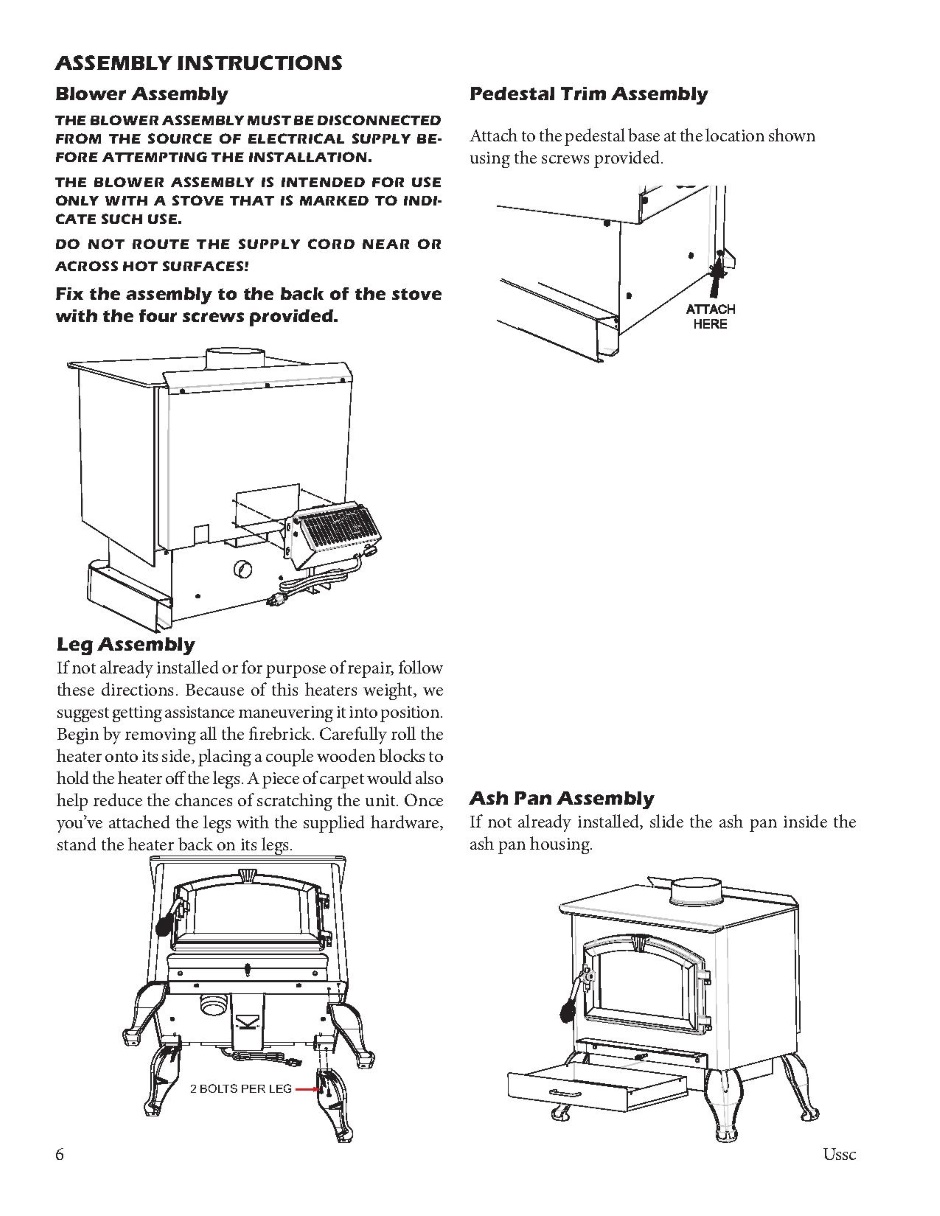

UsStove3000_

UsStove3000_

UsStove3000_

UsStove3000_

UsStove3000_

UsStove3000_

UsStove3000_

UsStove3000_



UsStove3000_

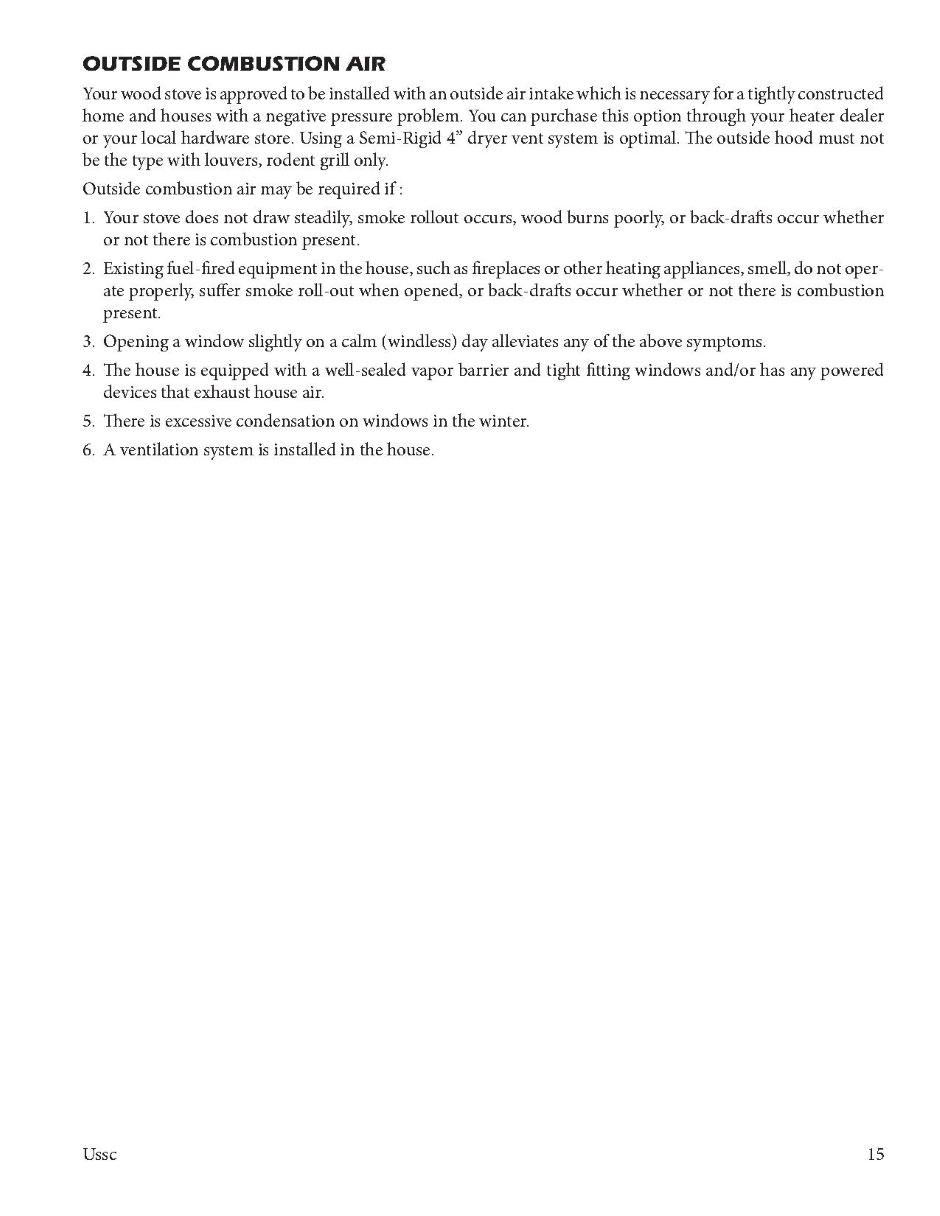

UsStove3000_

UsStove3000_

UsStove3000_

UsStove3000_

UsStove3000_

UsStove3000_

Regency Pro-Series F5100 Extra Large Wood Stove

Regency F5100 Wood Stove

http://www.regency-fire.com/Products/Wood/Wood-Stoves/F5100.aspx#

They say "For optimum performance, we recommend a chimney no higher than 40ft. ".

Seems to have a catalytic converter.  About 85% efficient.  Because of the high efficiency I guess it will probably not work with a 50' chimney.

22" logs



United States Stove Large Wood Stove

http://www.tractorsupply.com/tsc/product/united-states-stove-wood-stove-with-blower-large-epa-certified    $700

http://www.tractorsupply.com/tsc/product/woodpro-ws-ts-2500-wood-stove   $800

http://www.tractorsupply.com/tsc/product/united-states-stove-wood-stove-with-blower-epa-certified-in-washington-state   $1300



Equinox 8000

Equinox Wood Stove

http://www.hearthstonestoves.com/store/wood-products/wood-stoves/equinox   $4,300



Sedore

Sedore Wood Stove

http://www.sedoreusa.com/



Renaissance Rumford 1500

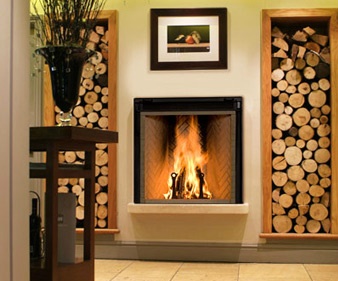

Rumford 1500 Wood Fire

Like the Delta2 it is made by RSF.

Supports a 60 foot chimney

Not strictly a high efficiency unit, but it does well...

Wood Fire Rumford 1500 Emission Spec

Needs a 12" chimney

http://www.renaissancefireplaces.com/en/renaissance-rumford-1500

"We have 2 fireplaces that can be installed up to 60 feet.  They are the Rumford 1000B and the 1500B.  Although they are not high efficiency fireplaces they have a magnificent firebox. "

http://www.blazefireplaces.com/?action=product&id=8

Costs something like $8K.



Blaze King

Blaze King Wood Stove

They say they cannot handle the 50' chimney height because "Not enough heat loss to handle your application.  Too efficient! ".

http://www.blazeking.com/EN/wood-king.html

Made in WA state.

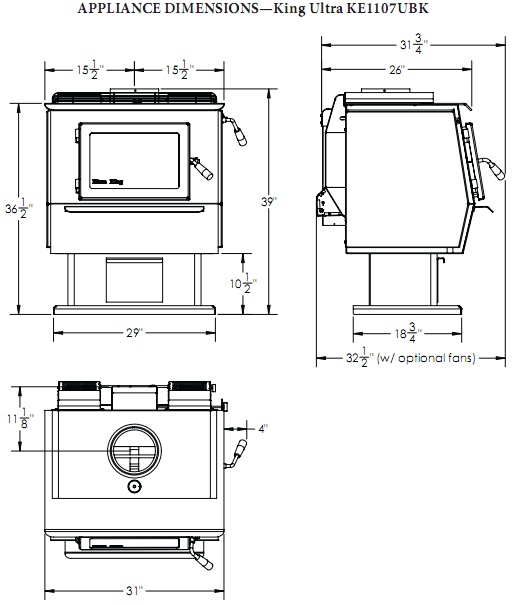

Blade King Ultra Dimensions





*
