Heating - Ductless MiniSplit

Star A highly efficient way to heat an air tight highly insulated house.



A ductless minisplit is a type of air-source heat pump, so it can be used for heating as well as cooling. In recent years, Japanese and Korean manufacturers (including Daikin, Fujitsu, Mitsubishi, LG, and Samsung) have significantly improved the heating efficiency of ductless mini-splits.  Now the Chinese are making good ones.

They are electric heaters, but provide greater efficiency than using electrical resistance heaters.  You need an outside unit and an inside unit.  They are connected with two small diameter pipes.

Senville Heat Pump

Senville SENL-12CD Mini Split Air Conditioner Heat Pump, 12000 BTU 19 SEER https://smile.amazon.com/gp/product/B00UV3LGUE/ref=ox_sc_saved_title_1?smid=A3IN1VG2XLZWVW&psc=1    $725

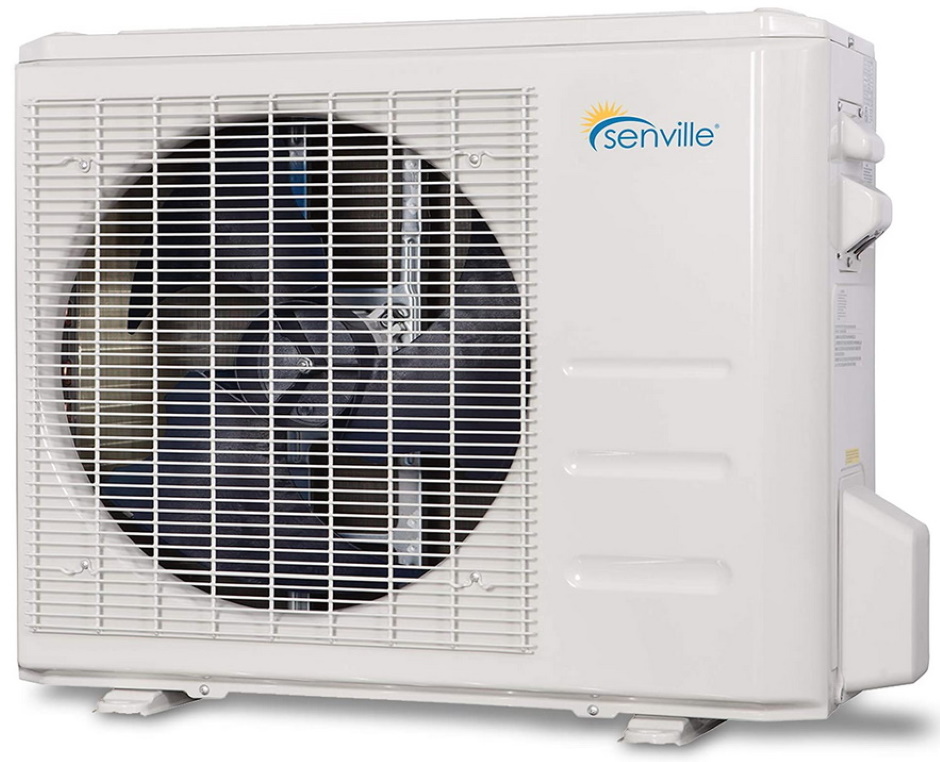

Senville External

Senville Internal

Senville Remote

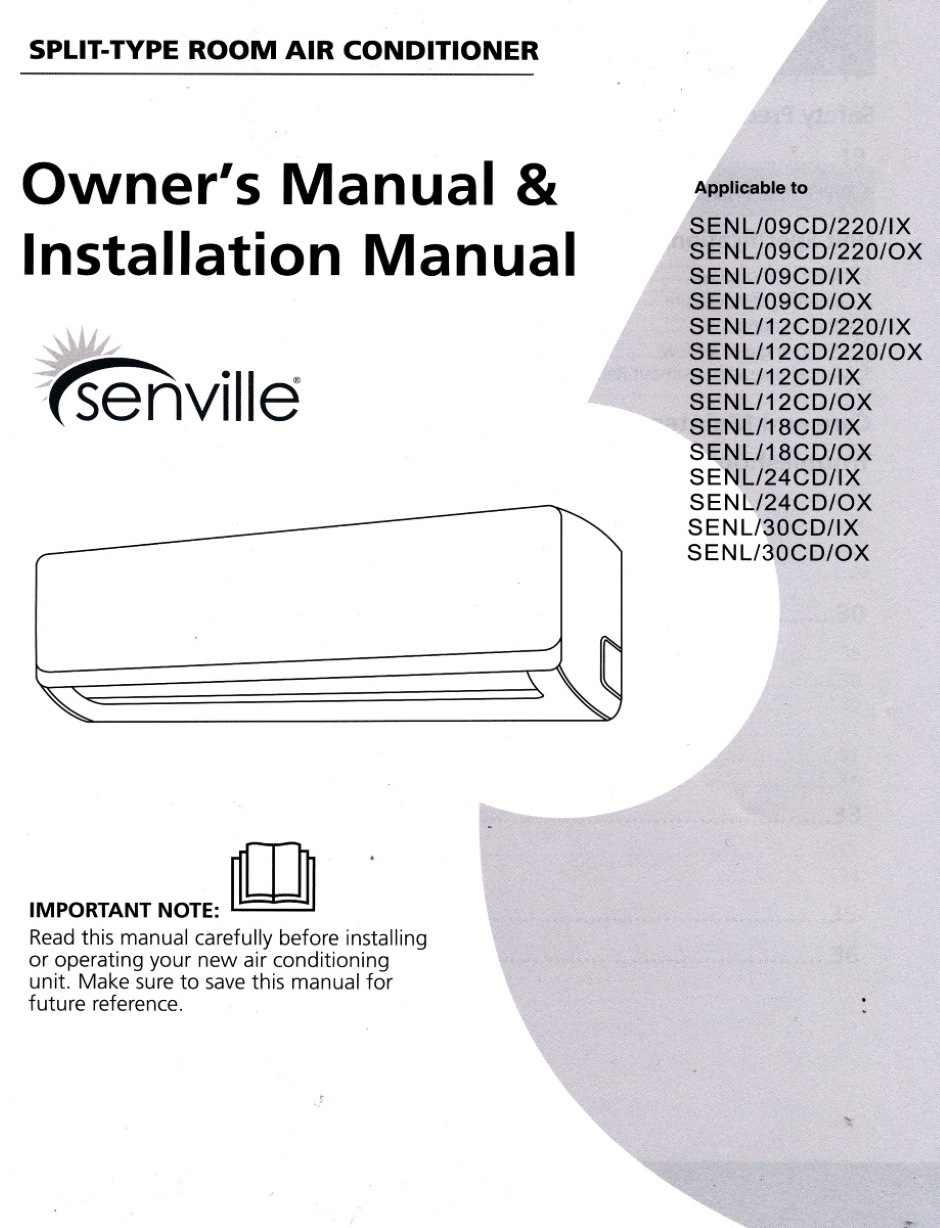

MiniSplit01

MiniSplit02

MiniSplit02

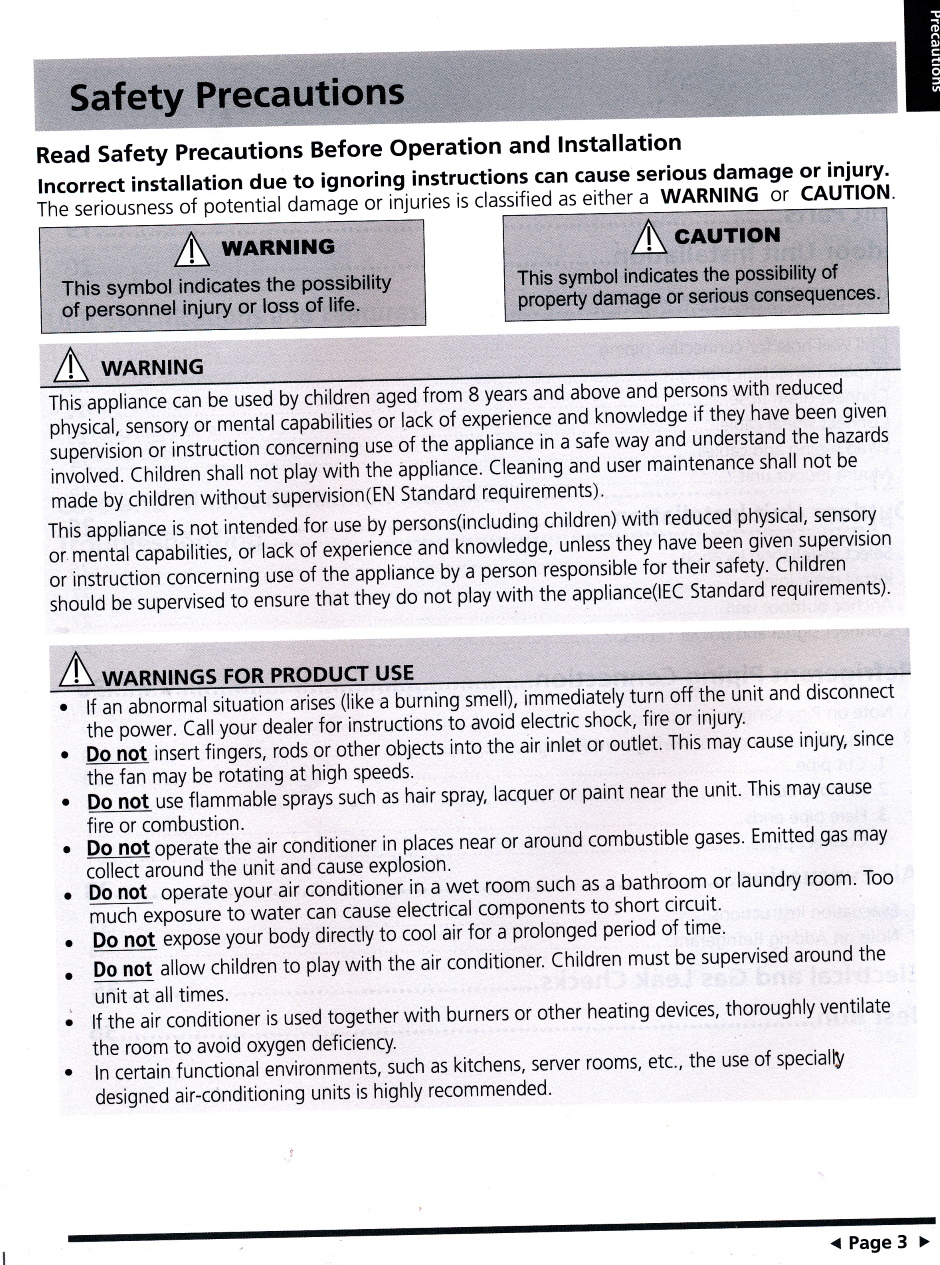

MiniSplit03

MiniSplit04

MiniSplit05

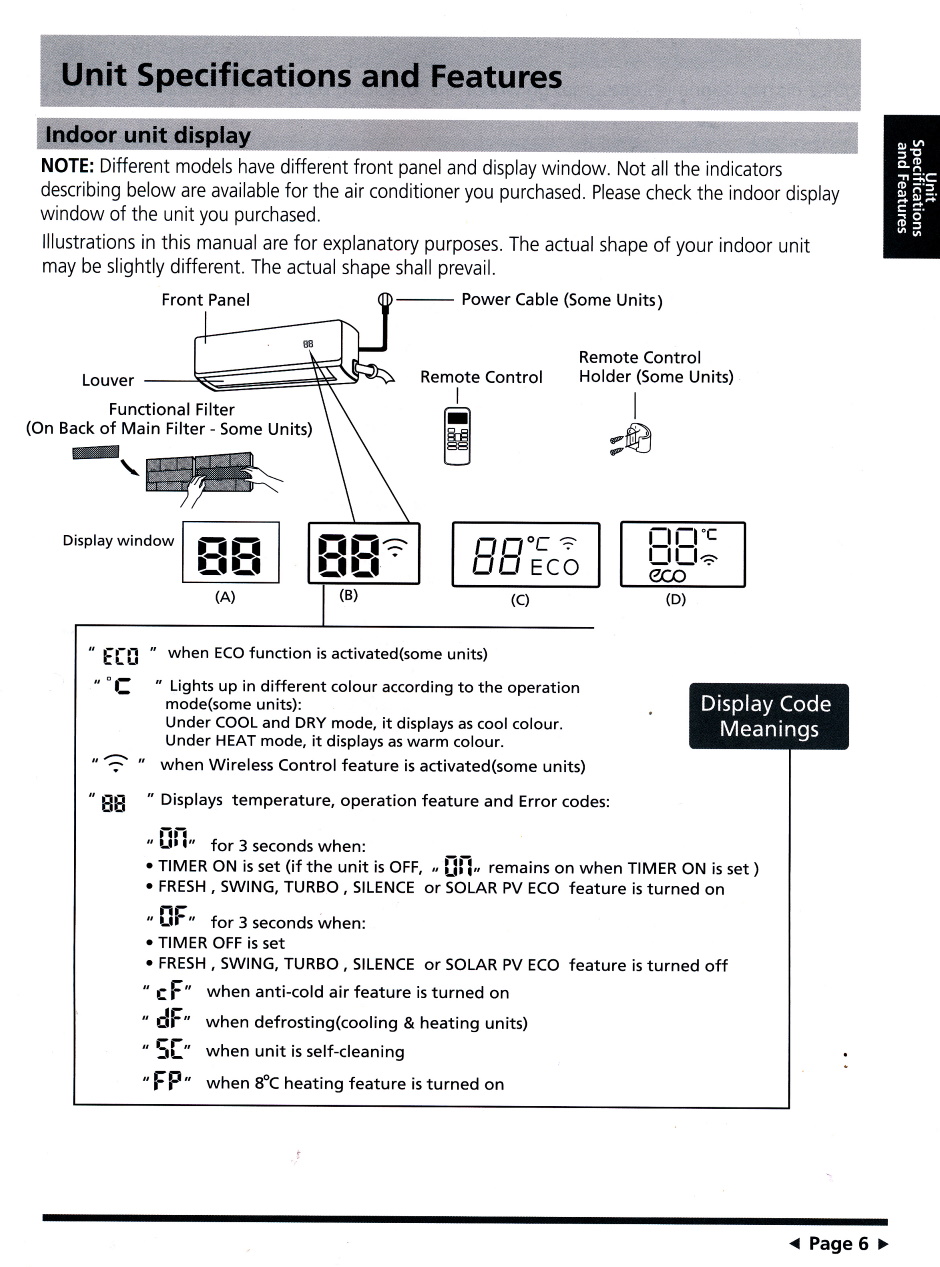

MiniSplit06

MiniSplit07

MiniSplit08

MiniSplit09



MiniSplit12

MiniSplit13

MiniSplit14

MiniSplit15

MiniSplit16

MiniSplit17

MiniSplit18

MiniSplit19

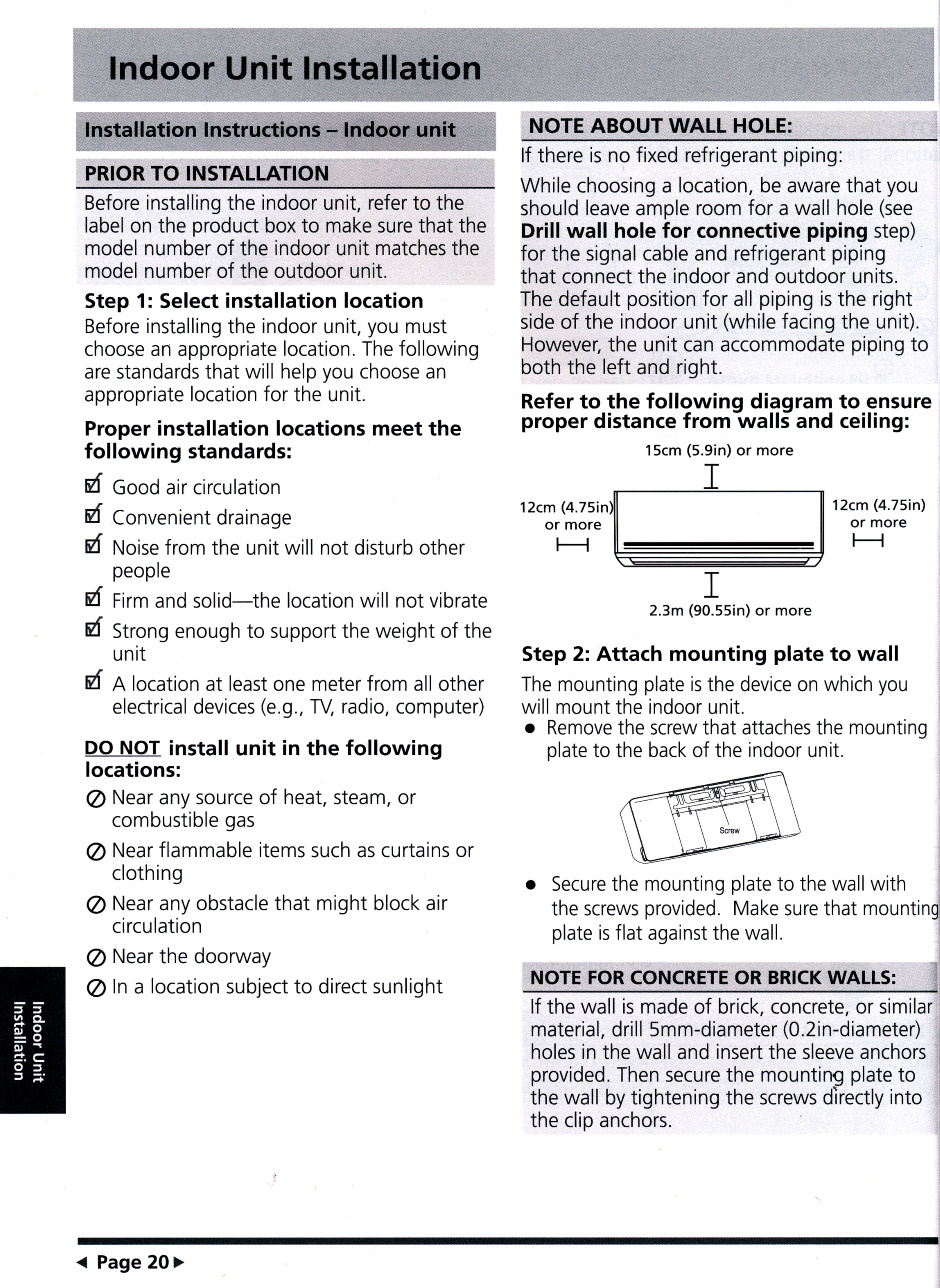

MiniSplit20

MiniSplit21

MiniSplit22

MiniSplit23

MiniSplit24

MiniSplit25

MiniSplit26

MiniSplit27

MiniSplit28

MiniSplit29

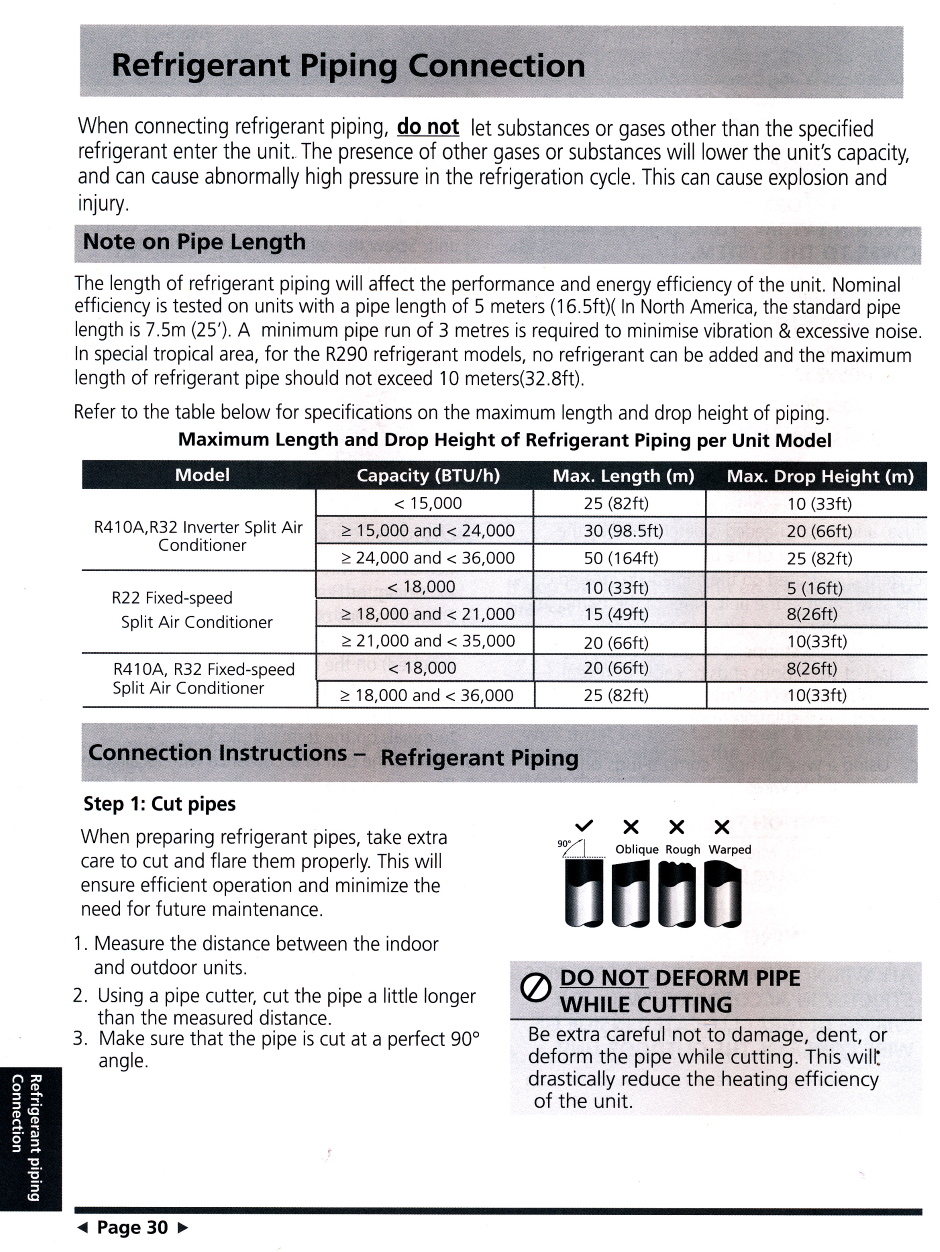

MiniSplit30

MiniSplit31

MiniSplit32

MiniSplit33

MiniSplit34

MiniSplit35

MiniSplit36

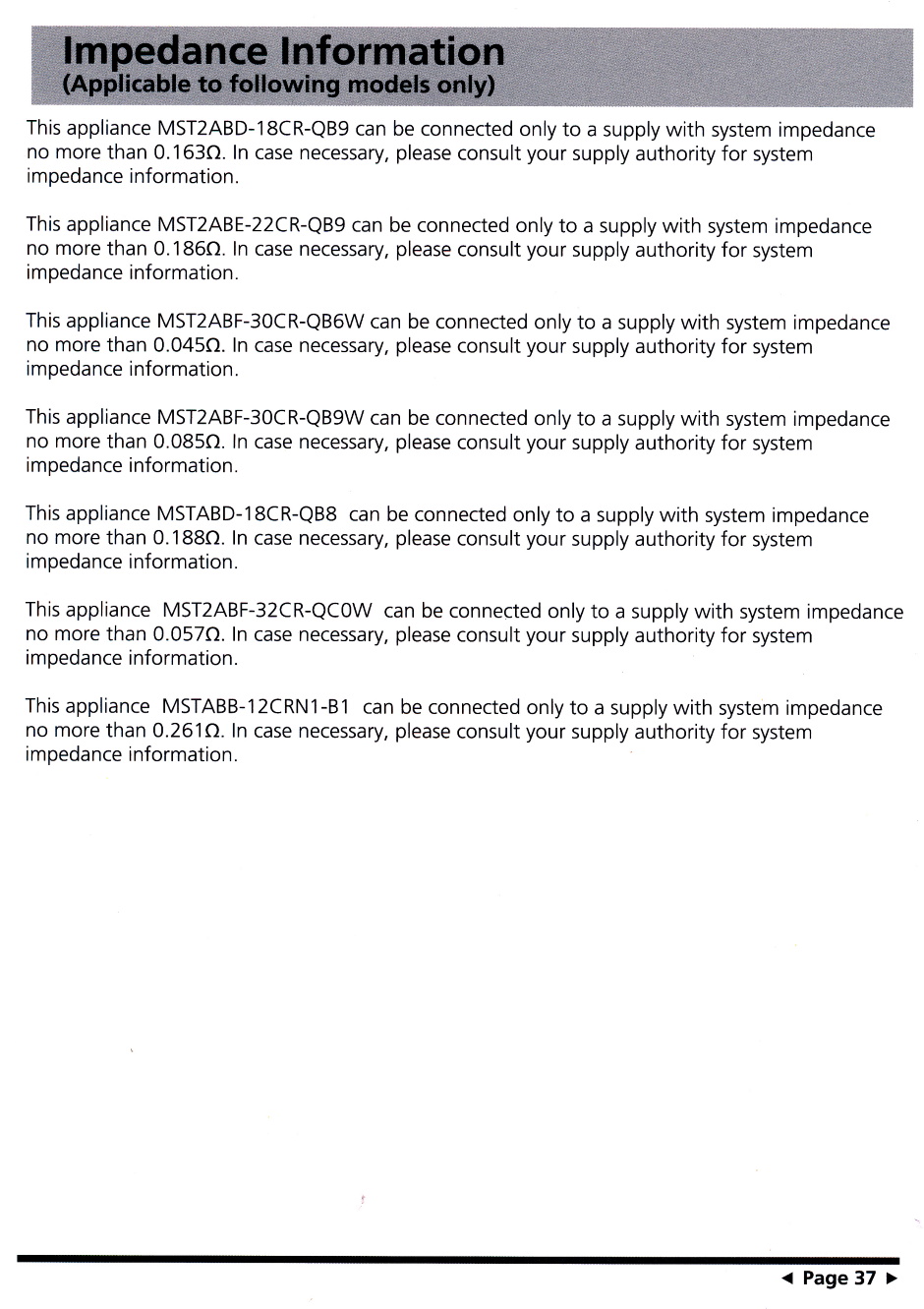

MiniSplit37

MiniSplit38

MiniSplitRemote01

MiniSplitRemote02

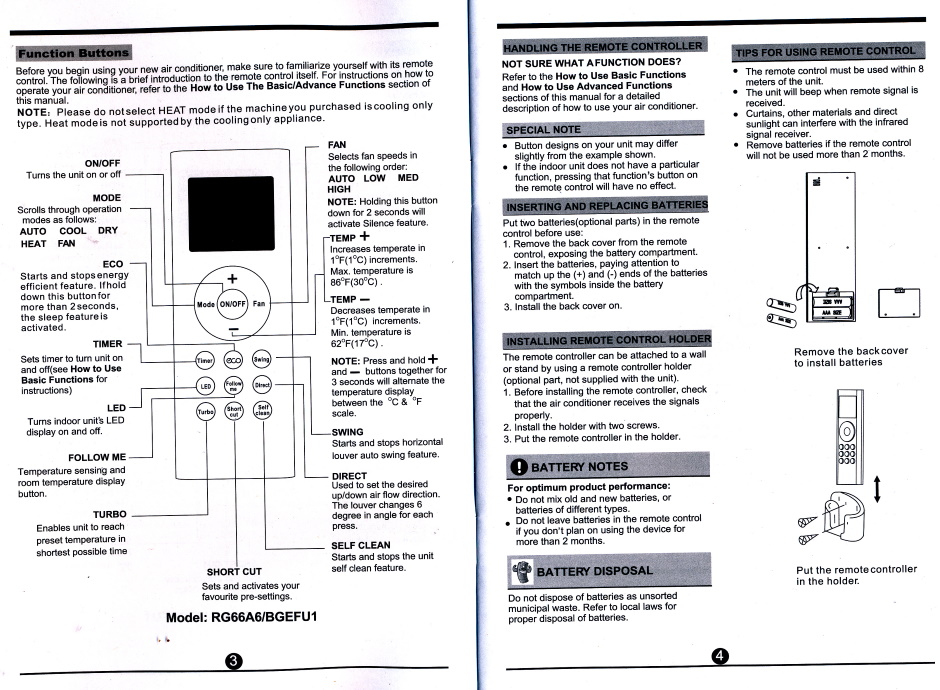

MiniSplitRemote03

MiniSplitRemote04

MiniSplitRemote05

MiniSplitRemote06

MiniSplitRemote07

MiniSplitRemote08

Outside Wiring

Inside Wiring

Vac Pump Connection

Adapter

Vac Valves

Valve Hoses

VacPump01

VacPump02

VacPump03

VacPump04

VacPump04

VacPump06



Phone Control

You can buy a USB module that plugs into the internal unit and allows control from a smartphone.

SenvilleUsb01 SenvilleUsb02

SenvilleUsb03 SenvilleUsb04

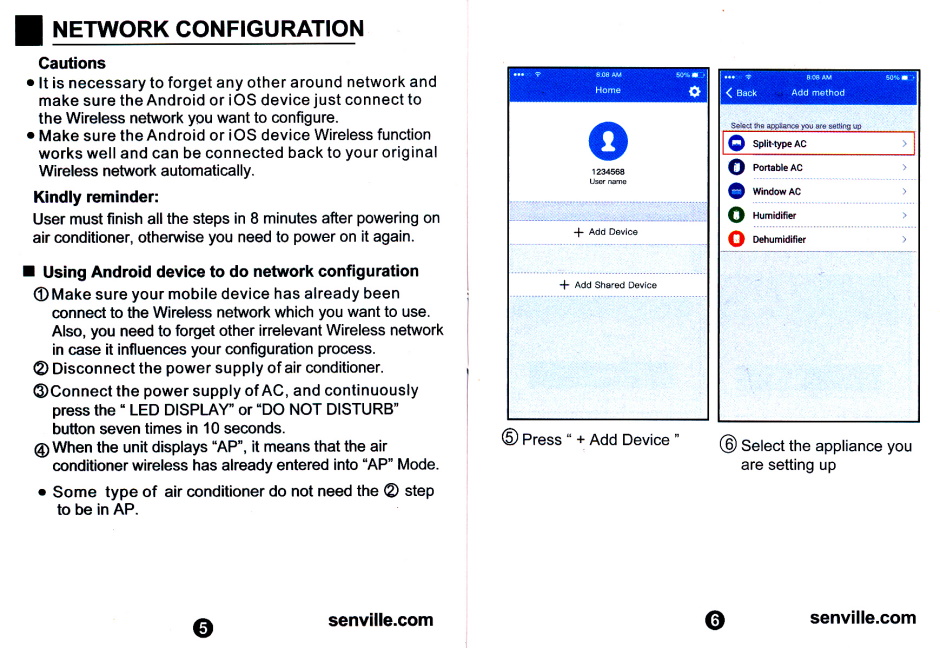

SenvilleUsb05 SenvilleUsb06

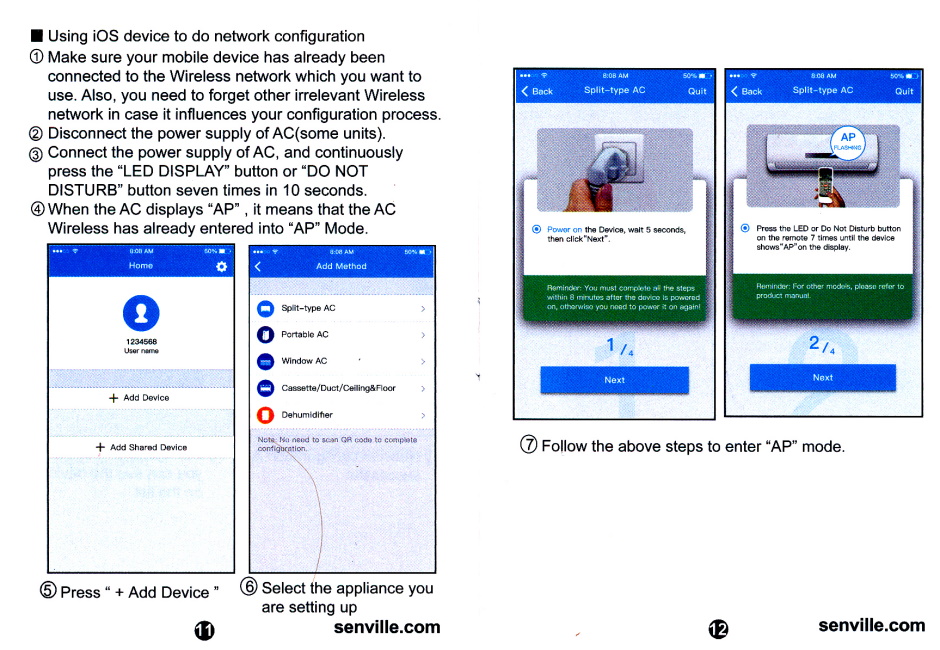

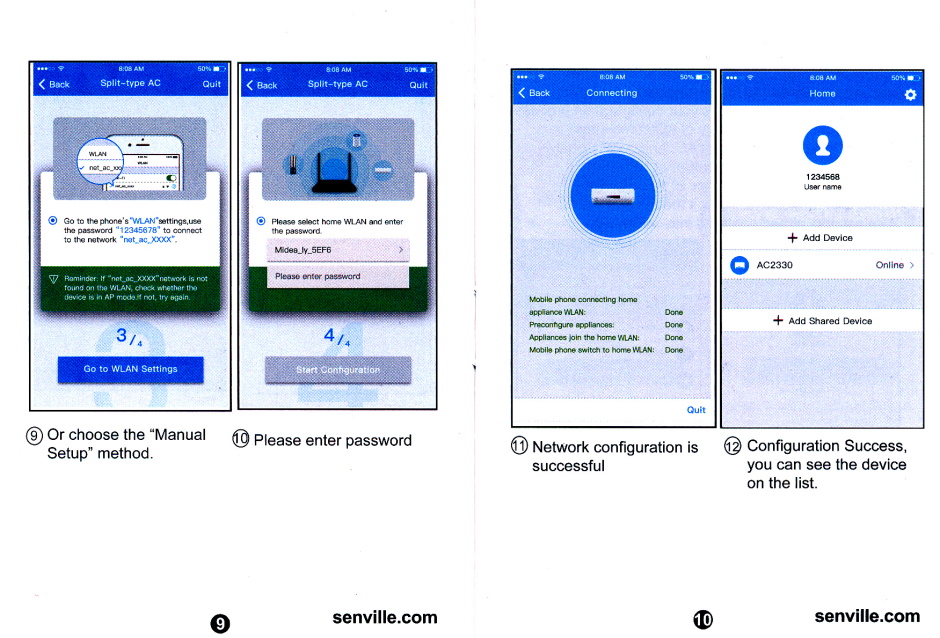

SenvilleUsb07 SenvilleUsb08

SenvilleUsb09

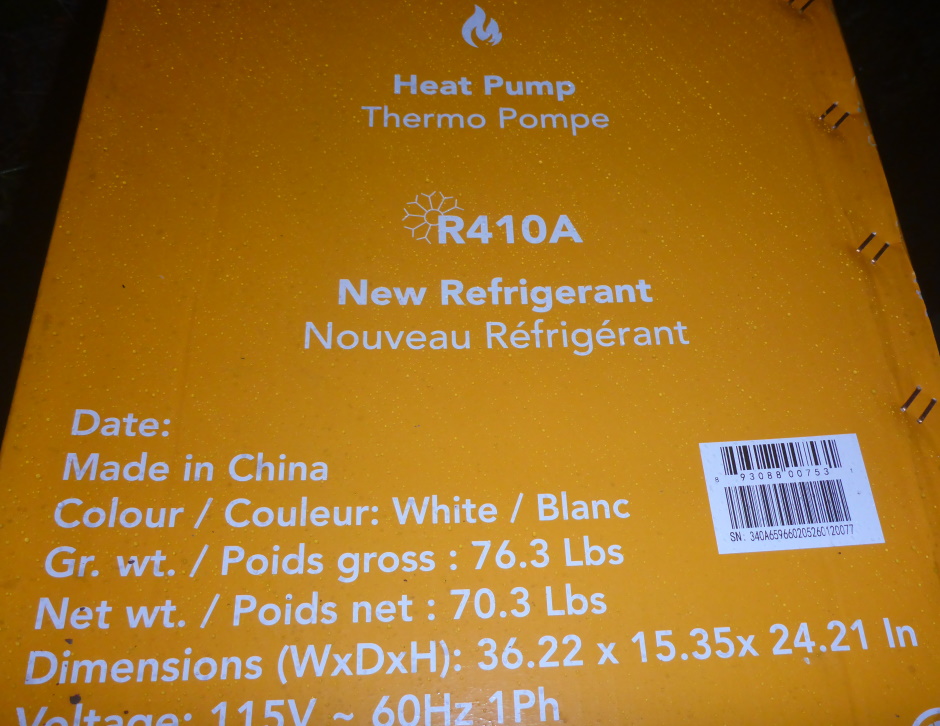

Heat Pump Cardboard Box

Heat Pump Cardboard Box









*
