Star The design, installation, and maintenance of septic systems is highly regulated by the Health Department.



The permit process

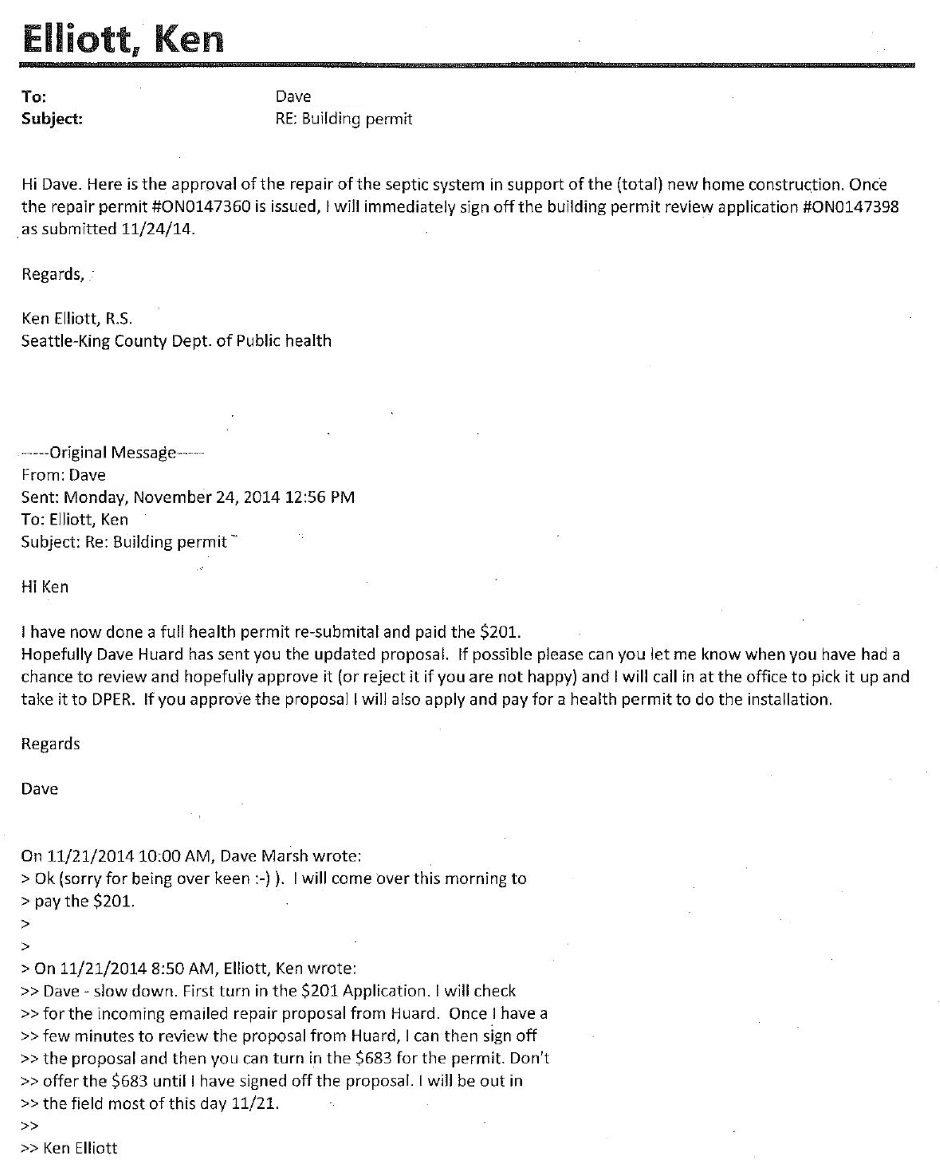

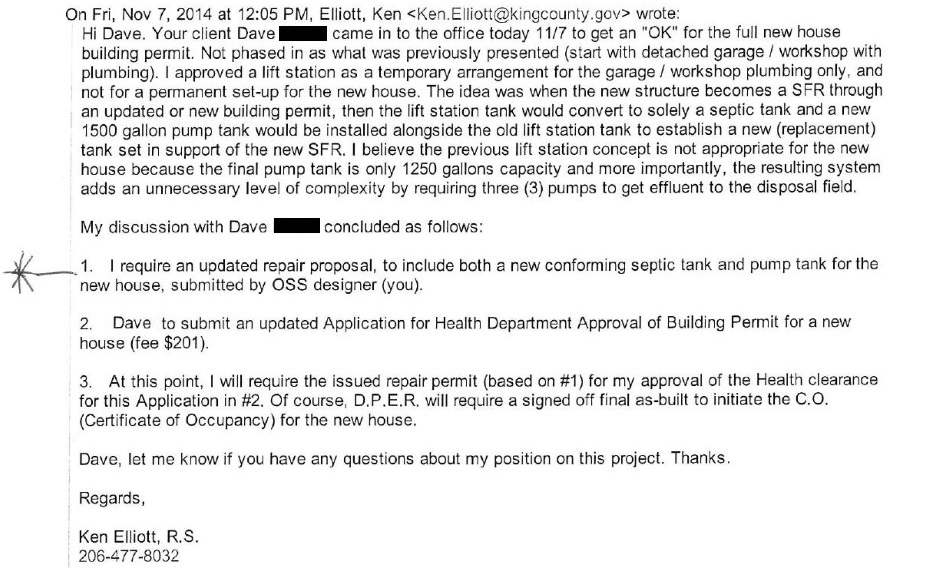

There is a rule here in King County that says that only a licensed septic designer is allowed to design a septic system.  I did not know about that rule until after I had figured out a design, so I had to send my design to a licensed designer who was able to review my design notes and make it into an official design.  It actually took two passes at this because the initial design was just for handling the first phase of construction rather than the full house that turned out to needed the complete new tank set.  The following email from the inspector to the licensed designer explains the change in plan...

Ken change in plan email



The septic design guy in Washington State that I used is...

     Dave Huard
    HSDM (Huard Septic Design & Monitoring)
    425 831 1781
    209 Main Ave S #112, North Bend, WA 98045
    april@septicdesign.net

You need to take the design after it has been stamped by the licensed septic designer and submit it to the health department along with a set of filled in forms.  You need to pay a fee (something like $500) to have them review the proposal.  The health department will likely also want to see yearly inspection records for the existing septic system if there is one.  For the annual inspections I used...

     Jerry Murphy
    Active Septic Solutions
    32121 NE 8th St (at N Fall City-carnation Rd)
    Carnation, WA 98014
    (425) 488-8689

If the health department accepts the plan then you pay an additional fee (something like $700) for a permit to do the implementation.  Only once you have the full permit from the health department can you start work.

A further catch is that you are not actually allowed to do the work yourself.  The health department will only issue the permit to a licensed septic installer (ie someone on the King County list).  Furthermore even if the Licensed Septic *Designer* is also on the approved list of Licensed Septic *Installers* he cannot carry out the work because the same guy is not allowed to be both the designer and the installer for the project.  I chose the following company for doing the installation work (with me in practice doing much of the work under their supervision)...

     Dan Crocker Construction Inc
    Mt Si Rd, Northbend, WA.
    Steve Neubauer
    Cell-425-471-3375
    Office-425-888-4136
    steve@dancrocker.com

In a further catch, you actually need the Licensed Designer to submit a request to the Health Dept to get the Health Dept to release the permit to the Licensed Installer.  You will have to pay the Licensed Designer for this service.  A site visit from the Licensed Designer is required before he will officially request the permit.  The Licensed Designer also has to inspect the work done by the Licensed Installer and sign-off on it in the form of an "As-Built" that gets submitted to the Health Department.  You need an "As-Built" before you can get a Certificate of Occupancy on you house (which is required before you move in).



New Tank Set Design

The following docs, together with a map to show the inspector how to get to the site, made up my re-submission to the local health department for the all new tank set design.  Also the proposed design is required to be sent direct from the Licensed Septic Designer to the King County Health Department.  The docs below are shown in their signed approved form.

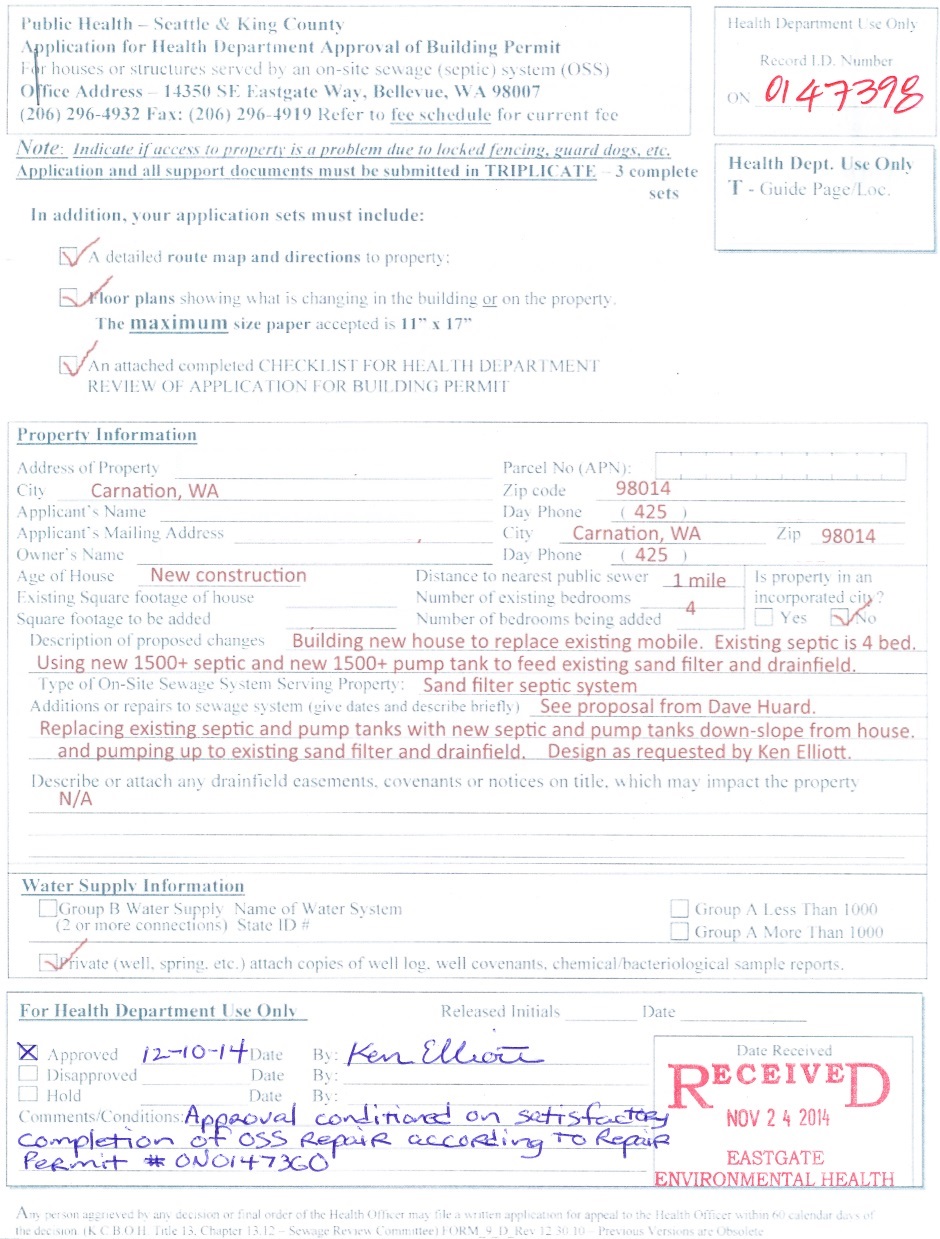

Sewer Submission Approved

Sewer Submission Approved

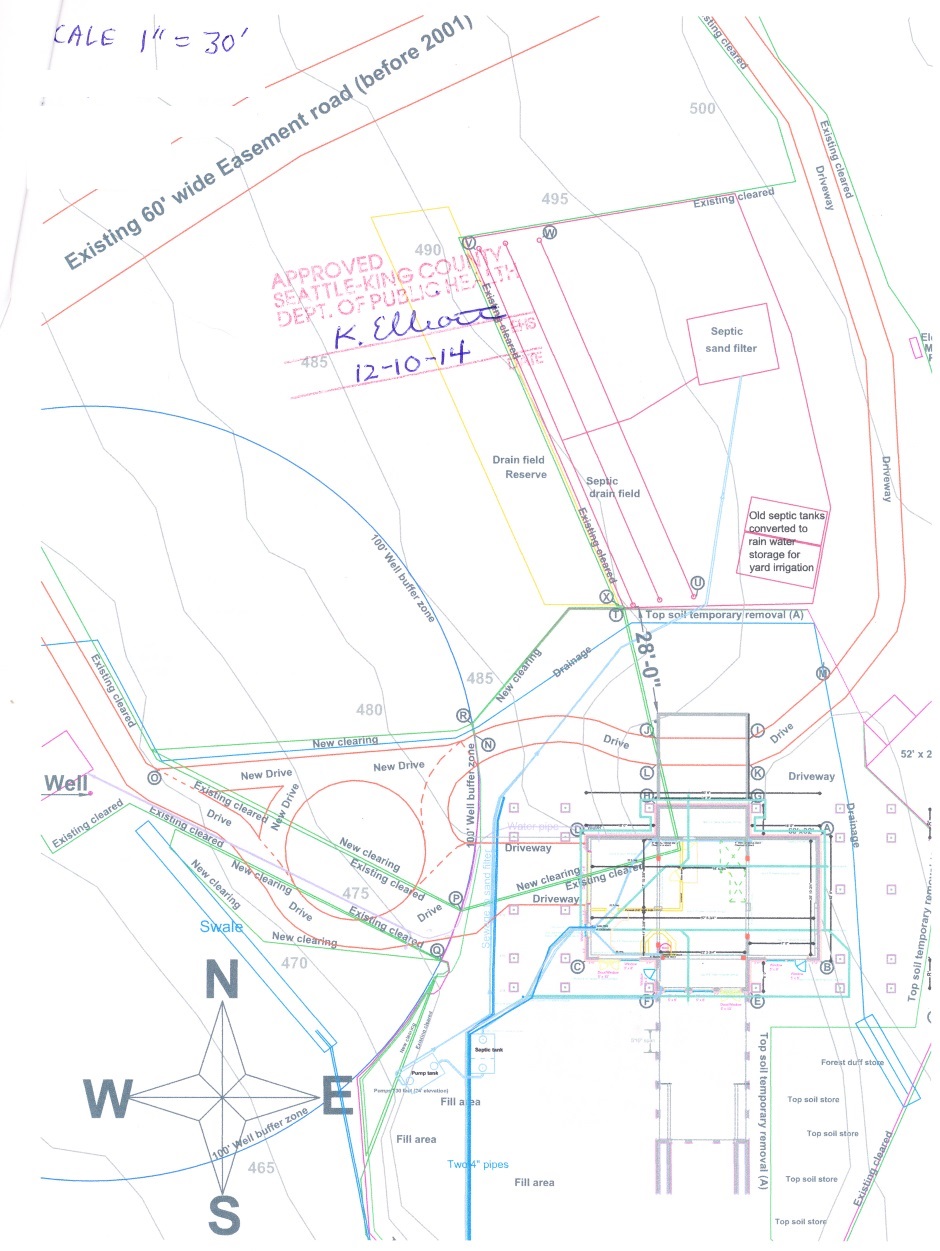

Sewer Submission Approved

Note that the above sheet is important because it is a signed sheet that includes the words "Old septic tanks converted to rain water storage for yard irrigation".  Without this signed note the Licensed Septic Installer company would be required to smash the existing concrete tanks and fill the remains with soil.

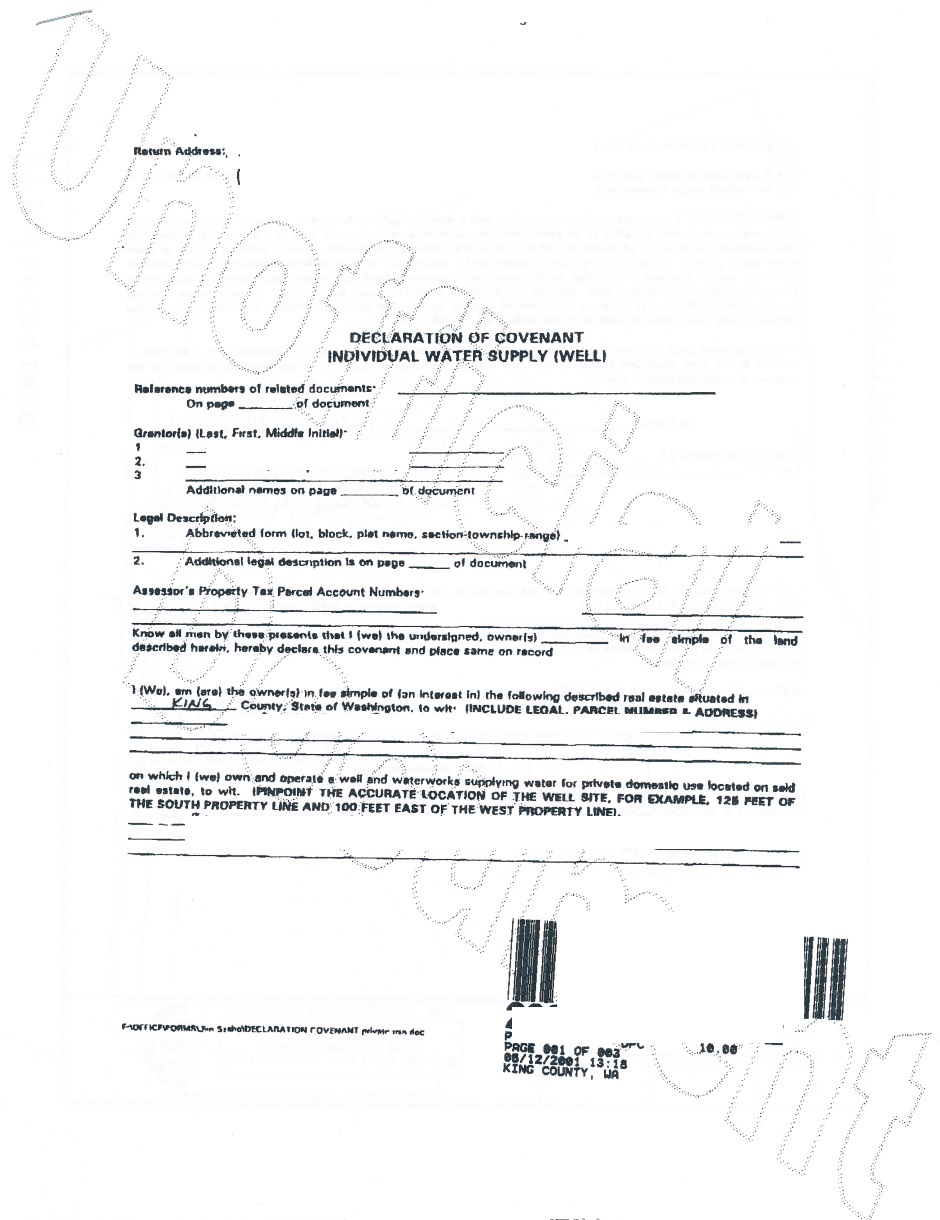

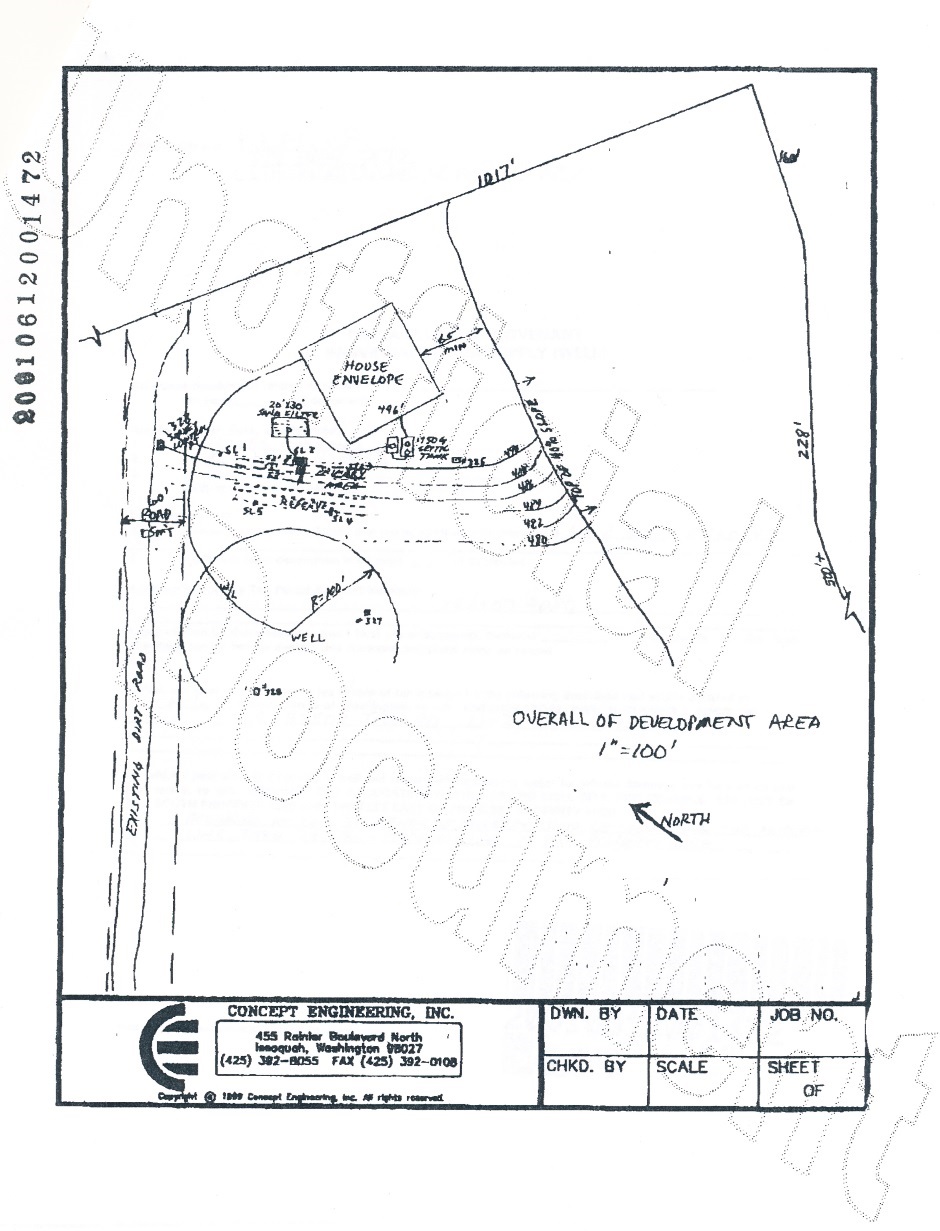

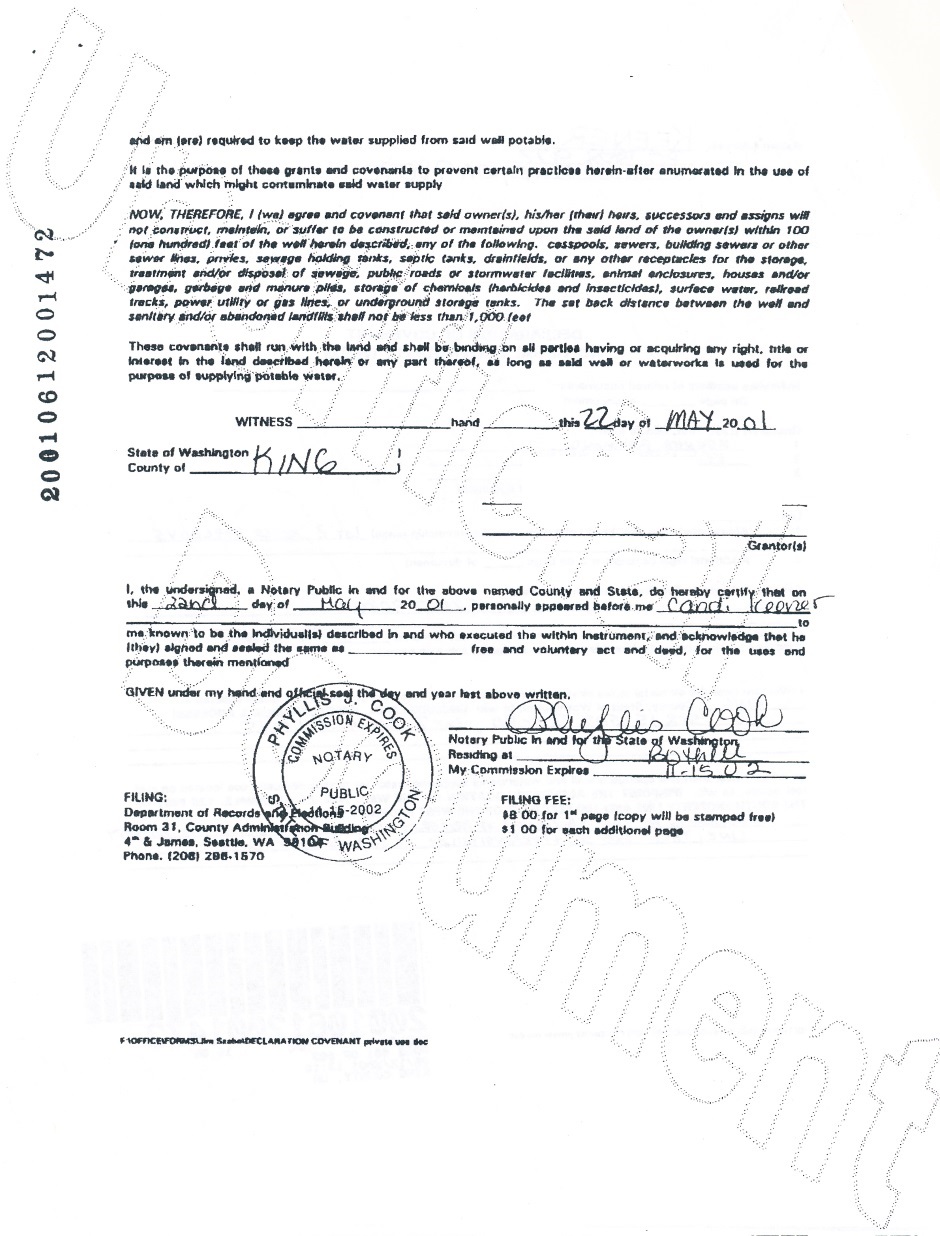

Health Dept Submission

Health Dept Submission

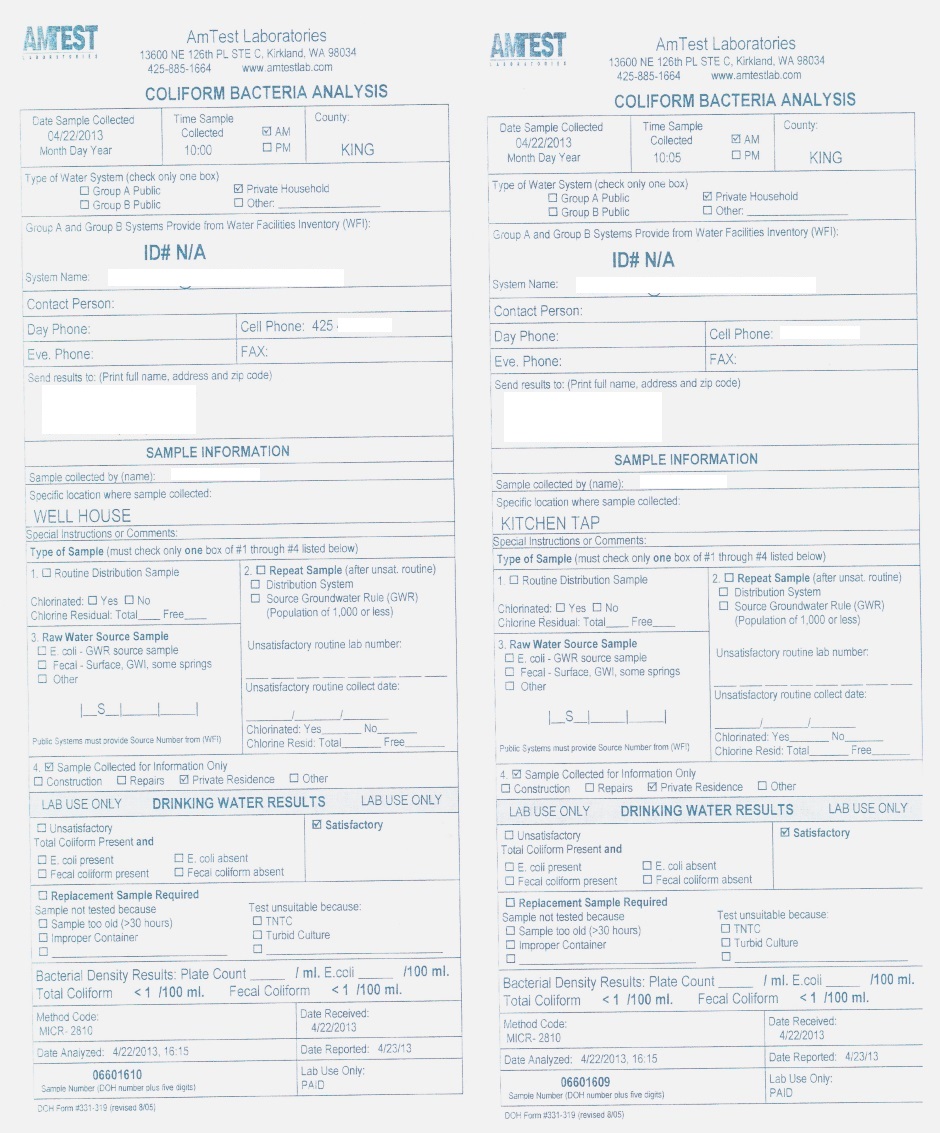

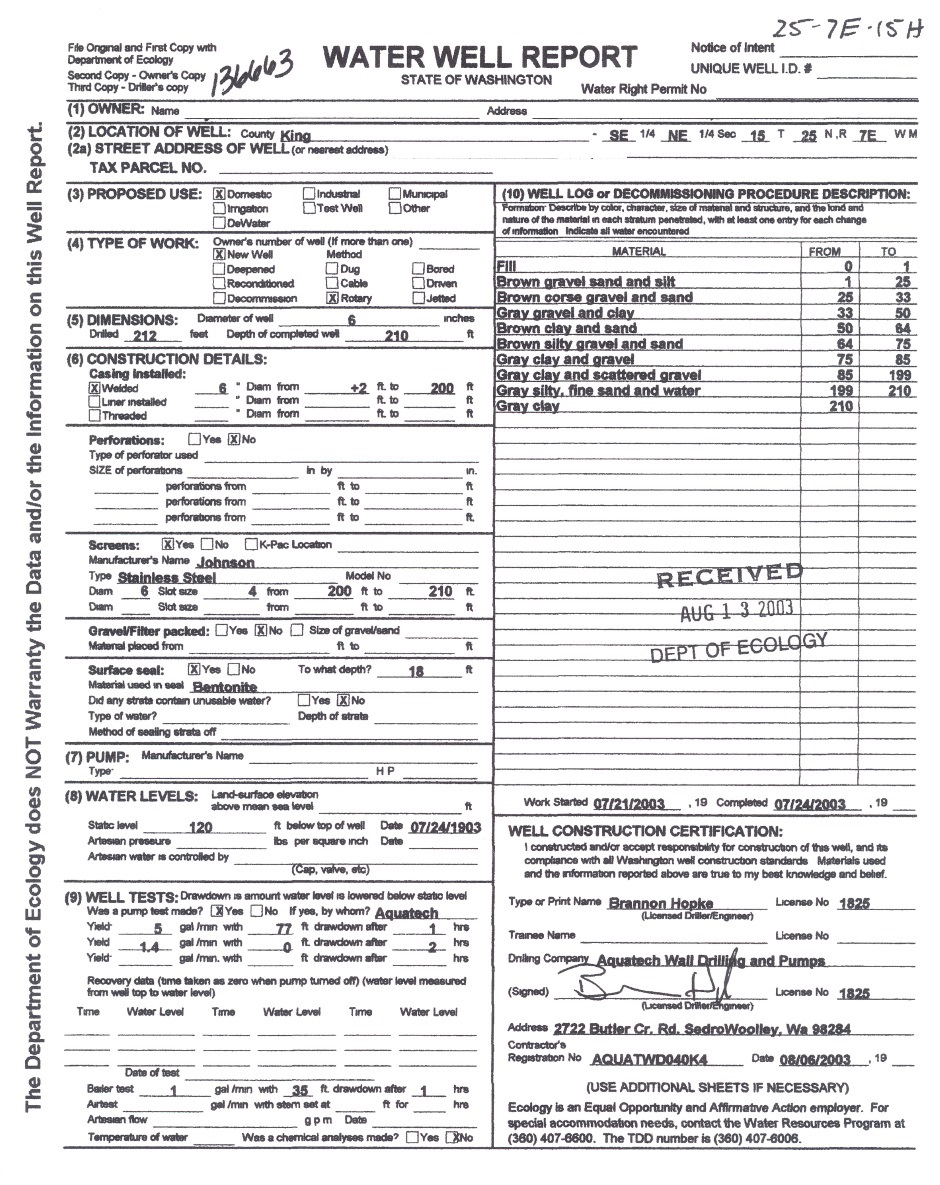

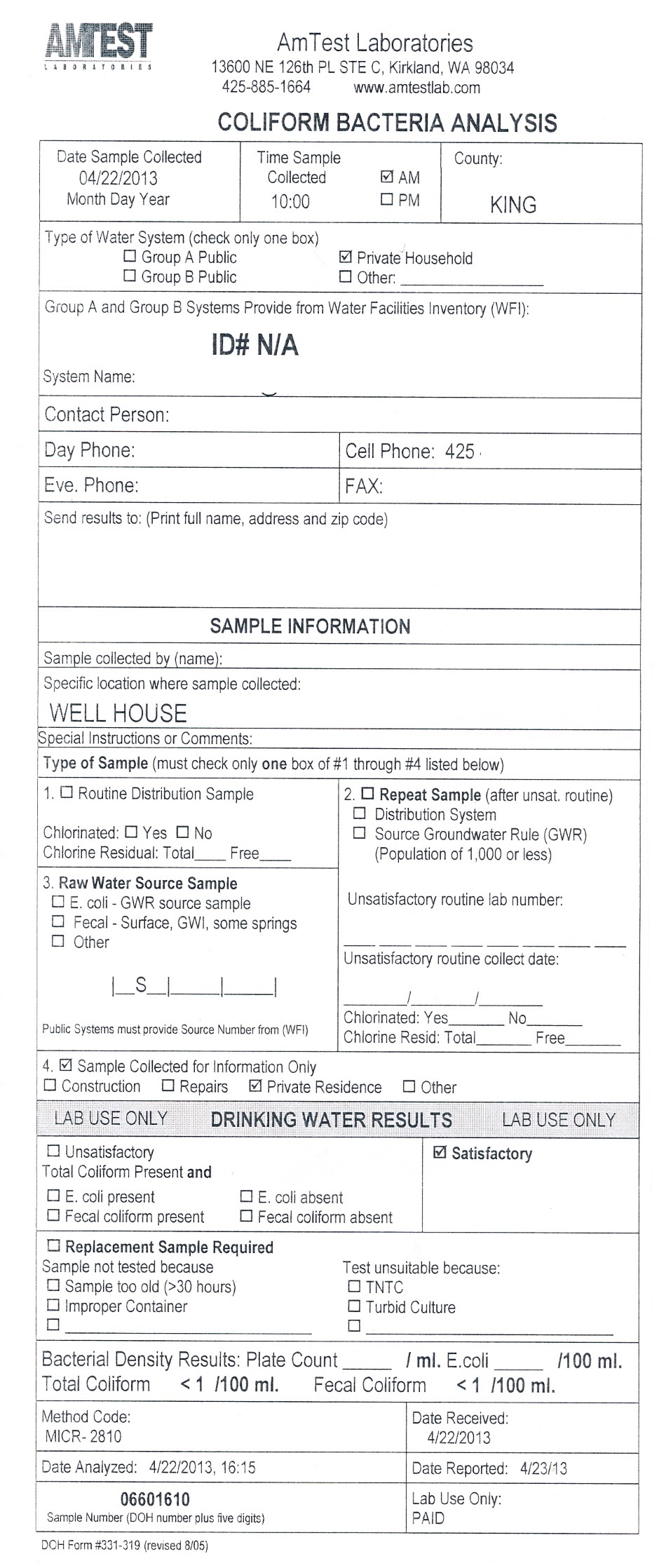

In the submission you need to include a test report to show that the well water is not contaminated...



Health Dept Submission

Health Dept Submission

Health Dept Submission

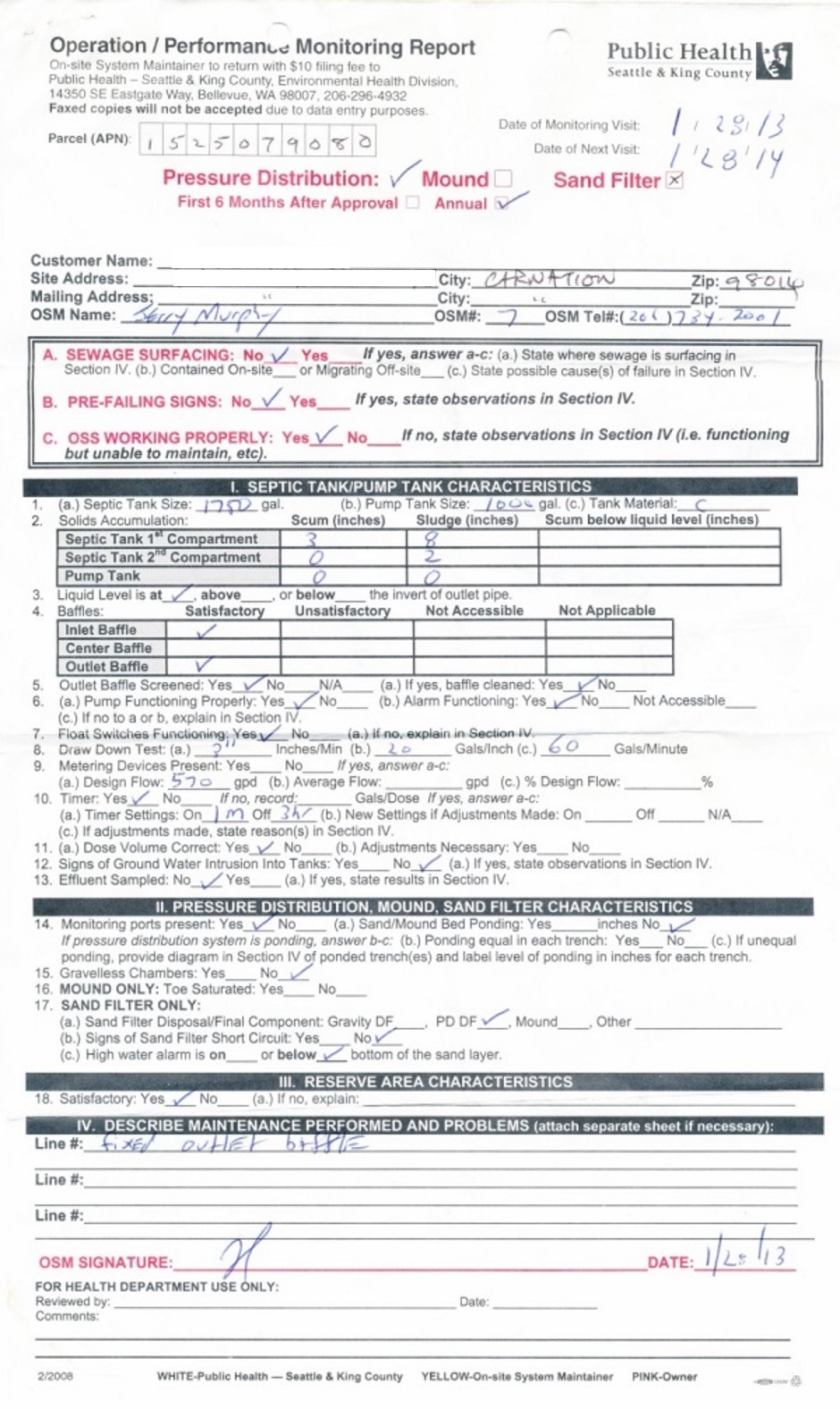

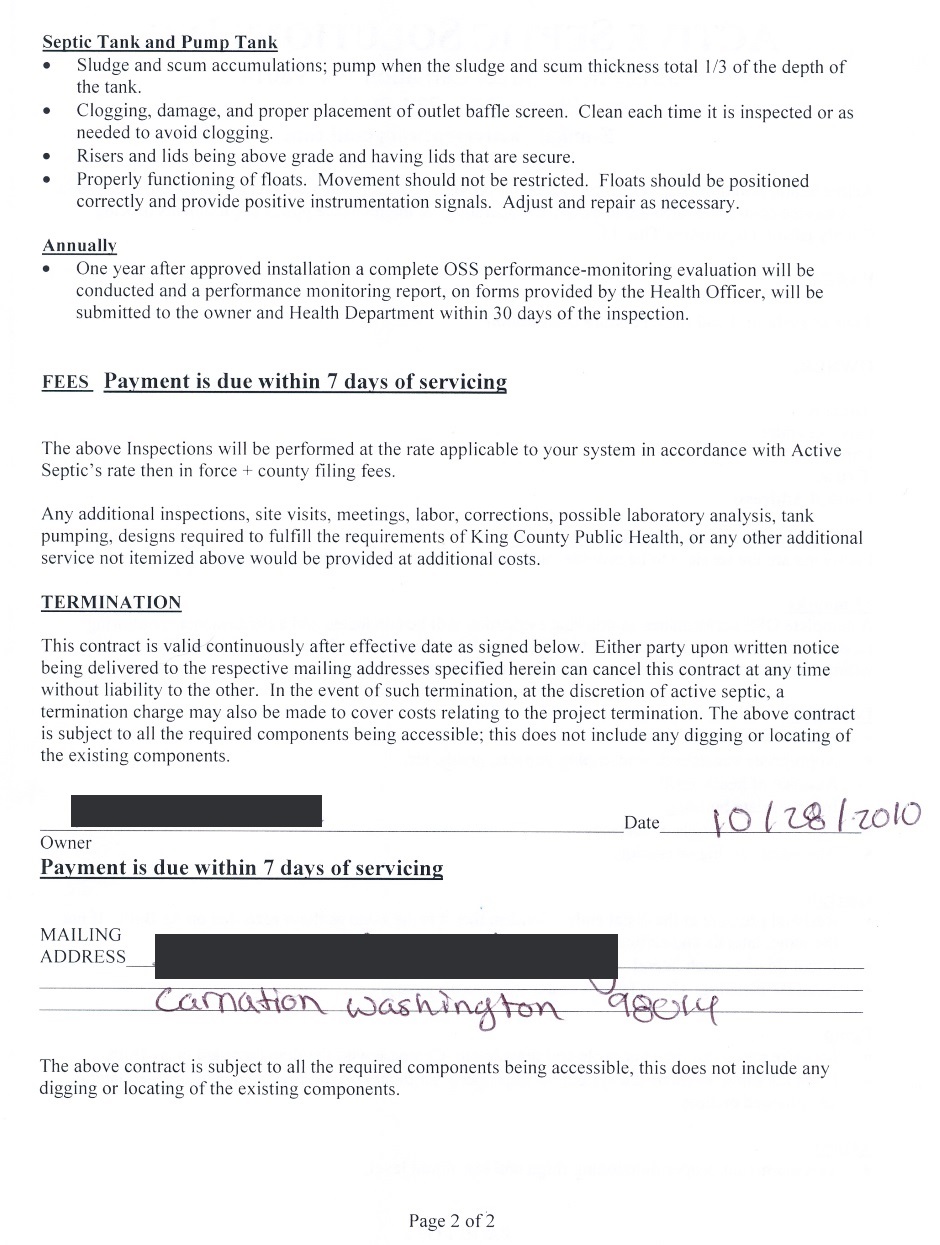

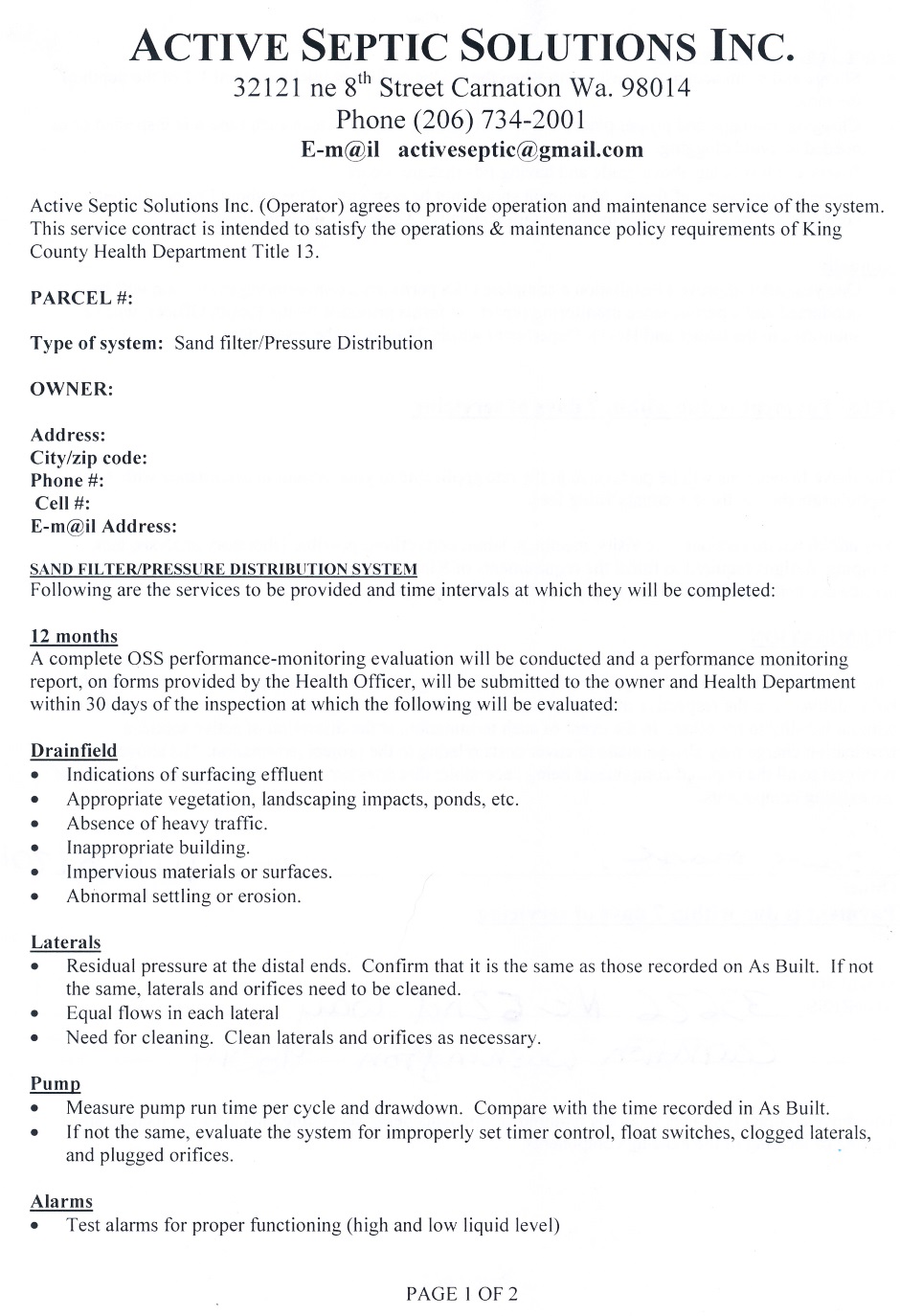

The submission needs a copy of the annual septic inspections that you have previously had performed.  (There is actually a law that says all septic systems in Washington stage must be inspected by a licensed septic guy once a year.)

Health Dept Submission

Septic Maintenance Contract Cleaned 01

Septic Maintenance Contract Cleaned 02

Septic Inspection Feb 11th 2015 Cleaned

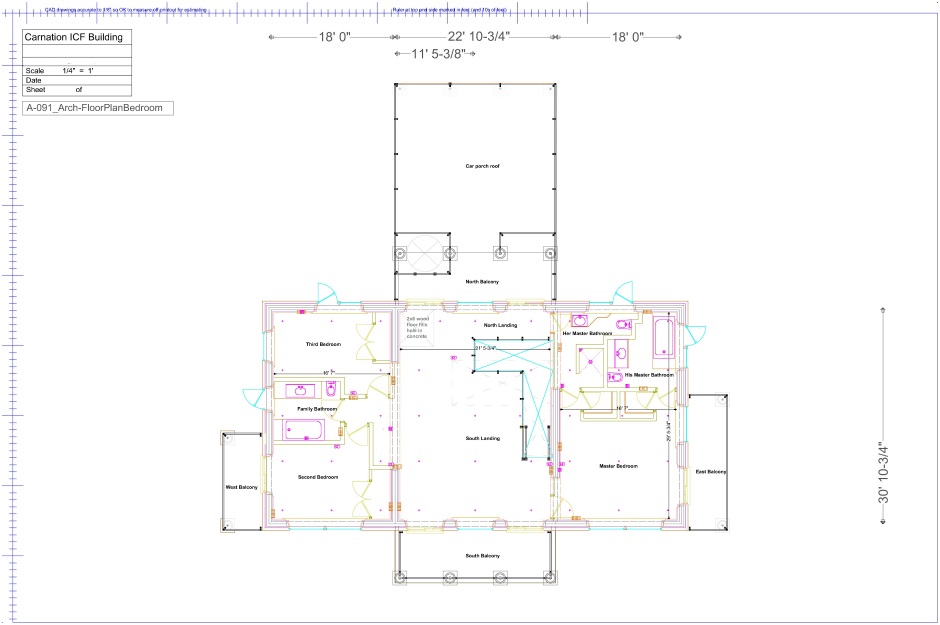

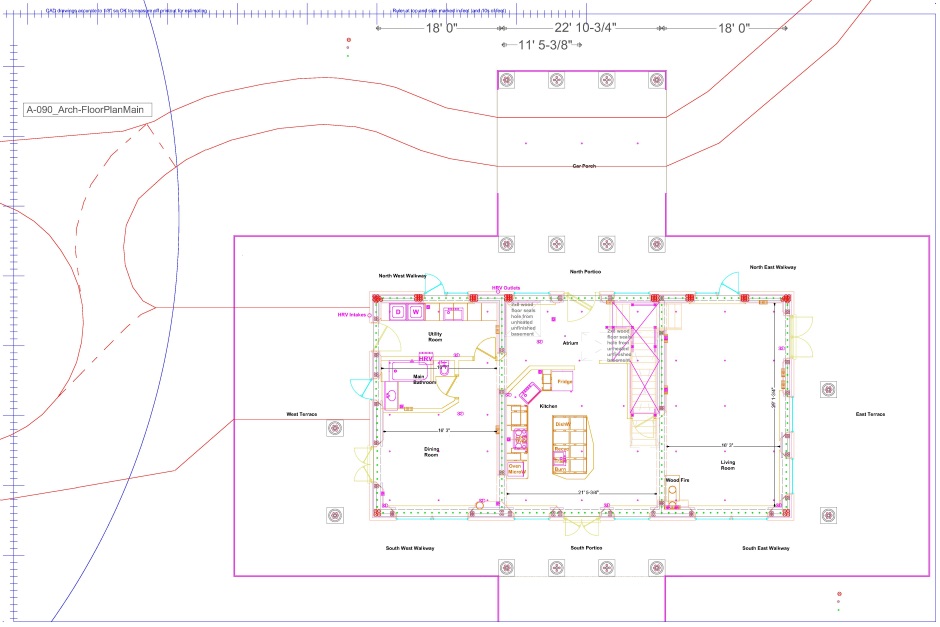

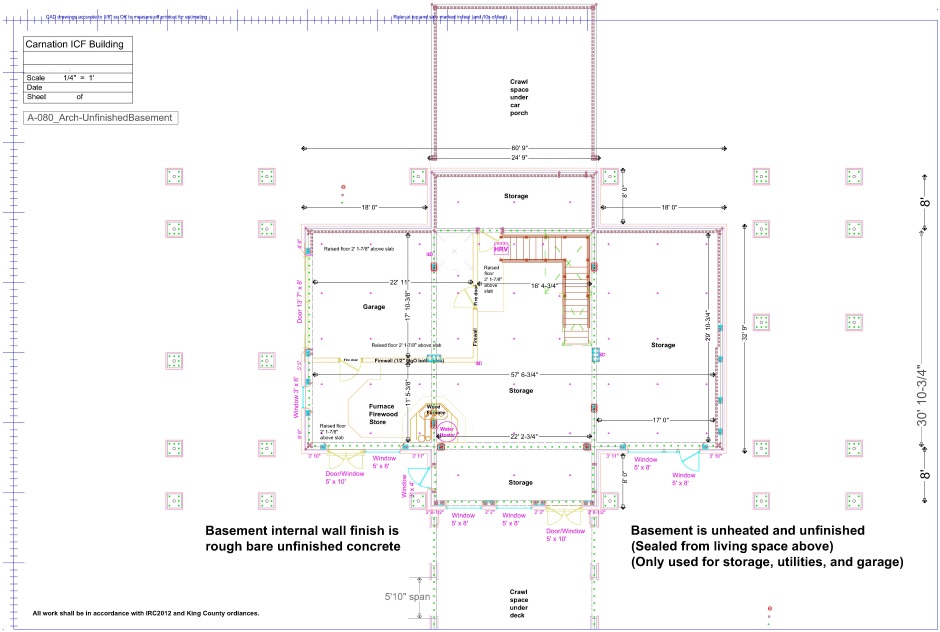

The submission needs the floor plans for the house so they can see how many bathrooms and sinks there will be in the house...

Health Dept Submission

Health Dept Submission

Health Dept Submission

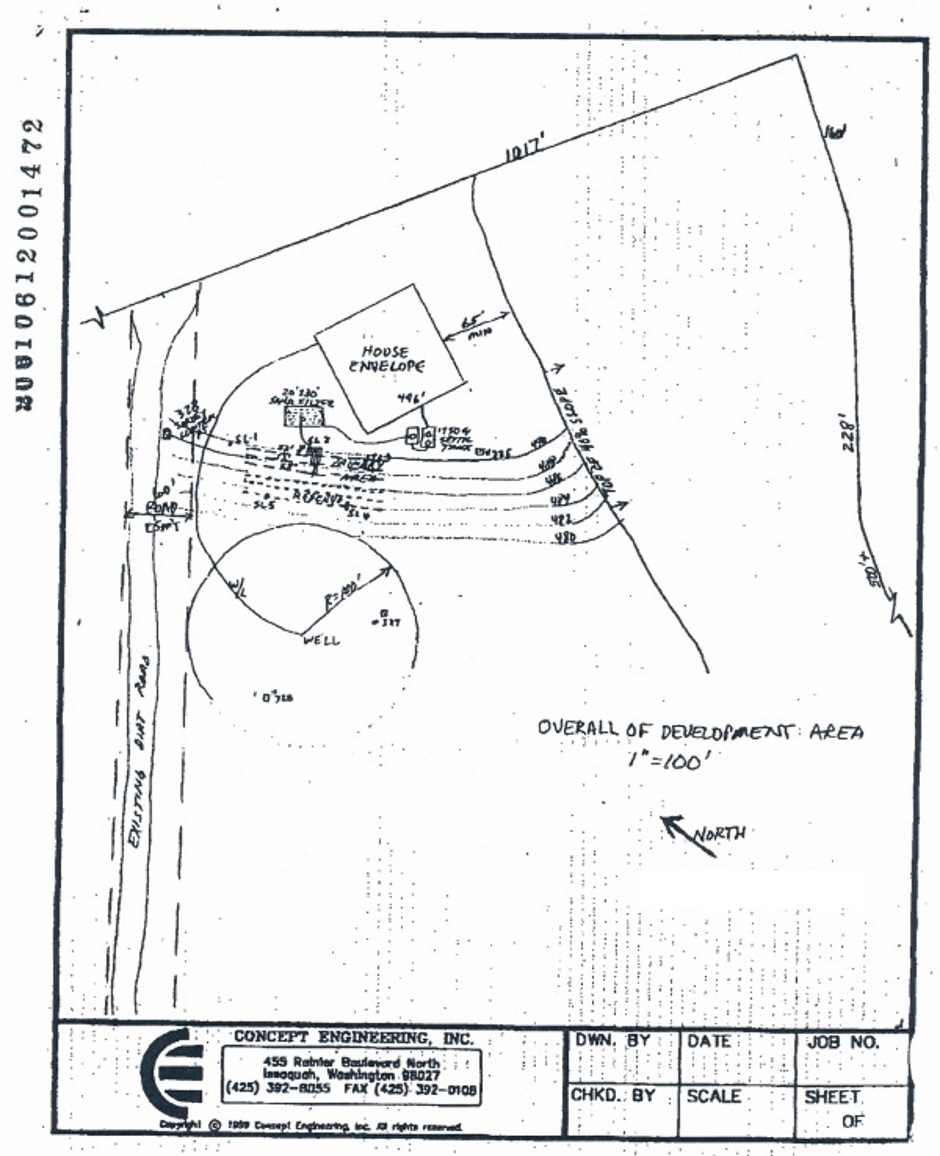

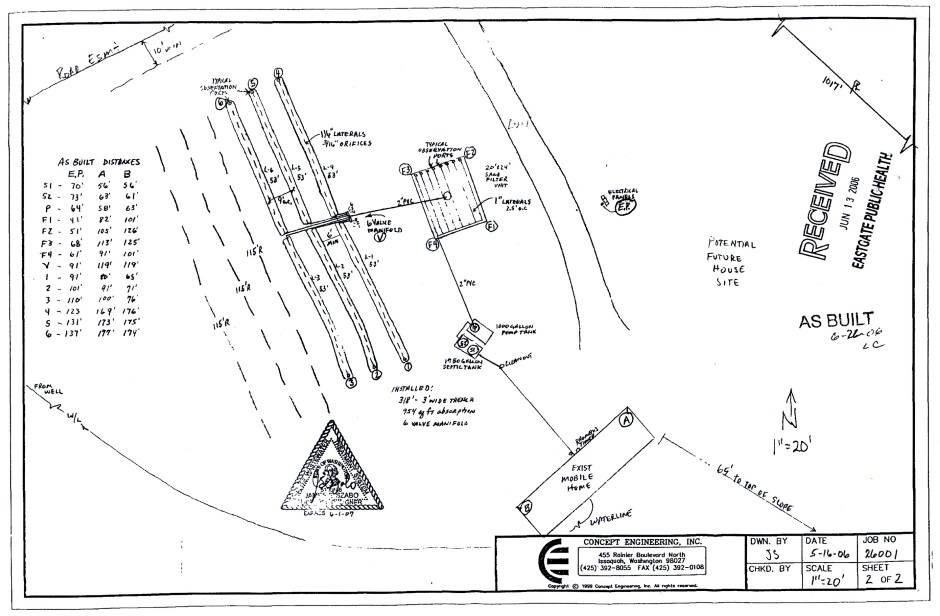

The submission needs to include the "as built" for the existing septic system...

Health Dept Submission

Health Dept Submission

Health Dept Submission

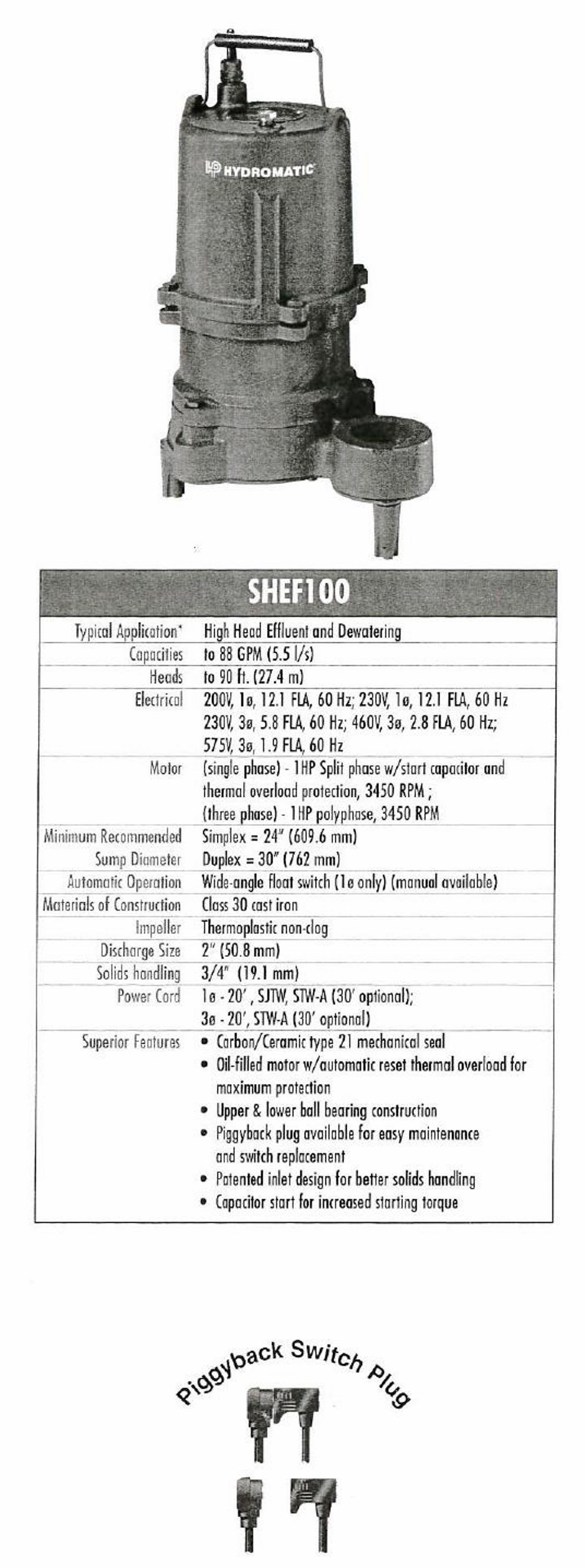

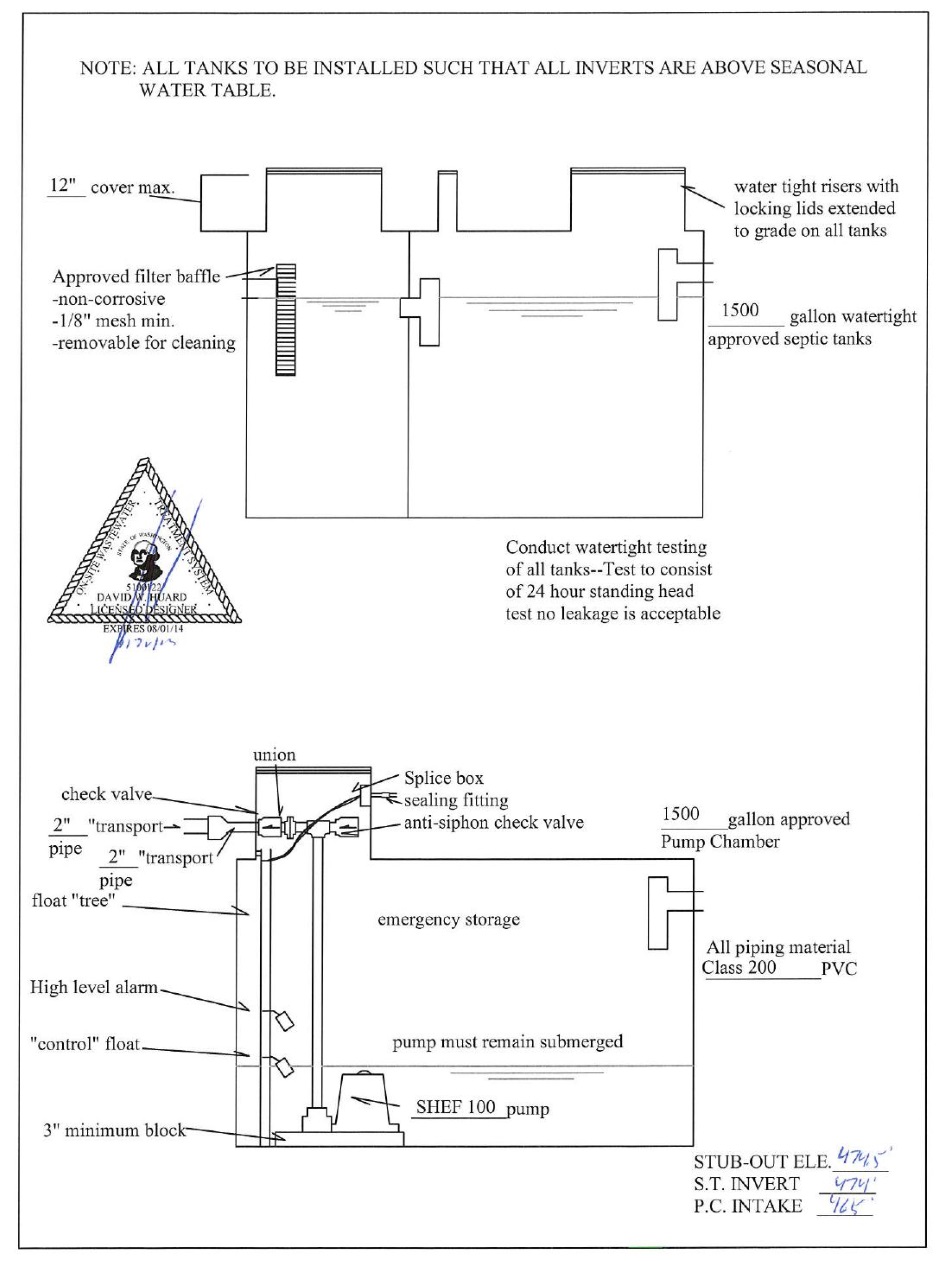

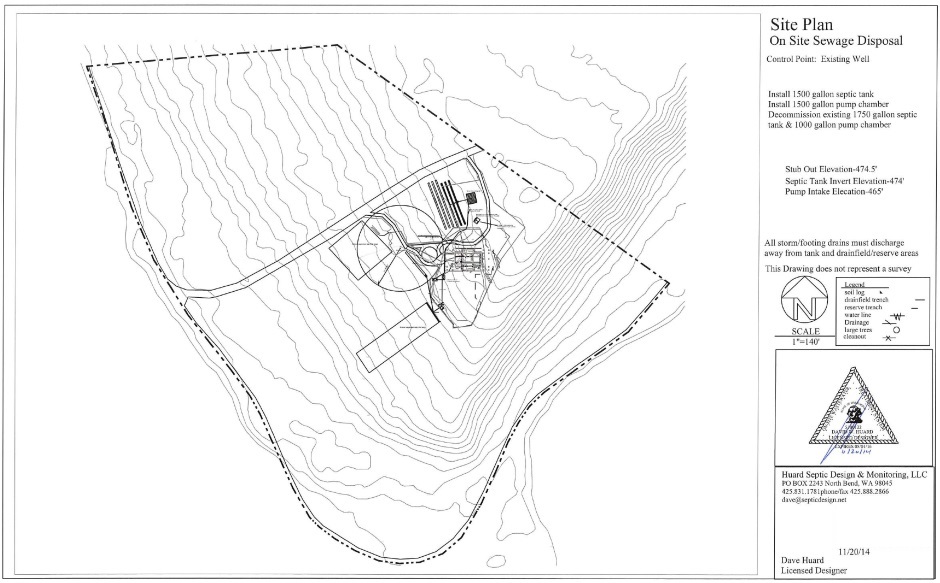

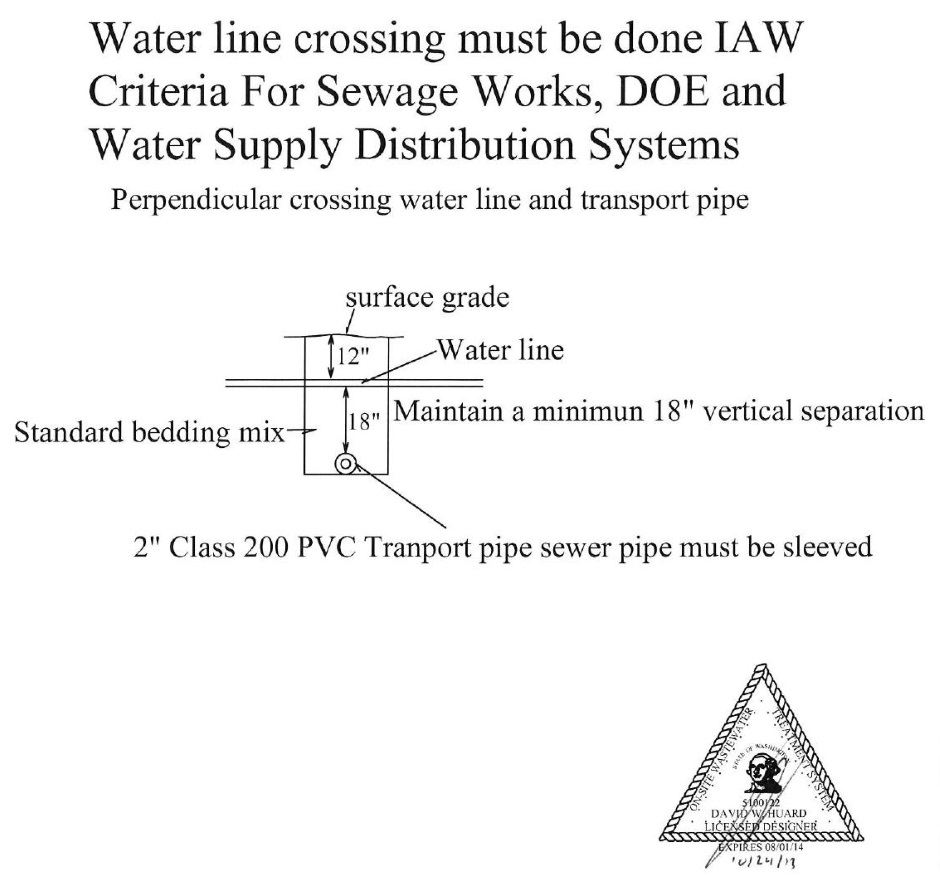

And last but not least the actual proposed design (submitted separately by the Licensed Septic Designer) needs to form part of the submission...

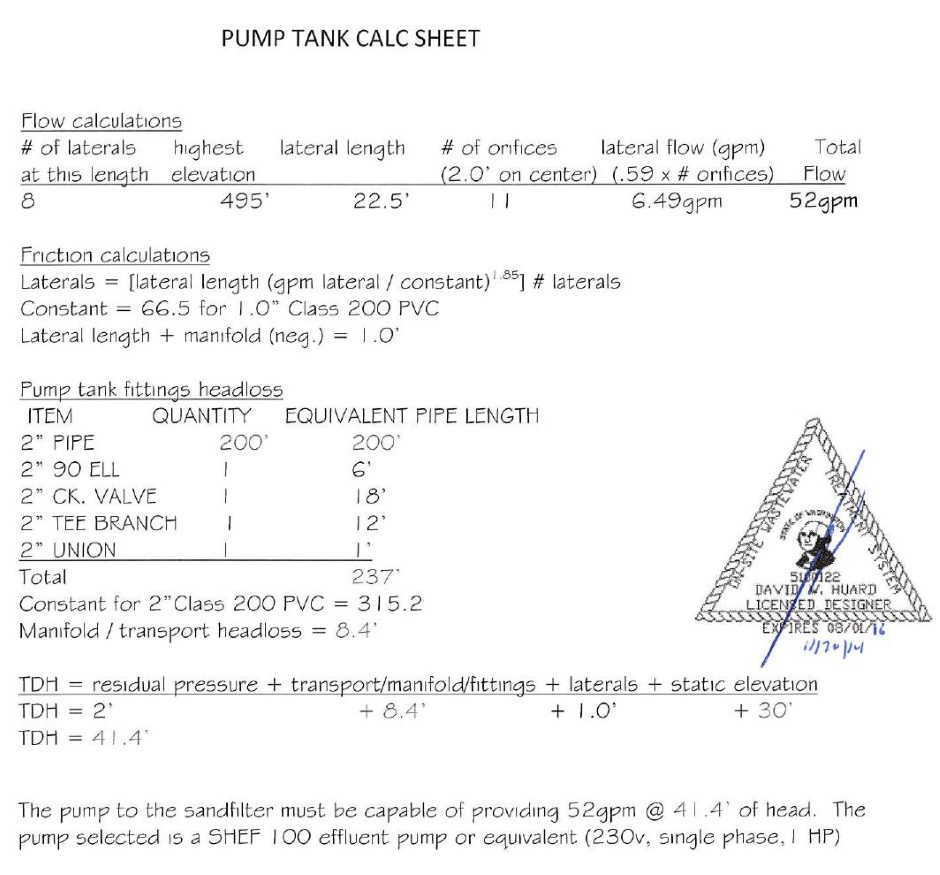

Septic design

Septic design

Septic design

Septic design

Septic design

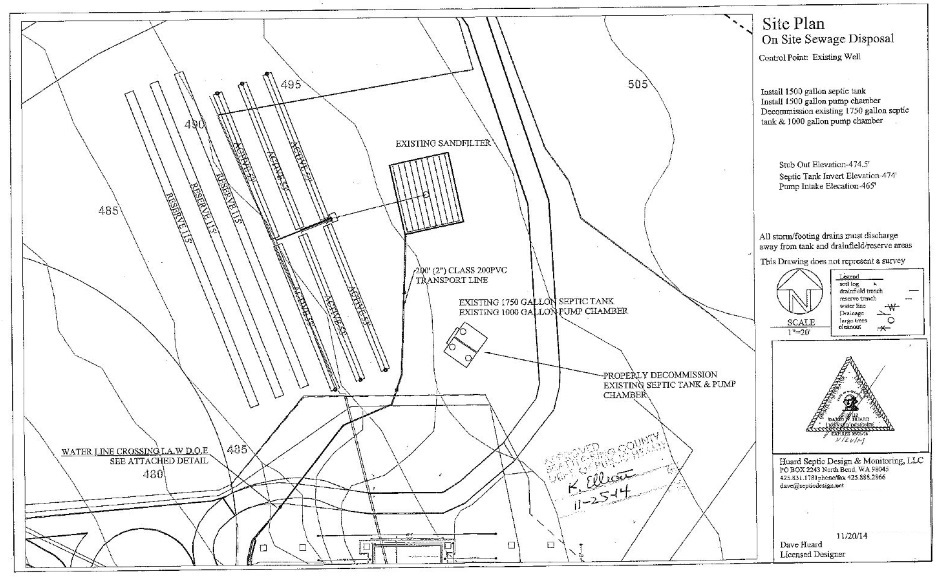

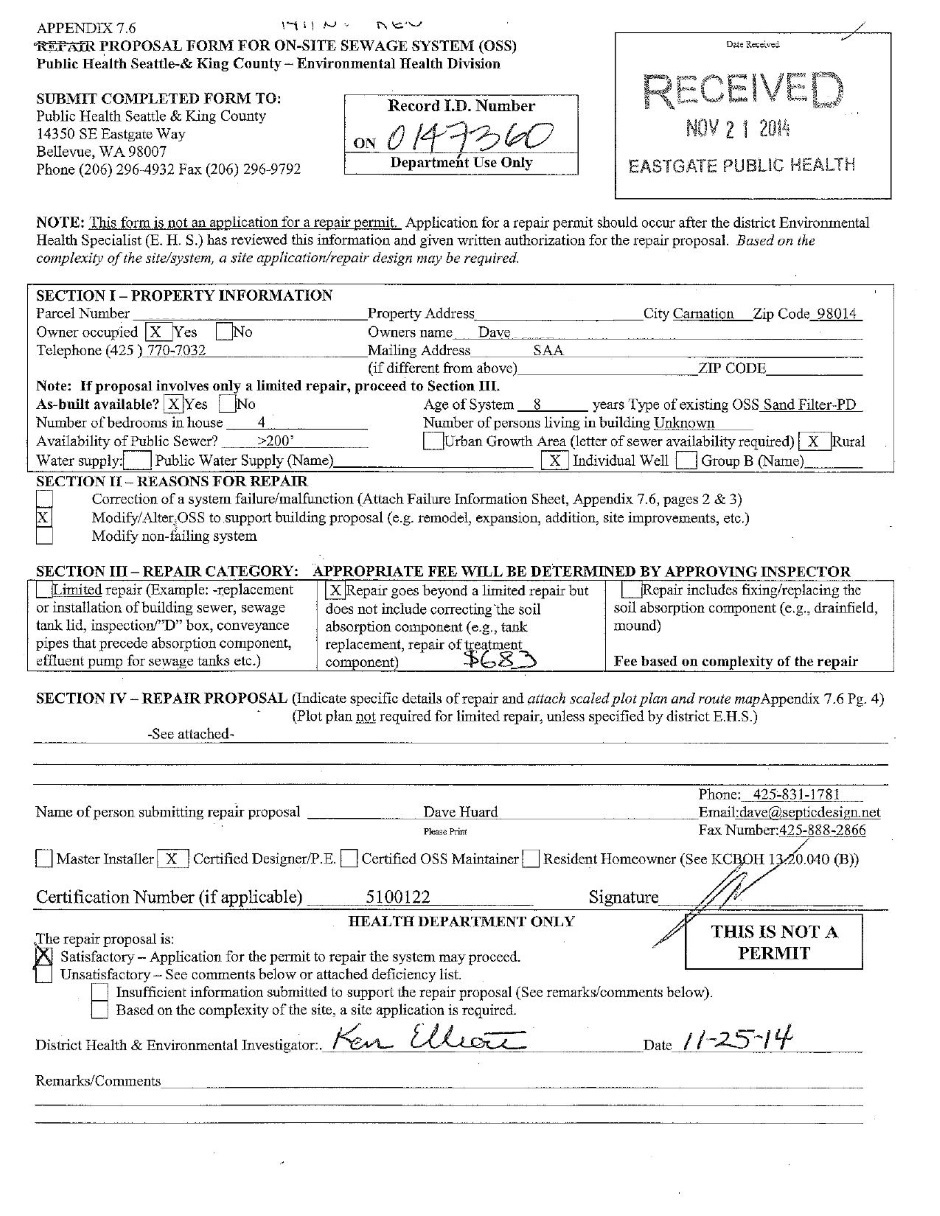

If the submission of the proposed design is successful then you should get an email and a copy of you submission with signatures and approval stamps.  The approved proposed design is needed to give to the planning department before they will start the process of reviewing your house building permit application.

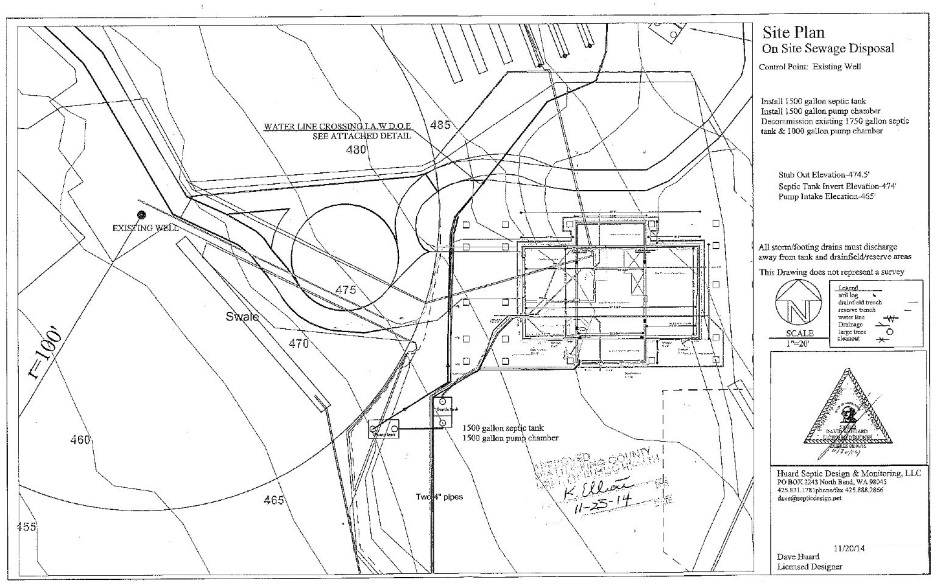

Septic design approval

Septic design approval

Septic design approval

Septic design approval





*
