Basalt Rebar Design - Carnation Standard Pieces

Star These are the pieces I designed and have manufactured for me as per my drawings.



Carnation Basalt Rebar Stirrups and standard lengths

These are the standard rebar parts that I get manufactured.  As well as the stirrups there are also drawings for the standard lengths of straight rebar that I use.  If you need stirrups or lengths of basalt rebar then I am happy to supply to you.  Send me email for the prices on the different standard items.

Dave email address

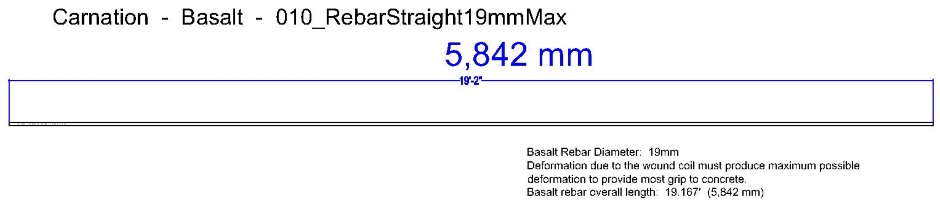

010_RebarStraight19mmMax

010_RebarStraight19mmMax

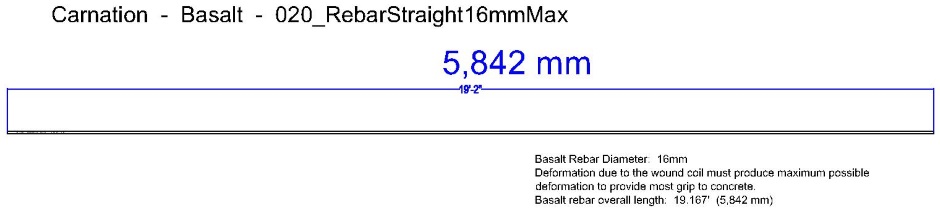

020_RebarStraight16mmMax

020_RebarStraight16mmMax



030_RebarStraight13mmMax

030_RebarStraight13mmMax



040_RebarStraightBendEnd13mm

040_RebarStraightBendEnd13mm



050_RebarStirrupFootingBigU

050_RebarStirrupFootingBigU



060_RebarStirrupFootingBigL

060_RebarStirrupFootingBigL



070_RebarStirrupFootingBigHoriz

070_RebarStirrupFootingBigHoriz



080_RebarStirrupColumnRectangle

080_RebarStirrupColumnRectangle



090_RebarStirrupExtraLAcross

090_RebarStirrupExtraLAcross



100_RebarStirrupInvertedTopHat5ft6in

100_RebarStirrupInvertedTopHat5ft6in



110_RebarStirrupCowHead5ft6in

110_RebarStirrupCowHead5ft6in



120_RebarStirrupCowHead3ft6in12in

120_RebarStirrupCowHead3ft6in12in



130_RebarStirrupCowHead3ft6in

130_RebarStirrupCowHead3ft6in

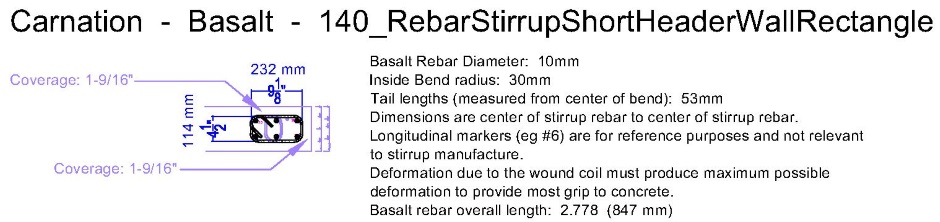

140_RebarStirrupShortHeaderWallRectangle

140_RebarStirrupShortHeaderWallRectangle



150_RebarStirrupExtraLAcross8in

150_RebarStirrupExtraLAcross8in



160_RebarStirrupPorticoHooked

160_RebarStirrupPorticoHooked



170_RebarStirrupFloor

170_RebarStirrupFloor



180_RebarStirrupCowHead12in

180_RebarStirrupCowHead12in



190_RebarStirrupDeckColumn

190_RebarStirrupDeckColumn

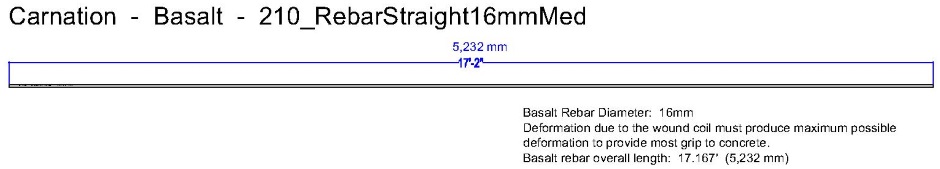

200_RebarStraight19mmMed

200_RebarStraight19mmMed



210_RebarStraight16mmMed

210_RebarStraight16mmMed



220_RebarStraight16mmMin

220_RebarStraight16mmMin



230_RebarStirrupColumnSquare

230_RebarStirrupColumnSquare



240_RebarStirrupInvertedTopHat4ft6in

240_RebarStirrupInvertedTopHat4ft6in

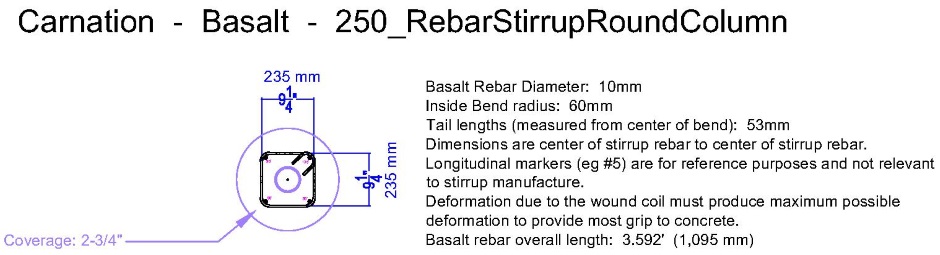

250_RebarStirrupRoundColumn
